Intersecting Surfaces

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 870 views

3D model description

We often discuss intersecting surfaces in my Multivariable Calculus class. It has been useful to have the Intersecting Planes model, but I wanted one with other types of surfaces and this matches one of the examples I use in a lesson.

Designed with Mathematica.

Also see my Quadric Surfaces Set.

3D printing settings

Full-size, whole models approximately:

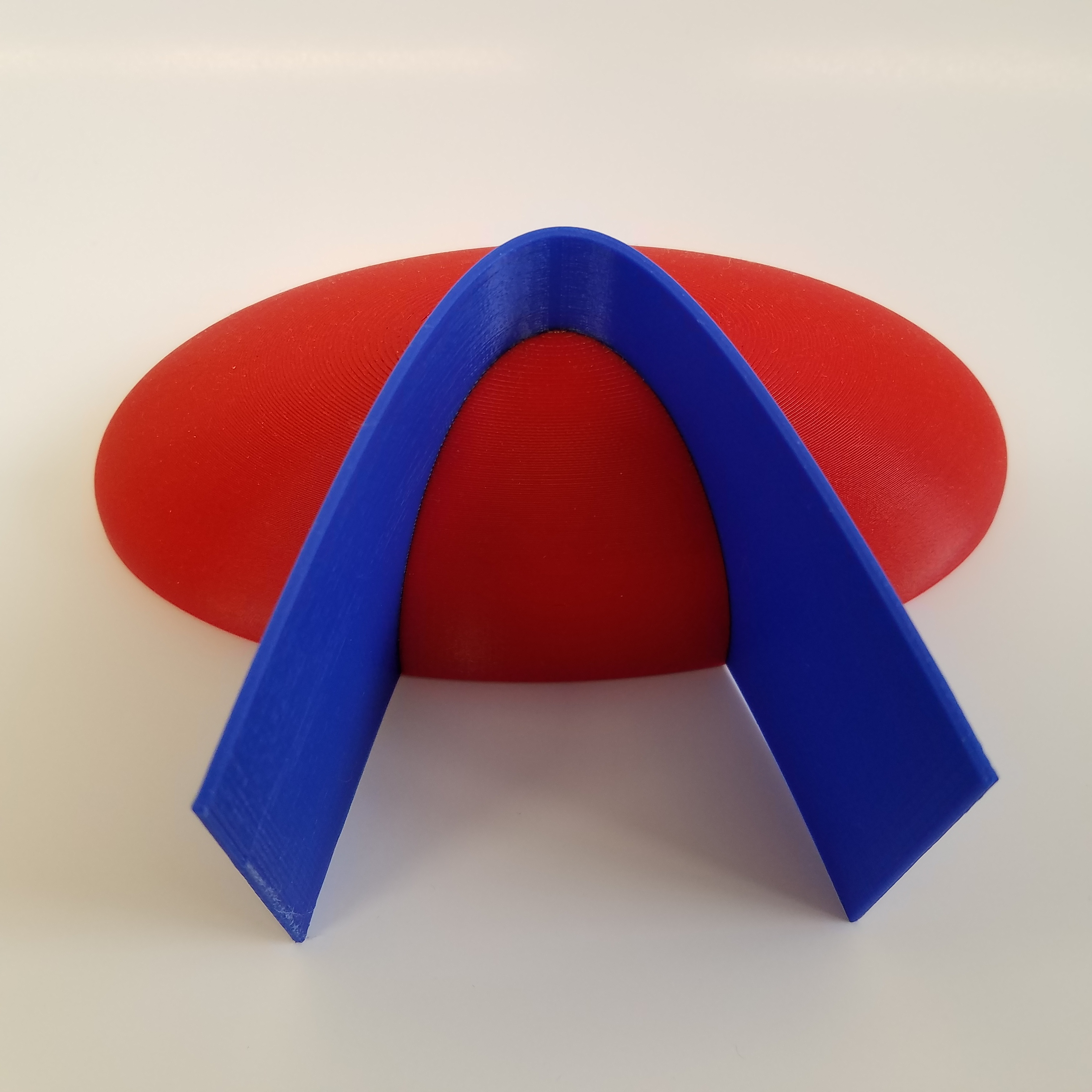

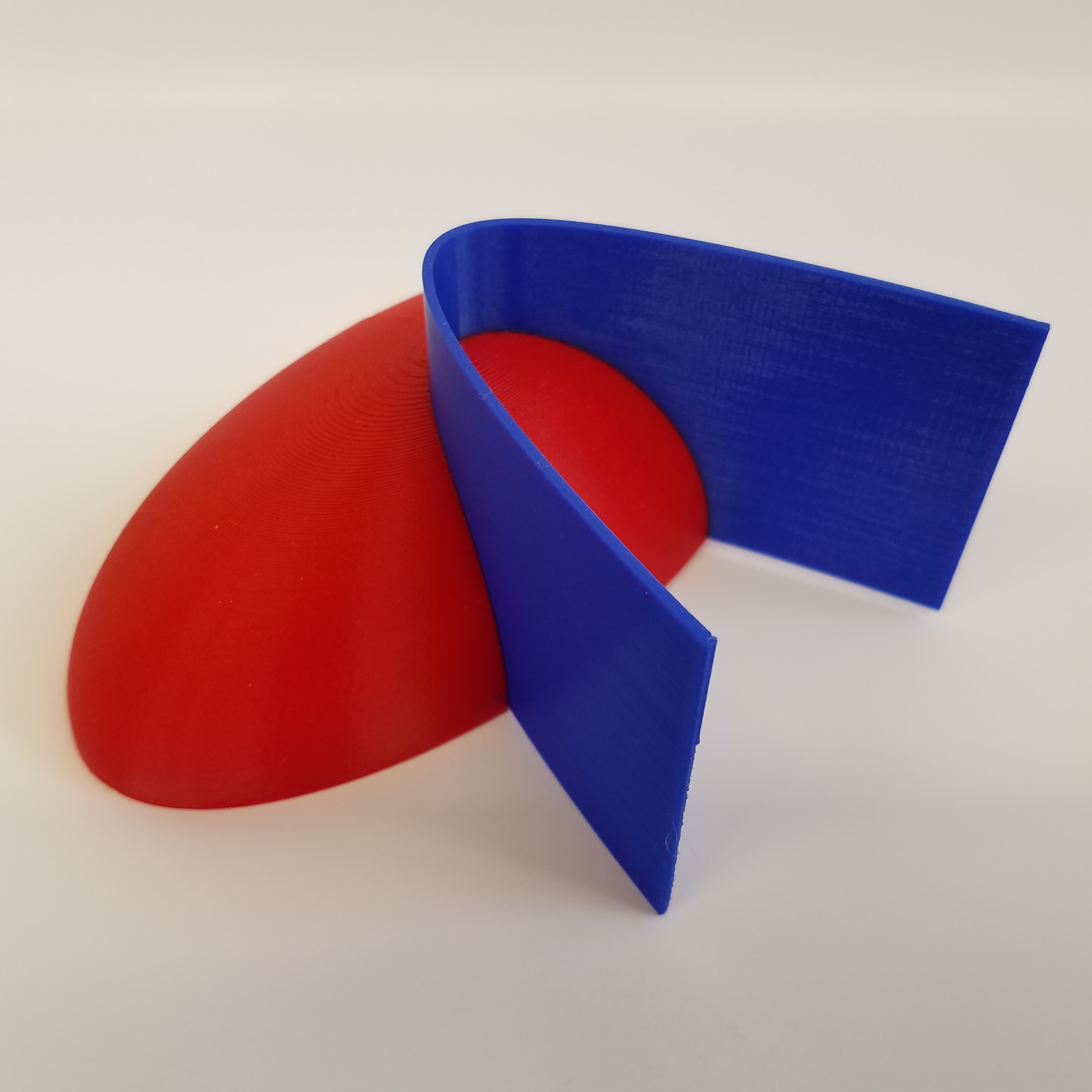

Parabolic Cylinder 81 x 82 x 120 mm
Ellipsoid 82 x 161 x 82

I printed only the top half of this by lowering the models into the bed (i.e., keeping the z offset to 0.00). I printed with supports for the ellipsoid.

Note that each model is whole. There is no gap created to make them "fit" together so technically part of the space is printed twice, though Simplify3D and my MakerGear M3-ID handled this fine.

  • 3D file format: STL
  • Publication date: 2019/11/16 at 21:31
