How to build a Giant Hidden Shelf Edge Clock - 3D Printable | Elegoo Arduino Nano | Smart Home | LED
?
- 6.6k views
- 14 likes
- 80 downloads
- <span class="text--light">0</span> comments
- <span class="text--light">0</span> makes
Designer
3D model description

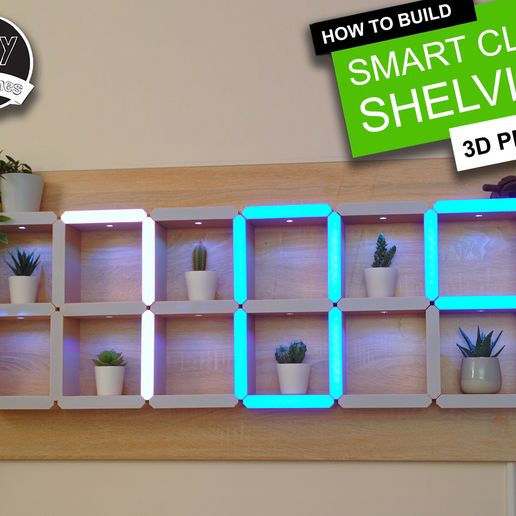

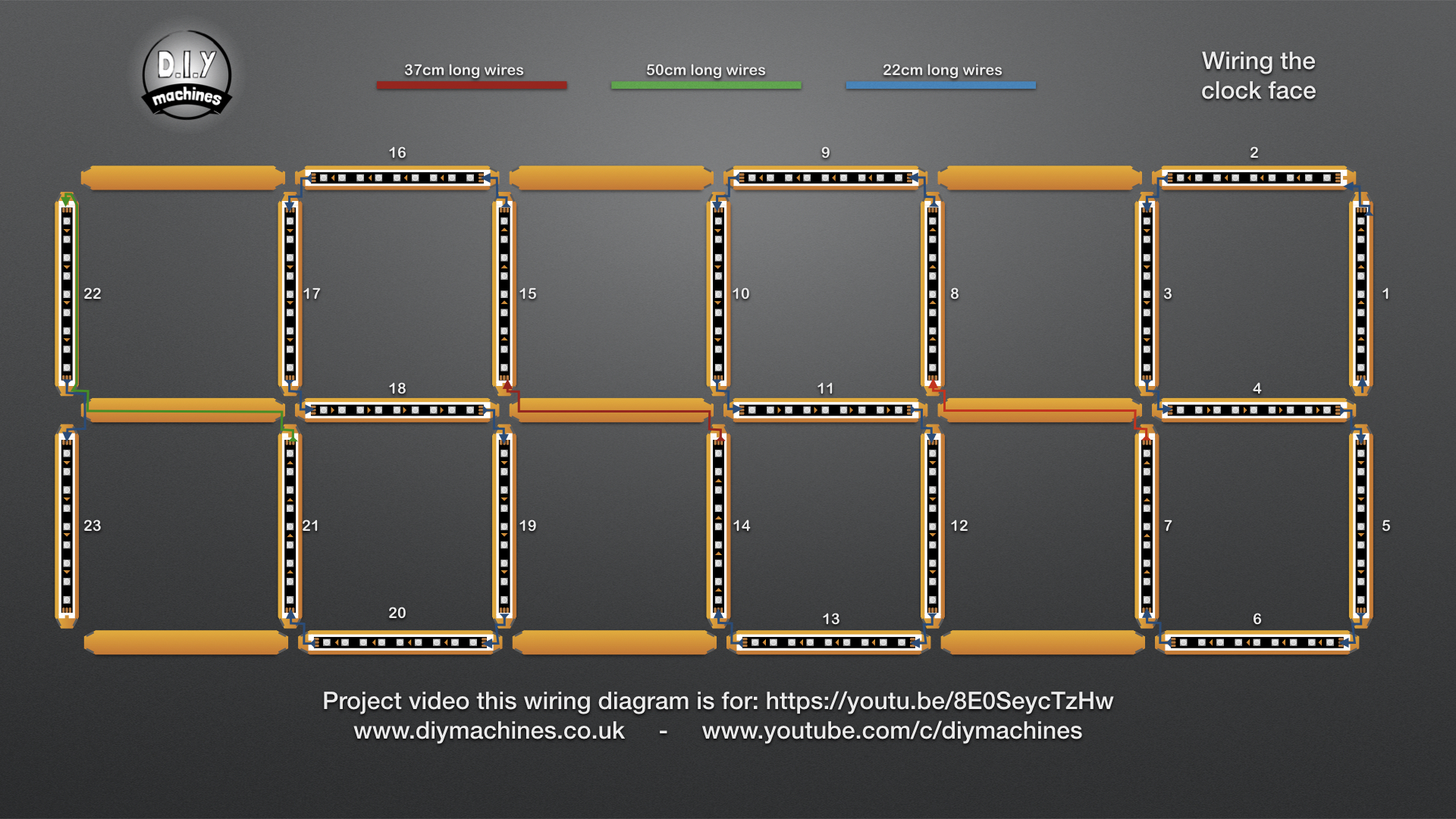

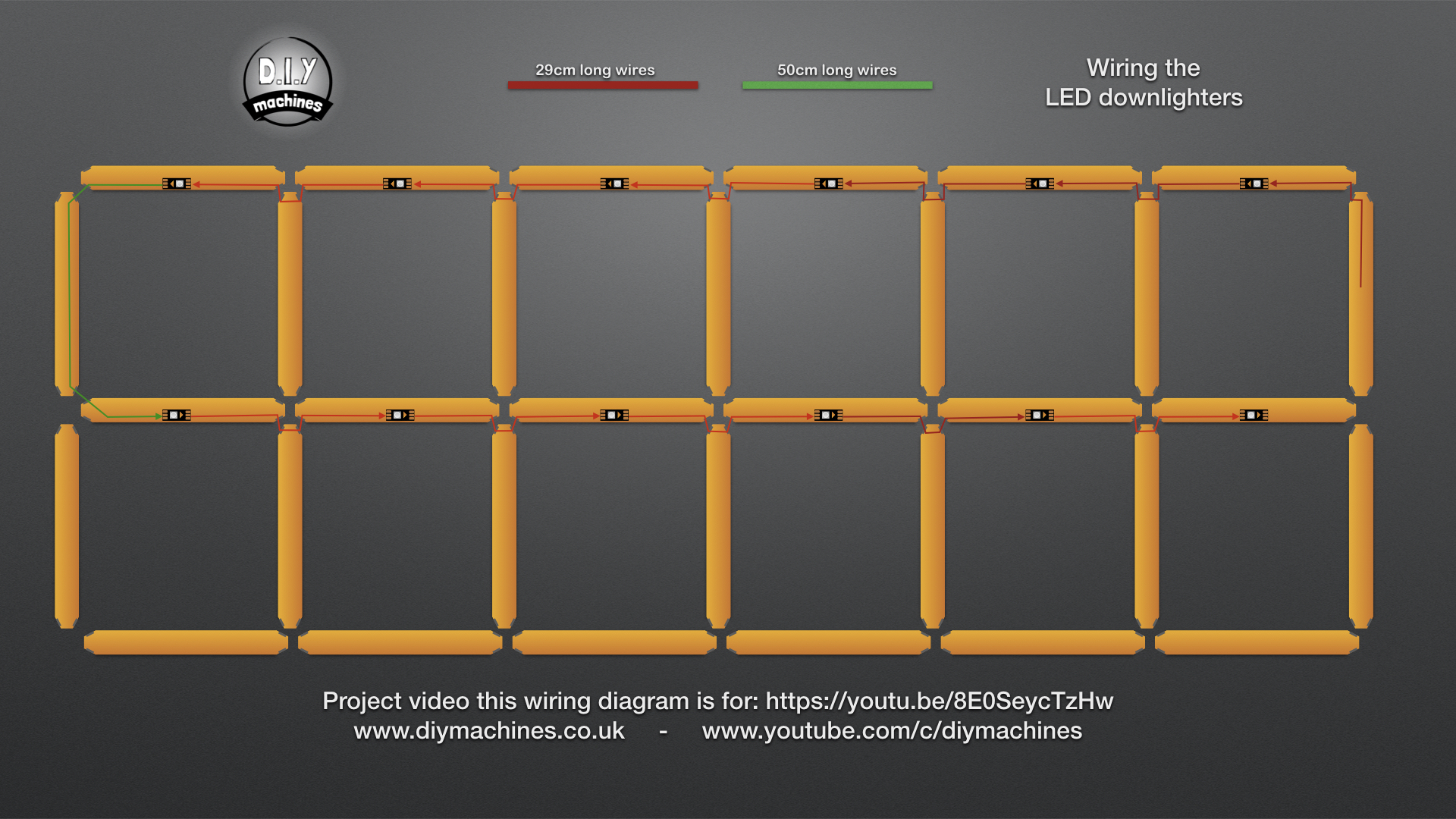

I'll show you how to build a very smart looking shelving system that includes a hidden giant clock in the edges of the shelves, and integrated LED downlighters to show off your favorite items on the shelves.
I'll show you how to build a very smart looking shelving system that includes a hidden giant clock in the edges of the shelves, and integrated LED downlighters to show off your favorite items on the shelves.
As the lighting is LED (using WS2821B 'Neopixels') you can choose your own colours. A discreet photoresistor also dims the LED's when the ambient light levels drop - great for evening ambiance in any room.
List of items used in this project and where to find them:
■ An Arduino Nano(x1): https://geni.us/ArduinoNanoV3
■ A 5m roll of WS2812B LEDS which has 60 LED’s a meter: https://geni.us/5mWS2812B60m
■ A Photosensitive resistor module: https://geni.us/PhotoresistorModule
■ A DS3231: https://geni.us/DS3231-RTC
■ Some Hook up wire - ideally three different colours: https://geni.us/22AWGWire
■ A couple of 470 Ohm resistors: https://geni.us/Ufa2s
■ A couple of electric terminal block strips - each 5 blocks long: https://geni.us/TerminalBlocks
■ No 8 wood screws: https://geni.us/No8Screw
■ A 5v power supply with screw terminals: https://geni.us/PowerSupplyTerm
■ Some thicker twin core cable
These are some of my favorite tools I use and can recommend:
■ Battery-powered glue gun: http://geni.us/BoschBatteryGlueGun
■ Bosch Bit Driver: https://geni.us/Bosch-Screwdriver
==========
The code can be downloaded from here:
https://github.com/DIY-Machines/DigitalClockSmartShelving
Build video:
https://www.youtube.com/watch?v=8E0SeycTzHw
CAD drawing for CNC drilled backboard (if you have access to someone/ a CNC machine):
https://lewisaburrow.selz.com/item/5e6408ec701f5d0b8c849dd0
==========
SAY THANKS:
Provide continual and dependable support through Patreon:
Support us on Patreon: https://www.patreon.com/diymachines
Buy me a coffee to say thanks: https://ko-fi.com/diymachines
SUBSCRIBE:
■ https://www.youtube.com/channel/UC3jc4X-kEq-dEDYhQ8QoYnQ?sub_confirmation=1
INSTAGRAM: https://www.instagram.com/diy_machines/?hl=en
FACEBOOK: https://www.facebook.com/diymachines/
==========
List of camera and lighting equipment I use:
Sony A7 III: https://geni.us/Sony-Alpha7-III
Tamron 28-75mm F2.8 RXD A036SF Lens for Sony-FE : https://geni.us/TamronRXD-28-75mm
Aputure Amaran HR672C: https://geni.us/AputureAmaranHR672C
Aputure MC: https://geni.us/FAPGL
RØDE VideoMic Pro+: https://geni.us/RodeVideoMic-ProPlus
Blue Snowball iCE: https://geni.us/BlueSnowball-iCE
Philips Hue Lightstrip Plus: https://geni.us/PhilipsHue-LightStrip
Disclaimer:
This video is shared for demonstration purposes only.
3D printer file information
- Design number: 115963
-
3D design format: STL Folder details Close
- Core2.STL
- Core4-Arduino.STL

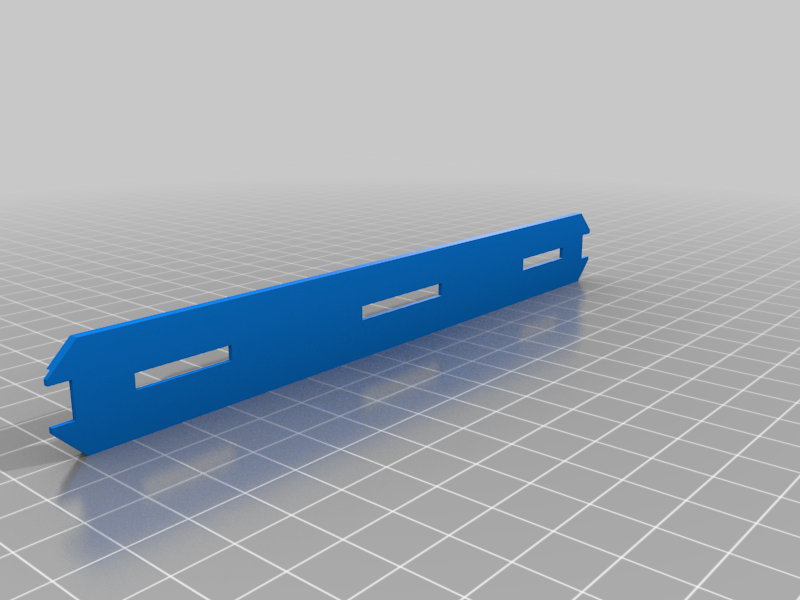

- LEDMount.STL

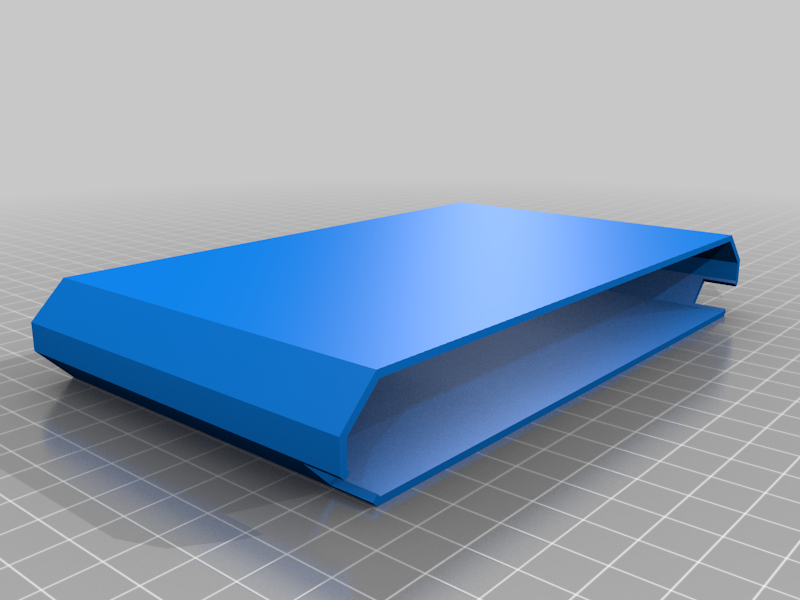

- Sleeve1.STL
- Sleeve2.STL

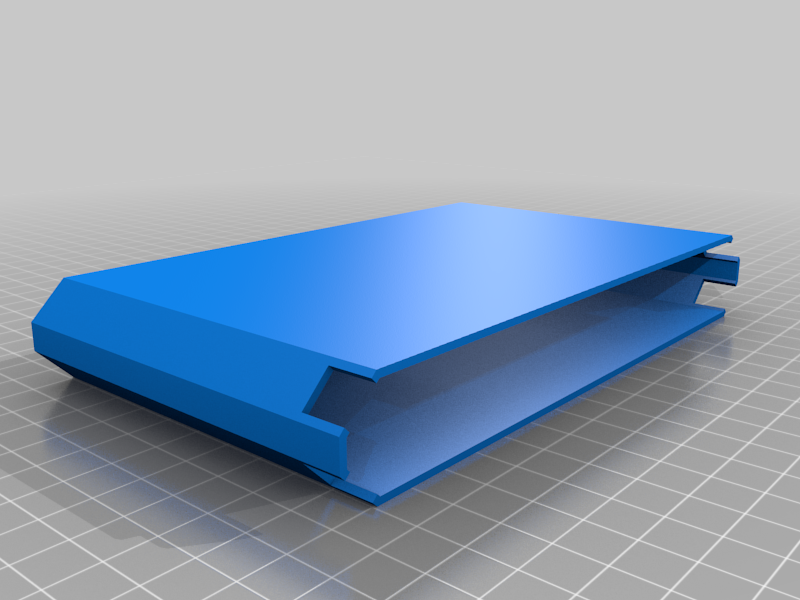

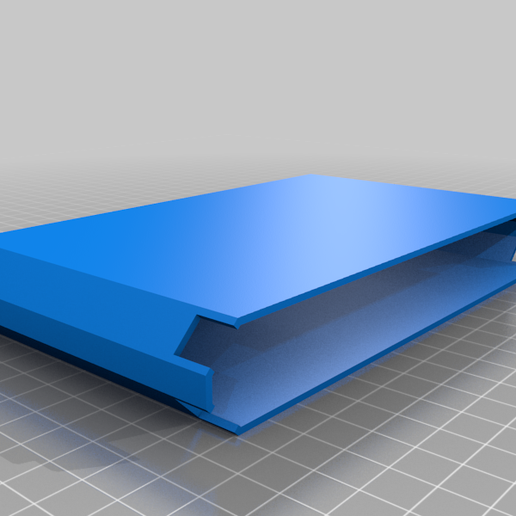

- Sleeve3.STL
- Sleeve4.STL
- Sleeve5.STL

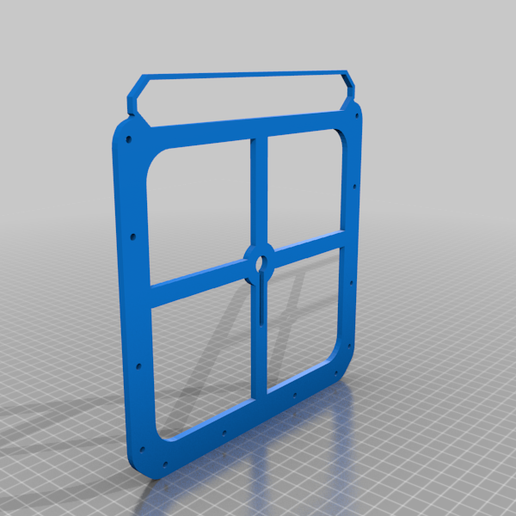

- Template2.STL
-
