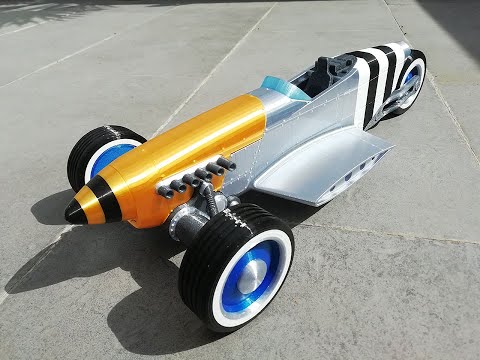

Hot Rod North American P-51D Mustang fighter

3D model description

This is a personal version of what would be for me the hot rod version of North American Aviation P-51 Mustang trying to include details of classic American cars of the 40´s.

Here is the story of this iconic fighter plane:

https://en.wikipedia.org/wiki/North_American_P-51_Mustang

I recommend you print it with your favorite colors!

It is a model that requires a little more time than a single print piece but in my opinion the result is spectacular.

I hope you like it as much as I do and that you enjoy its printing and assembly.

I have tried to simplify the design of the pieces to facilitate their printing and assembly.

In total there are 33 pieces.

The terrible video of the assembly!!.... although it is quite simple and intuitive.

https://youtu.be/qRjqrjO7t2M

3D printing settings

First I will indicate the CURA general print settings and then detail them for each piece

Nozzle: 0.4 mm

Layer Height: 0.2 mm

Line Width: 0.33 mm

Wall Line Count: 3

Top/Bottom Pattern: According to piece.

Initial Layer Horizontal Expansion: -0.2

Infill Density: 20%.

Infill Speed: 60 mm/s

Outer Wall Speed: 20 mm/s

Inner Wall Speed: 35 mm/s

Top/Botton Speed: 30 mm/s

Support: According to piece

Support Over Hang Angle: According to piece

Support Density: 15%.

Support Interface Thickness: 0.6 mm

Support Interface Density: 65

Use Towers: No

Printable parts:

IMPORTANT! See photos for the print position of each piece.

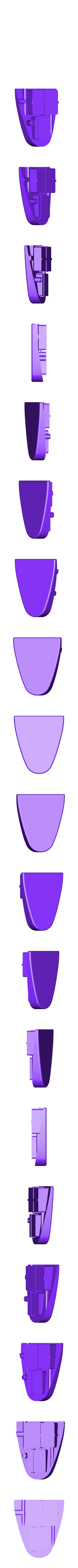

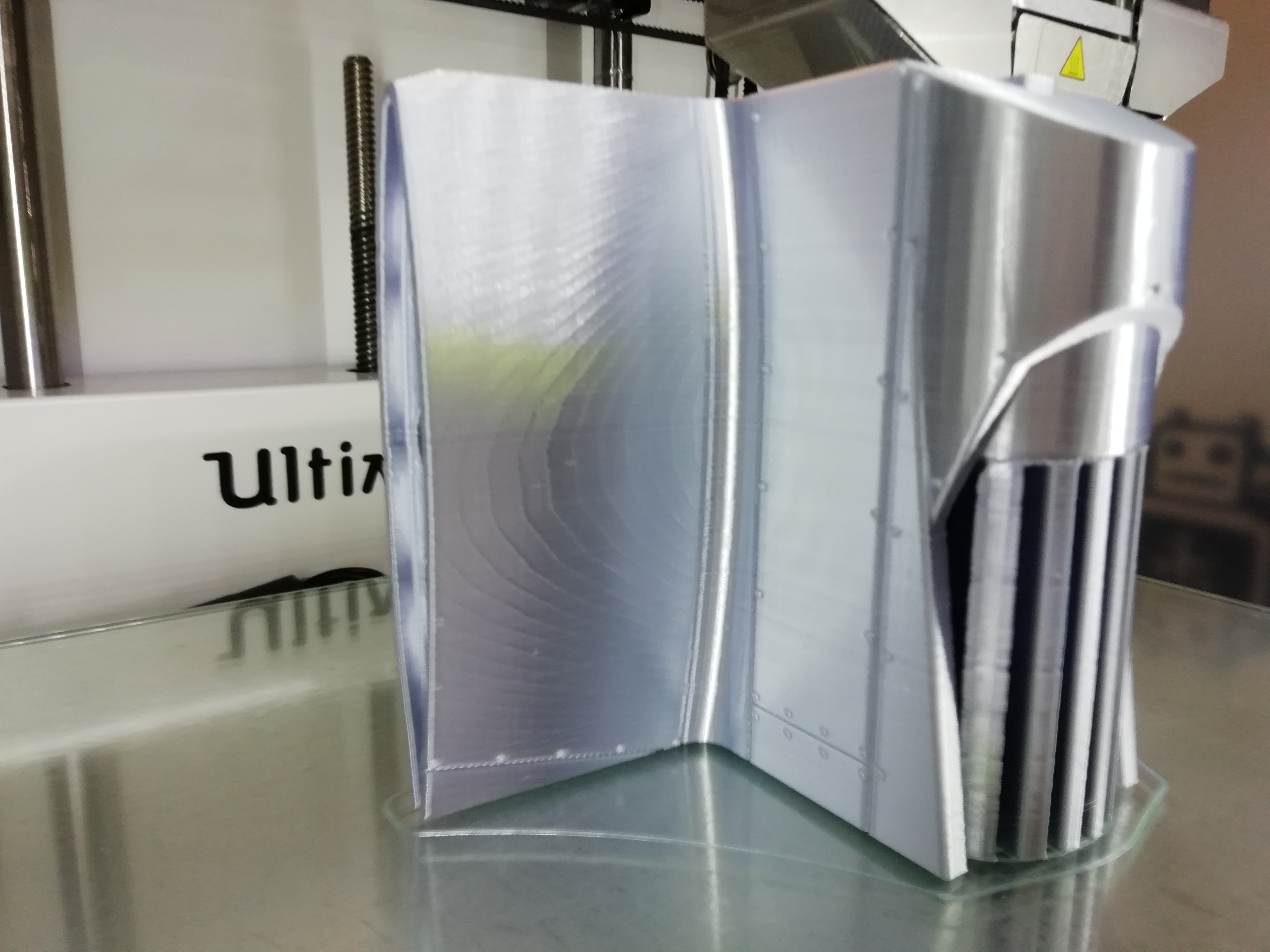

  • 1xBody_A: Approx.Time: 13 h. Material: 147 gr.

    Top/Bottom Pattern: Lines

    Support: Yes

    Support Over Hang Angle: 87th

    Recommended filament: Polyalchemy Elixir Silver or Fillamentum Rapunzel Silver.

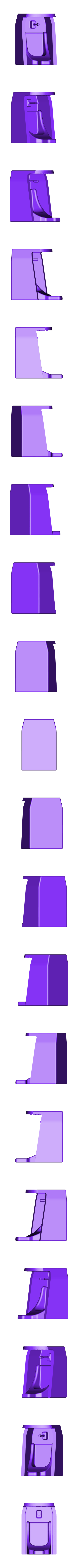

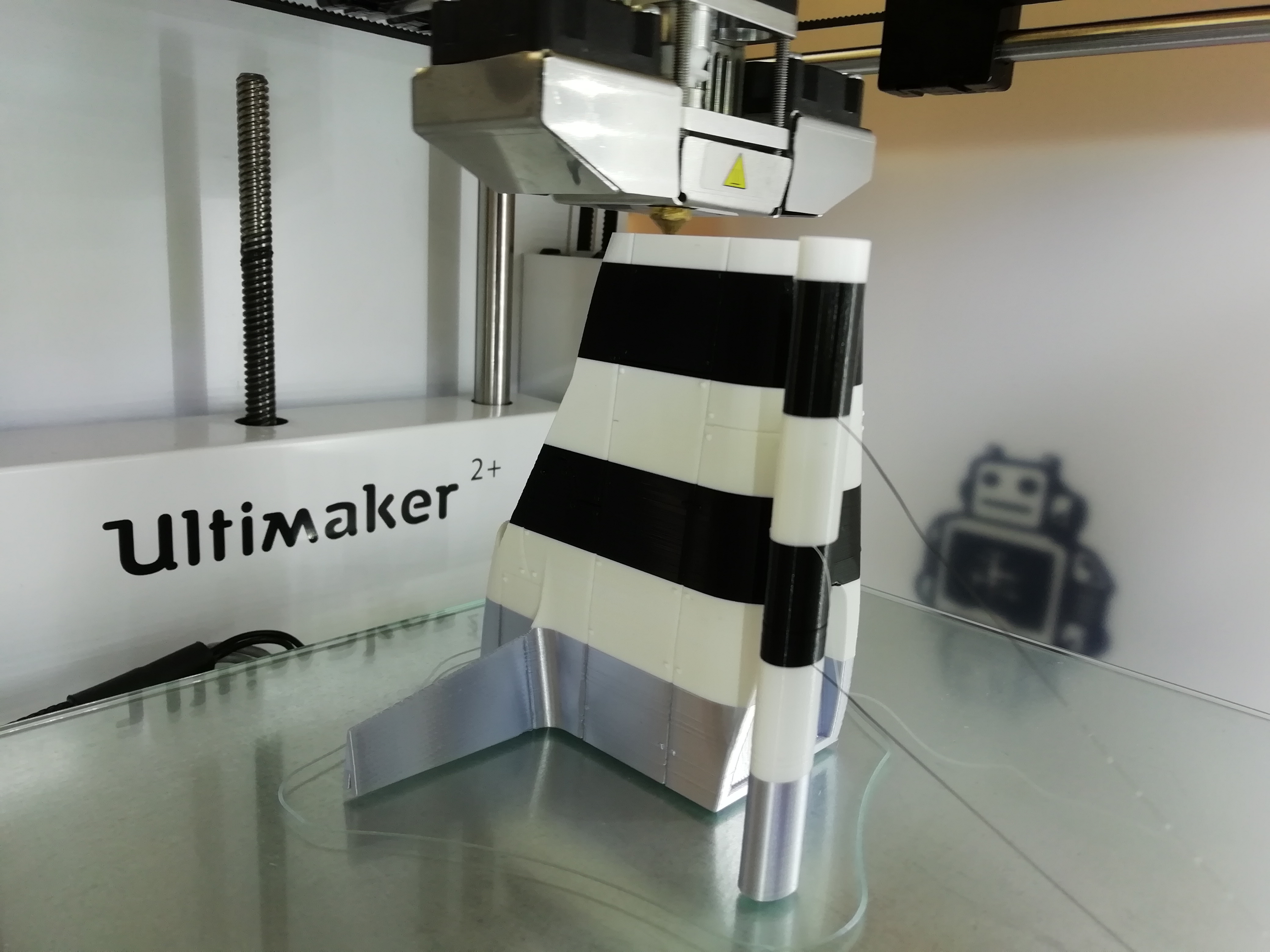

  • 1xBody_B: Approx.Time: 7 h. Material: 86 gr.

    Top/Bottom Pattern: Lines

    Support: Yes

    Support Over Hang Angle: 87th

    Post Procesing / Pause at height (change colour): 20mm, 38mm, 56mm, 74mm, 92mm, 110mm.

    Recommended filament: Polyalchemy Elixir Silver or Fillamentum Rapunzel Silver, Traffic Black and Traffic White.

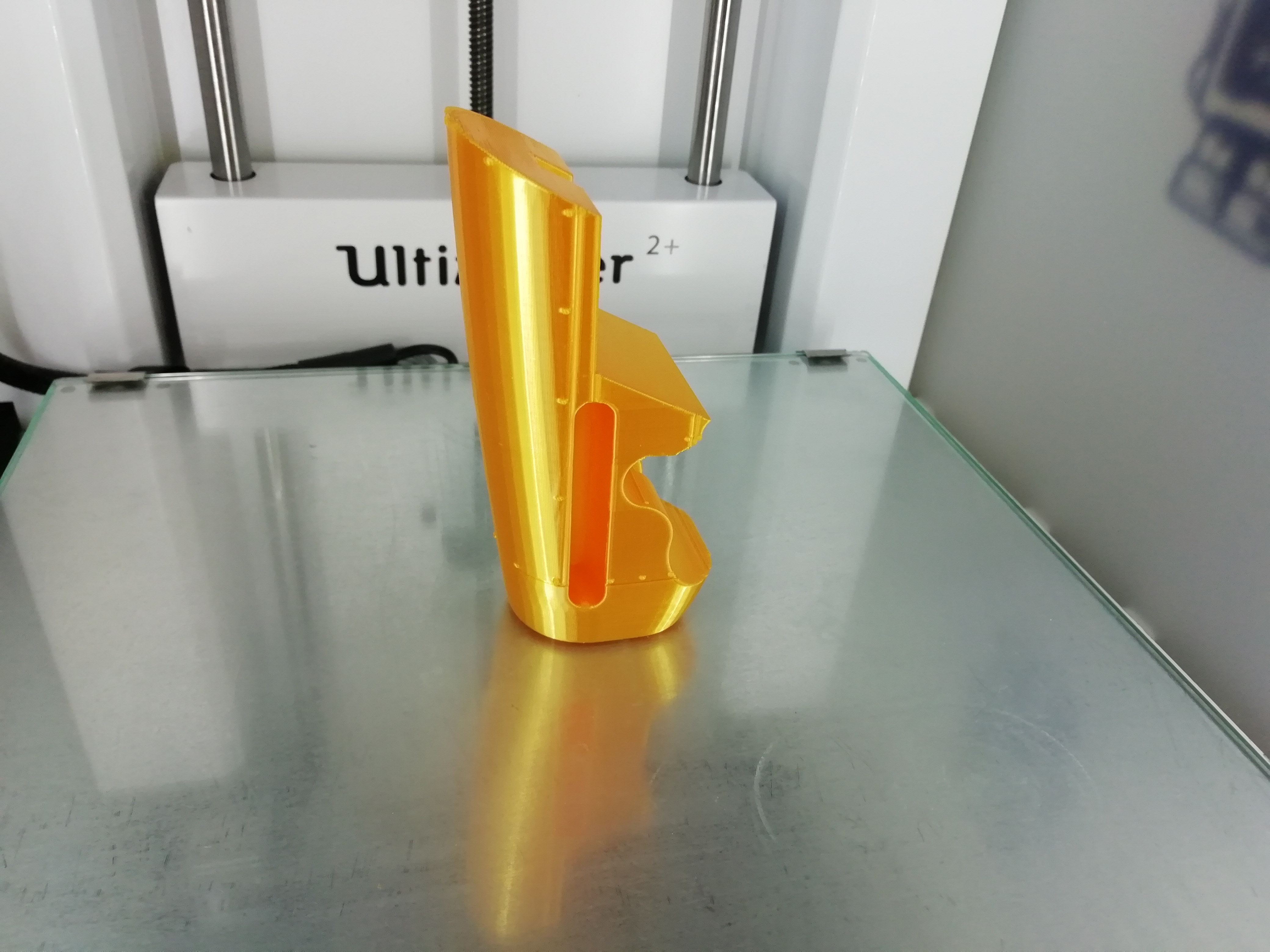

  • 1xBody_Front: Approx.Time: 4 h. Material: 42 gr.

    Top/Bottom Pattern: Lines

    Support: Yes

    Support Over Hang Angle: 85°.

    Recommended filament: Polyalchemy Elixir Rush Gold or Fillamentum Gold Happens.

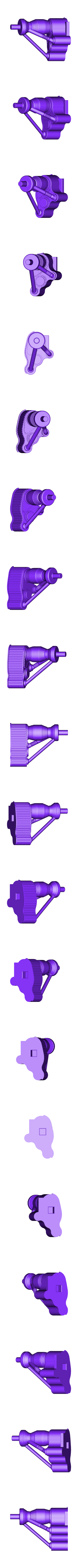

  • 1xAxle_Front_Left and 1xAxle_Front_Right: Approx.Time: 4 h. Material: 40 gr.

    Top/Bottom Pattern: Lines

    Support: NO

    Post Procesing / Pause at height (change colour): 21.8mm, 24mm.

    Recommended filament: Fillamentum Vertigo Grey and Polyalchemy Elixir Silver or Fillamentum Rapunzel Silver.

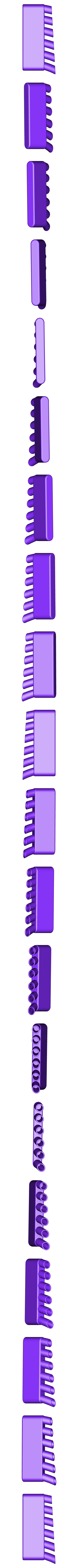

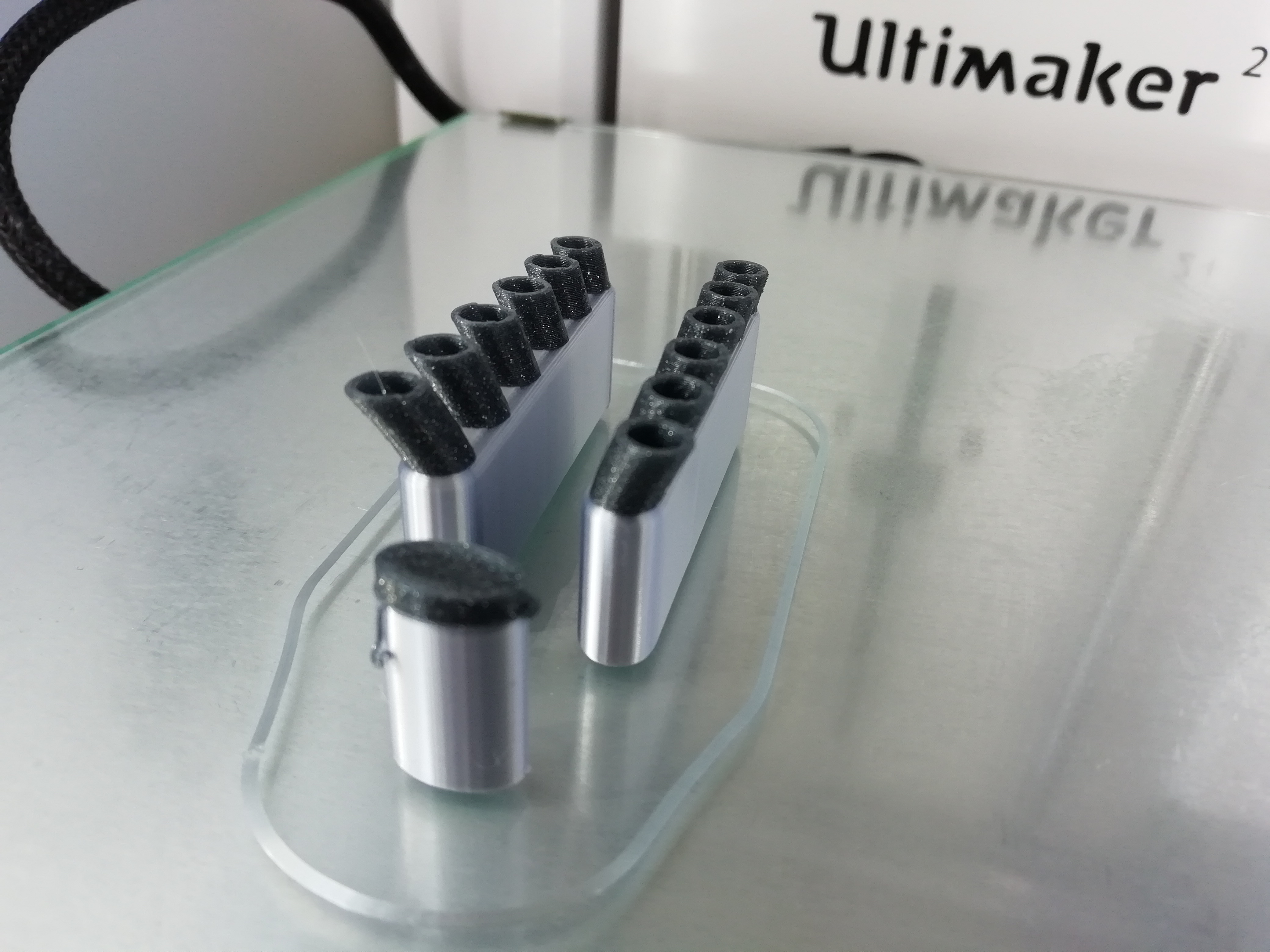

  • 1xExhaust_Left and 1xExhaust_Right: Approx.Time: 1 h. Material: 8 gr.

    Top/Bottom Pattern: Lines

    Support: NO

    Post Procesing / Pause at height (change colour): 16mm.

    Recommended filament: Fillamentum Vertigo Grey and Polyalchemy Elixir Silver or Fillamentum Rapunzel Silver.

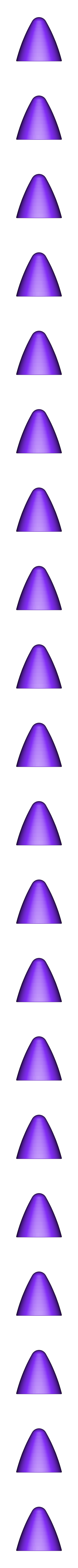

  • 1xSpinner: Approx.Time: 38 min. Material: 6 gr.

    Top/Bottom Pattern: Lines

    Support: NO

    Post Procesing / Pause at height (change colour): 7.8mm, 15.6mm, 23.4mm.

    Recommended filament: Fillamentum Traffic Black and Polyalchemy Elixir Rush Gold or Fillamentum Gold Happens.

  • 1xAxle_Rear: Approx.Time: 2 h.30 min. Material: 24 gr.

    Top/Bottom Pattern: Lines

    Support: YES

    Support Over Hang Angle: 65°.

    Recommended filament: Fillamentum Vertigo Grey.

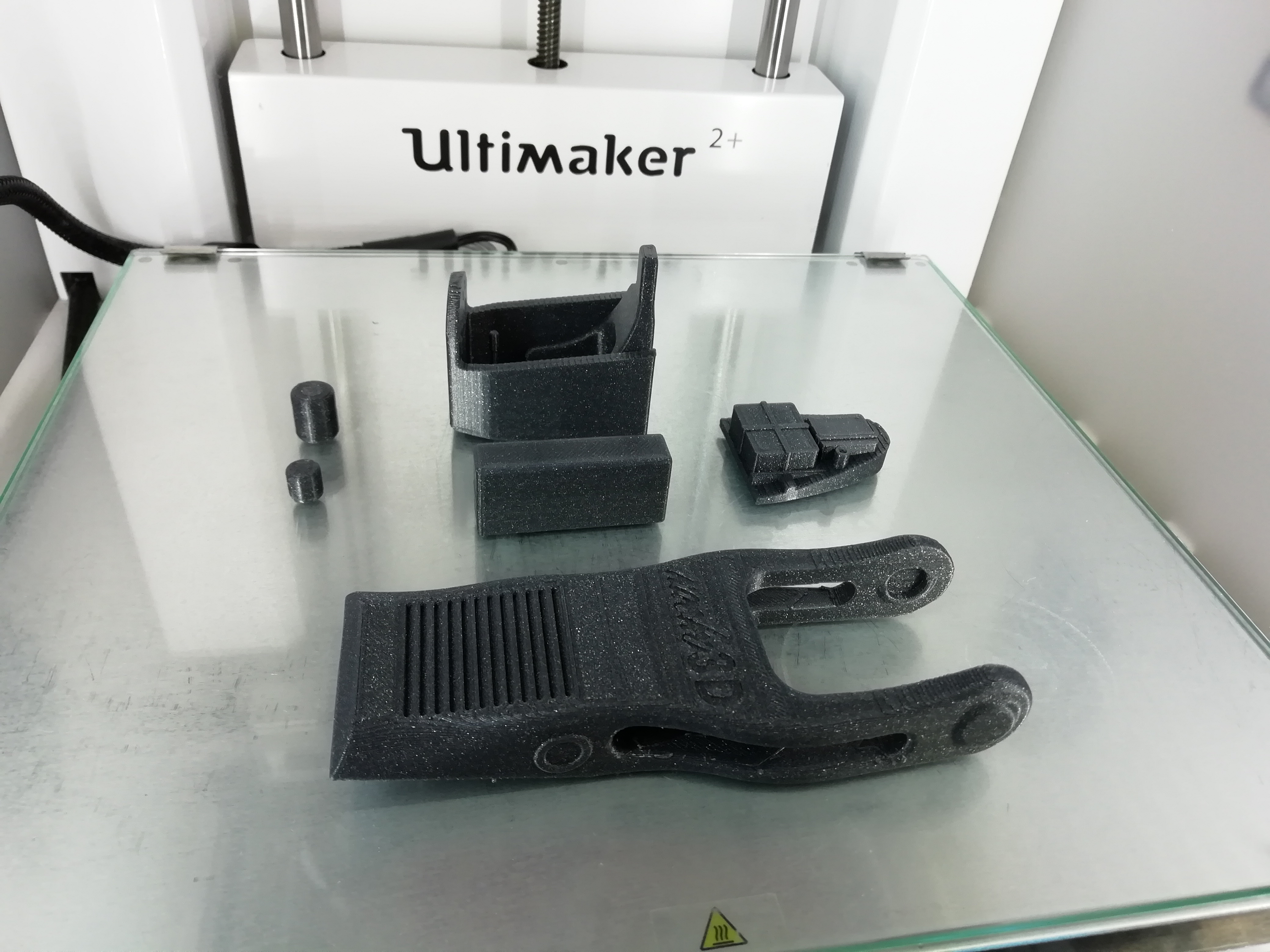

  • 1xCockpit_Seat / 1xCockpit_rear / 1xJoint_Body_A_B / 1xJoint_Axle_Front / 1xJoint_Rear_Rim_Half / 1xJoint_Spinner_Body_Front: Approx.Time: 3 h. Material: 26 gr.

    Top/Bottom Pattern: Lines

    Support: NO

    Recommended filament: Fillamentum Vertigo Grey.

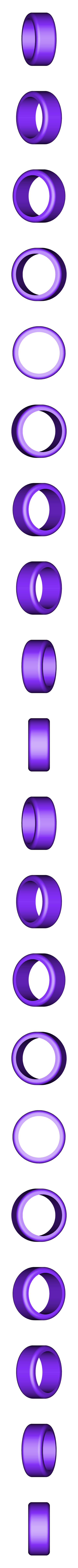

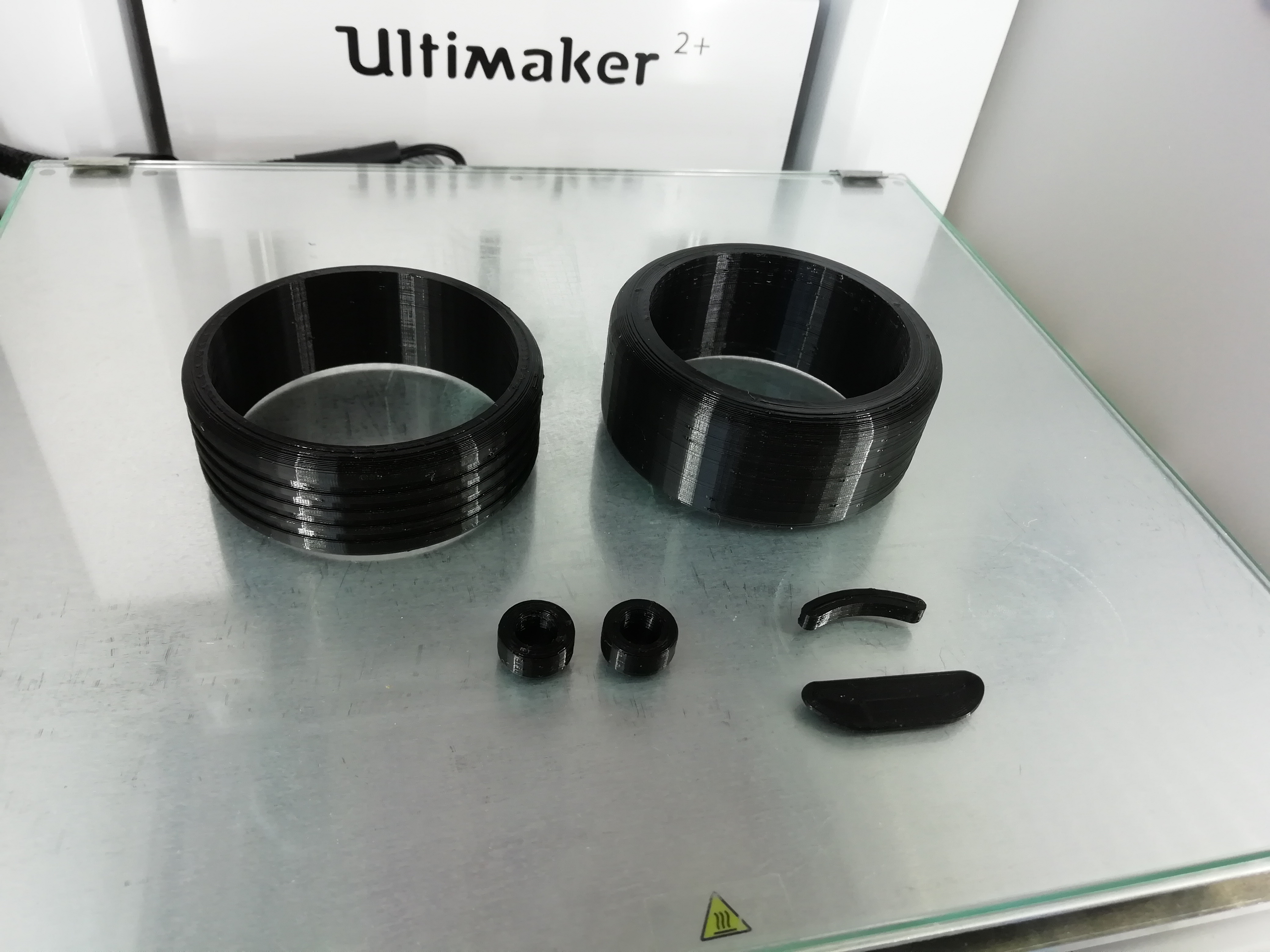

  • 2xFront_Tire / 1xRear_Tire: Approx.Time: 5 h. Material: 48 gr.

    Top/Bottom Pattern: Concentric

    Support: NO

    Recommended filament: Fillamentum Traffic Black.

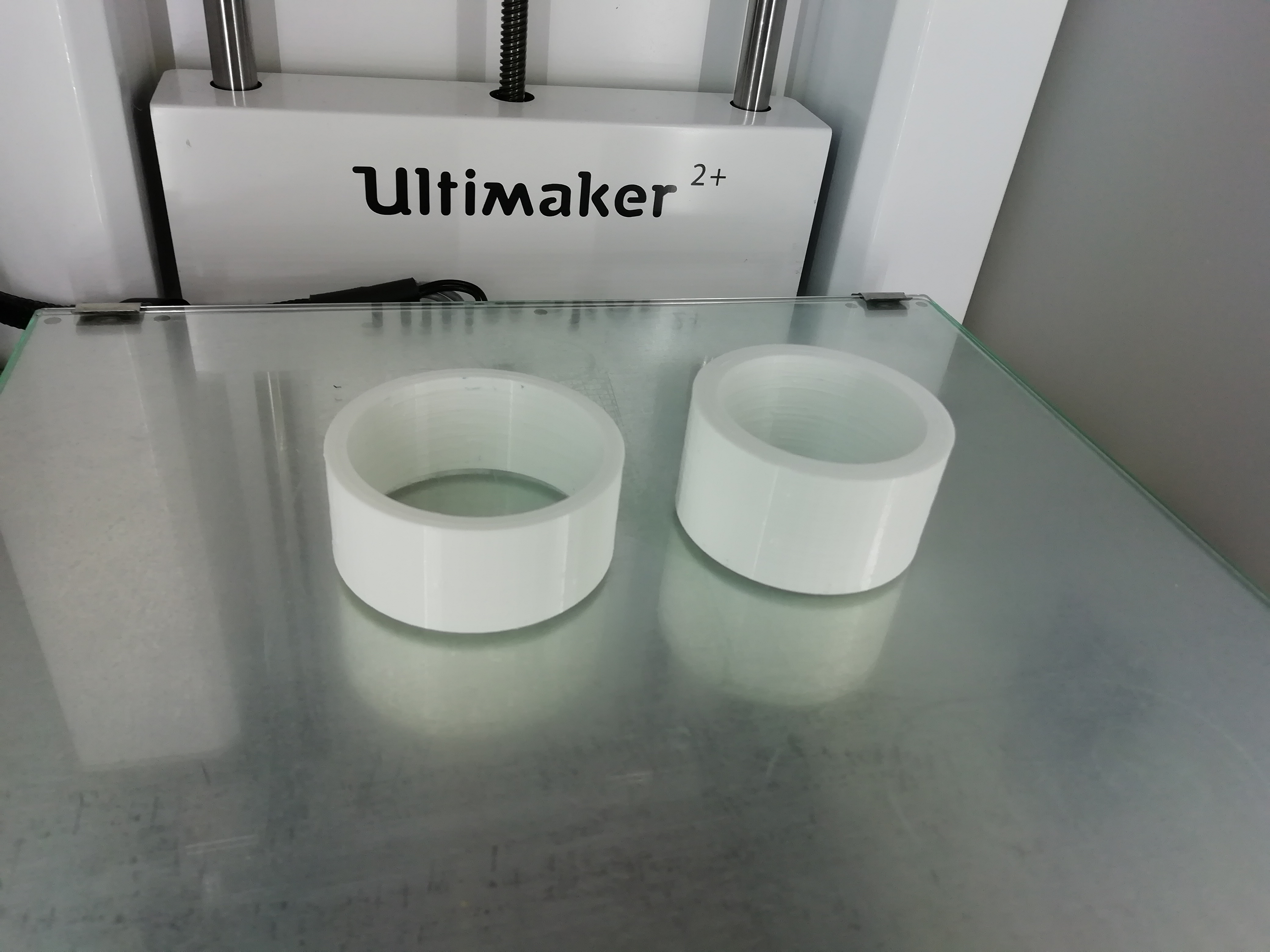

  • 2xFront_Tire_White_Stripe / 1xRear_Tire_White_Stripe: Approx.Time: 4 h. Material: 38 gr.

    Top/Bottom Pattern: Concentric

    Support: NO

    Recommended filament: Fillamentum Traffic White.

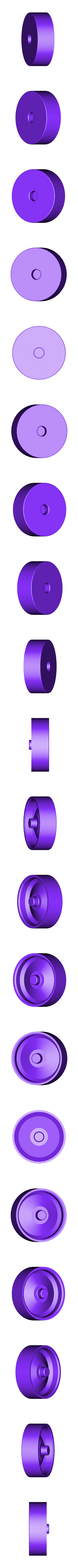

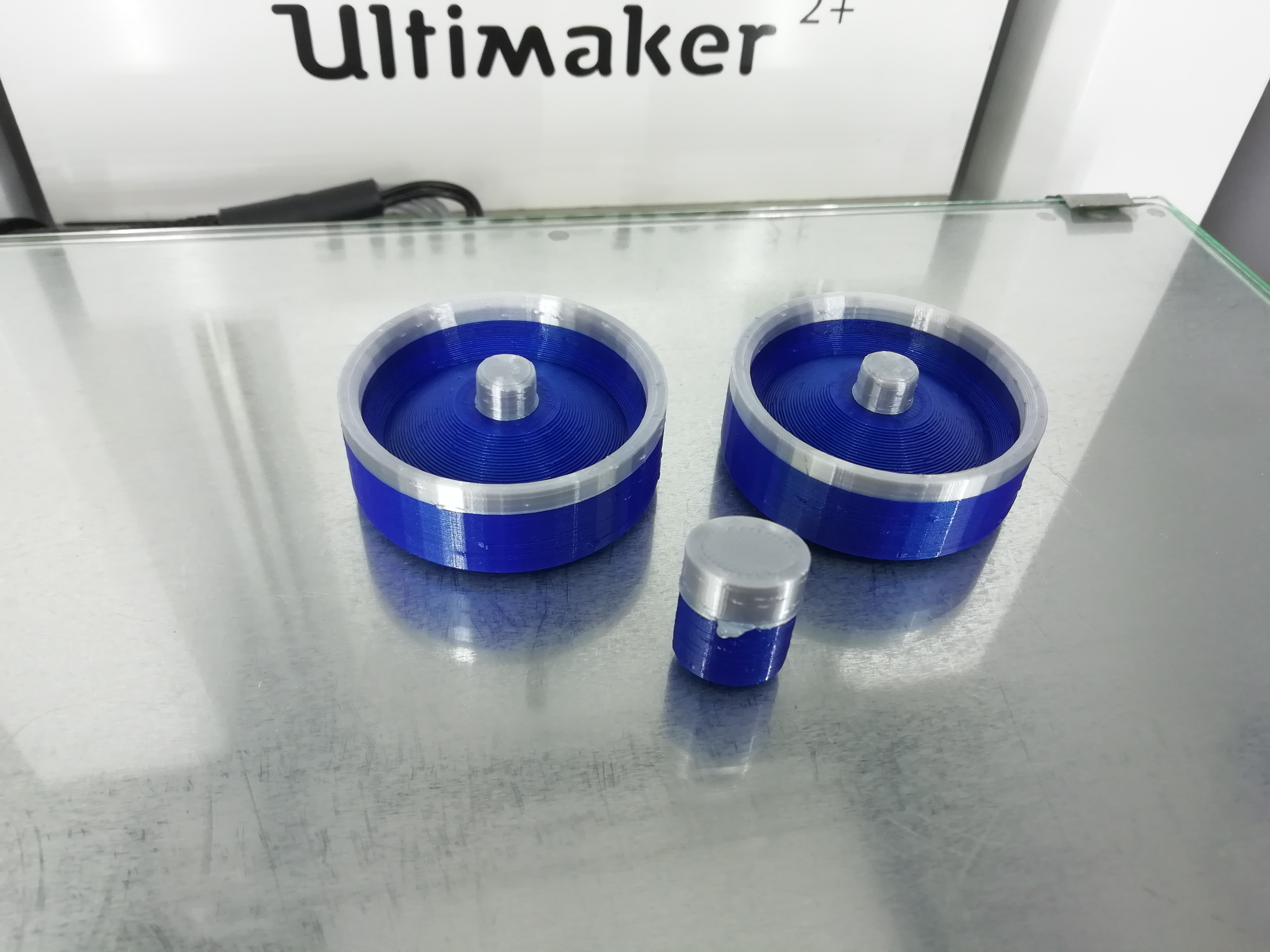

  • 2xFront_Rim: Approx.Time: 3 h.. Material: 30 gr.

    Top/Bottom Pattern: Lines

    Support: YES

    Support Over Hang Angle: 85°.

    Post Procesing / Pause at height (change colour): 19.6mm.

    Recommended filament: Fillamentum Nobble Blue and Polyalchemy Elixir Silver or Fillamentum Rapunzel Silver.

  • 2xRear_Rim_Half: Approx.Time: 2 h.. Material: 18 gr.

    Top/Bottom Pattern: Lines

    Support: NO

    Post Procesing / Pause at height (change colour): 10.6mm.

    Recommended filament: Fillamentum Nobble Blue and Polyalchemy Elixir Silver or Fillamentum Rapunzel Silver.

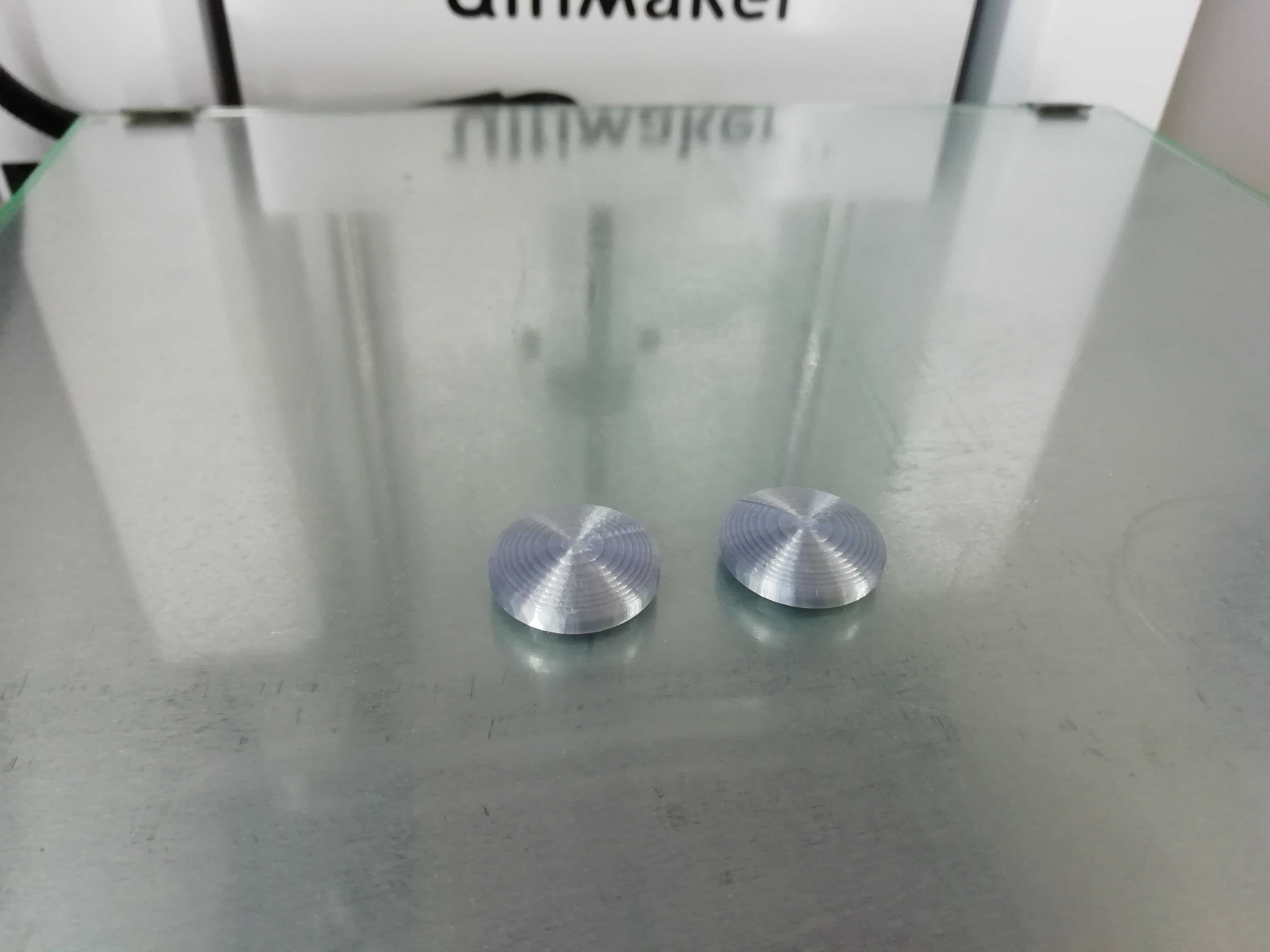

  • 2xHubcap: Approx.Time: 11 min. Material: 2 gr.

    Top/Bottom Pattern: Concentric

    Support: NO

    Recommended filament: Polyalchemy Elixir Silver or Fillamentum Rapunzel Silver.

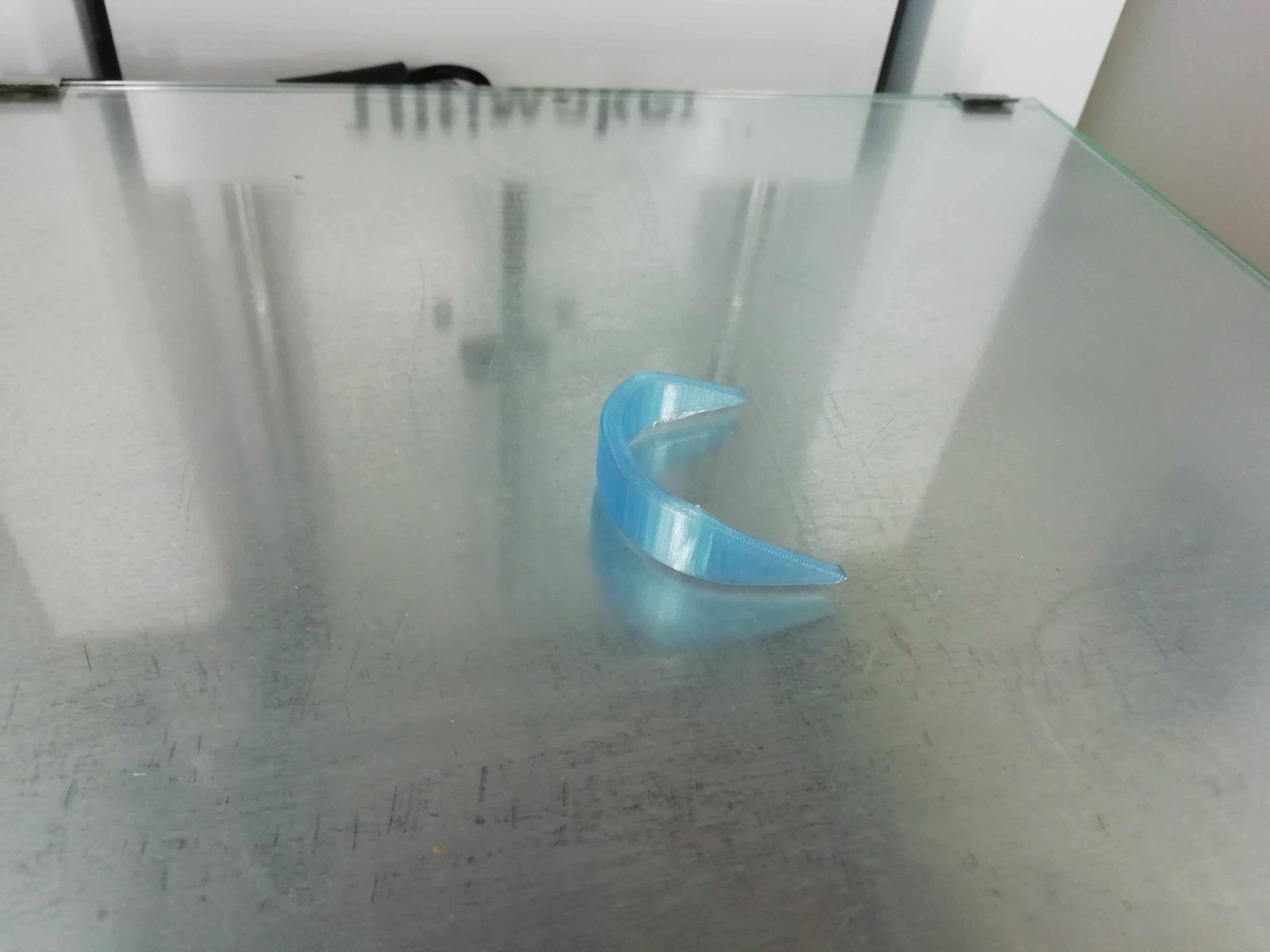

  • 1xWindshield: Approx.Time: 11 min. Material: 1 gr.

    Top/Bottom Pattern: Lines

    Support: NO

    Recommended filament: Fillamentum Crystal Iceland Blue.

  • 2xJoint_Rim_Axle_Front / 1xAir_Intake_Body_A / 1xAir_Intake_Body_Front: Approx.Time: 13 min. Material: 2 gr.

    Top/Bottom Pattern: Lines

    Support: NO

    Recommended filament: Fillamentum Traffic Black.

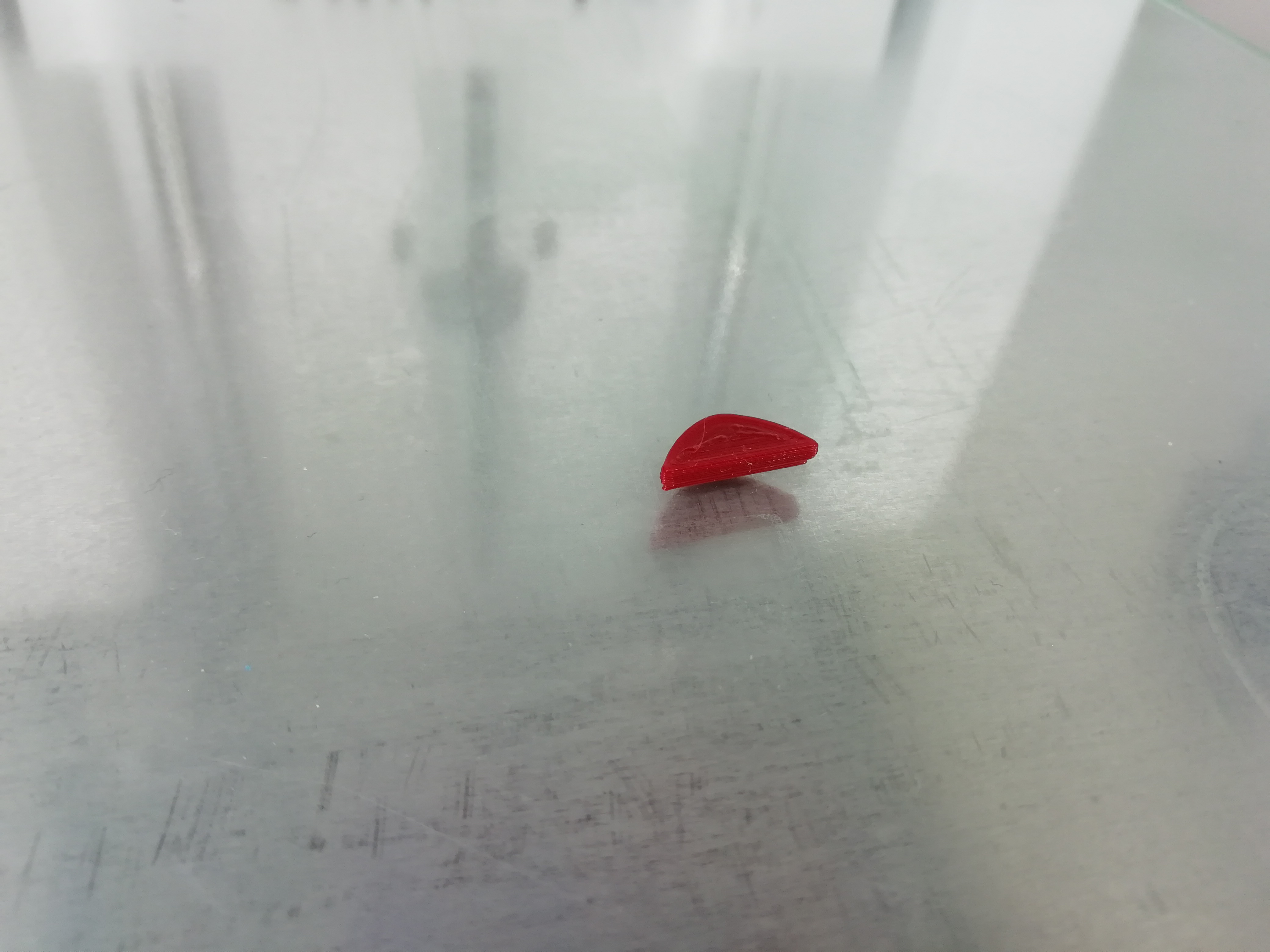

    1xRear_Light: Approx.Time: 1 min. Material: 1 gr.

    Top/Bottom Pattern: Concentric

    Support: NO

    Recommended filament: Fillamentum Ruby Red.

TOTAL 33 Pieces.

  • 3D model format: STL
