H0e Locomotive LSM 03B for Kato 11-105 11-106 11-107 chassis

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

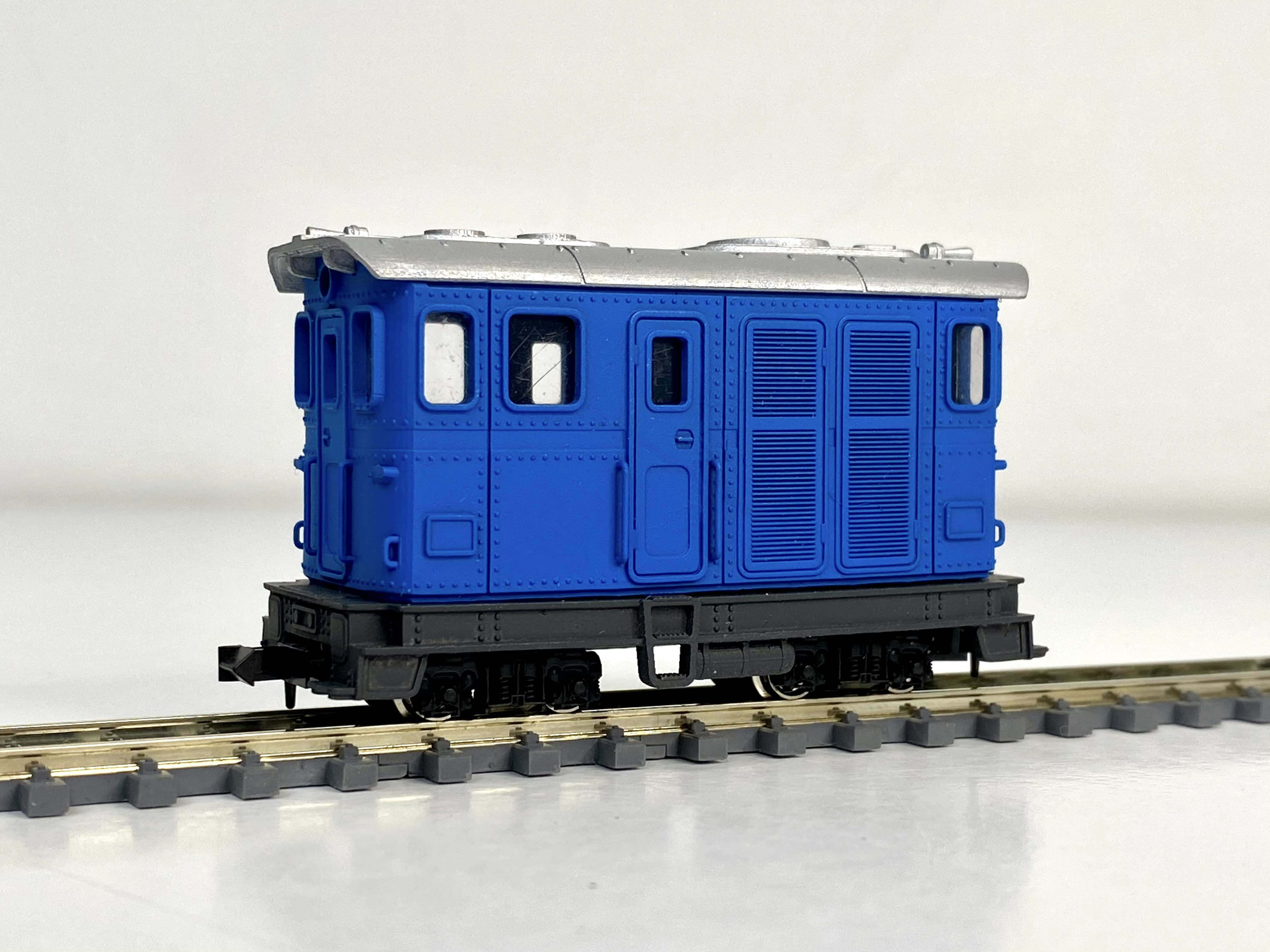

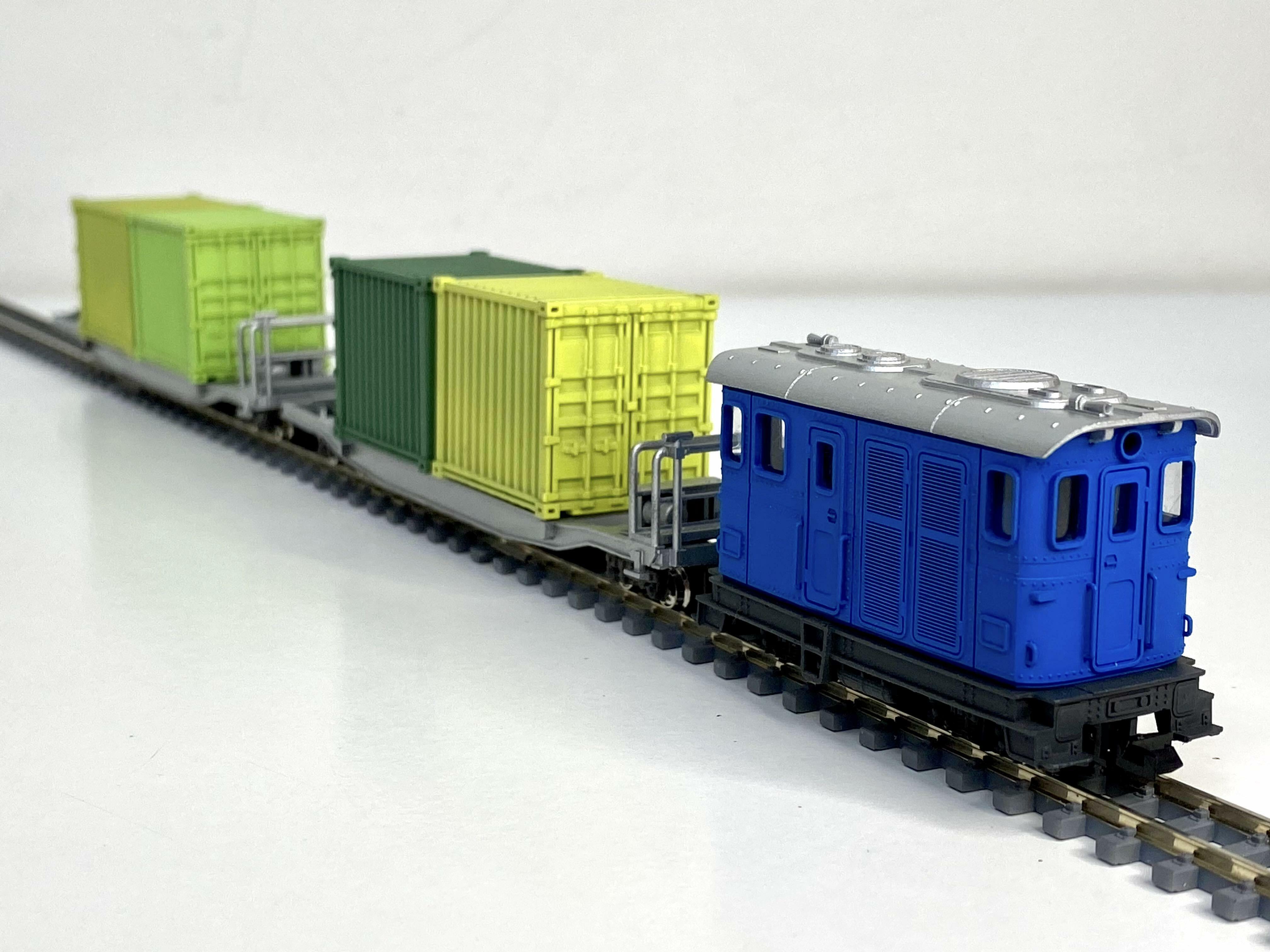

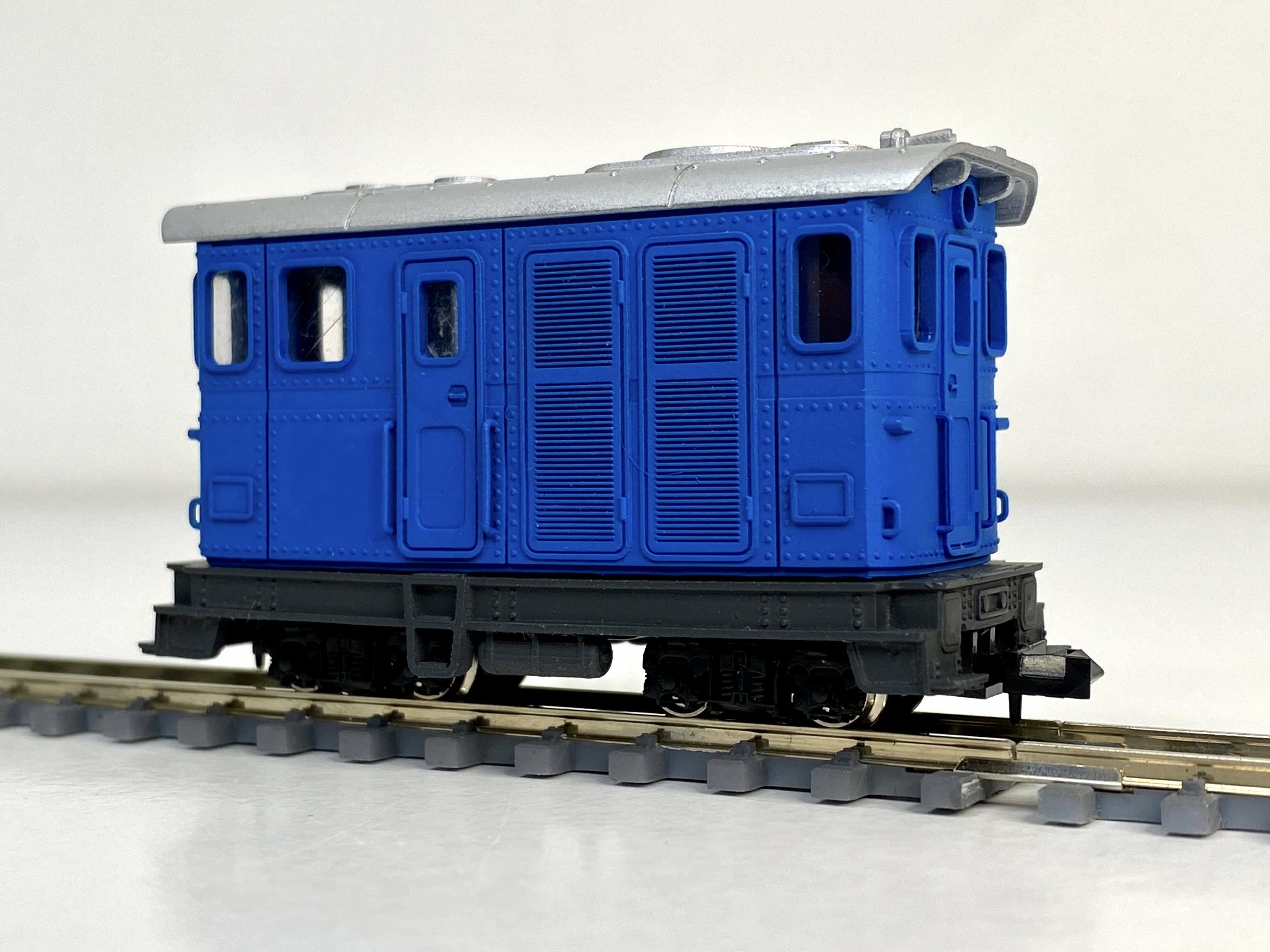

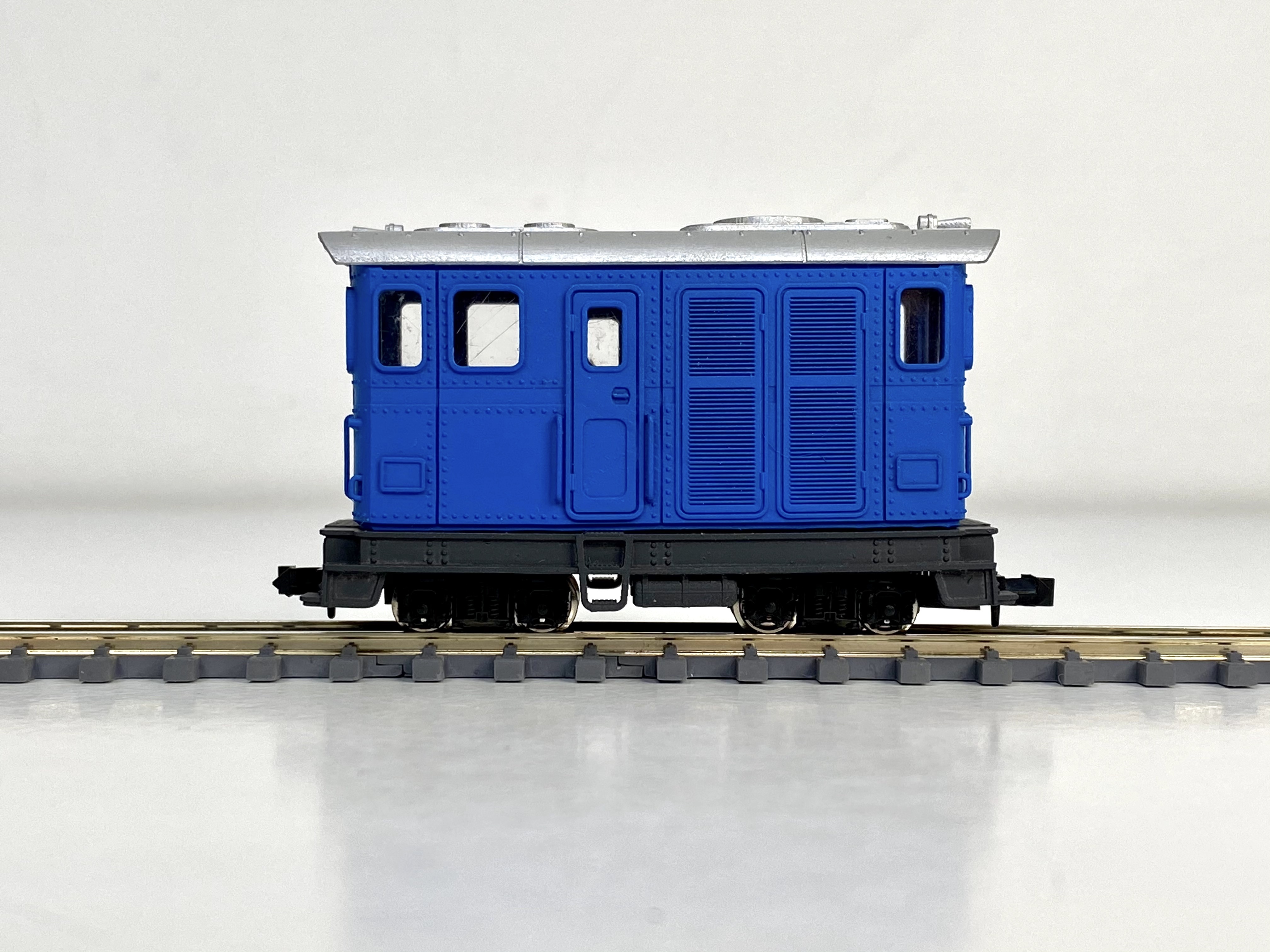

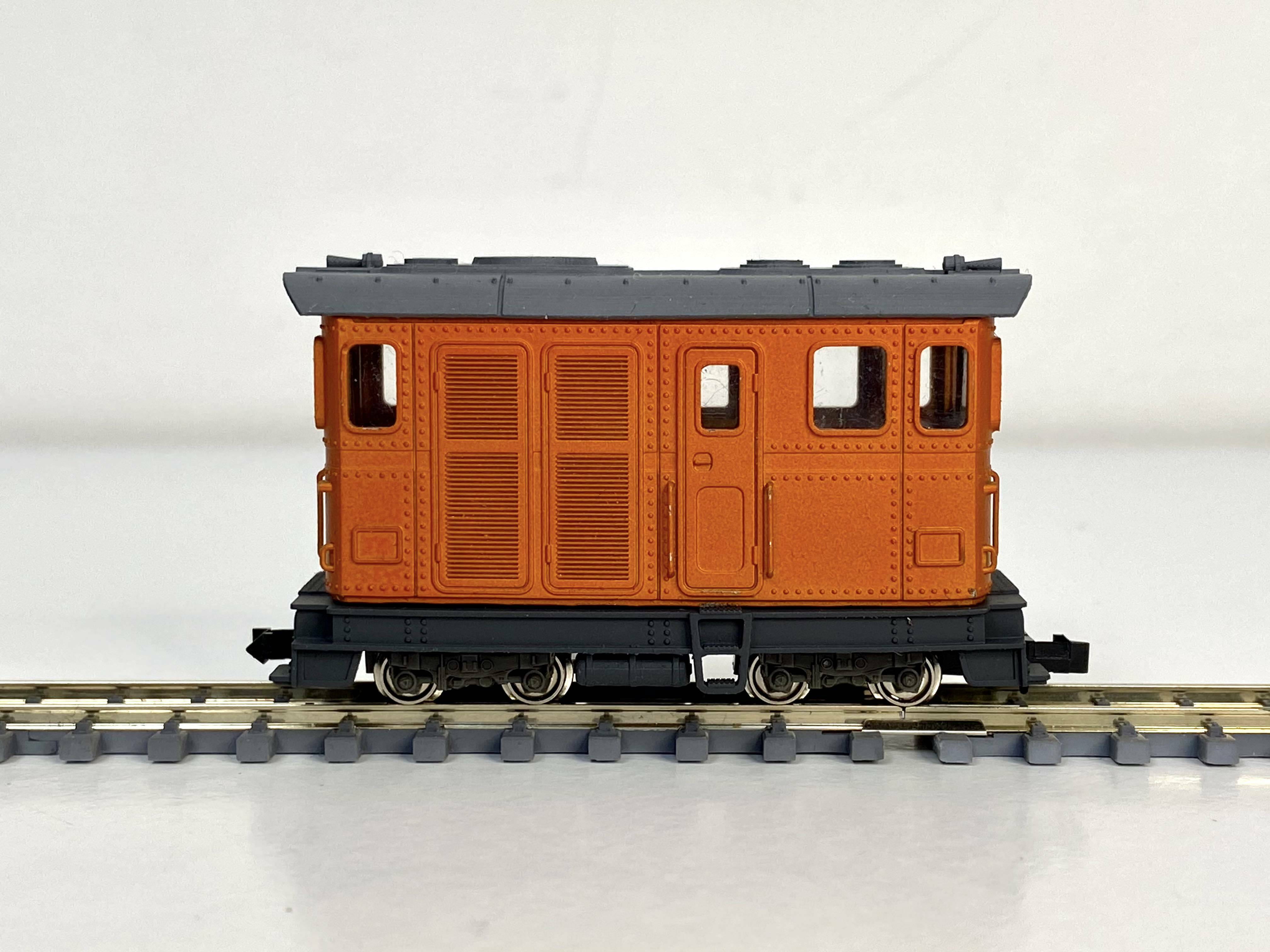

It is a fictional narrow-gauge locomotive LSM 03B in the H0e scale. This is the final version of it. I designed and modeled it from scratch in SketchUp. Resin LCD printers ready. Designed to fit either a Kato 11-105, 11-106, or 11-107 N-Scale chassis.

You can also have a free prototype version:
https://www.thingiverse.com/thing:3574266
or here:
https://cults3d.com/en/3d-model/game/h0e-locomotive-lsm-03-kato-11-105-11-106-11-107-n-h0e

But if you like my work, you can buy this one and support me.

This final version has more details, it is divided into 3 parts, you can easily add led light (3mm white LED bulb) to it, and all parts are easy to print.
Body with or without handrails to choose from. Windows can be printed or cuted out.
There is a template for cutting out plastic windows (use e.g. plastic packaging) and for bending 0.4-0.5mm steel wire handrail.

Use 1.2mm 5mm screw to tighten.

© Marcin Rzycki


3D printing settings

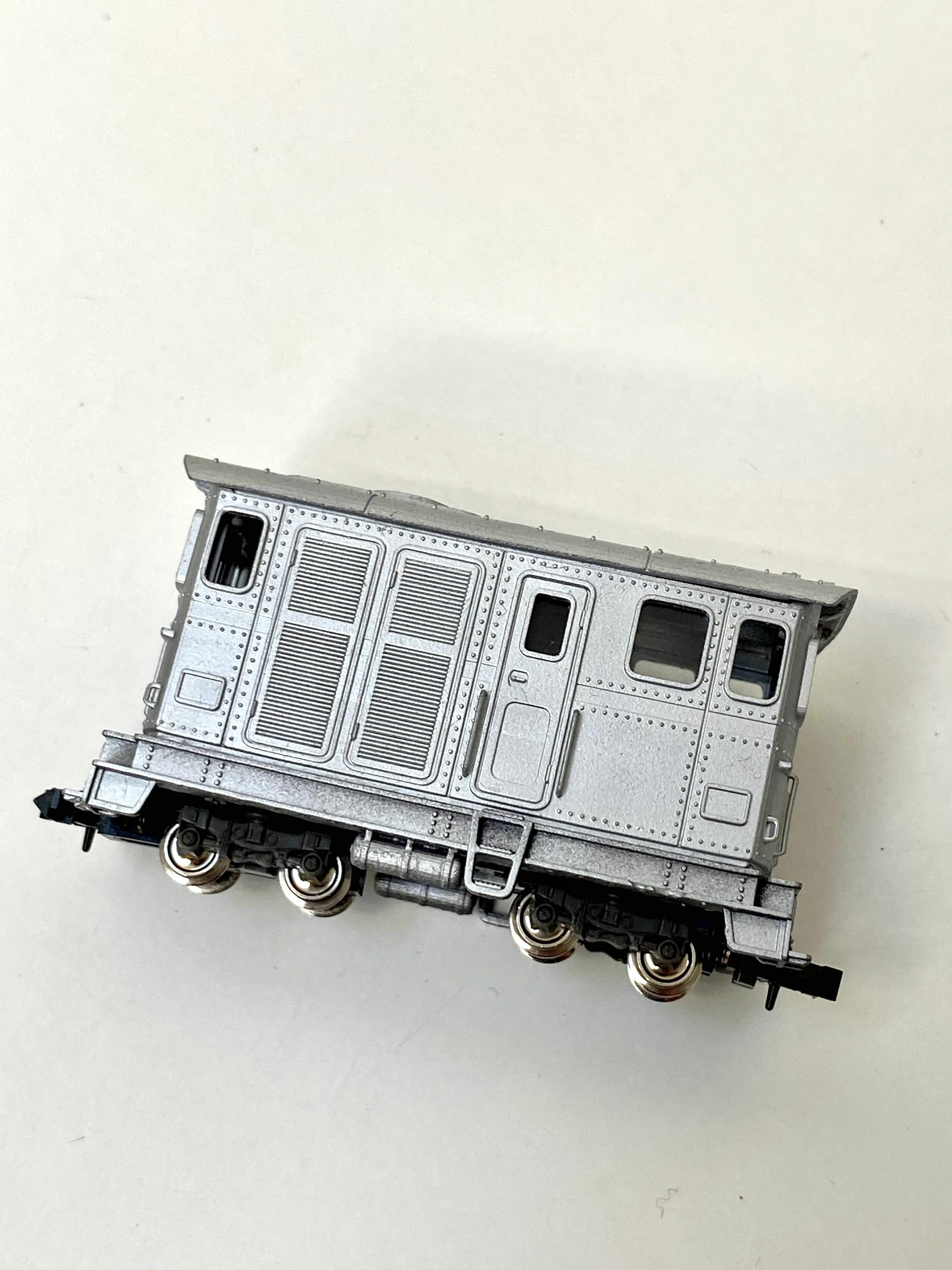

It was printed on the Anycubic Photon Mono printer.

You can use my prepared stl file for the Photon Mono printer or just add support to regular stl.

3D printer file information

  • 3D design format: PDF and STL Folder details Close
    • 2021.04 LSM 03B body + support.stl
    • 2021.04 LSM 03B body no railings + support.stl
    • 2021.04 LSM 03B body no railings.stl
    • 2021.04 LSM 03B body.stl
    • 2021.04 LSM 03B frame + support.stl
    • 2021.04 LSM 03B frame.stl
    • 2021.04 LSM 03B roof + support.stl
    • 2021.04 LSM 03B roof.stl
    • 2021.04 LSM 03B window 1.stl
    • 2021.04 LSM 03B window 2.stl
    • 2021.04 LSM 03B window 3.stl
    • 2021.04 kato 11-105:106:107 H0e LSM 03B-A4.pdf

    Learn more about the formats

  • Publication date: 2021-04-22 at 17:40
