GENIRIS. Printable 3D scanner

3D model description

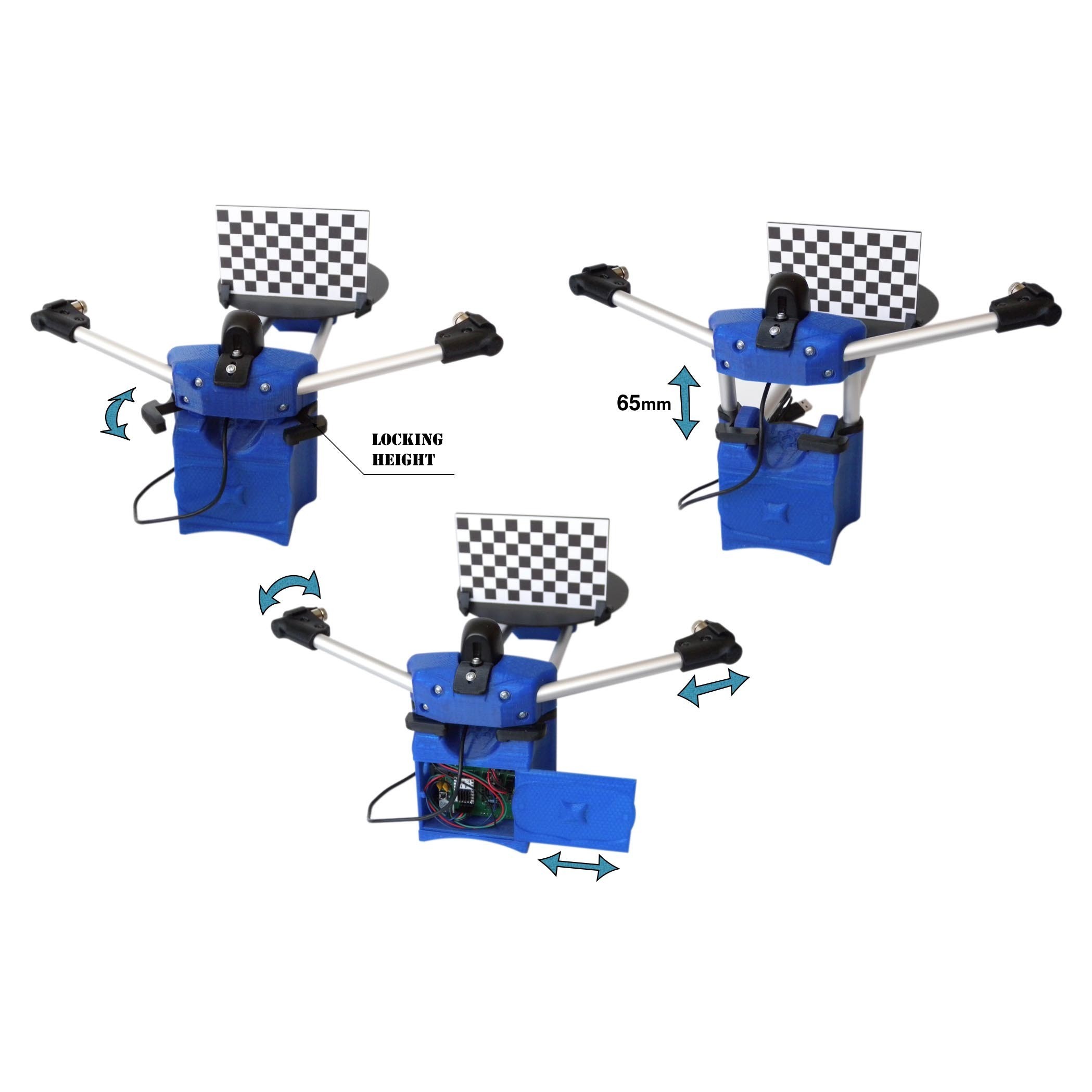

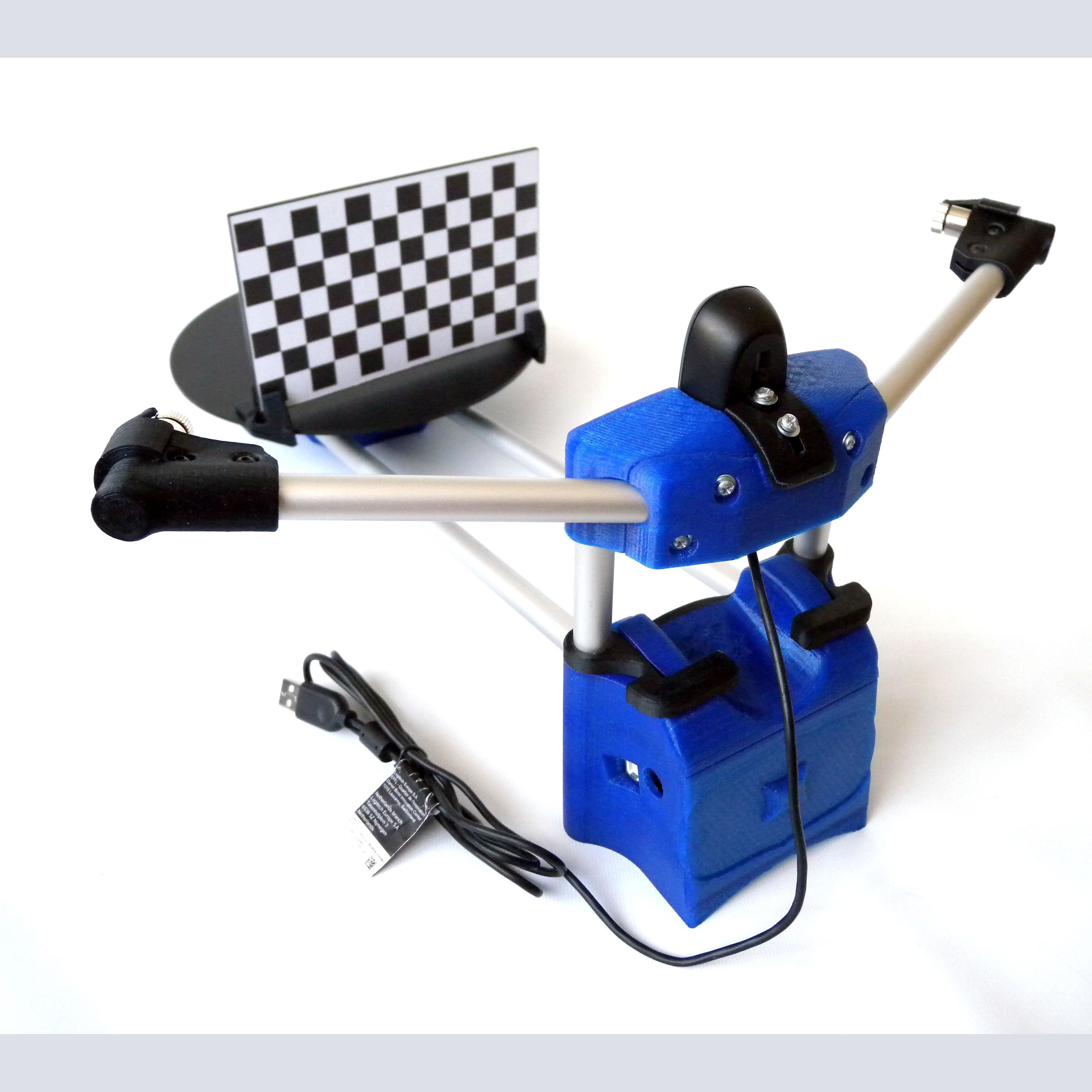

Geniris is a new DIY 3D scanner design:

Features:

Adjustable camera height (65mm)

Adjustable camera tilt (20 °)

Reduced printing volumes.

Few support material required

Platform supported by 3 (low cost) ball bearings.

Reduced NEMA 17 motor height (28 mm)

Easy assembly

https://youtu.be/CAHRlB5R4ng

Pattern: https://www.genapart.com/app/download/13561031532/Damier+13+x+13.pdf?t=1502097511

Electronics: https://github.com/bq/zum

FIrmware: https://github.com/bqlabs/horus-fw

Software: https://github.com/bqlabs/horus

More free 3D files: www.genapart.com

Thanks for your support

Parts list:

Box 117.9 cm3 X1

Box Cover 11.6 cm3 X1

Motor Holder 76.2 cm3 X1

Disc Holder 5.8 cm3 X1

Camera Housing 57.9 cm3 X1

Camera Housing Clamp 15.2 cm3 X1

Camera Holder 5.7 cm3 X1

Left Z Clip 3.9 cm3 X1

Right Z Clip 3.9 cm3 X1

Tube Clip 1.5 cm3 X2

Laser Clip 2,3 cm3 X2

Left Laser Holder 8.5 cm3 X1

Right Laser Holder 8.5 cm3 X1

Left Pattern holder 4.9 cm3 X1

Right Pattern holder 4.9 cm3 X1

(Total: 332.5 cm3)

Aluminum tube Ø12 x 350 mm X2

Aluminum tube Ø12 x 105 mm X2

Aluminum tube Ø12 x 145 mm X2

Acrylic platformform Ø200 x 3 mm X1

Acrylic pattern holder 160 x 100 x 3 mm X1

Camera Logitech C270 X1

NEMA 17 Motor 28 mm height X1

UNO Board X1

ZUM Board X1

A4988 Stepper Motor Driver X1

DC 12V 3A Power Supply Adapter X1

5mw red line laser module MXD1230 X2

623ZZ Bearing Ø3 x Ø10 x 4 mm X3

M3 Nut X8

Ø3,2 x Ø6,8 x 0,6 mm Washer X11

FHC M3 x 8 mm Screw X3

TBHC M3 x 6 mm Screw X4

TBHC M3 x 10 mm Screw X5

TCB POZI 3 x 16 mm Screw X1

TCB POZI 3 x 10 mm Screw X14

Dupont Wire 4 pin female to male individual 50 cm X1

Dupont Wire 2 pin female to male 40 cm X2

USB Wire A to B X1

  • 3D file format: STL
