Gears paradoxical- paradoxical gear

Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

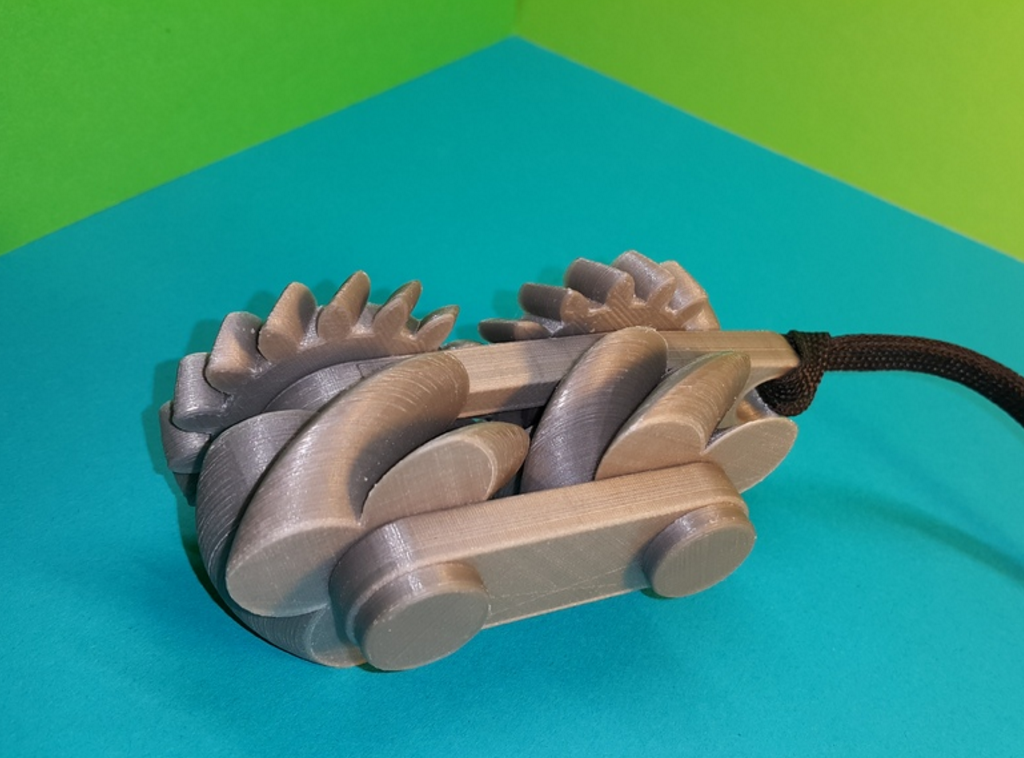

After the straight and helical gears, I wanted to make a paradoxical gear.
Here's the result: it works.
It's amazing how the wheels turn in the same direction.
But it's possible.
The CNAM in PARIS (National Conservatory of Arts and Crafts) was the first to produce a two-toothed gear called a paradoxical gear.
I wanted to make four teeth and it works.
nice to run, no difficulty to print, just make sure to adjust the sprockets well on the axes.
After the spur and helical gears, I wanted to make a paradoxical gear.
The result: it works.
It is amazing how the wheels turn in the same direction.
But it is possible.
This is the CNAM to PARIS that manufactured the first one gear with two teeth, called paradoxical.
I wanted to make teeth and it works well.

NOP21 (google translation)

3D printing settings

Printer Brand: Ultimaker
Printer: Ultimaker 2

3D printer file information

  • 3D design format: STL Folder details Close
    • axe_1_-_porte_cle_s_-_paradoxical.stl
    • clip_1_-_paradoxical.stl
    • pignon_1_-_he_li_droit.stl
    • pignon_1_-_he_li_gauche.stl
    • pignon_1_-_paradoxical_-_OK.stl
    • support_1_-_paradoxical.stl
    • support_1_-_porte_cle_s.stl
  • Publication date: 2016/08/19 at 21:22




Designs 267
Downloads 44.7k
Sales US$15
Followers 923

Ancien chef d'entreprise, aujourd'hui à la retraite. Passionné d'impression 3D
