G36 | Futuristic DMR conversion set

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Hello there,

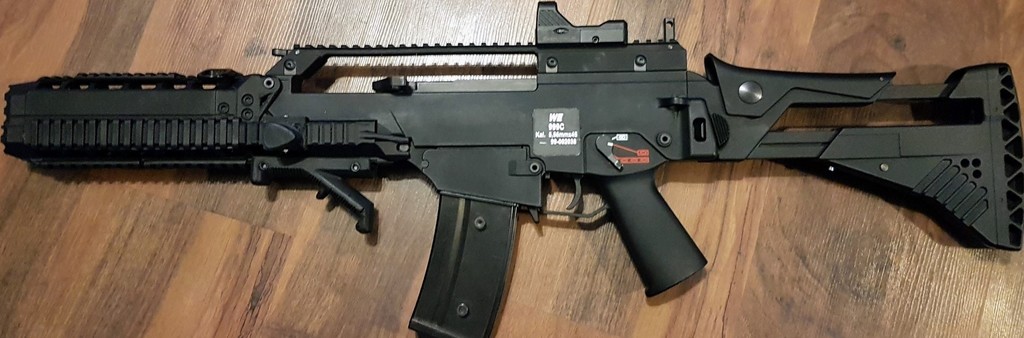

Couldn't find any SL-8 / SL-9 Stock conversion for my G36 GBBR build, so here is my G36's Project - Futuristic CQB/DMR Conversion set. Should fit on most G36s, but built on WE G39 999c IdZ GBB

  • Hardware needed:
    1 Glue/Acetone (glueing parts 1 and 2)
    2 Bolt and screw with round head (eg. M4/M5 x17 - for silencer to be locked from top)
    3 Outter barrel extension, like this one: (135mm)
    https://gunfire.com/en/products/barrel-extension-for-replica-equipped-with-a-14mm-thread-1152201061.html

  • Parts Guide:
    Common parts:
    G36 Set - 1 - Rail Base
    G36 Set - 2 - Rail Main
    G36 Set - 3 - Silencer Base (i'd prefer to melt the nut into the part to lock silencer)
    Short version:
    G36 Set - 4a - Rail End Short
    G36 Set - 5a - Silencer Short

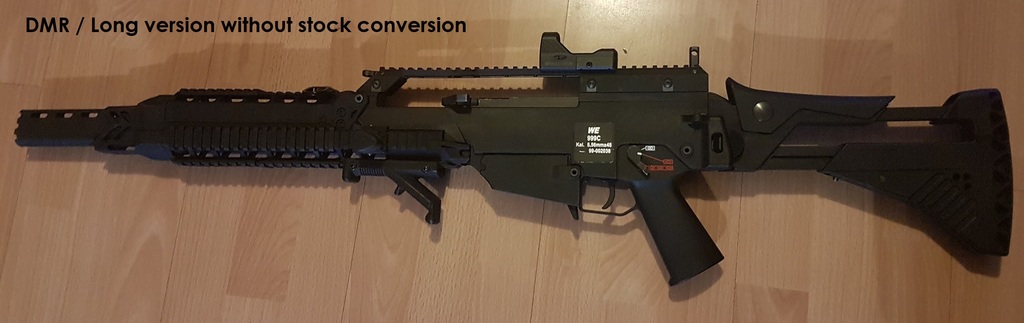

    Long Version (DMR):
    G36 Set - 4b - Rail End Long
    G36 Set - 5b - Silencer Long
    (you can use Short silencer depending on inner barrel's lenght - long is for ~509mm)
    Stock's Parts:
    G39 Set - 6 - Stock Conversion
    G39 Set - 7 - Cheek riser
    Bonus: G36 Set - 8 - Ambi charging handle - right shorter
    ( Remix of ohman74's charging handle allowing G39 style stock to be folded when fully extended)

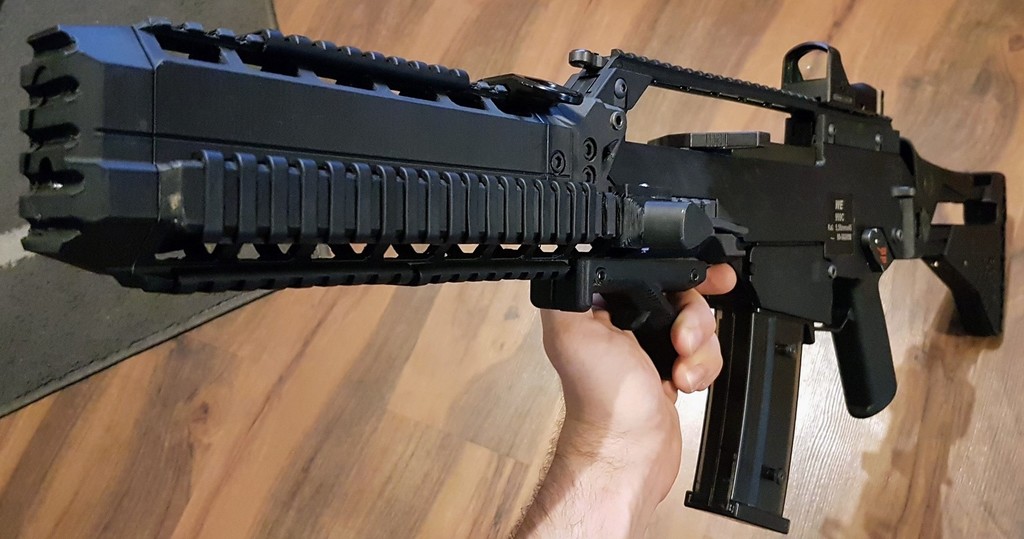

  • Front / Handguard instructions: ( 135mm [M4] outer barrel extension needed)

  • After printing parts no. 1 and 2 glue them together (when printing with ABS/ASA - acetone will do just fine) - protruding flat parts will provide more glueing surface

  • Screw on the 14ccw silencer base on the extension and slide the silencer on (make sure which side is Up / Top) , then mark a place where bolt will be melt into, take silencer out, melt the bolt into (not all the way in, just to bolt be top-to-top with silencer base)

  • Push-in selected rail end (Short/Long variant) - this should be push-fit.

  • Push-in selected silencer and lock it with screw from top

  • SL-8 alike for G39 Style stock Instruction:

  • Take off the back part of the stock by rising stock setting lever (or however You call it)
    2 .put it between stock's front and back part,

  • Put stock's back part back and lock it in place by setting lever.
    / if You are struggling with the lever just pull it out by removing pin, place the part in the stock and replace the lever with pin.

  • Put the cheek riser on and put the screws from the sides into the holes in cheek riser and stock conversion

  • Comments:

  • Make sure you printer will fit all the parts (biggest part is part no. 6 Stock conversion)

  • slaps G36's stock This badboy can fit up to 509mm long inner barrel

  • Handguard part will surely fit on WE G39 (999c IDZ GBBR), not sure about other G36's models

Update 08.02.2022:
Combining all previous and recent projects into one named as conversion set
Update 12.12.2021:
Uploaded new futuristic version
Uploaded modified-longer version of Chloviss's silencer (so i can hide all my internal barrel in combo of external barrel extension)
