3D model description
Moon rocket inspired by the famous comic strip of Mr HERGE.
Drawn on Solidworks following the plan appearing in the album.

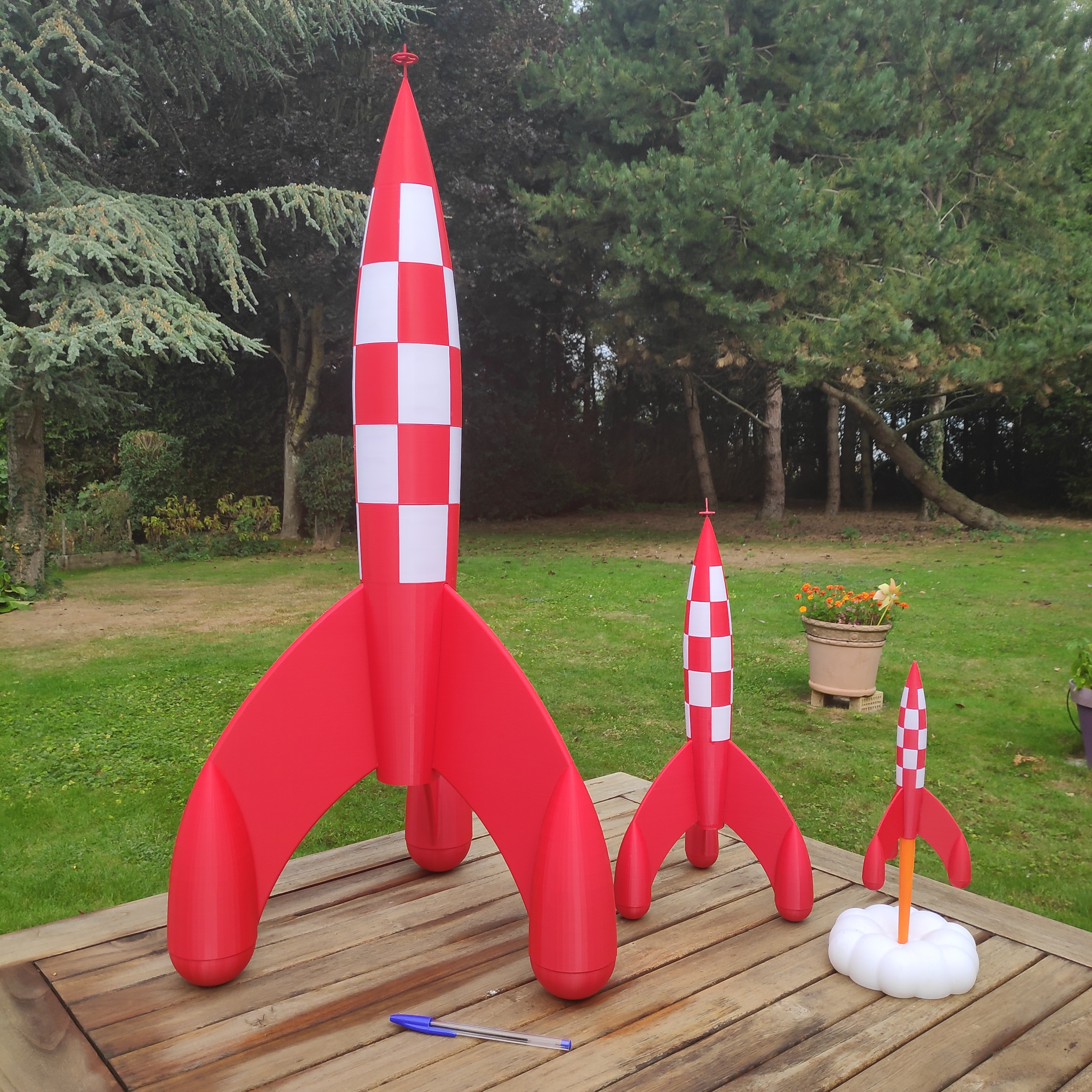

This 800 mm model is accompanied by a 200 mm model and another 400 mm model.
This 800 mm model is similar to the 400 mm model but the thicknesses are adjusted to limit material consumption.
To allow for an even larger scale the spindle is cut into several sections in the direction of height. indexing rings are in place between the different sections to allow for proper alignment of the elements.
Print all parts vertically, white panels as well. Insert and maybe adjust the white panels in their slots and a drop of glue to secure.
The motor fits into the base of the rocket.
IF you want to add the antenna, take it from the 400mm model and increase its size when printing to get the size you like. use a 2mm rod to fix it. I used a drill bit for this purpose.
3D printing settings
infill 20%.
no support
0.2mm layers
3D printer file information
-
3D design format: STL Folder details Close
- fusee 800 bottom pod index.STL
- fusee 800 bottom pod.STL
- fusee 800 engine.STL
- fusee 800 red level 1.STL
- fusee 800 red level 2.STL
- fusee 800 red level 3.STL
- fusee 800 red level 4.STL
- fusee 800 red level 5.STL
- fusee 800 red level 6.STL
- fusee 800 ring level 1-2.STL
- fusee 800 ring level 2-3.STL
- fusee 800 ring level 3-4.STL
- fusee 800 ring level 4-5.STL
- fusee 800 ring level 5-6.STL
- fusee 800 white panel level 2.STL
- fusee 800 white panel level 3.STL
- fusee 800 white panel level 4.STL
- fusee 800 white panel level 5.STL
- fusee 800 white panel level 6.STL
- fusee 800 wing.STL
- Publication date: 2019/09/08 at 11:35
