Funnel for narrow concrete formwork

Download free 3D printer model Funnel for narrow concrete formwork, kleinerELMDownload free 3D printer model Funnel for narrow concrete formwork, kleinerELMDownload free 3D printer model Funnel for narrow concrete formwork, kleinerELM
Download free 3D printer model Funnel for narrow concrete formwork, kleinerELM

Did you 3D print this model?

3D model description

This is a special funnel which was needed for a project in my university for creating thin (30 mm) concrete plates with high surface quality. Manual filling of the formwork caused surface flaws at the top of the concrete plate.

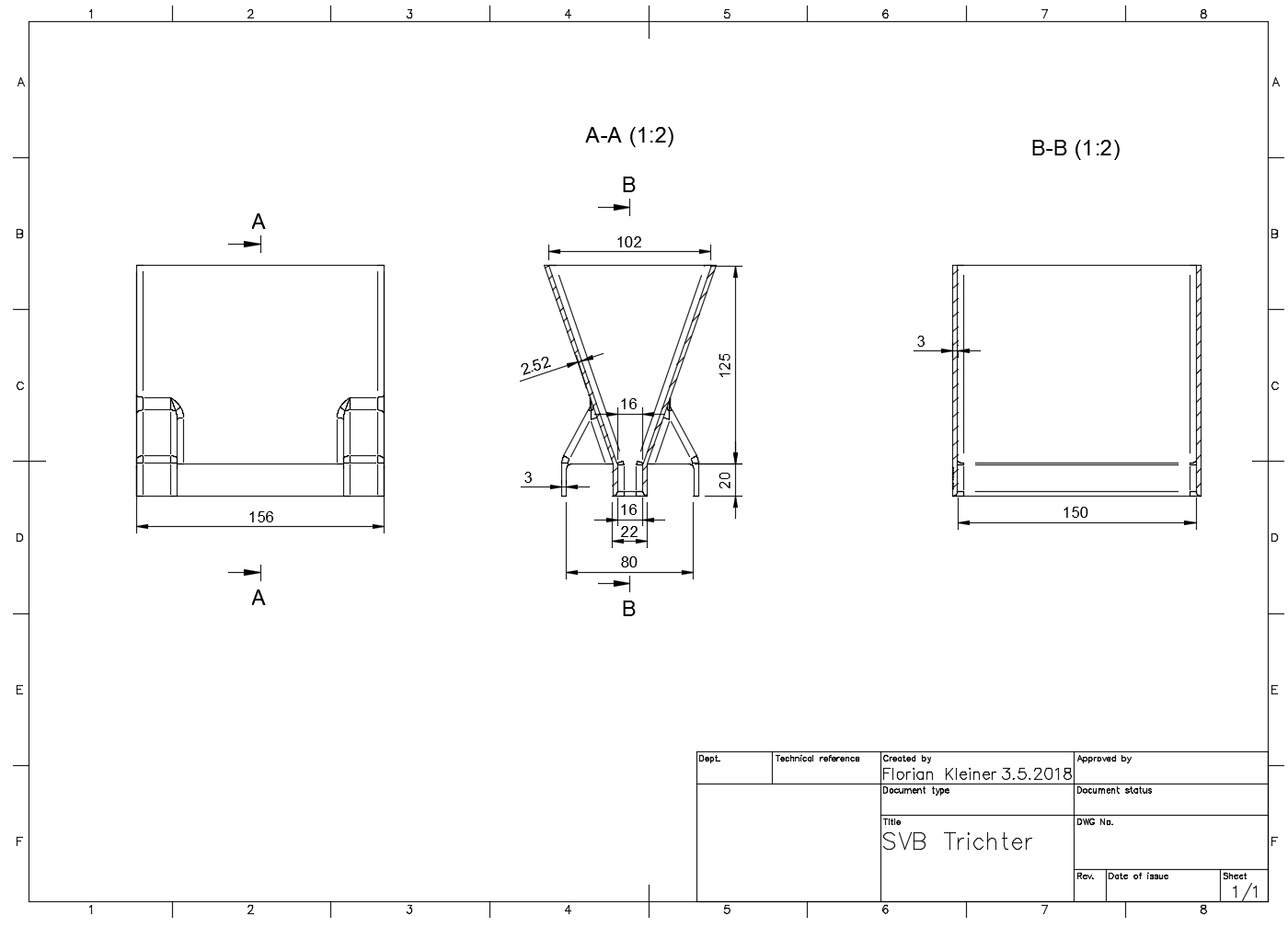

The fusion 360 file can be found here: https://a360.co/2KfWZec

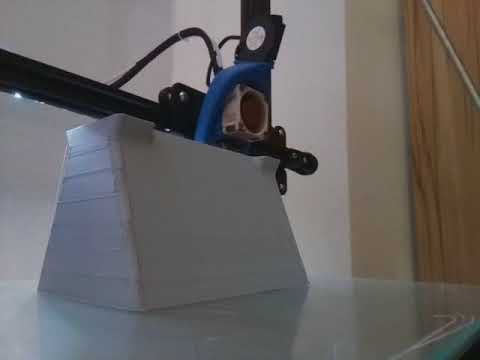

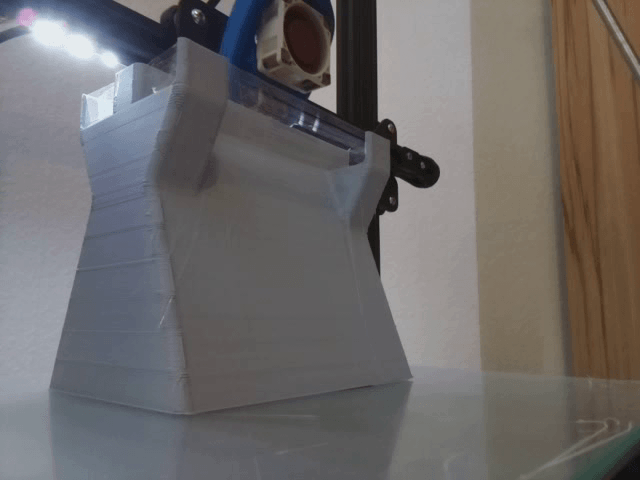

A timelapse of the print is avalable on Youtube: https://youtu.be/t-kgHLoyJck

3D printing settings

0.4 mm nozzle

2.5 mm layer height

2 perimeters

20 % infill

  • 3D model format: STL

Tags

Creator

License

CC BY NC SA
