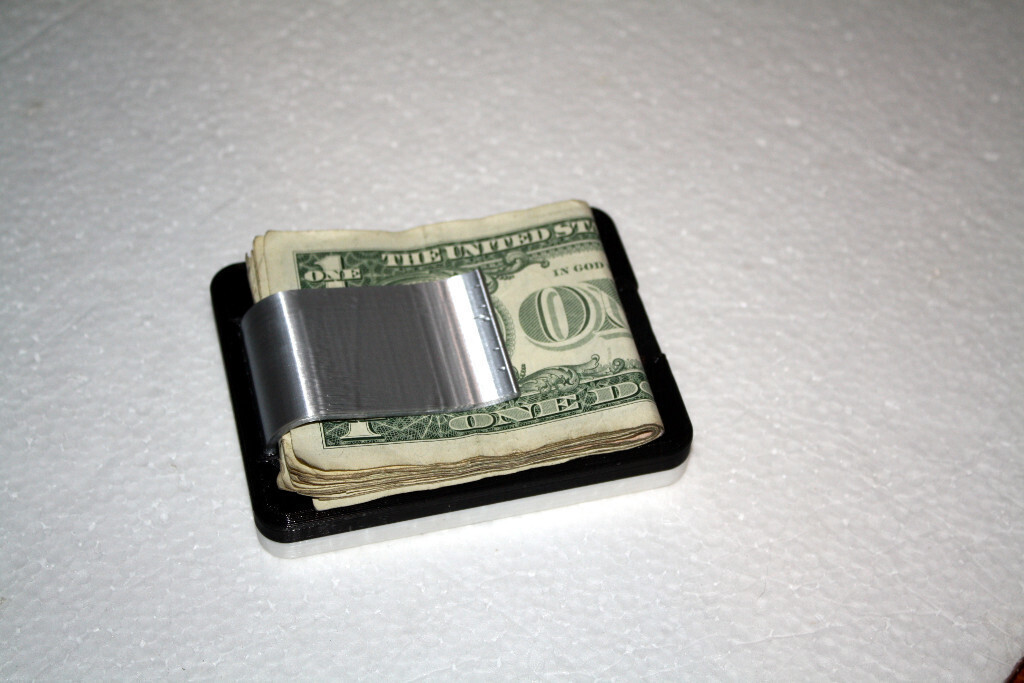

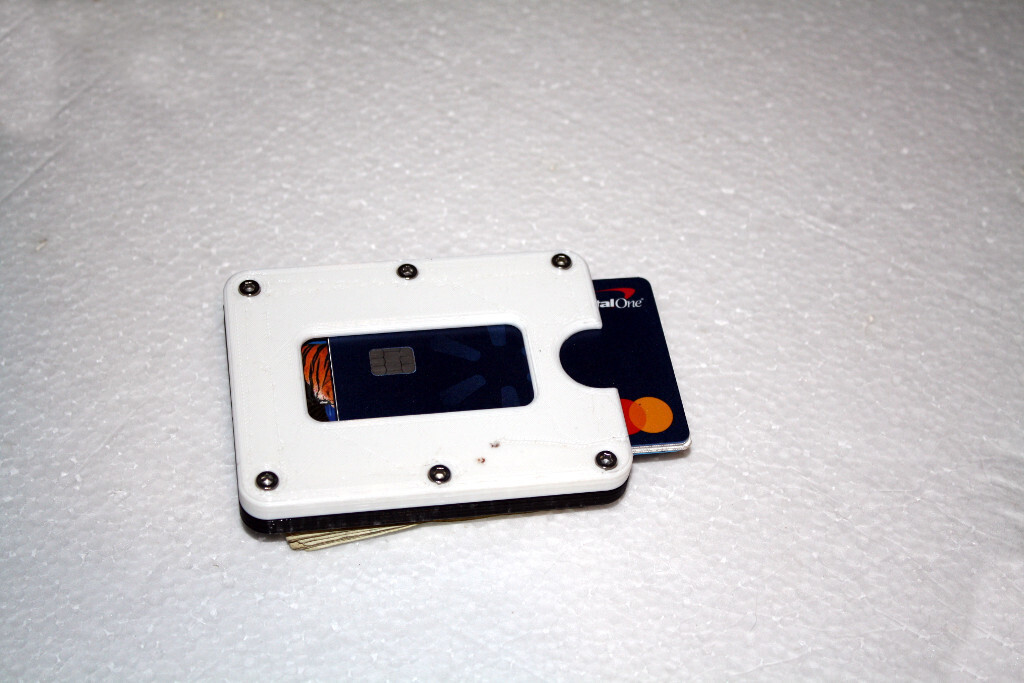

I know there are several designs on here already for this type of wallet, but I like reinventing wheels. Besides, I wanted something specific. I wanted something that would hold three or four credit cards, a pistol permit, a driver's license, insurance cards and a credit card knife. I wanted the cash held in place with a clip and I wanted a window for the ID so you didn't have to pull it out to show it.
For my version of the "Thin / Front Pocket Wallet" you will need six (6) m3x8mm socket head screws.
Print the pieces in the orientation in which they are presented. This will produce the best looking parts with the least amount of support material necessary (only required under the holes for the screw heads on bottom.stl). It also ensures proper strength in the clip.stl. I recommend 1.6mm walls and 1.0mm top and bottom layers for strength.

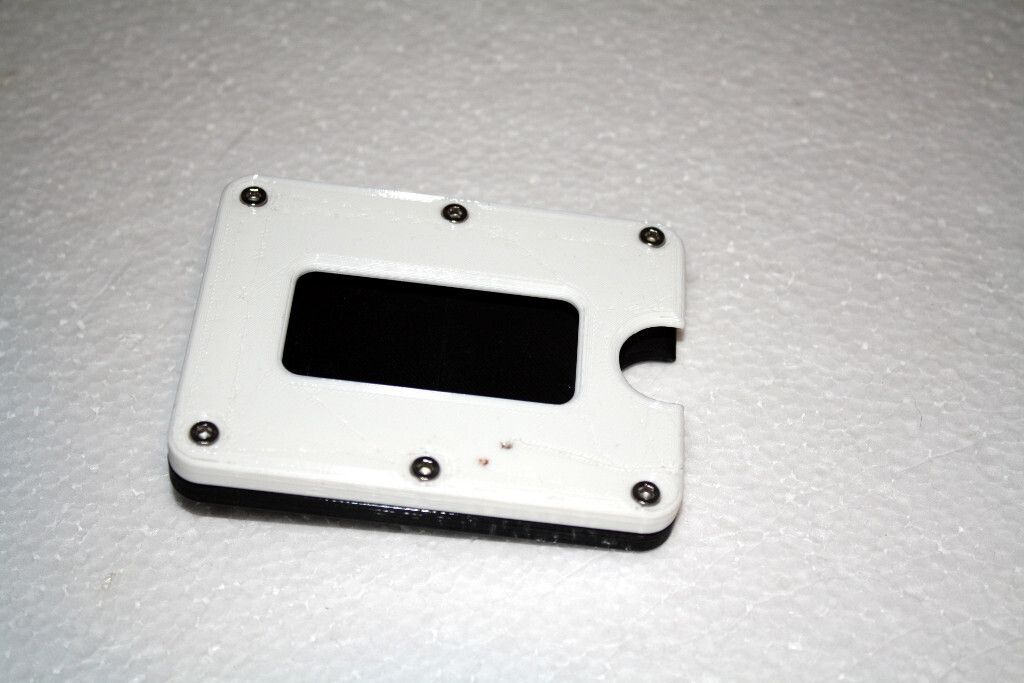

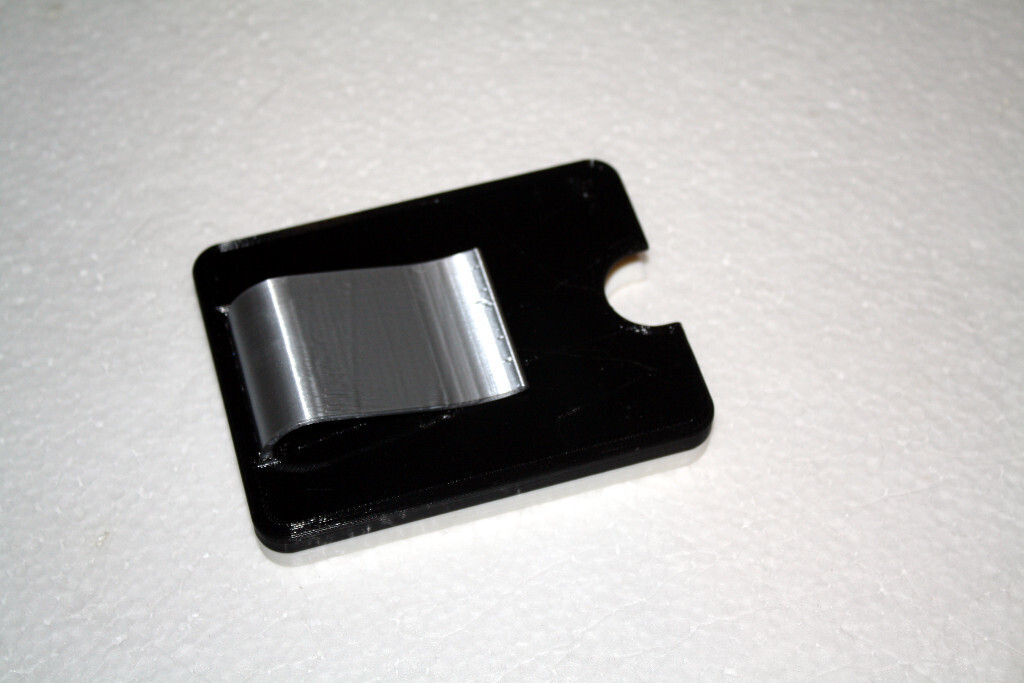

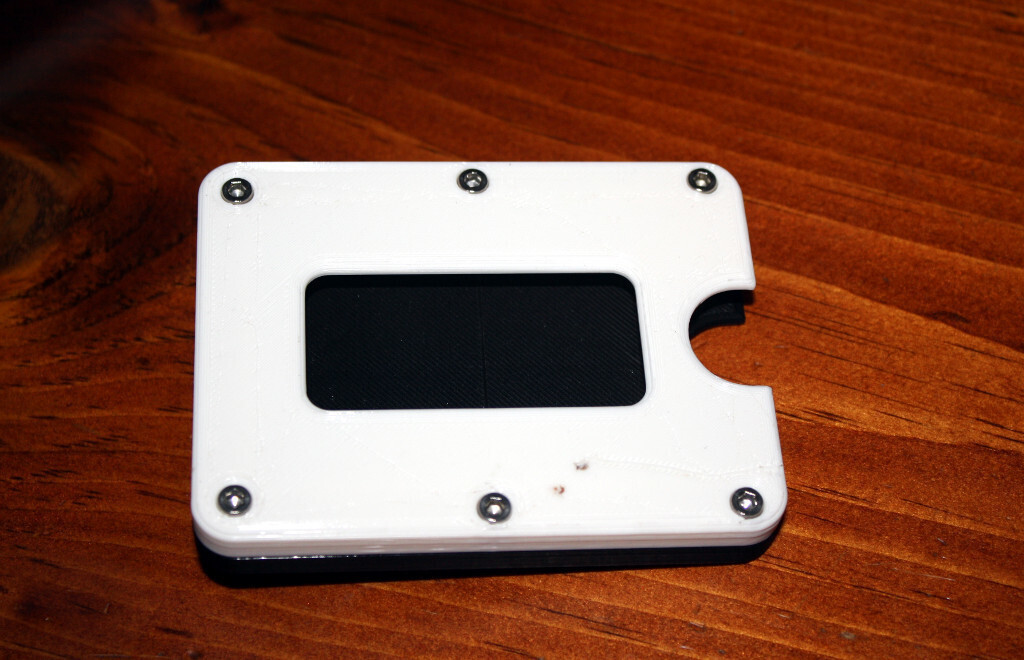

Once all the pieces are printed, bolt the two halves of the case together with the m3 screws. The clip is glued into the slot on top.stl. I prefer to use Weld-On SCIGRIP 16 acrylic cement. This stuff bonds PLA together just like the old model cement used to, before Big Brother decided with was too dangerous and demanded a reformulation. But I digress...
Due to either a Thingiverse bug or (more likely) shadowbanning, my models no longer show up under the [Newest] listings. If you want to see more of my models, please be sure to 'follow' me. **If you print this, it would really help if you'd post a 'make' so that others could find this model.
I am a self-proclaimed know-it-all. I will tackle any project regardless of my experience, or lack thereof. Always ready to learn something new. With over 25+ years experience in electronic repair and 10+ years experience in small engine / ATV / motorcycle repair, there is nothing I can't fix, modify or build.
Why a pepper? In case anyone is curious as to why there is a hot pepper embossed into most of my designs... My nickname is Pepper and that little pepper logo is a hell of a lot shorter than "Copyright © 2017 by Derek J.G. Tombrello" which is how I usually sign my work :)
