FPV Gate for Tiny Whoop

3D model description

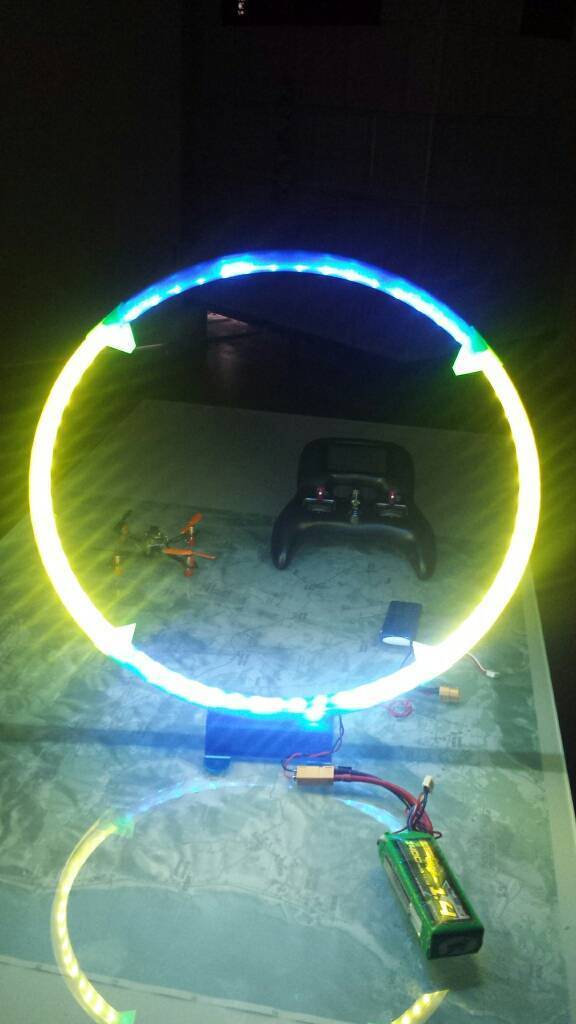

for use with LED-strip print in transparent PLA. LED-strip width 8 mm. I use my old 3s or 4s Lipo with XT60 connector to operate the LED-strip.

New Version with 3x Segment joint!

10.05.2019 New Version Gate Stand V2 with extra lid. in printprogress you can insert in the lid 4 neodym magnets 4x10mm. in the gate stand you can glue 4 magnets 4x10mm from the back side. before print locate the position for the magnets in the slicer software. i print the stand with 7% support, its difficult to remove the support from the magnet recess.

3D printing settings

Print in transparent PLA, 0,4 mm Nozzle, layer thickness 0,15 mm
you need min. 180x180 mm printing area.

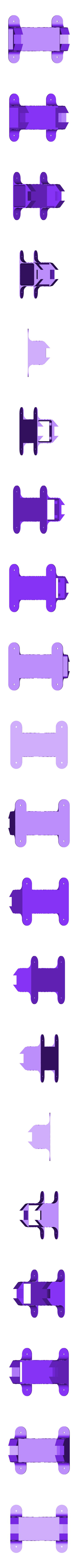

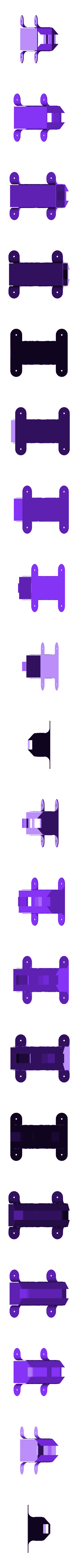

Gate Stand:
15% Infill, 7% support
time 4 h 21 min, Material 29 g, x1

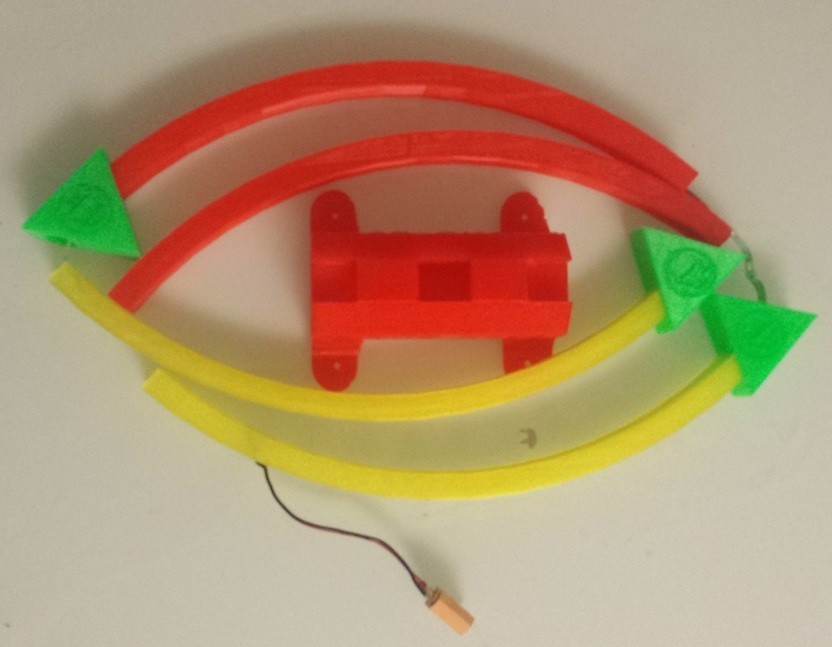

Gate Segment:
15% Infill, no support
time 2 h 2 min, Material 15 g, x4

Segment joint:
15% Infill, no support
time 44 min, Material 6 g, x3

  • 3D model format: STL
