FEP Resin Vat with lateral nuts - Custom version V3

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

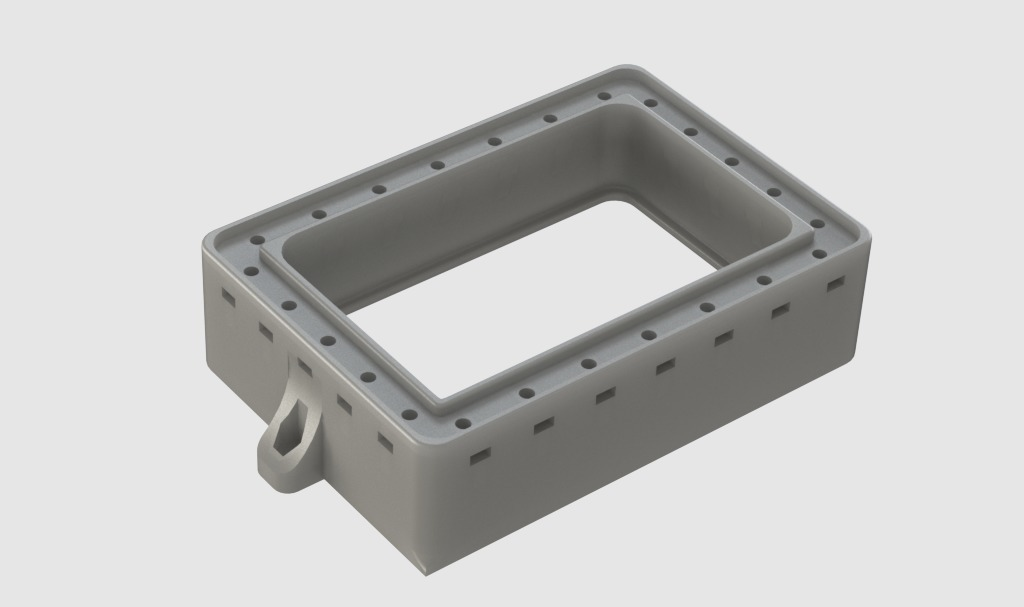

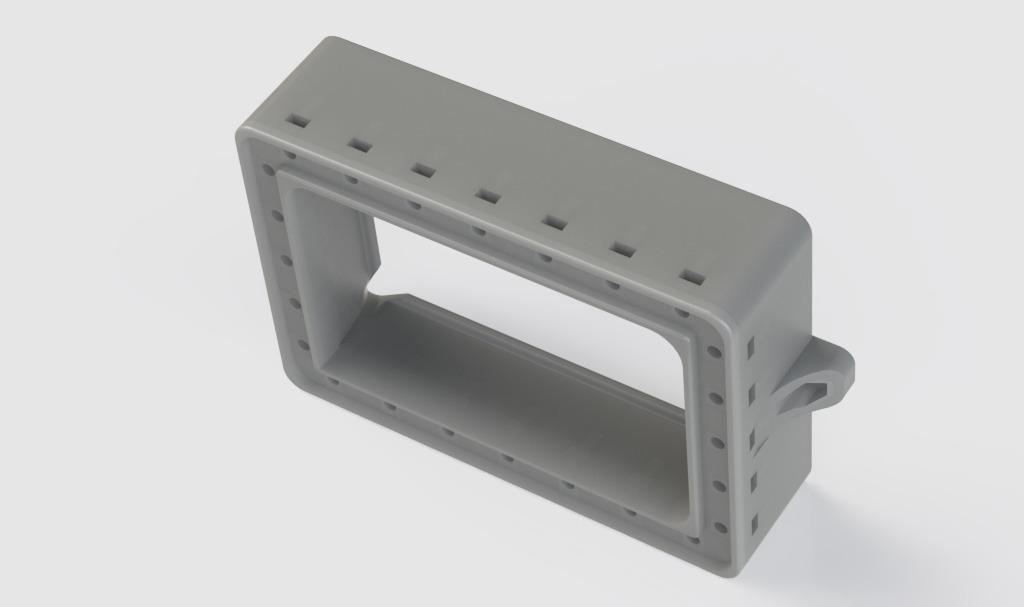

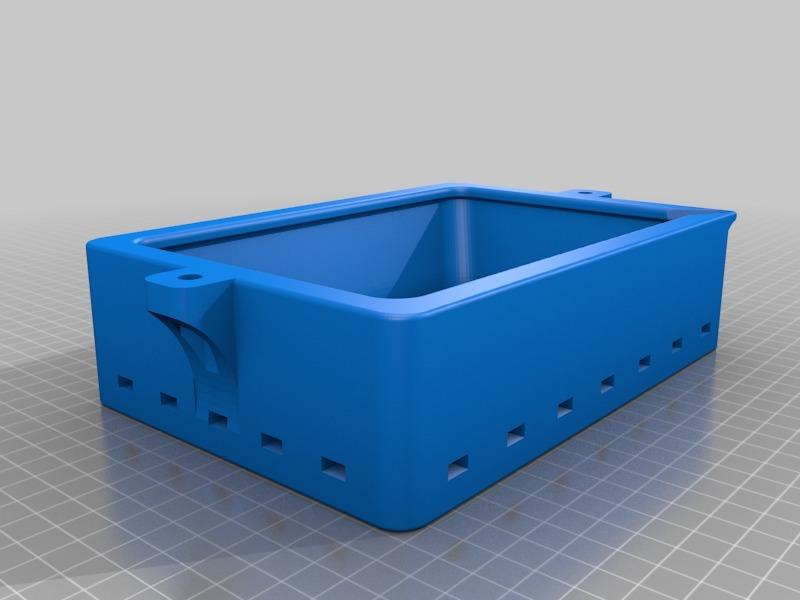

This is a custom design for my own DIY 3D Printer LCD UV / DLP (still in progress).

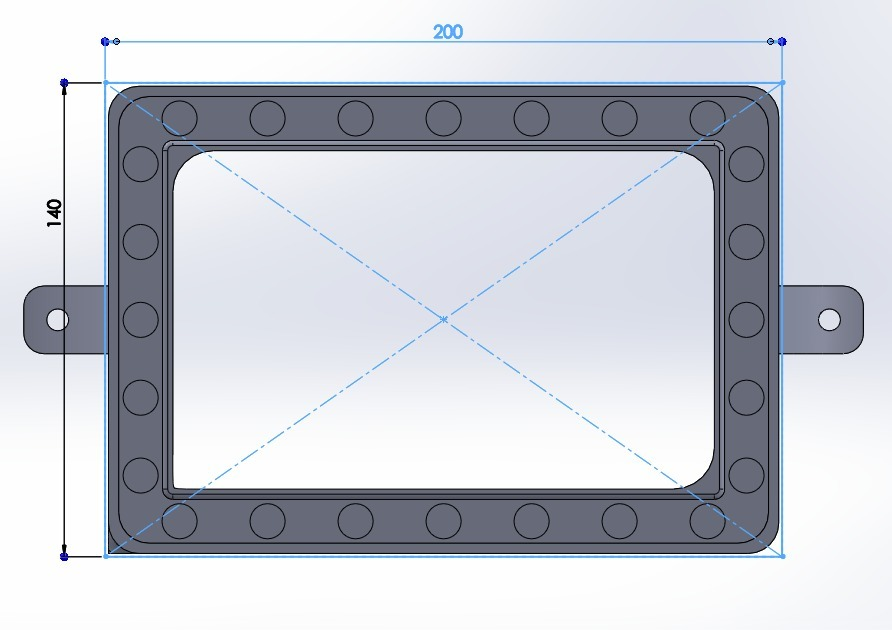

Extelnal measures: 197 x 137 x 50 mm.
Internal measures: 100 x 159 x 50 mm.

Easy emptying / Drain.
For 140 x 200 FEP sheet or smaller.

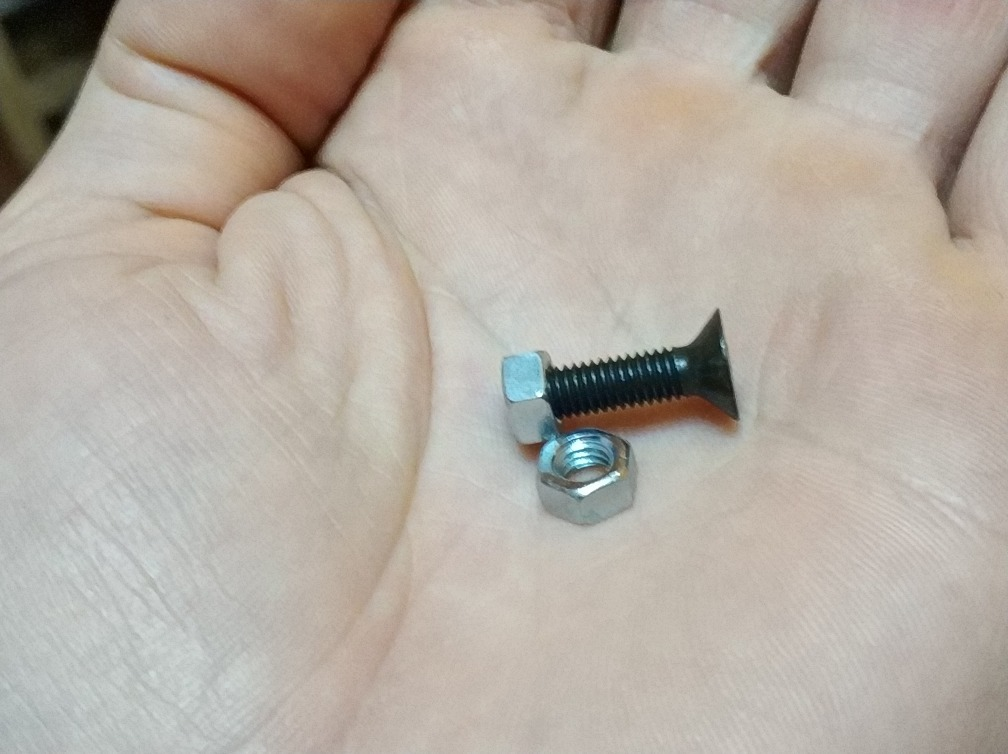

The design accepts screws 20mm x 5mm with V head.

The nuts used in this design are 8 x 4mm (x 5mm hole).

Version with Embedded nuts:
https://www.thingiverse.com/thing:3538686


Well, it is a little embarrassing for me, but... If you like my designs, please think about donate on my PayPal -> onasiis@gmail.com
Thanks! It will help and motivate me to continue creating new and better models.



3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • DIY_Vat_Cubeta_para_Resina_v3.STL

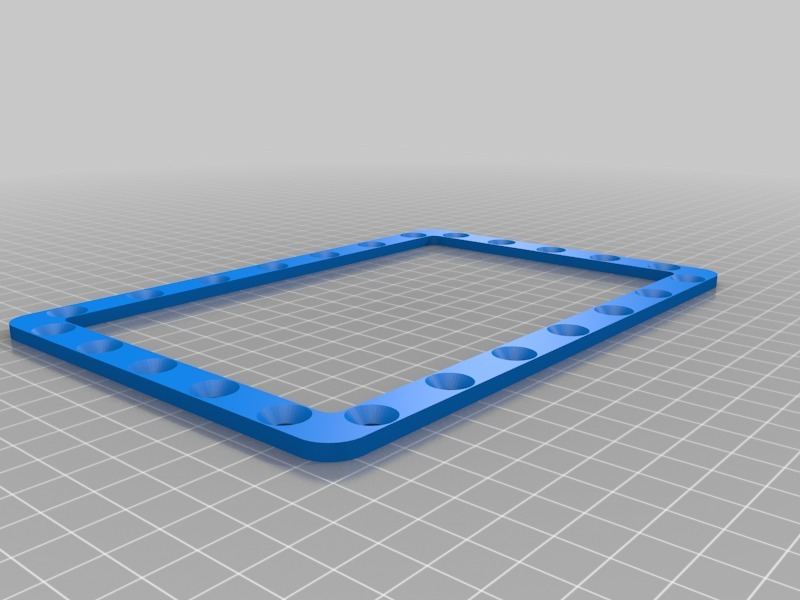

    • FEP_Sheet_Holder.STL

    Learn more about the formats

  • Publication date: 2021-10-25 at 01:28
    ?
    Published to Thingiverse on: 2019-04-03 at 23:08
