Face Shield for Smaller 3D Printers - 25+ prints per 1Kg (3lb) roll

?
Creation quality: 5.0/5 (6 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

UPDATE MKIV Version changelog:
- ReAdded single part version
- Added 3 & 8 Stacks (single & 2 piece, needs supports)
- Made headband narrower for faster printing.
- MKI, MKII, MKIII, MKIV Parts are interchangeable
- 25+ prints per 1Kg (3lb) roll

Hi, thanks for stopping by!
In this download you will find:

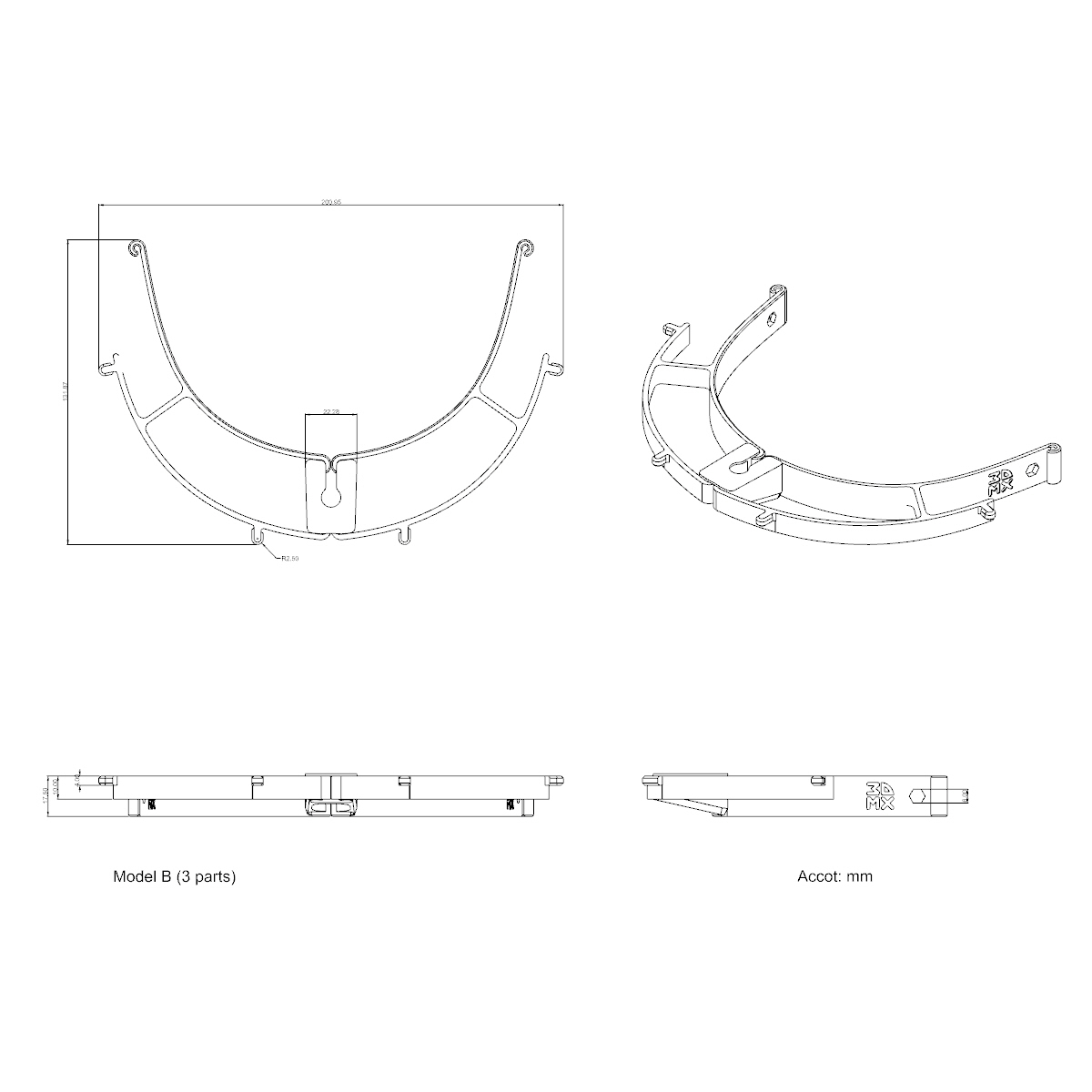

  • Snap together Face shield for smaller printers 14x14cm (5.5x5.5in).
  • Maximum strength, no waste.
  • 2.4mm thick, exactly 3 perimeters per side with 0.4 nozzle.
  • Single part model also included.

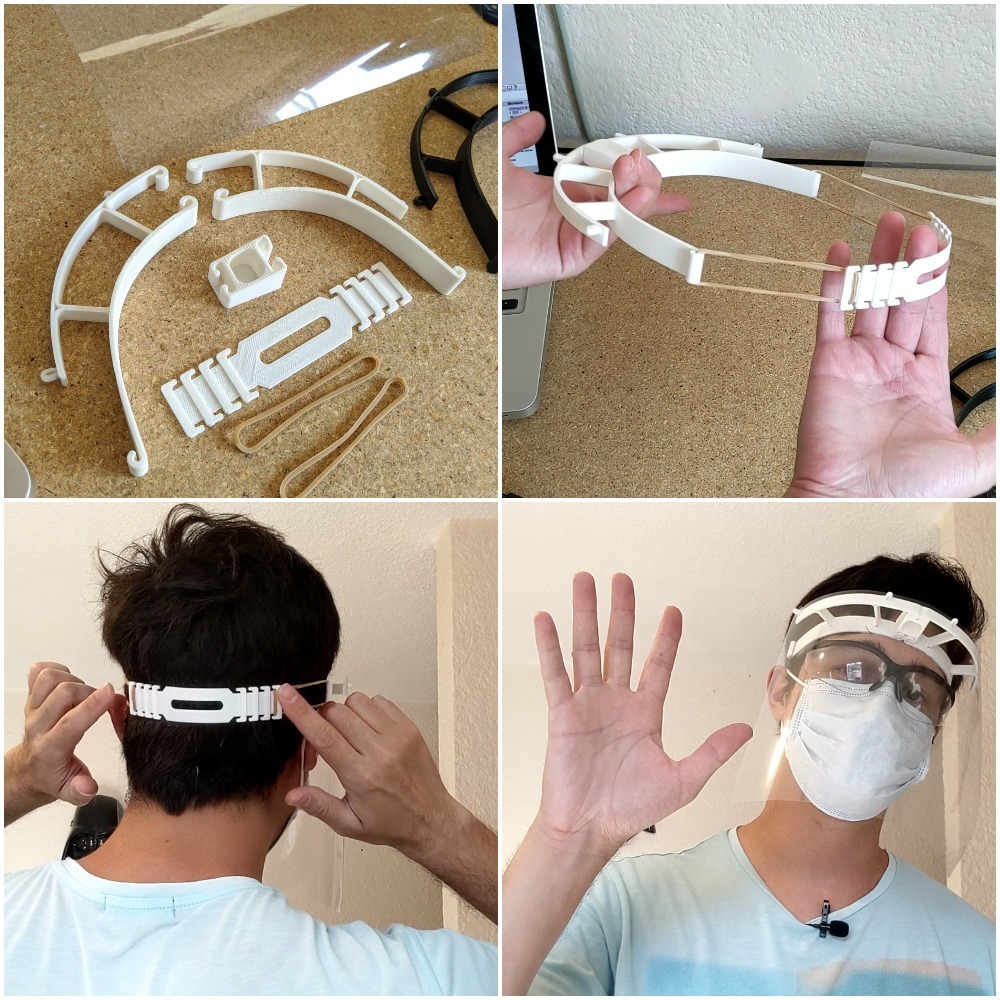

  • Assembly Instructions: https://www.instagram.com/p/B-diCqsDZV7/
  • Adjustable buckle works with standard PLA.
  • Large contact area = less pressure per mm2.

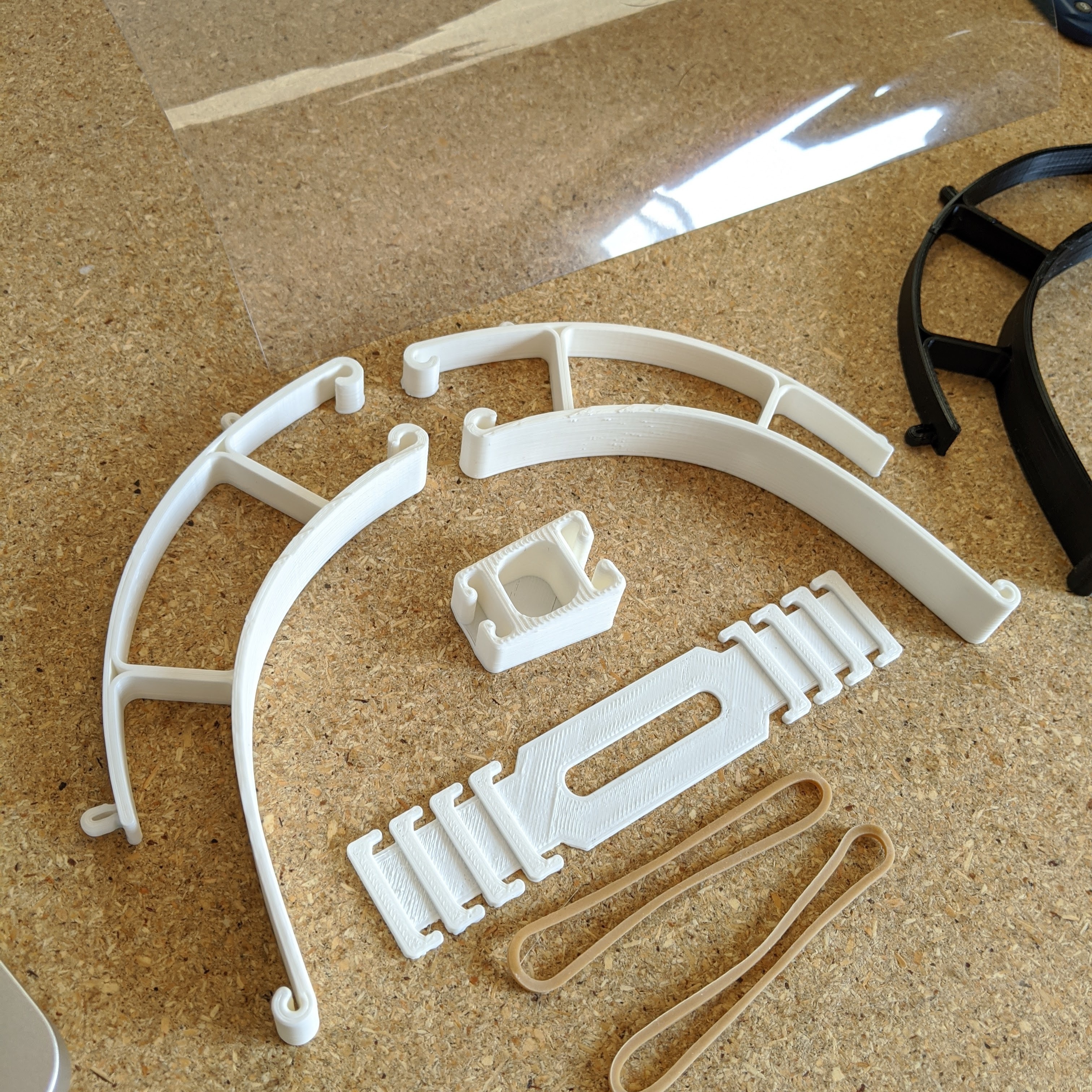

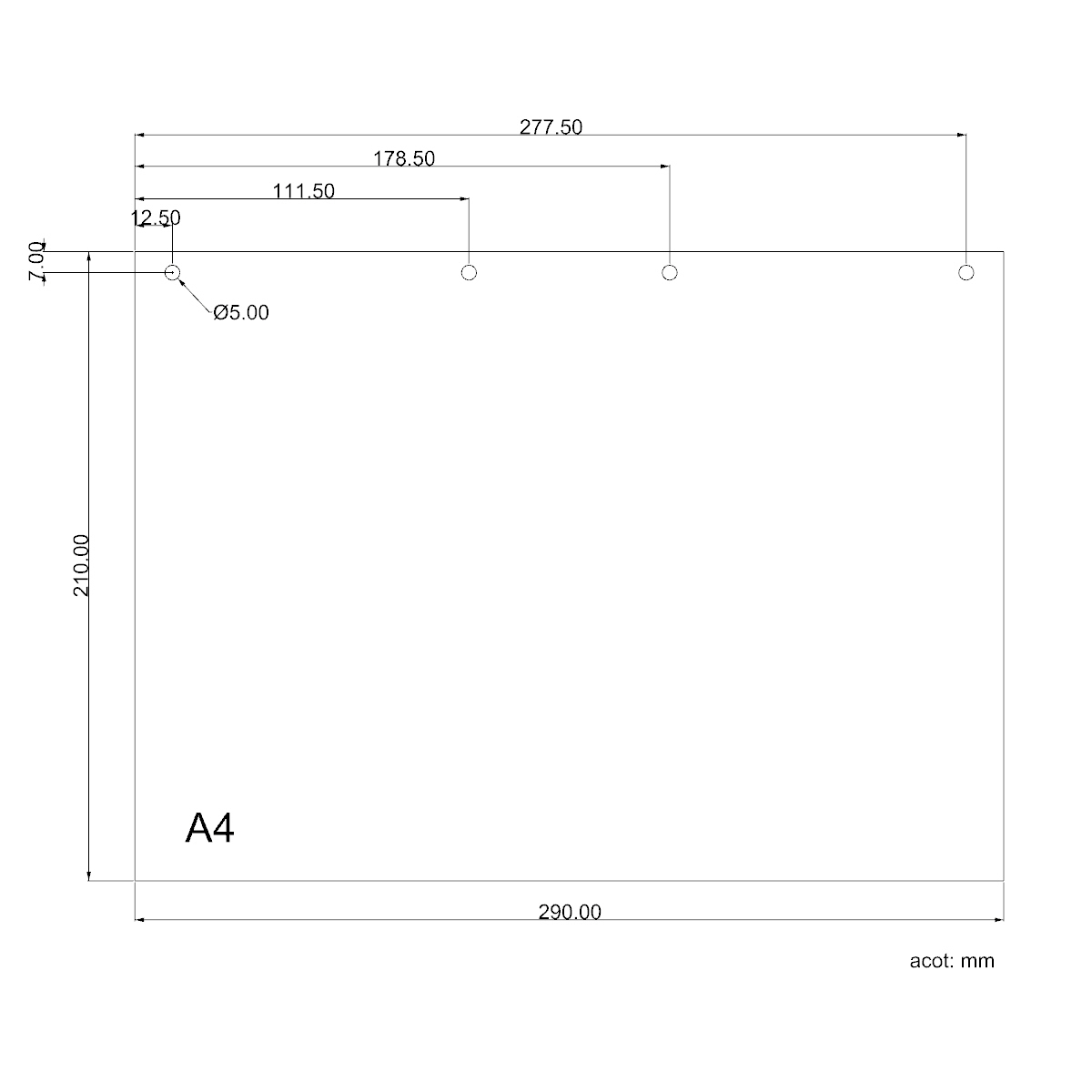

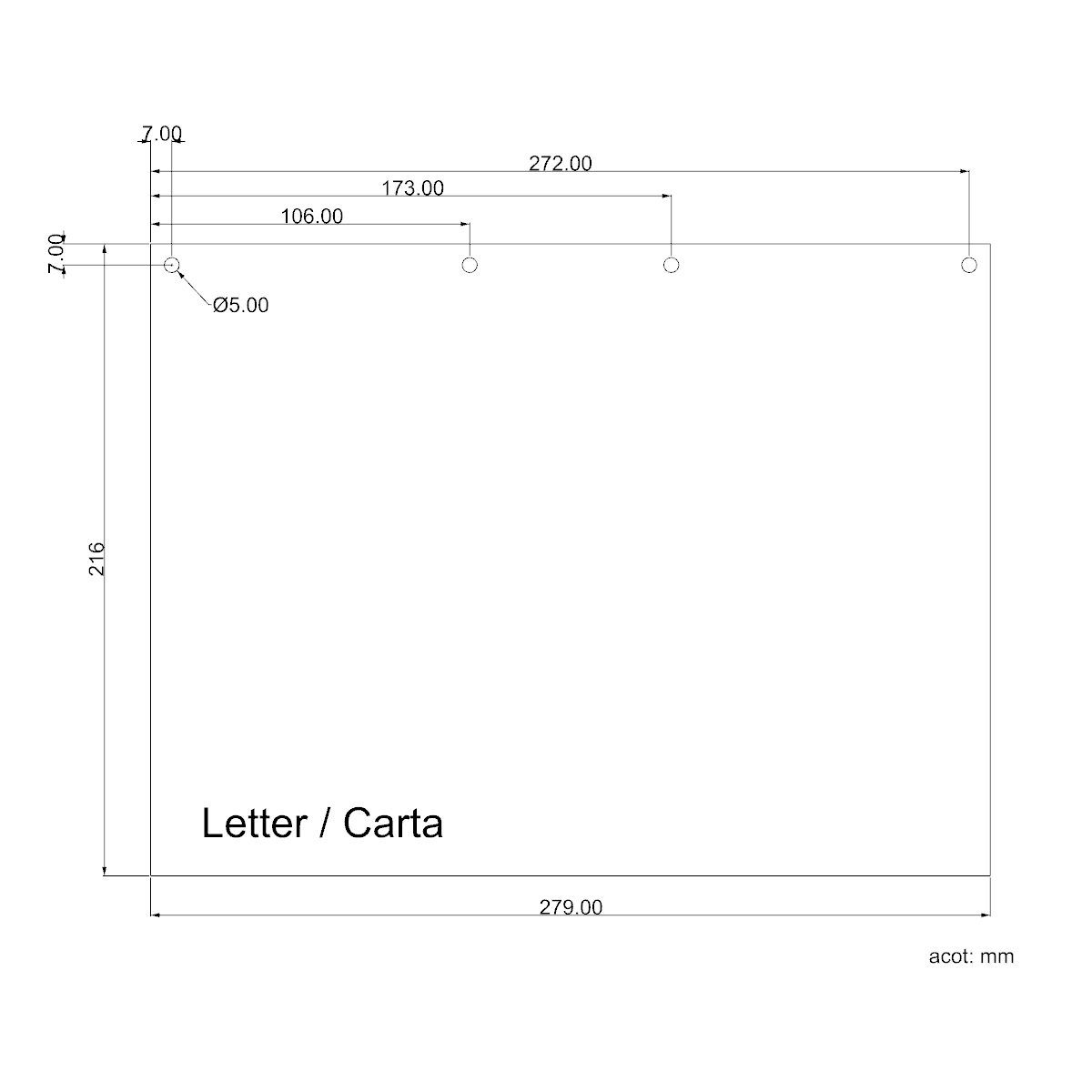

  • Extra bits needed: A4 transparent sheet, 2 rubber bands.

For this design I took cues from Prusas' and Creality's designs, kudos to them.

*Cost is ≥ $2 USD per unit: 27 - 32g,1.25 hrs (single part model) to 2 hrs (3 part model) with rec print settings.
How this was made (spanish): https://www.youtube.com/watch?v=SJdrXSigOKg

If you like this you might want to take a look at my other stuff:
https://bit.ly/3DMX_Designs

You can tip me here: www.paypal.me/3DNG

Cheers, and happy printing!


3D printing settings

Visor:
PLA
Perimeters: 3
Layer: 0.3
Infill: 0
Supports: No
Top/Bottom solid layers: 0
Skirt / Brim: No

Buckle & Visor Clip:
PLA
Perimeters: 3
Layer: 0.3
Infill: 10
Supports: No
Top/Bottom solid layers: 3 , 2
Skirt / Brim: No

3D printer file information

  • 3D design format: ZIP Folder details Close
    • MKIV.zip

    Learn more about the formats

  • Last update: 2020-04-12 at 21:19
  • Publication date: 2020-04-02 at 02:21

License

CC BY-NC-SA - Attribution - Non commercial - Share alike

Tags

Creator

My name is Sergio Romero and I am the head at 3DMX Studio, we hope you like our custom models and designs 🙌

  • Founder @ https://www.3d-mx.com
  • Product Design, Digital Sculpting, Prototyping & Deco.
  • We work with all brands, big and small.
  • 11 years industry experience

Commissions & more info @ https://www.3d-mx.com
