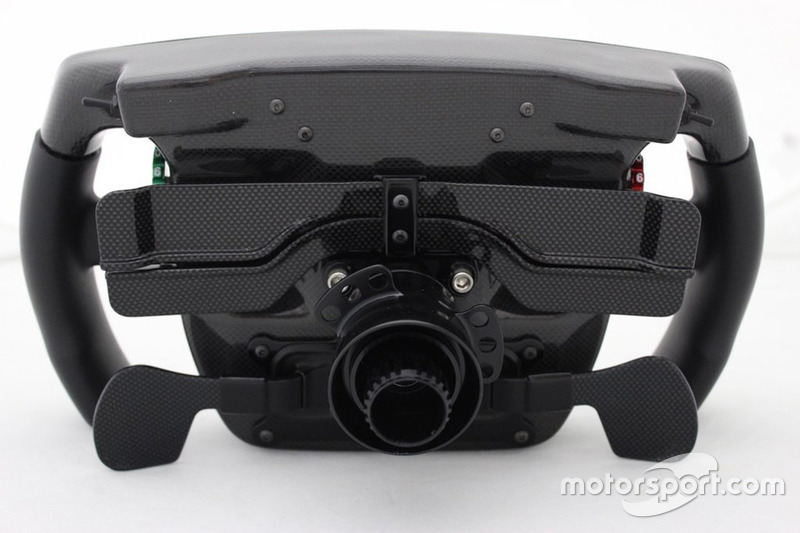

F1 Mclaren MP4-30 2015 Steering Wheel.

3D model description

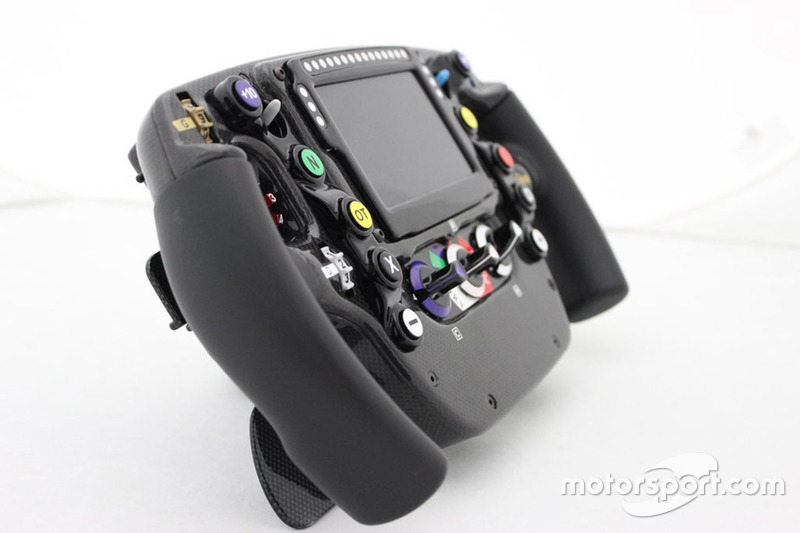

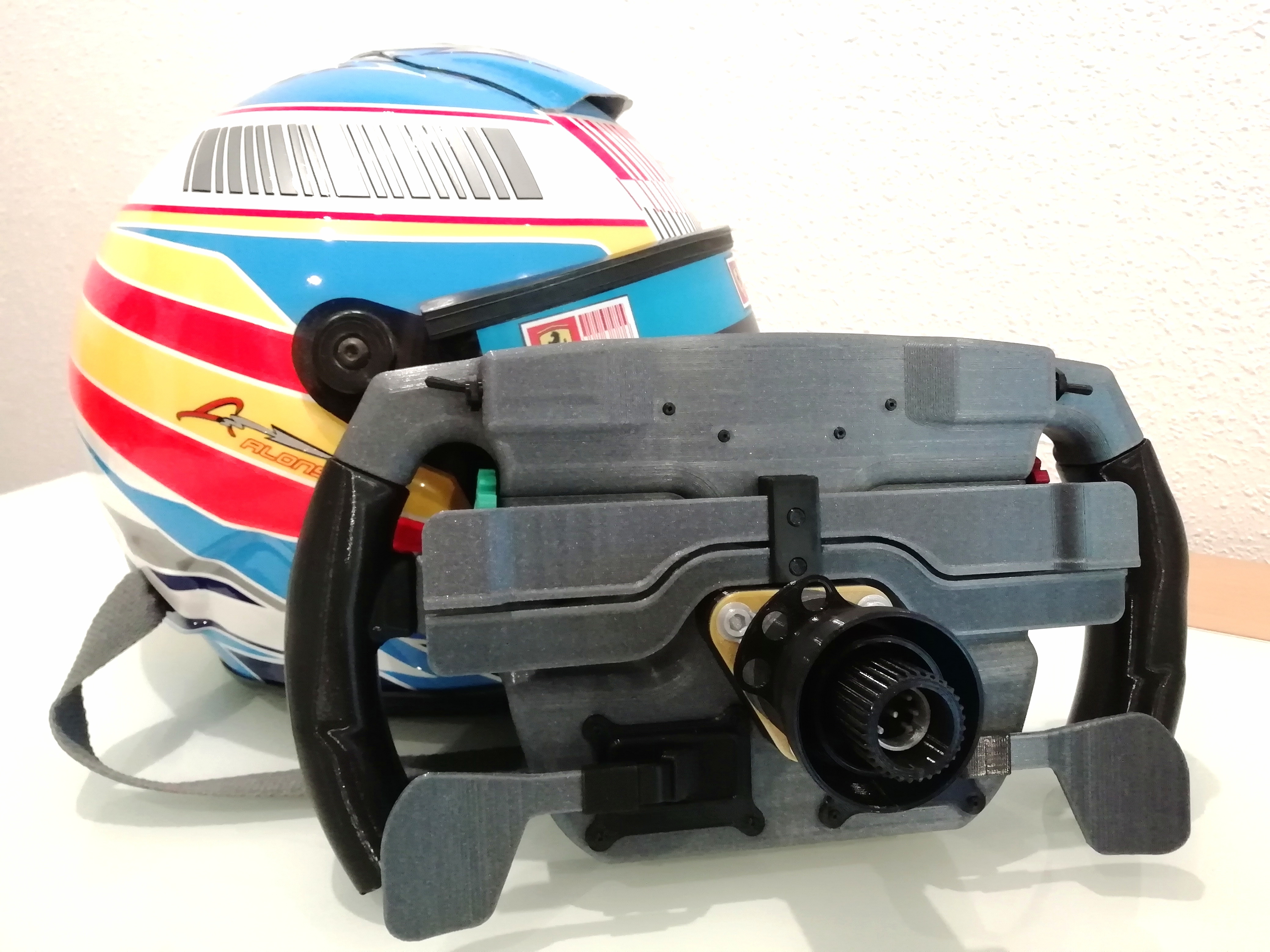

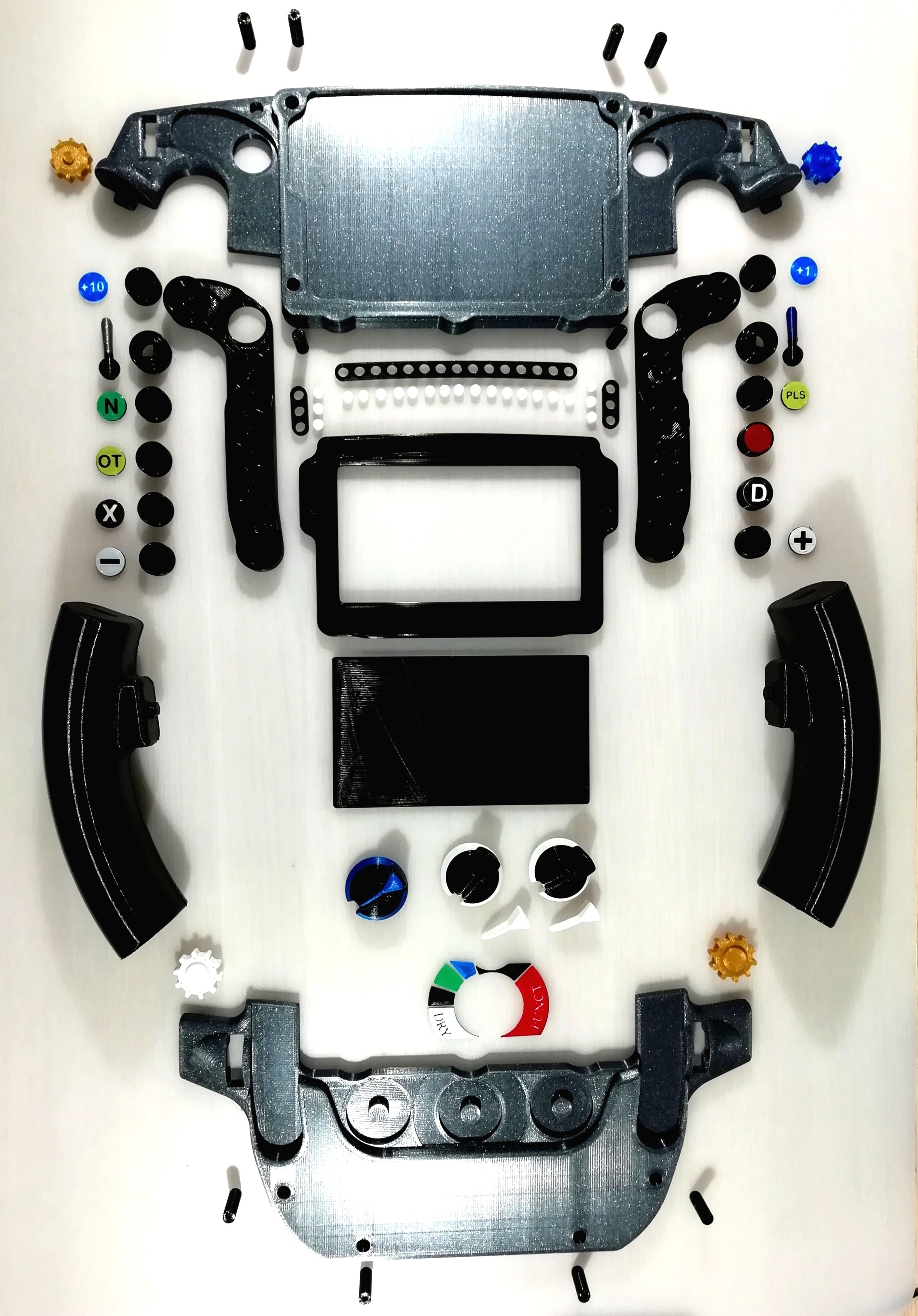

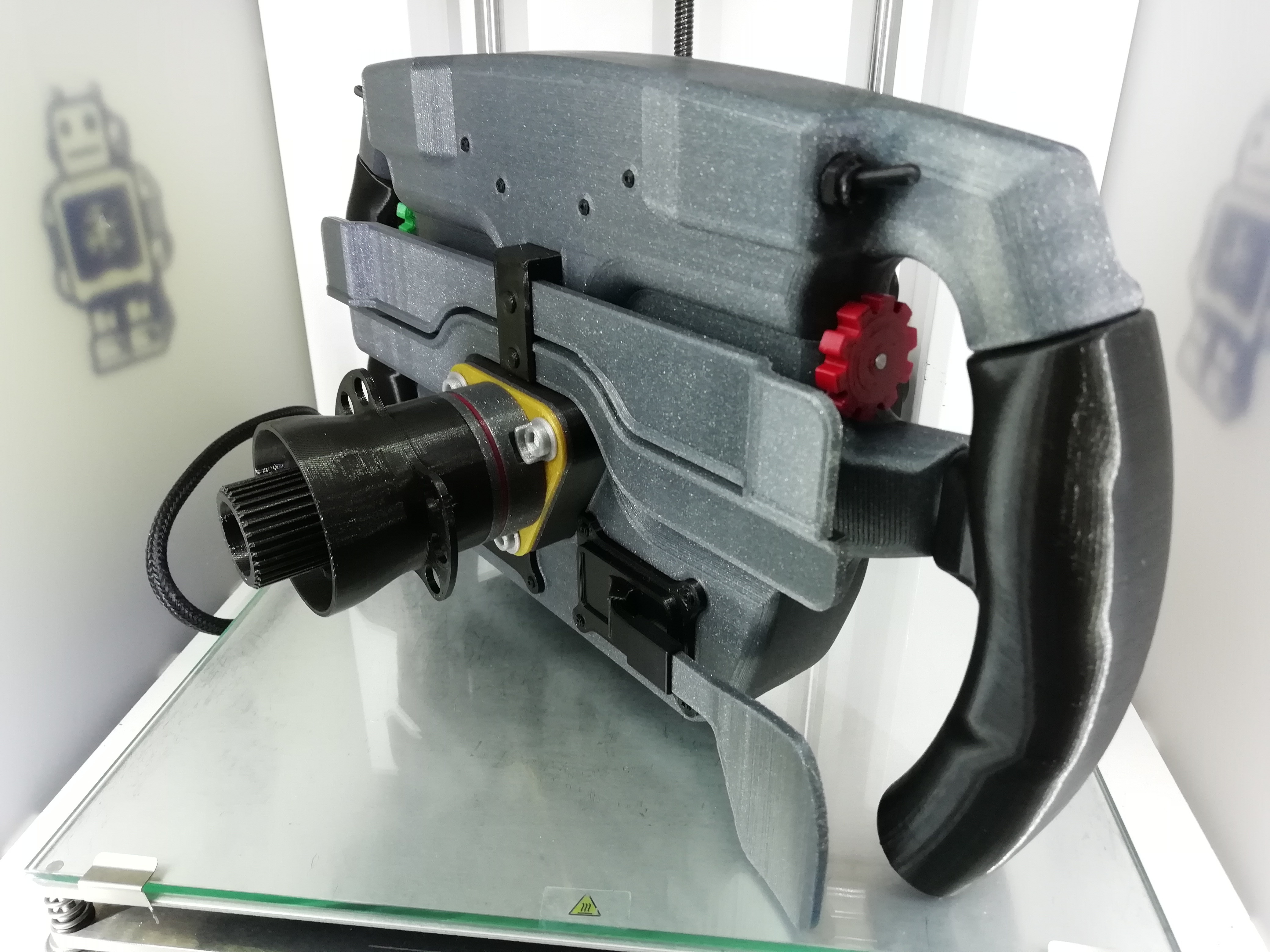

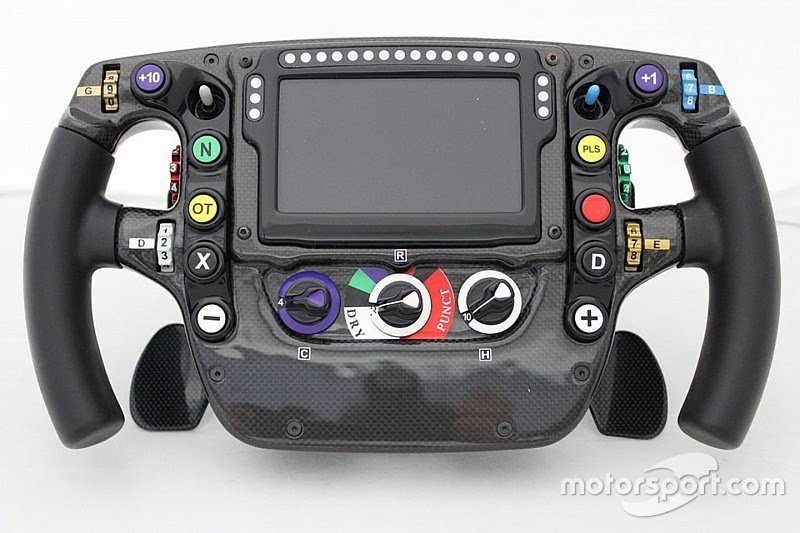

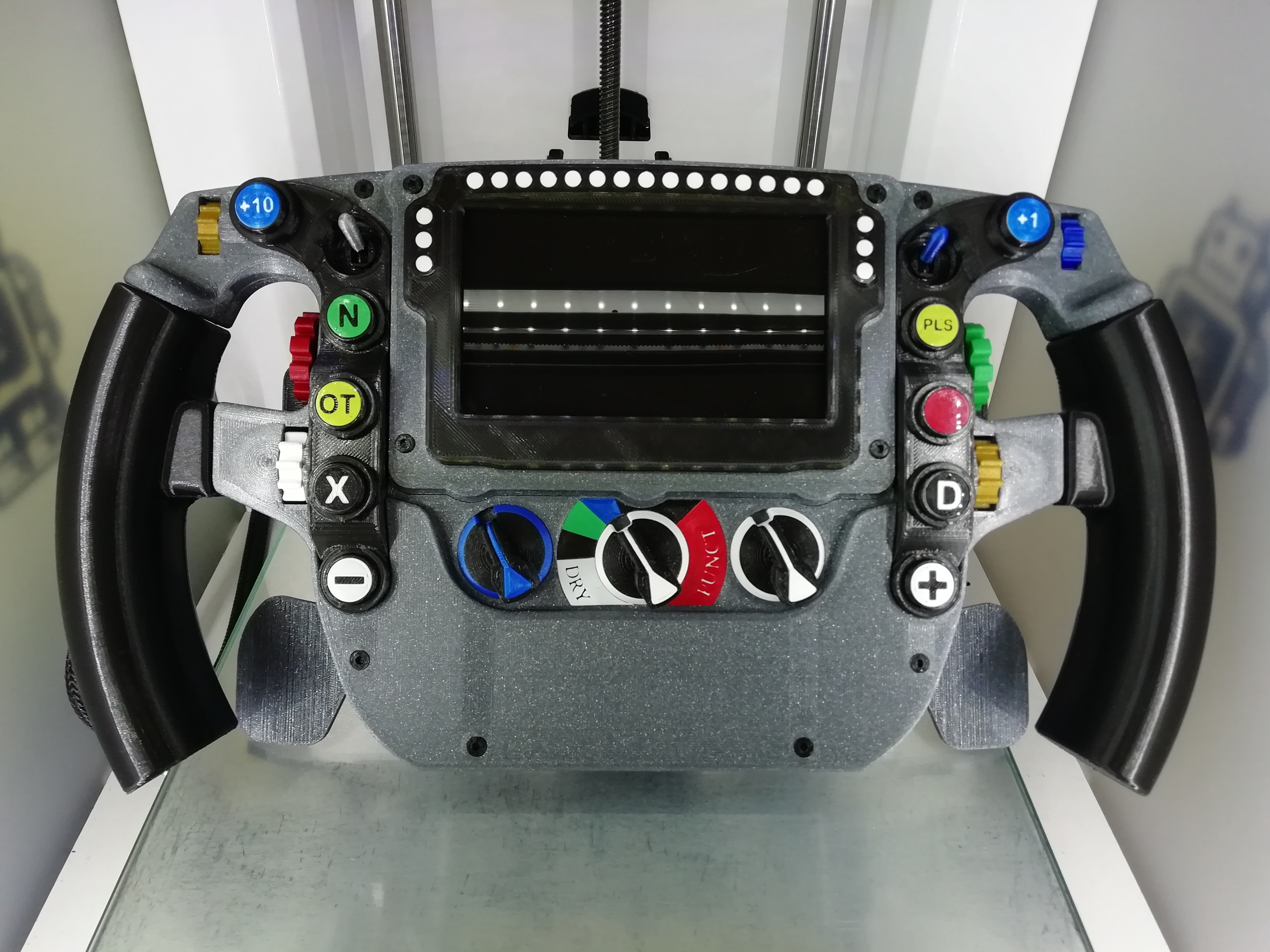

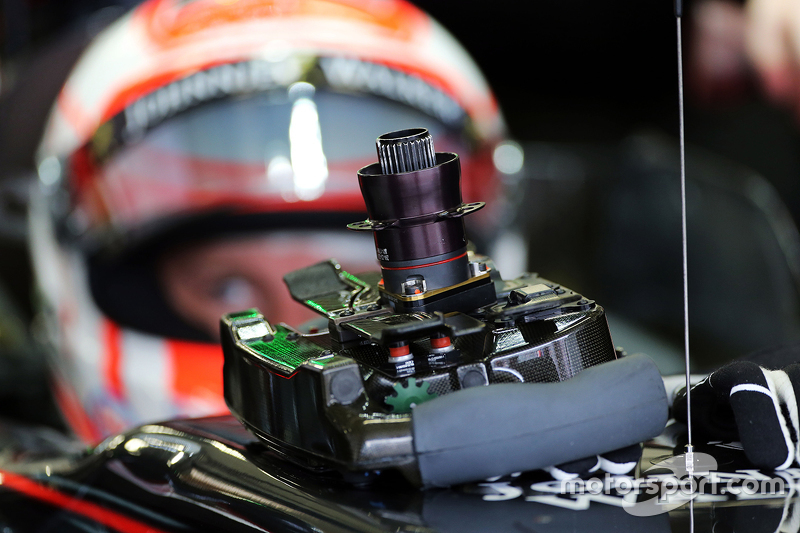

Mclaren MP4-30 2015 Steering Wheel full scale replica.

129 pieces relatively easy to print with the 0,4mm nozzle and simple assembly.

It is a model that requires a little more time than a single print piece but in my opinion the result is spectacular.

I hope you like it as much as I do and that you enjoy its printing and assembly.

I have tried to simplify the design of the pieces to facilitate their printing and assembly.

In total there are about 129 pieces.

Soon the steering wheel exposure stand.

The terrible vine

https://www.youtube.com/watch?v=PbnNEwm4Kkw

3D printing settings

First I will indicate the CURA general print settings and then detail them for each piece

Nozzle: 0.4 mm

Layer Height: 0.2 mm - According to piece

Line Width: 0.35 mm - According to piece

Wall Line Count: 3

Top/Botton Line Directions: According to piece

Activate "Outer Before Inner Walls"

Initial Layer Horizontal Expansion: -0.1

Infill Density: According to piece.

Infill Speed: 60 mm/s

Outer Wall Speed: 20 mm/s

Inner Wall Speed: 35 mm/s

Top/Botton Speed: 25 mm/s

Support: According to piece

Support Over Hang Angle: According to piece

Support Density: 15%

Support Interface Thickness: 0.6 mm

Support Interface Density: According to piece

IMPORTANT!! The pieces are in their printing position.

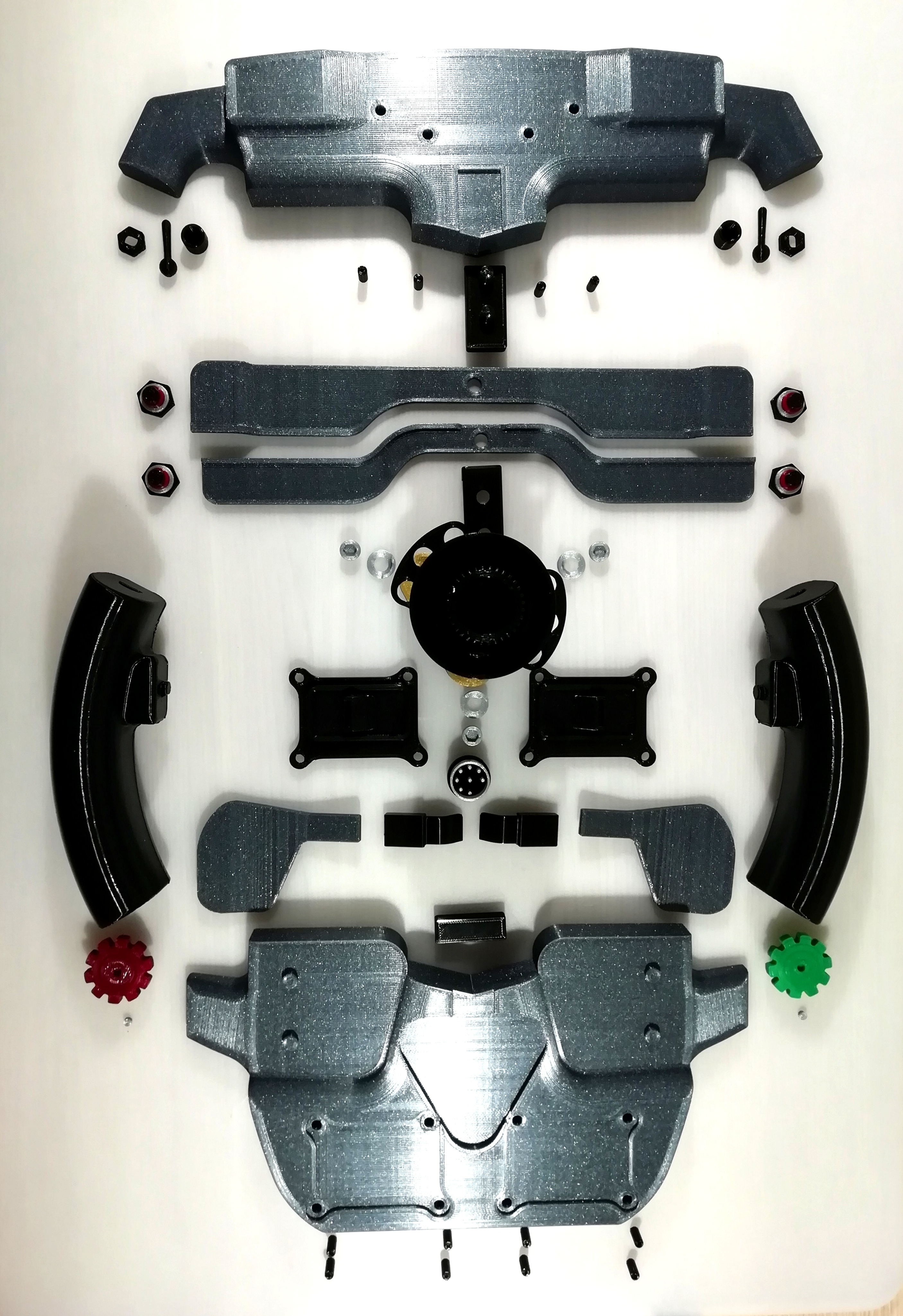

Printable parts:

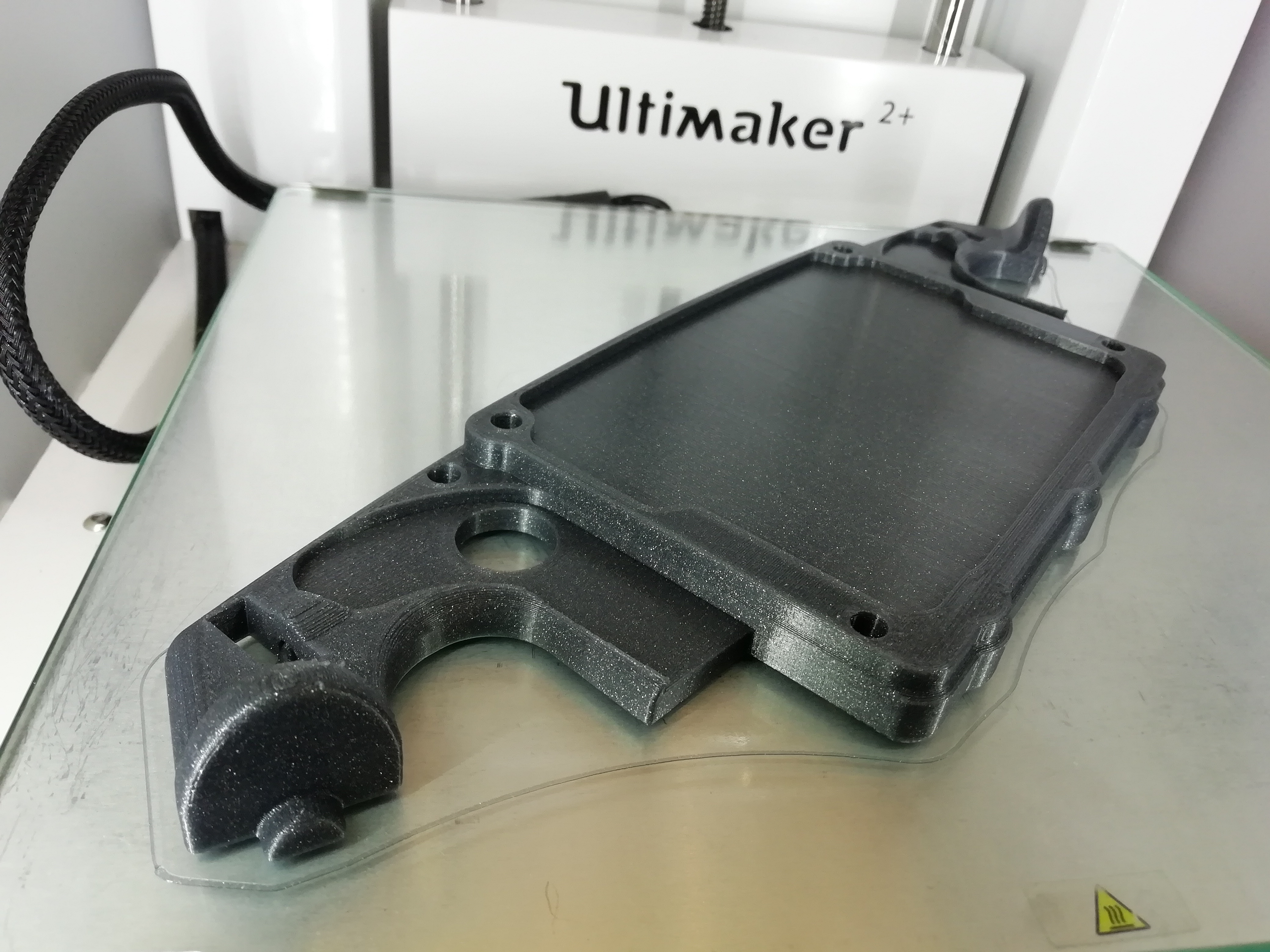

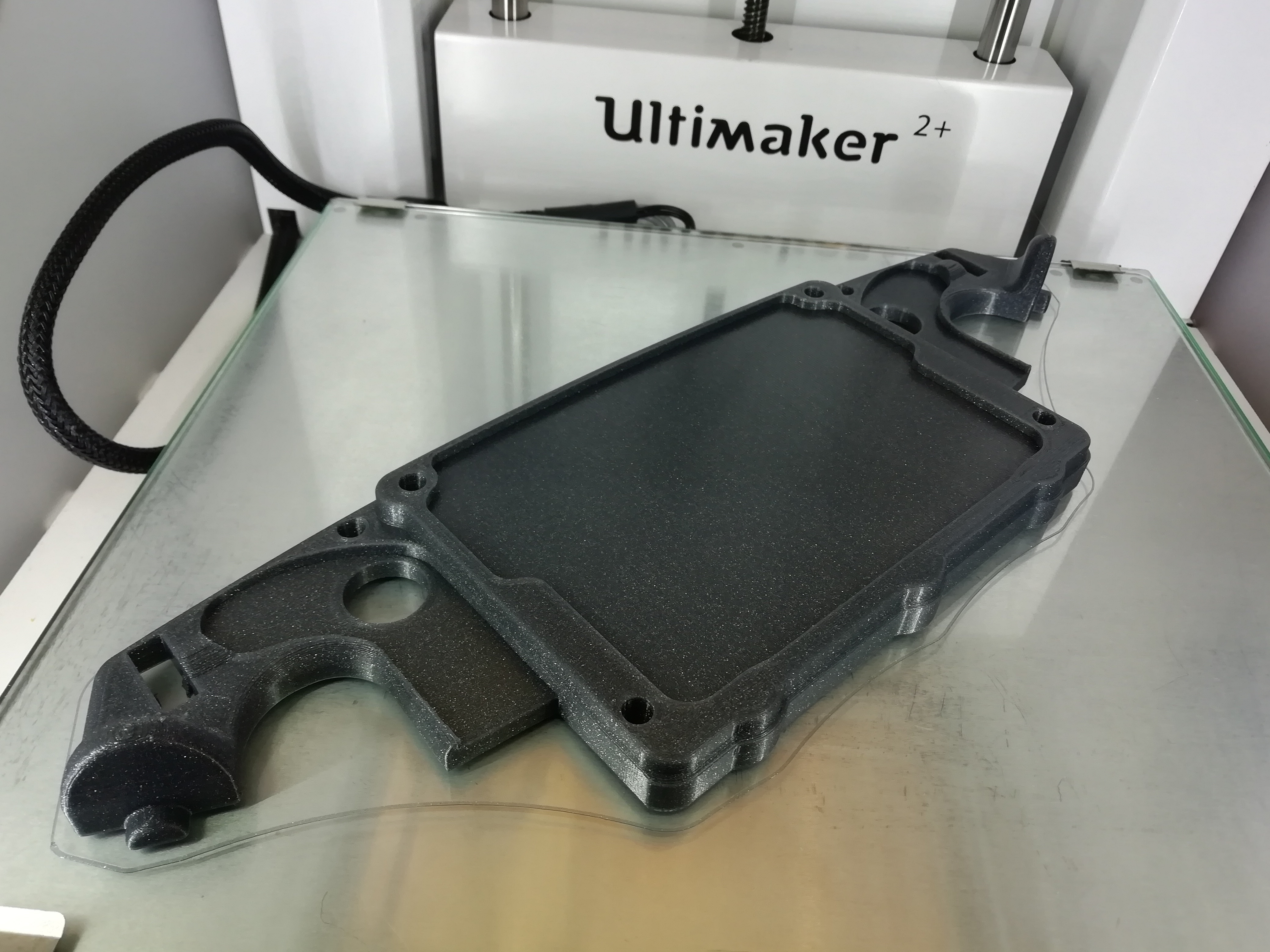

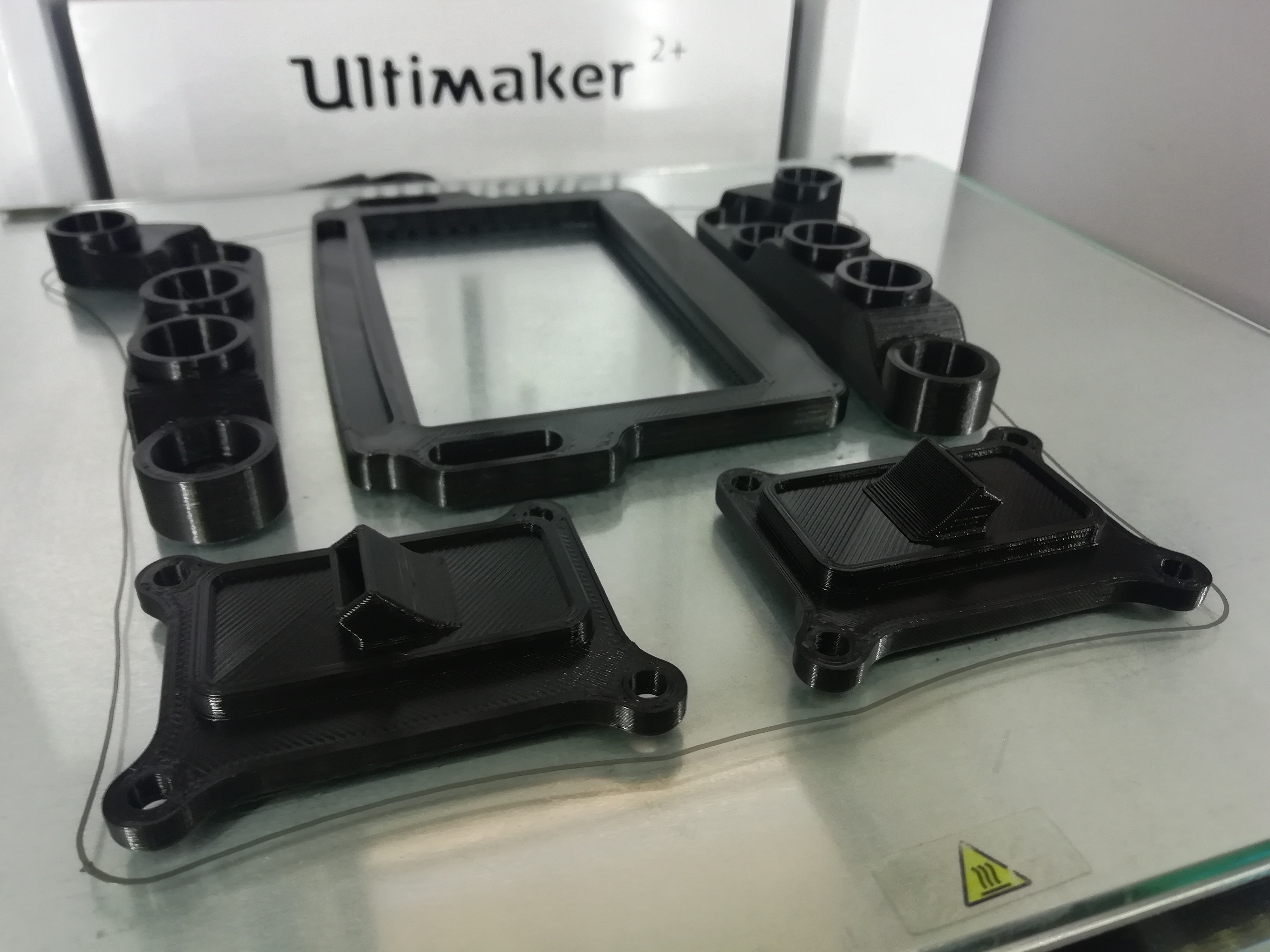

  • 1xSW_Body_Front_A: Approx. Time: 7 h. Material: 58 gr.

Infill Density: 10%.

Support: No

Recommended filament: Fillamentum Vertigo Grey.

  • 1xSW_Body_Front_B: Approx.Time: 6 h. Material: 51 gr.

Infill Density: 10%.

Support: Yes

Support Over Hang Angle: 75º

Recommended filament: Fillamentum Vertigo Grey.

  • 1xSW_Body_Back_A: Approx. Time: 7 h 30 min. Material: 72 gr.

Infill Density: 10%.

Support: Yes

Support Over Hang Angle: 75º

Recommended filament: Fillamentum Vertigo Grey.

  • 1xSW_Body_Back_B: Approx. Time: 10 h 15 min Material: 100 gr.

Infill Density: 10%.

Support: Yes

Support Over Hang Angle: 75º

Recommended filament: Fillamentum Vertigo Grey.

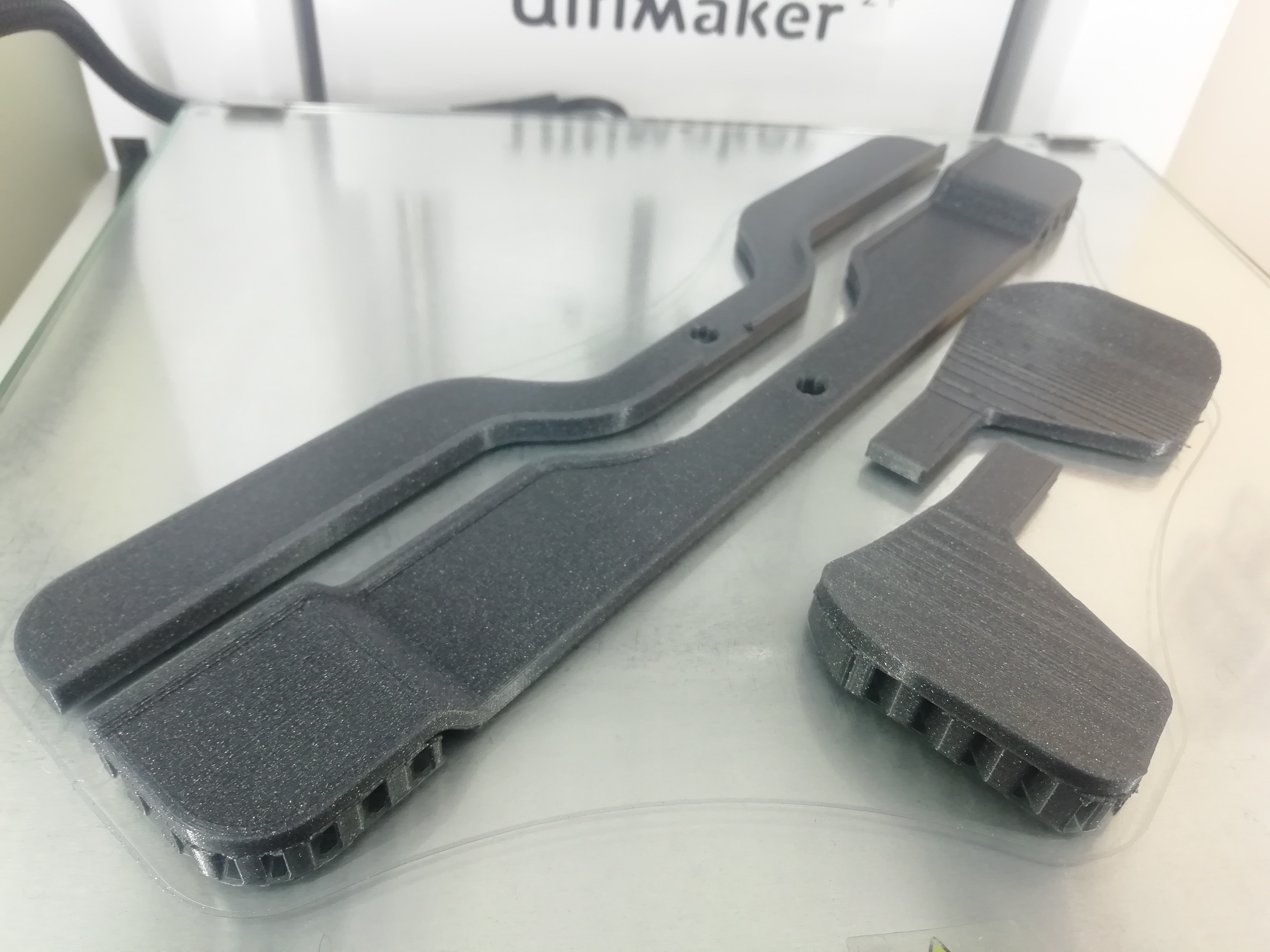

  • 1xSW_Paddle_Shifter_A: Approx.Time: 2 h. Material: 14 gr.

Infill Density: 15%

Support: Yes

Support Over Hang Angle: 65

Recommended filament: Fillamentum Vertigo Grey.

  • 1xSW_Paddle_Shifter_B: Approx.Time: 1 h. Material: 10 gr.

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Vertigo Grey.

  • 1xSW_Paddle_Shifter_C_Left: Approx.Time: 1 h. Material: 7 gr.

Infill Density: 15%

Support: Yes

Support Over Hang Angle: 65

Recommended filament: Fillamentum Vertigo Grey.

  • 1xSW_Paddle_Shifter_C_Right: Approx.Time: 1 h. Material: 7 gr.

Infill Density: 15%

Support: Yes

Support Over Hang Angle: 65

Recommended filament: Fillamentum Vertigo Grey.

  • 1xSW_Button_Case_Left: Approx. Time: 1 h 30 min. Material: 11 gr.

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Traffic Black.

  • 1xSW_Button_Case_Right: Approx. Time: 1 h 30 min.

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Traffic Black.

  • 1xSW_Display_Case: Approx.Time: 2 h. Material: 15 gr.

Infill Density: 15%

Support: Yes

Support Over Hang Angle: 75º

Recommended filament: Fillamentum Traffic Black.

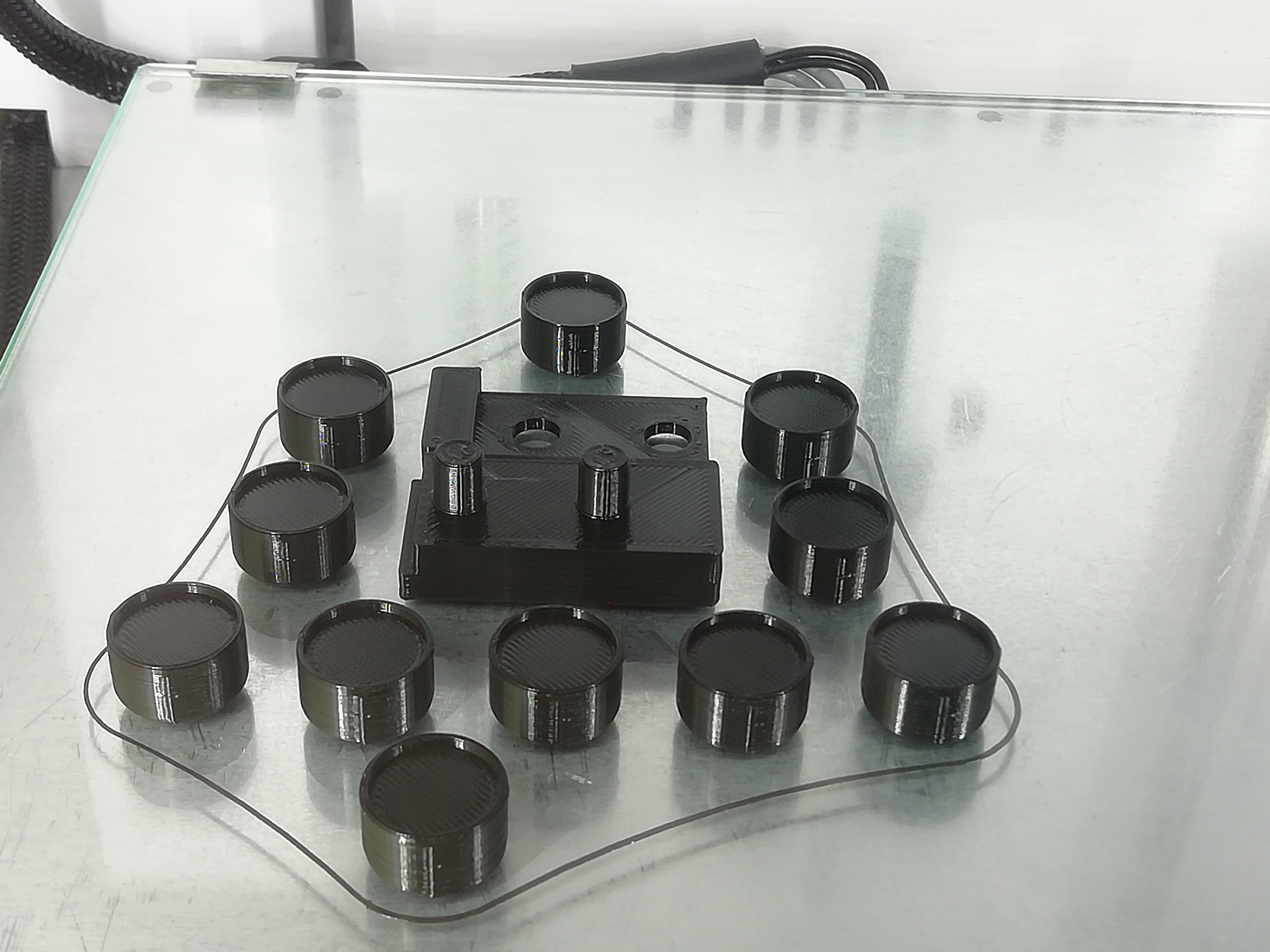

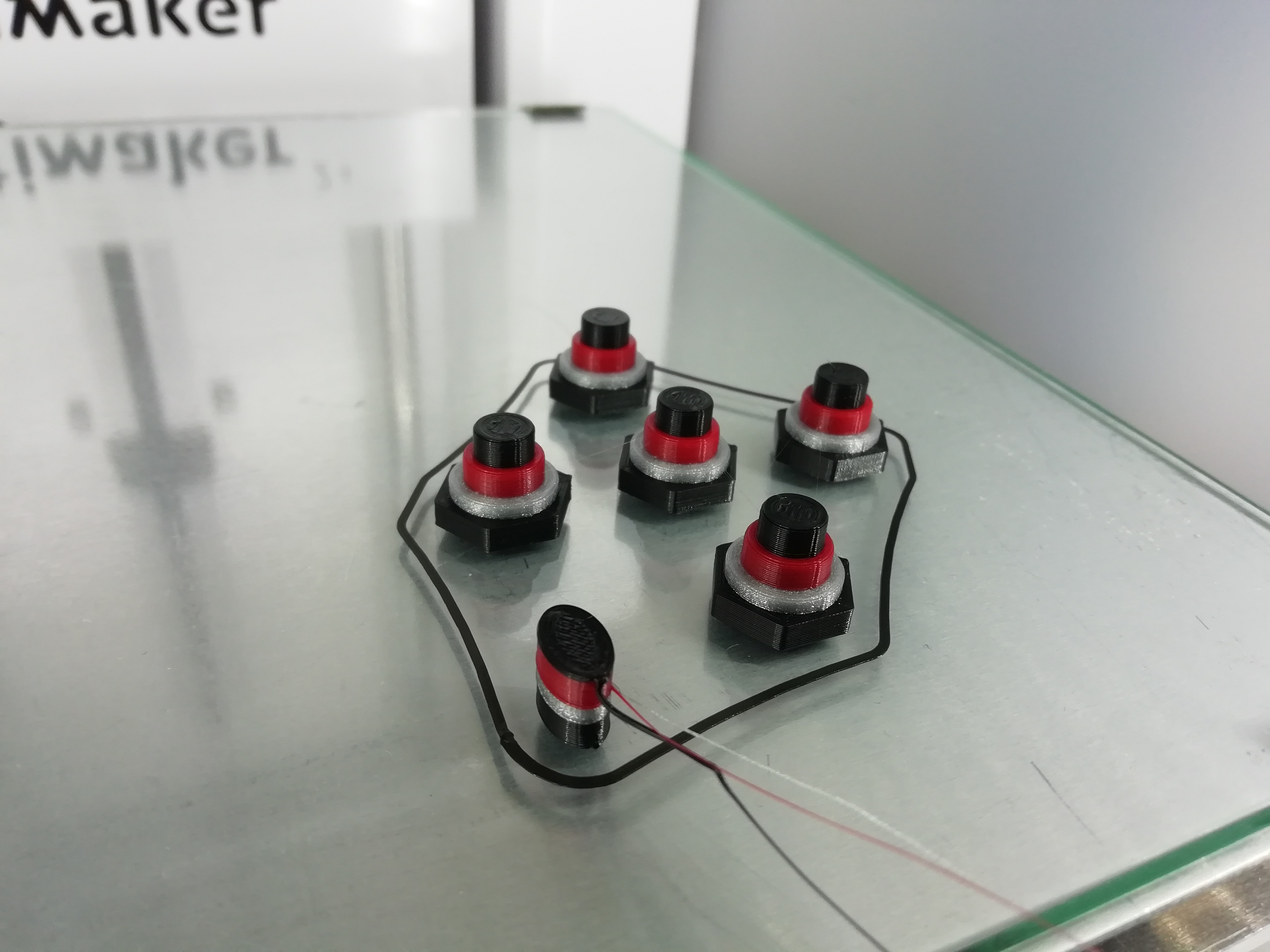

  • 10xSW_Button: Approx.Time: 5 min. Material: 1 gr.

Line Width: 0.3 mm

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Traffic Black.

  • 1xSW_Handgrip_Left: Approx. Time: 3 h 45 min. Material: 37 gr.

Z Seam Alignment: User Specified (hold in the side)

Infill Density: 10%.

Support: Yes (not change the piece inclination)

Support Over Hang Angle: 70º

Recommended filament: Fillamentum Traffic Black.

  • 1xSW_Handgrip_Right: Approx. Time: 3 h 45 min. Material: 37 gr.

Z Seam Alignment: User Specified (hold in the side)

Infill Density: 10%.

Support: Yes (not change the piece inclination)

Support Over Hang Angle: 70º

Recommended filament: Fillamentum Traffic Black.

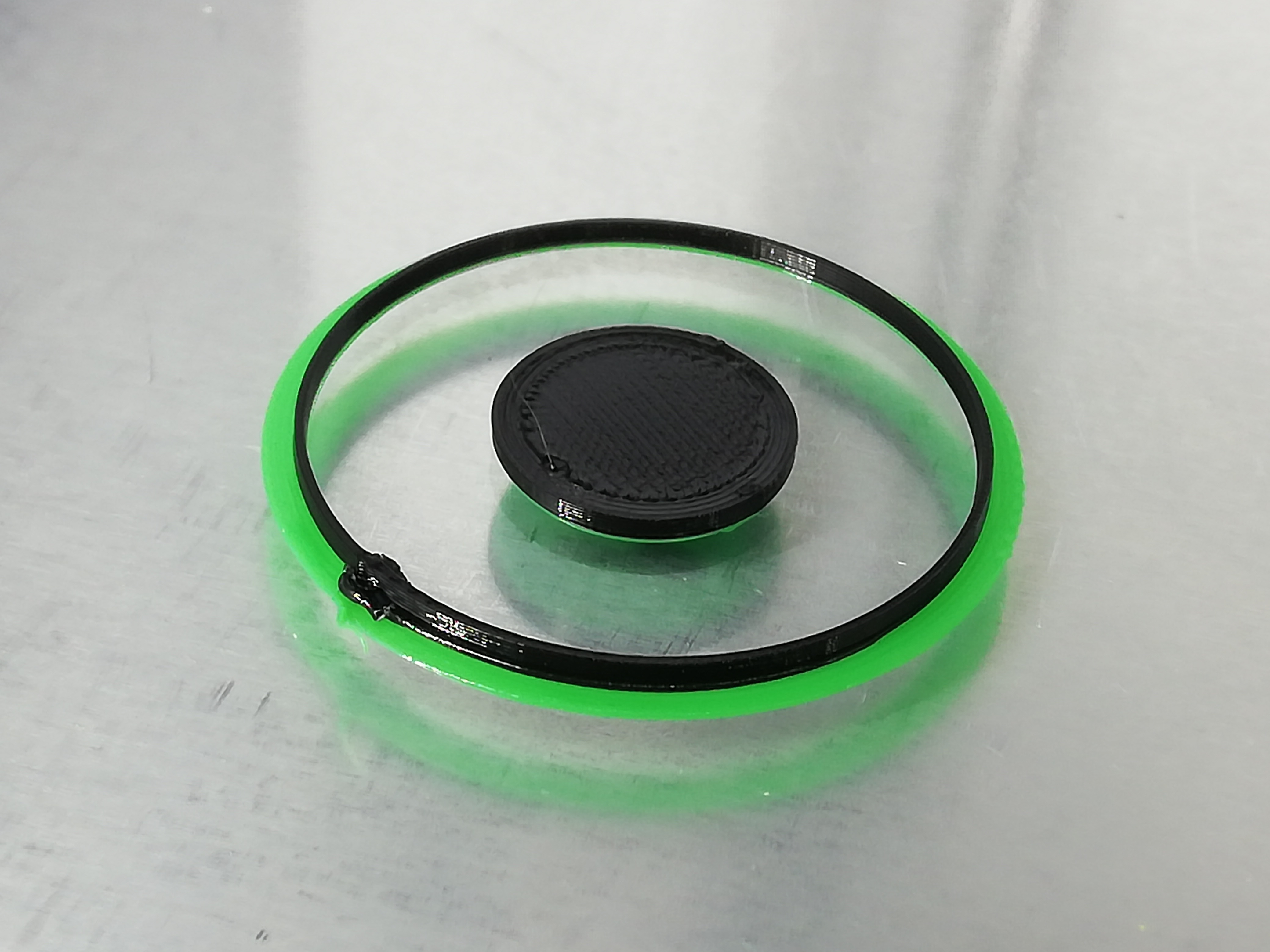

  • 1xSW_Display: Approx. time: 1 h. Material: 7 gr.

Top Layers/Bottom Layers: 2

Top/Bottom Line Directions: [180]

Infill Density: 15%

Initial Layer Speed: 15mm/s

NO Cooling.

Glass Plate (min.heat 40ºc)

Support: No

Recommended filament: Fillamentum Traffic Black.

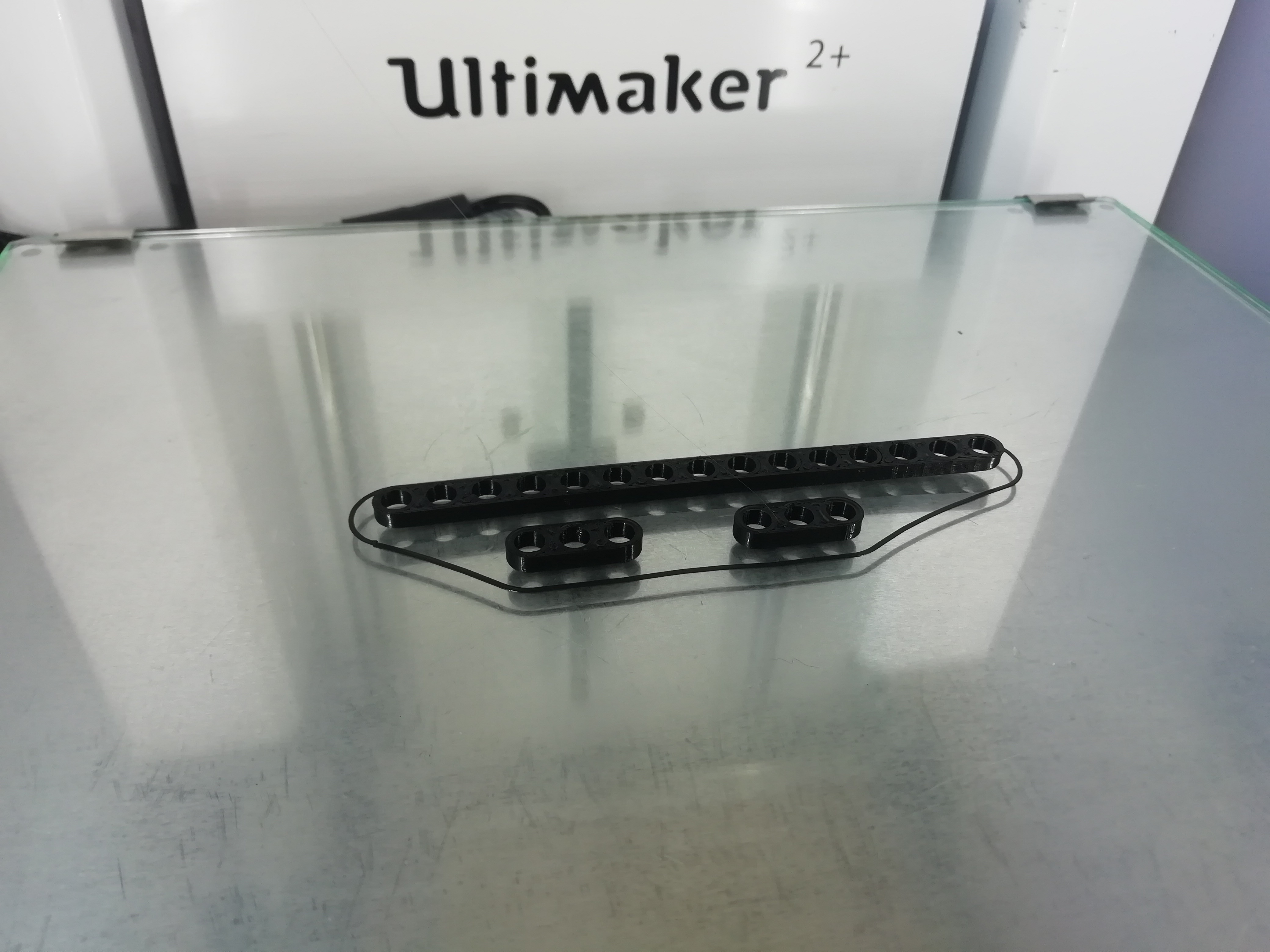

  • 1xSW_Case_Leds_Display: Approx. time: 25 min. Material: 2 gr.

Infill Density: 15%

Initial Layer Speed: 15mm/s

NO Cooling.

Glass Plate (min.heat 40ºc)

Support: No

Recommended filament: Fillamentum Traffic Black.

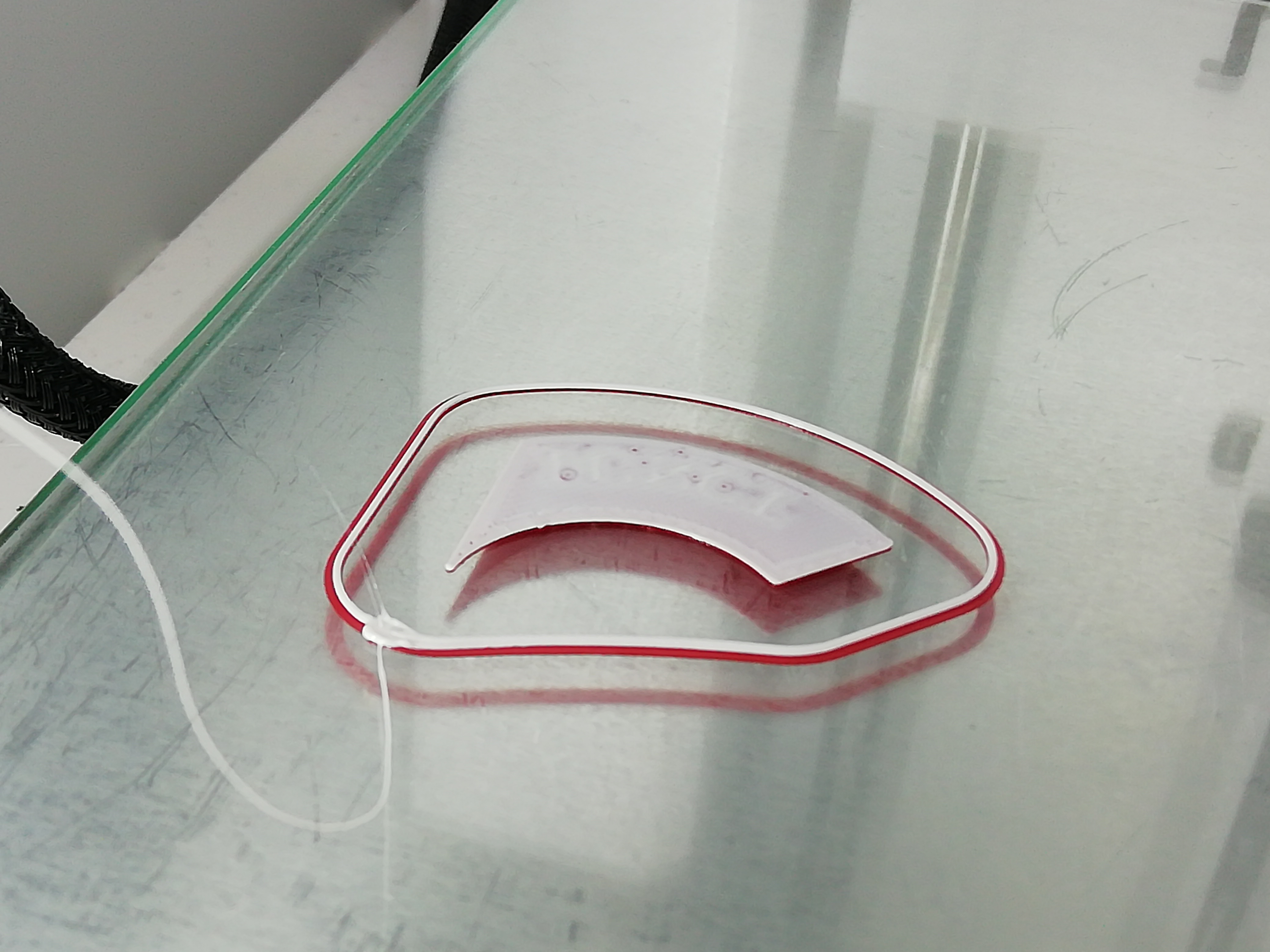

  • 1xSW_Leds_Display: Approx. Time: 14 min. Material: 1 gr.

Infill Density: 15%

Initial Layer Speed: 15mm/s

NO Cooling.

Glass Plate (min.heat 40ºc)

Support: No

Recommended filament: Fillamentum Traffic White.

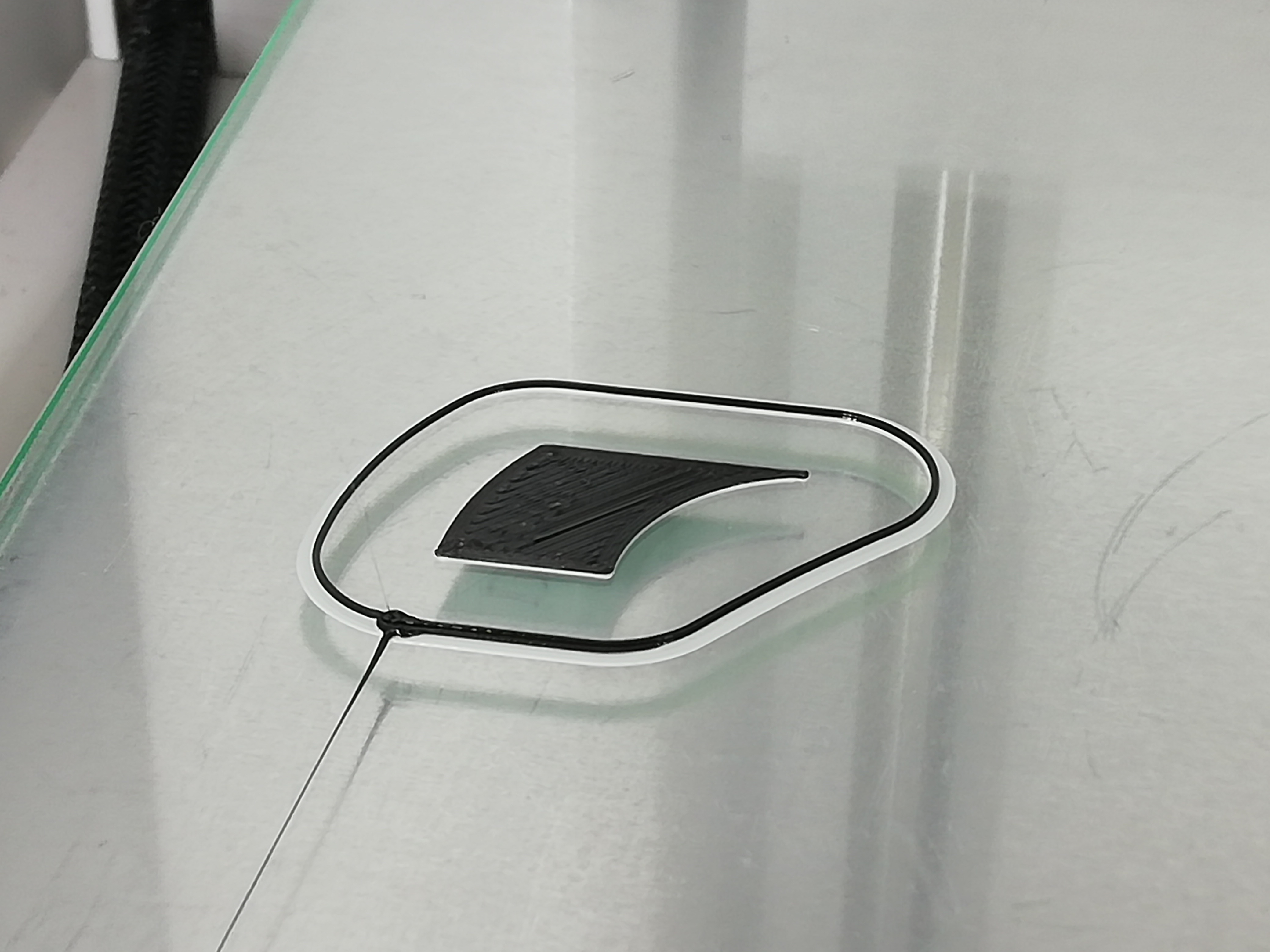

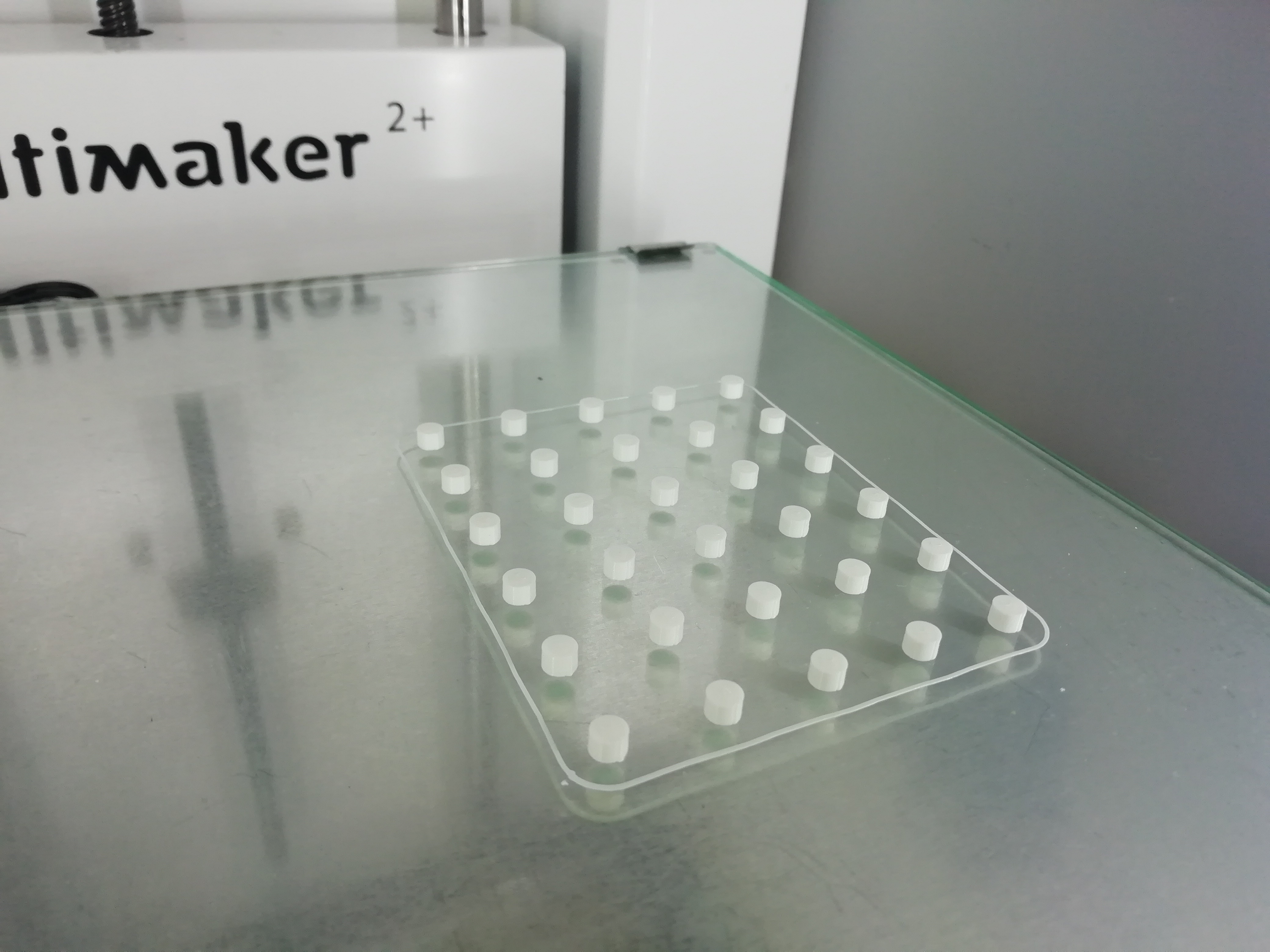

  • 1xSW_Sticker_Button_+10 (Blue/White)

  • 1xSW_Sticker_Button_+1 (Blue/White)

  • 1xSW_Sticker_Button_N (Green/Black)

  • 1xSW_Sticker_Button_PLS (Yellow/Black)

  • 1xSW_Sticker_Button_OT (Yellow/Black)

  • 1xSW_Sticker_Button_Network

  • 1xSW_Sticker_Button_X (Black/White)

  • 1xSW_Sticker_Button_D (Black/White)

  • 1xSW_Sticker_Button_+ (White/Black)

  • 1xSW_Sticker_Button_- (White/Black)

Approx. time: 2 min. Material: 1 gr.

Layer Height: 0.15 mm

Initial Layer Height: 0.2 mm

Line Width: 0.3 mm

Infill Density: 15%

Initial Layer Speed: 15mm/s

NO Cooling.

Glass Plate (min.heat 40ºc)

Support: No

Experimental: Activate "Enable Draft Shield" (purge filament change)

Post Processing / Pause at layer (change colour): 2.

Recommended filament: Fillamentum Traffic White, Traffic Black, Traffic Yellow Green Grass, Noble Blue, Ruby Red,

  • 1xSW_StickerA_ Front_Selector (White/Black)

  • 1xSW_StickerB_ Front_Selector (Red/White)

  • 1xSW_StickerC_ Front_Selector (Black)

  • 1xSW_StickerD_ Front_Selector (Blue)

  • 1xSW_StickerE_ Front_Selector (Green)

Approx. time: 2 min. Material: 1 gr.

Layer Height: 0.15 mm

Initial Layer Height: 0.2 mm

Line Width: 0.3 mm

Infill Density: 15%

Initial Layer Speed: 15mm/s

NO Cooling.

Glass Plate (min.heat 40ºc)

Support: No

Experimental: Activate "Enable Draft Shield" (purge filament change)

Post Processing / Pause at layer (change colour): 2.

Recommended filament: Fillamentum Traffic White, Traffic Black, Green Grass, Noble Blue and Ruby Red.

  • 2xSW_Big_Front_Selector_Wheel: Approx. Time: 12 min. Material: 1 gr.

Infill Density: 15%

Support: Yes

Support Over Hang Angle: 70º

Recommended filament: Fillamentum Traffic White and Gold Happens.

  • 2xSW_Small_Front_Selector_Wheel: Approx. Time: 8 min. Material: 1 gr.

Infill Density: 15%

Support: Yes

Support Over Hang Angle: 70º

Recommended filament: Fillamentum Noble Blue and Gold Happens.

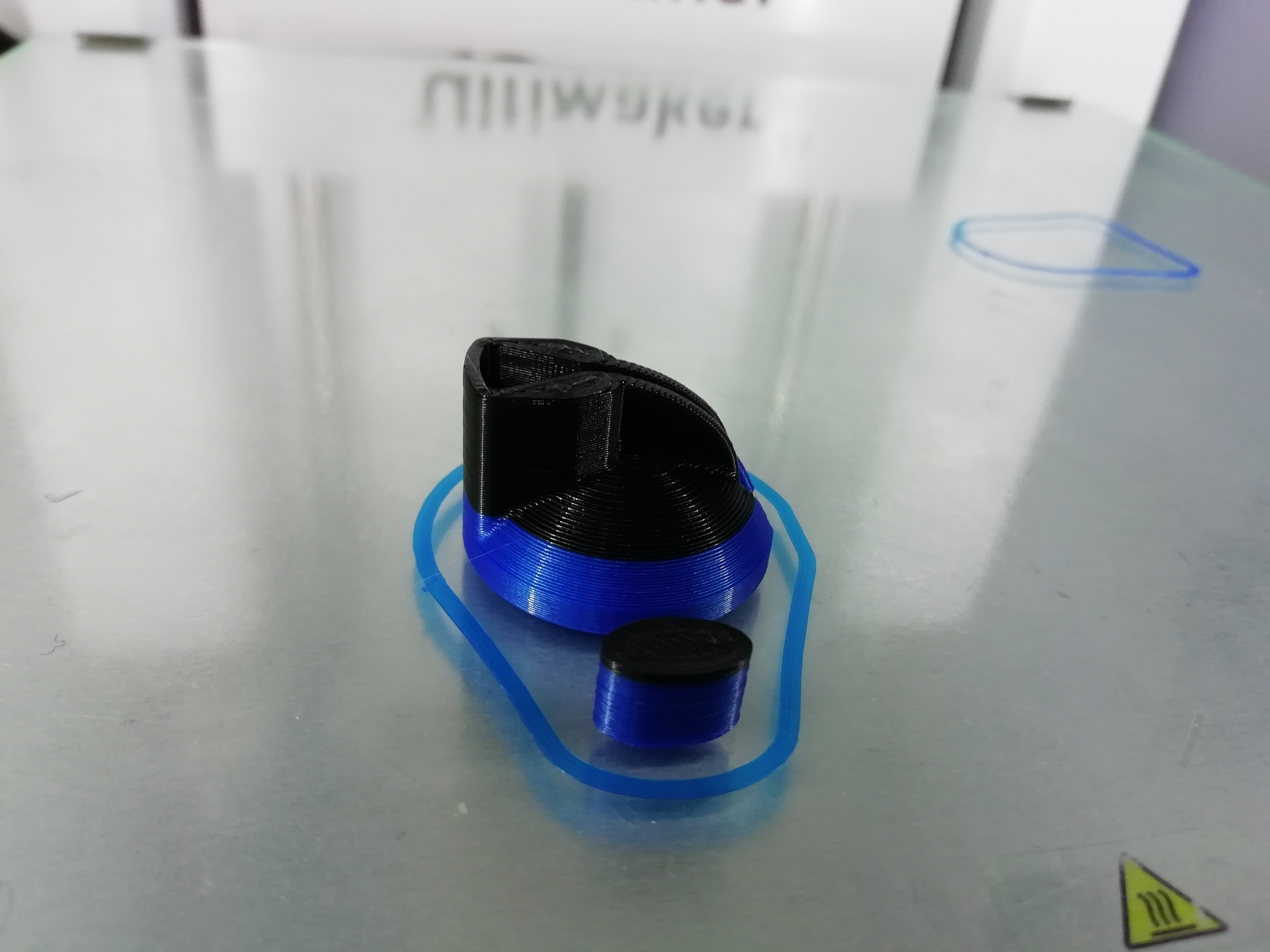

  • 2xSW_Front_Switch: Approx. Time: 24 min. Material: 2 gr.

Infill Density: 15%

Support: No

Experimental: Activate "Enable Draft Shield" (purge filament change)

Post Processing / Pause at layer (change colour): 49 (Layer Height: 0.2 mm)

Recommended filament: Fillamentum Traffic Black, Noble Blue and Rapunzel Silver.

  • 3xSW_Front_Selector: Approx. Time: 30 min. Material: 2 gr.

Infill Density: 15%

Support: No

Experimental: Activate "Enable Draft Shield" (purge filament change)

Post Processing / Pause at layer (change colour): 28 (Layer Height: 0.2 mm)

Recommended filament: Fillamentum Traffic Black, Noble Blue and Traffic White.

  • 3xSW_Inner_Front_Selector: Approx. Time: 4 min.

Infill Density: 20%

Support: No

Recommended filament: Fillamentum Noble Blue and Traffic White.

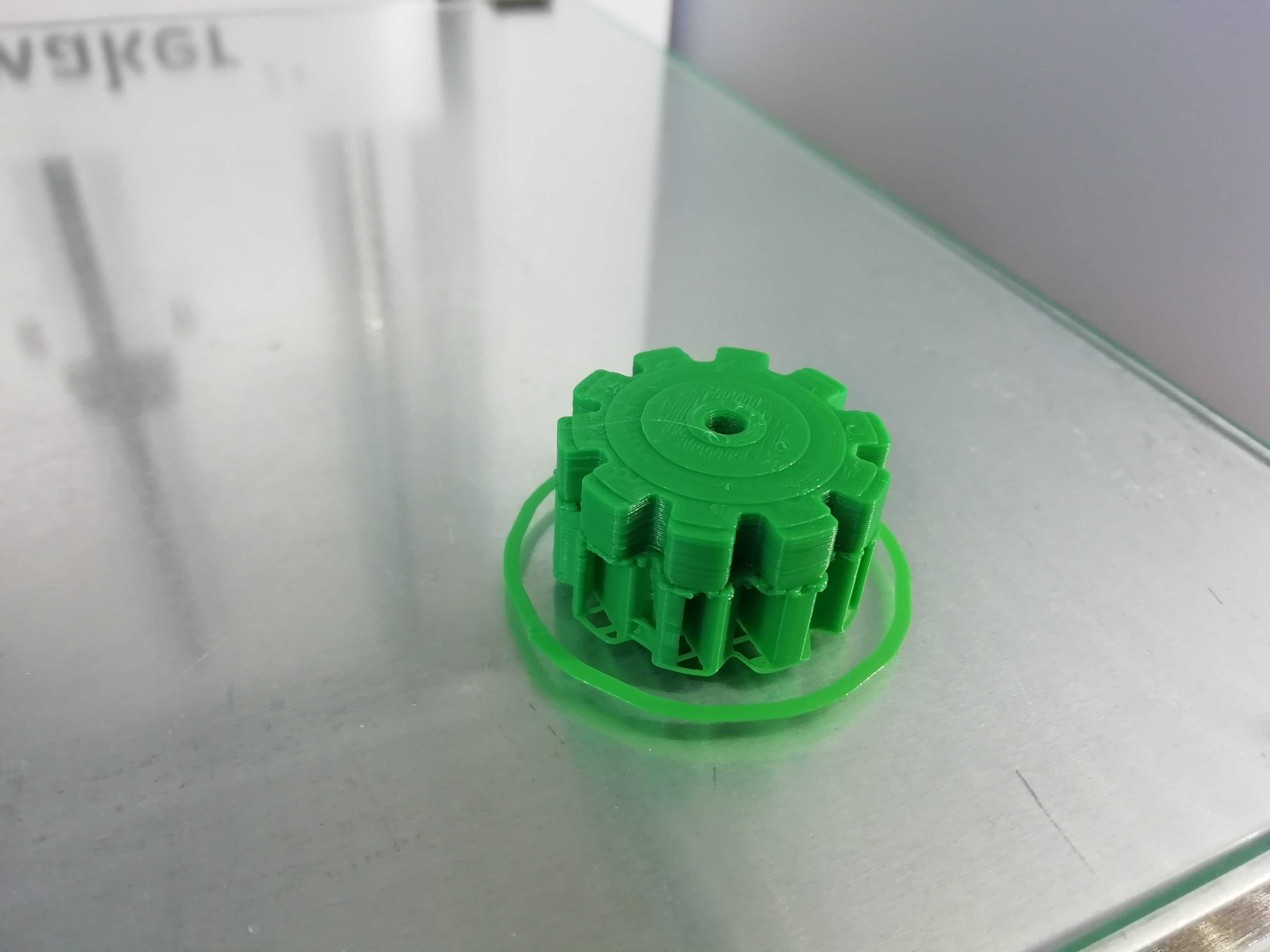

  • 2xSW_Side_Selector_Wheel: Approx. Time: 25 min. Material: 3 gr.

Infill Density: 15%

Support: Yes

Support Over Hang Angle: 70º

Recommended filament: Fillamentum Ruby Red and Green Glass.

  • 1xSW_Screw_Side_Selector_Wheel: Approx.Time: 1 min. Material: 1 gr.

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Rapunzel Silver.

  • 1xSW_ Body_Hitch_Paddle_Shifter_C: Approx. Time: 1 h 30 min. Material: 11 gr.

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Traffic Black.

  • 2xSW_Side_Switch: Approx. Time: 11 min. Material: 1 gr.

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Traffic Black.

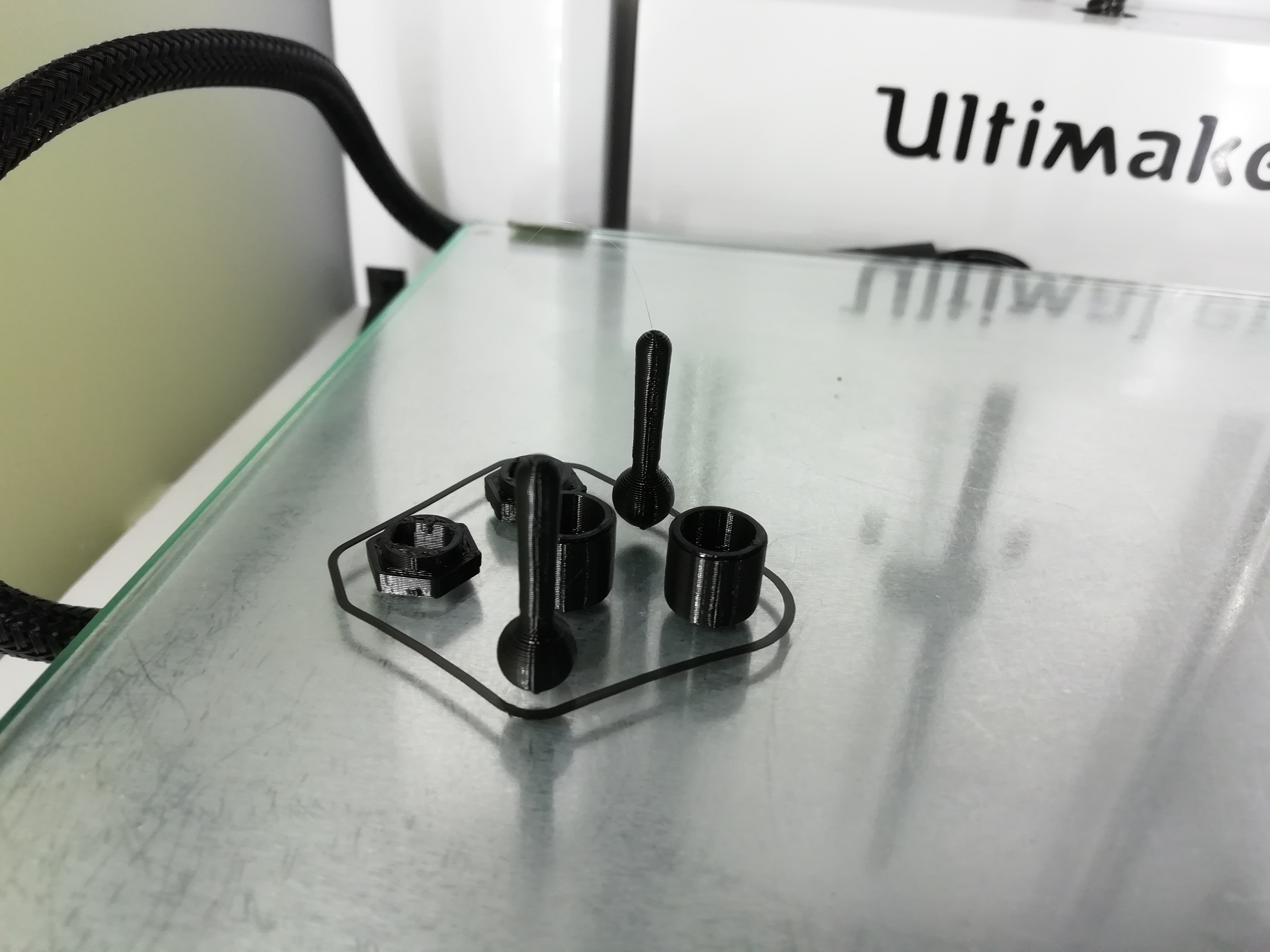

  • 1xSW_HitchA_Paddle_Shifter_AB: Approx. Time: 19 min.

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Traffic Black.

  • 1xSW_HitchB_Paddle_Shifter_AB: Approx. Time: 9 min. Material: 1 gr.

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Traffic Black.

  • 1xSW_Hitch_Paddle_Shifter_C: Approx. Time: 26 min. Material: 3 gr.

Infill Density: 15%

Support: Yes

Support Over Hang Angle: 70º

Recommended filament: Fillamentum Traffic Black.

  • 4xSW_Buttom_Paddle_Shifter: Approx.Time: 7 min. Material: 1 gr.

Infill Density: 15%

Support: No

Experimental: Activate "Enable Draft Shield" (purge filament change)

Post Processing / Pause at layer (change colour): 14, 22, 36 (Layer Height: 0.2 mm)

Recommended filament: Fillamentum Traffic Black, Rapunzel Silver and Ruby Red.

  • 1xSW_ Body_Hitch_Quickly_Detachable: Approx.Time: 7 h. Material: 56 gr.

Z Seam Alignment: User Specified

Infill Density: 15%

Support: Yes

Support Over Hang Angle: 70º

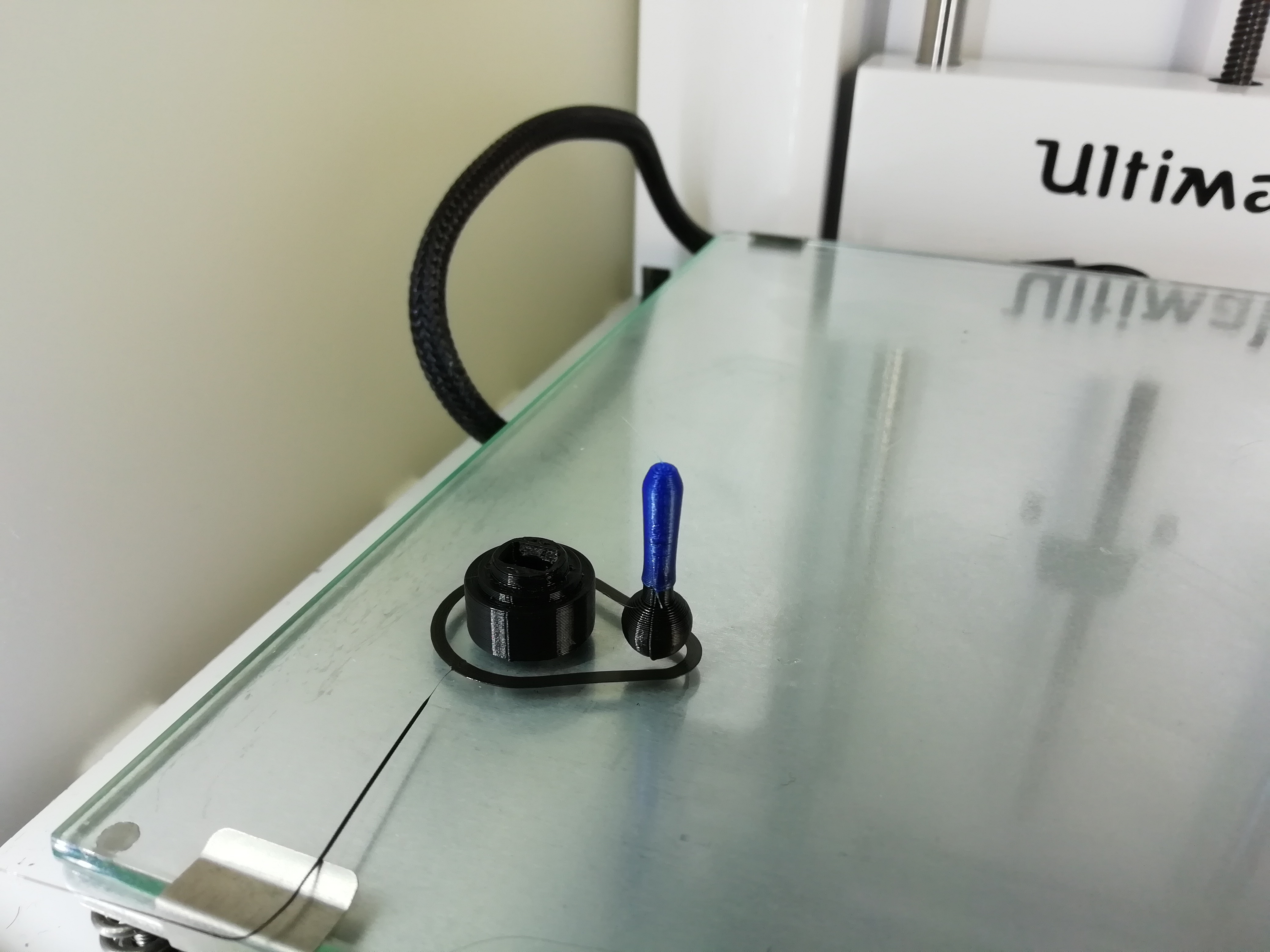

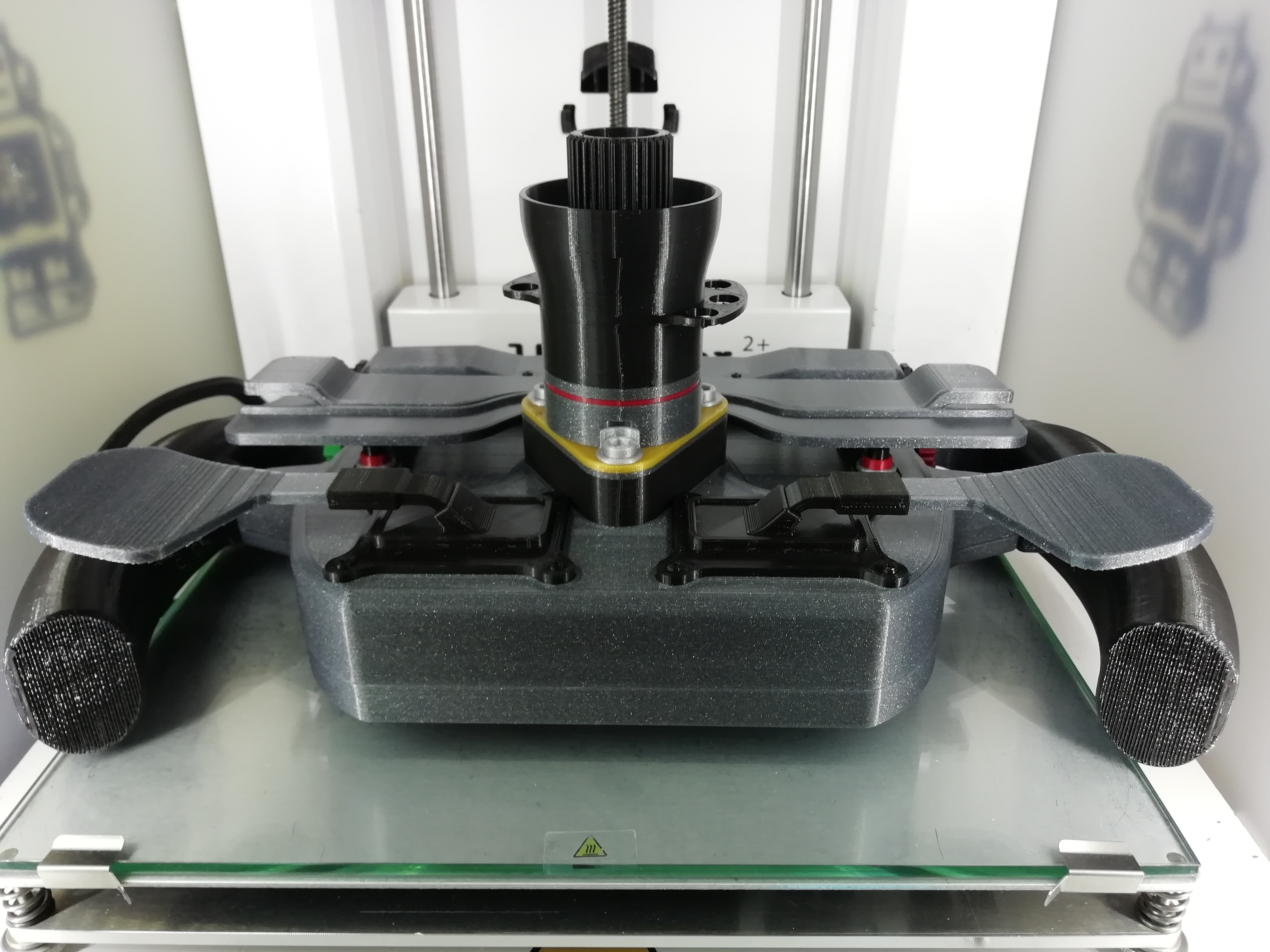

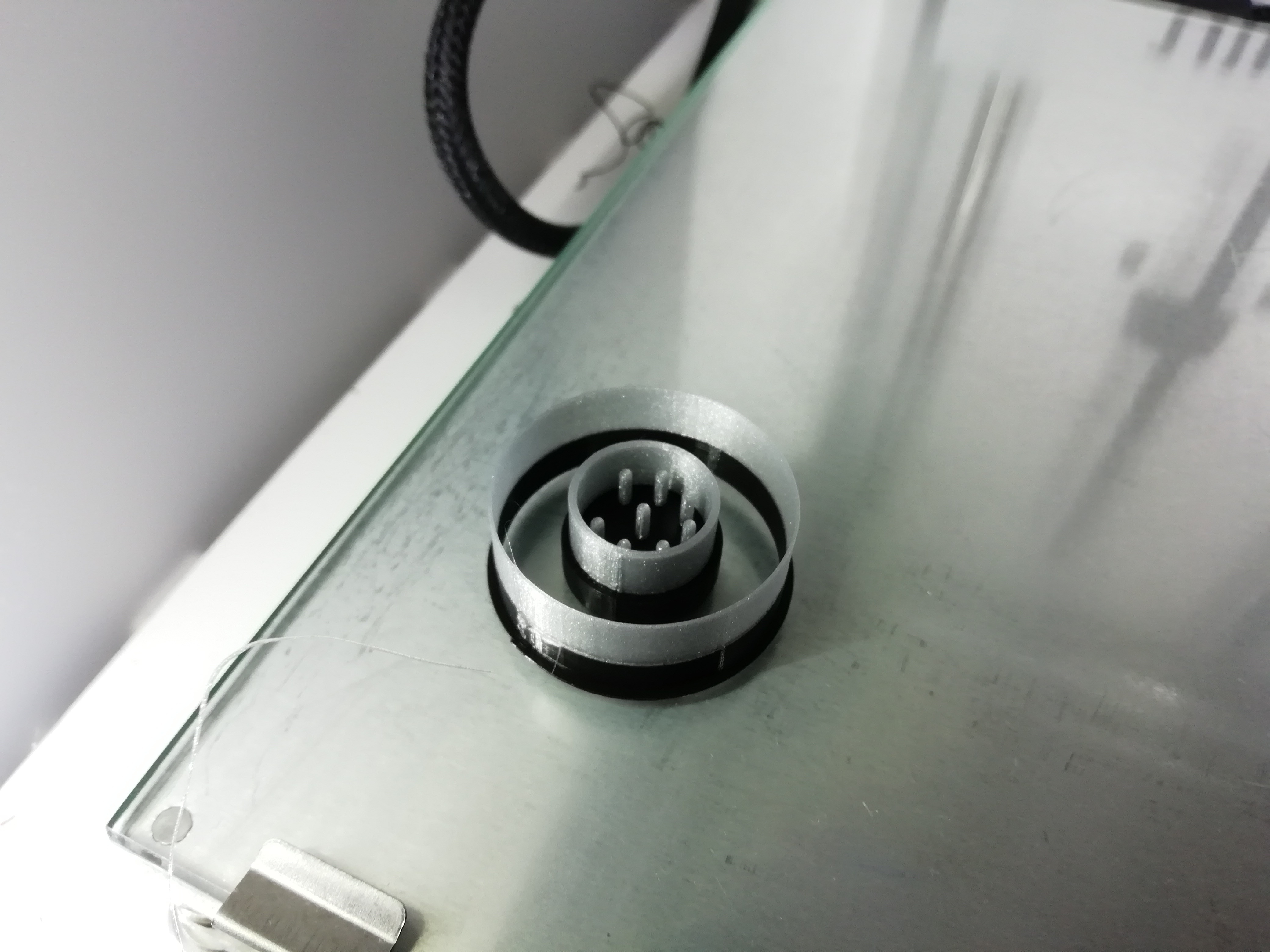

Post Processing / Pause at layer (change colour): 77, 86, 95, 151, 158, 174. (Layer Height: 0.2 mm). View photo.

Recommended filament: Fillamentum Traffic Black, Vertigo Grey, Gold Happens and Ruby Red.

  • 3xSW_Screw_Ring_Quickly_Detachable: Approx. Time: 11 min. Material: 1 gr.

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Rapunzel Silver.

  • 1xSW_Plug_Quickly_Detachable: Approx. Time: 13 min. Material: 1 gr.

Infill Density: 15%

Support: No

Experimental: Activate "Enable Draft Shield" (purge filament change)

Post Processing / Pause at layer (change colour): 25 (Layer Height: 0.2 mm)

Recommended filament: Fillamentum Traffic Black and Rapunzel Silver.

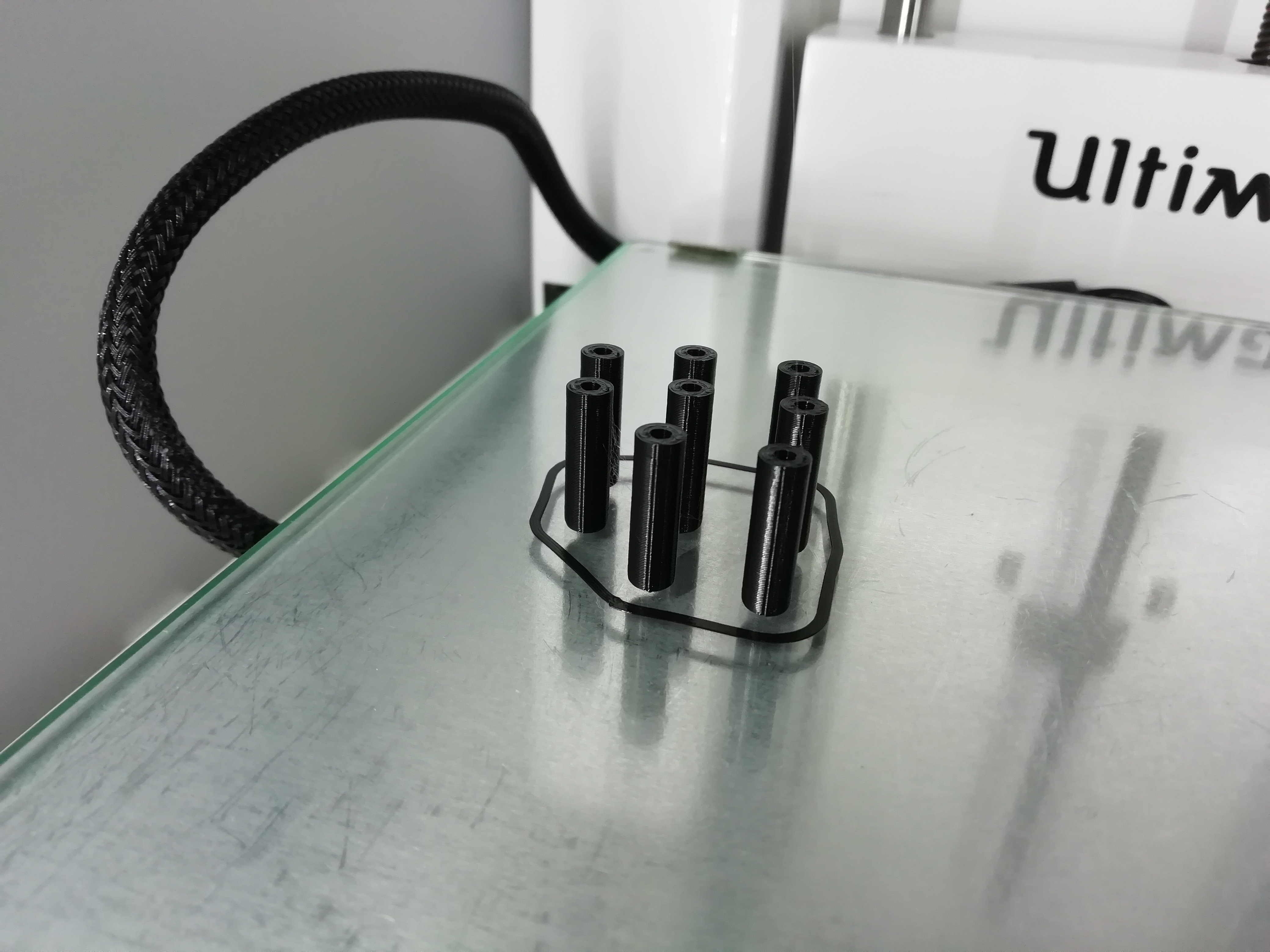

  • 6xSW_Screw_A_ Front: Approx.Time: 5 min. Material: 1 gr.

Fill Gaps Between Walls: Nowhere

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Traffic Black.

  • 4xSW_Screw_B_ Front: Approx.Time: 5 min. Material: 1 gr.

Fill Gaps Between Walls: Nowhere

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Traffic Black.

  • 12xSW_Screw_Back: Approx.Time: 2 min. Material: 1 gr.

Fill Gaps Between Walls: Nowhere

Infill Density: 15%

Support: No

Recommended filament: Fillamentum Traffic Black.

  • 3D model format: STL
