Extrude mod V2 single 18650 "mechanical" diy vape mod

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 4.3k views
  • 5 likes
  • 143 downloads

3D model description

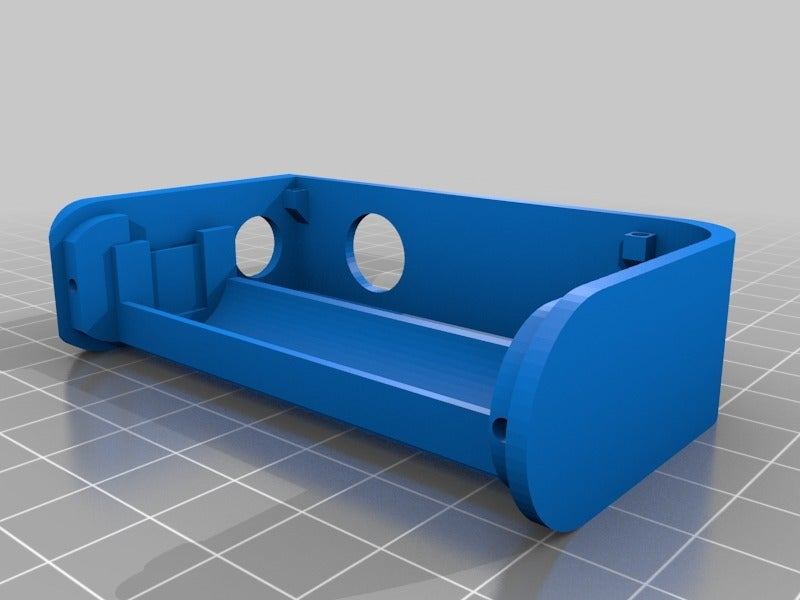

here is an easy print box mod i have designed for use with a single 18650 battery,

i have listed below all parts that have been used to wire and connect it up to a fully functional "mechanical" mod it functions like a mechanical in the power will go down as the battery dies, but when using the parts listed below, it has reverse polarity protection, low voltage protection and will not fire any higher than 50a.

similarly the cutouts for the 510 and the button are also for the parts below, but for note the switch hole on right side is 12mm and the 510 is 10.5mm (space for an m10 thread)

switchfet v2.5 -
modmaker.co.uk/Switchfet-V2.5 (mosfet)

switch -
modmaker.co.uk/12mm-Stainless-Steel-Clicky-Switch-With-Flat-Flush-Actuator?search=12mm Stainless Steel Clicky Switch With Flat Flush Actuator

510 connector -
modmaker.co.uk/Fat-Daddy-Vapes-510-V3-Short-Body?search=Fat Daddy Vapes 510 V3 Short Body

i used the contacts from one of these sleds -
modmaker.co.uk/Blossom-1048-Dual-18650-Battery-Holder?search=Blossom 1048 Dual 18650 Battery Holder

the wiring diagram for the mosfet is included on the site linked,

the drip tip included is made to fit this blank (not needed but looks pretty :D) -
modmaker.co.uk/510-Drip-Tip-Blanks-10mm?search=510 Drip Tip Blanks (10mm)

NOTE
dealing with electrics and batteries is dangerous, please use utmost caution when building this, and triple check every connection made to make sure there are no issues.

any issues are at the users discretion... you have been warned!

Enjoy! :D

When printing:
nothing NEEDS support when printed in the orientation provided, but it is recommended as will give a better finish for the holes and i recommend rotating the box part 45 degrees so that it is stood upright and then printed with full supports, this will give the best overall finish when paired with the side cover.

3D printer file information

  • 3D design format: STL Folder details Close
    • body.stl
    • drip_tip_v2.stl
    • side_cover.stl

    Learn more about the formats

  • Publication date: 2020/02/21 at 10:21

License

CC BY NC

Tags
