Estes Interceptor Nose Cone BT-55 (P/N 062074)

?
Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This is a 3D model of the nose cone for the Estes Interceptor (kit# K-50/1250, P/N 062074) that is designed to fit Estes BT-55 tubing.

There are two styles I have designed - the longer standard version and a shorter version. The standard version including the shoulder is about 228.9mm (9.01 inches) long and the shorter version is 171.9mm (6.77 inches).

The cone is 137.40mm (5.41 inches) long, the lower cylindrical section is 57.00mm (2.24 inches) long, and the shoulder is 34.50mm (1.36 inches) long.

There are 11 files included
1-4) Hollow standard, solid standard, hollow short, and solid short,
5-7) End caps with no hole, a 3mm hole, and a 7mm hole
8-11) Same as 1-4 but no shoulder has been added.

JimZ file.
http://www.spacemodeling.org/jimz/estes/k-50.pdf

Interceptor RockSim file.
https://www.rocketreviews.com/rocksim-estes---interceptor.html


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • Estes_Interceptor_Nose_Cone_BT-55_End_Cap_3mm_Hole.stl
    • Estes_Interceptor_Nose_Cone_BT-55_End_Cap_7mm_Hole.stl
    • Estes_Interceptor_Nose_Cone_BT-55_End_Cap_No_Hole.stl

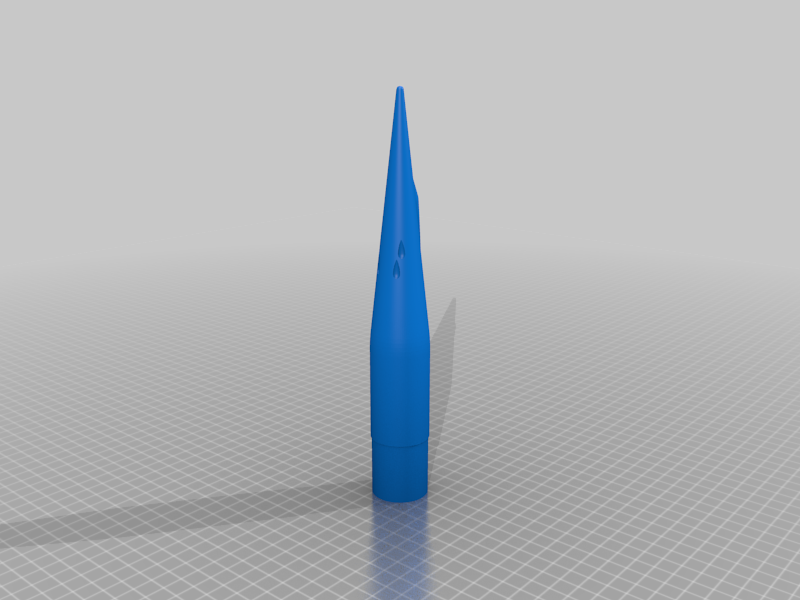

    • Estes_Interceptor_Nose_Cone_BT-55_Hollow.stl
    • Estes_Interceptor_Nose_Cone_BT-55_Hollow_NO_SHOULDER.stl

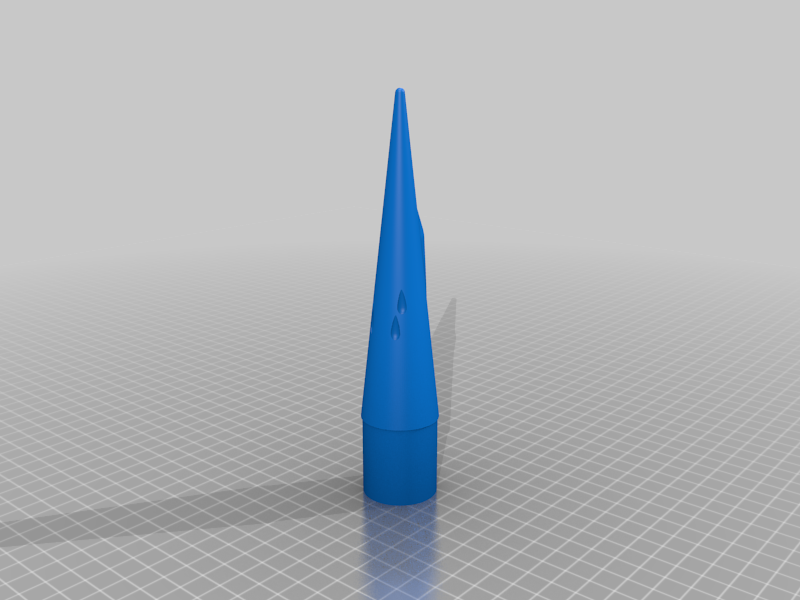

    • Estes_Interceptor_Nose_Cone_BT-55_Hollow_Short.stl
    • Estes_Interceptor_Nose_Cone_BT-55_Hollow_Short_NO_SHOULDER.stl

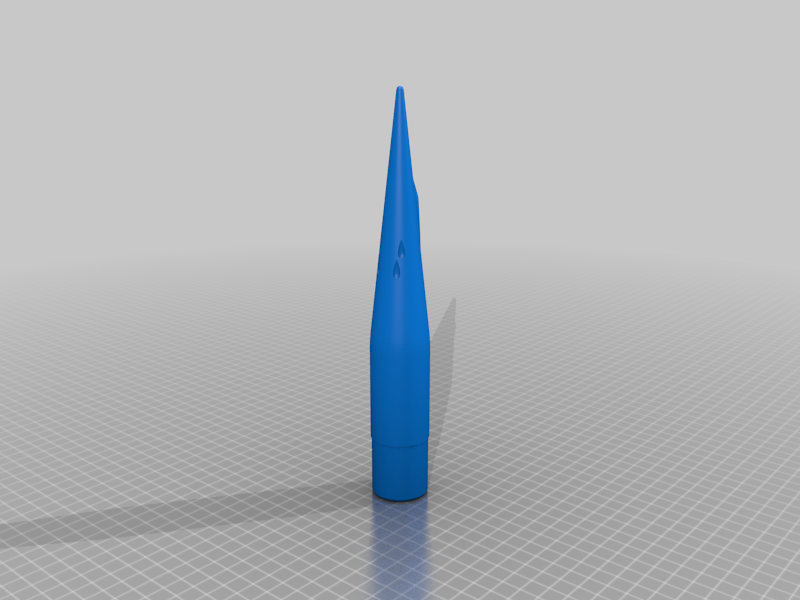

    • Estes_Interceptor_Nose_Cone_BT-55_Solid.stl
    • Estes_Interceptor_Nose_Cone_BT-55_Solid_NO_SHOULDER.stl

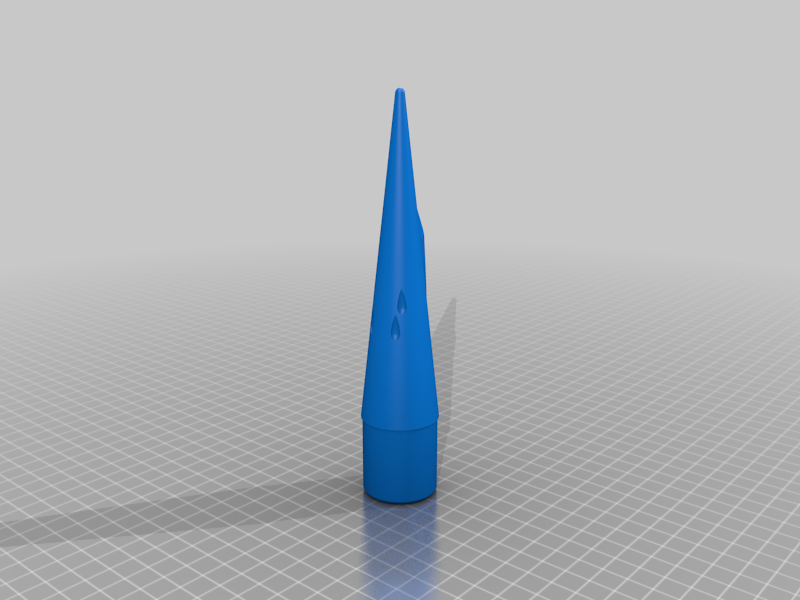

    • Estes_Interceptor_Nose_Cone_BT-55_Solid_Short.stl
    • Estes_Interceptor_Nose_Cone_BT-55_Solid_Short_NO_SHOULDER.stl

    Learn more about the formats

  • Publication date: 2022-03-07 at 01:05
    ?
    Published to Thingiverse on: 2022-03-07 at 00:52

License

CC BY
