windmill, windball, windyball

IMG_9161.JPG Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy IMG_9165.JPG Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy montage.jpg Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy
Bielle.STL Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy BoutRoulement.STL Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy Dessus.STL Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy Font.STL Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy MiniEoliene.STL Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy Support.STL Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy SupportTube.STL Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy Pale.STL Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy Ressort.STL Download STL file windmill, windball, windyball • 3D printing design, steinerleeroy
Make
?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 4 likes
  • 5 downloads

3D model description

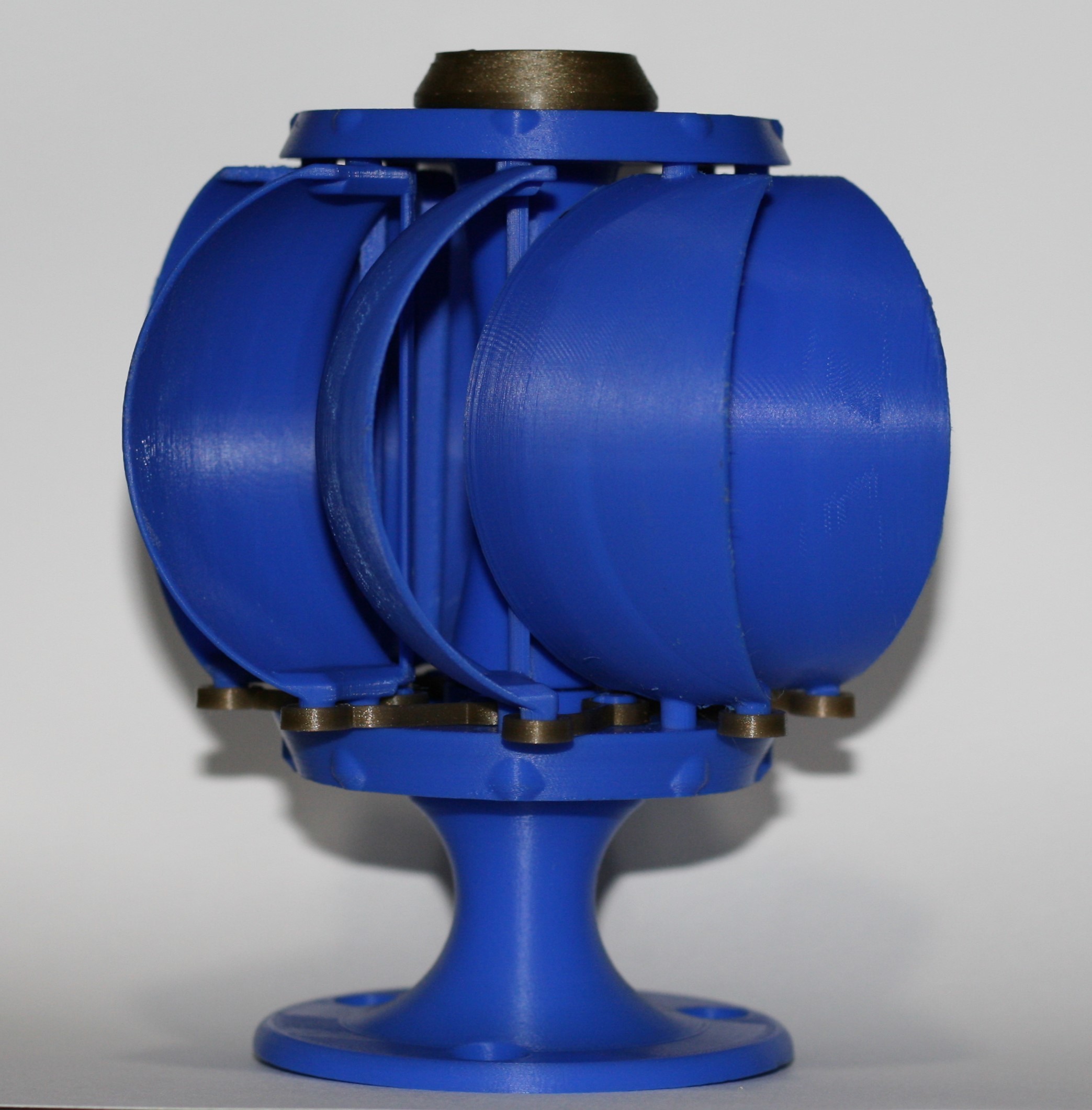

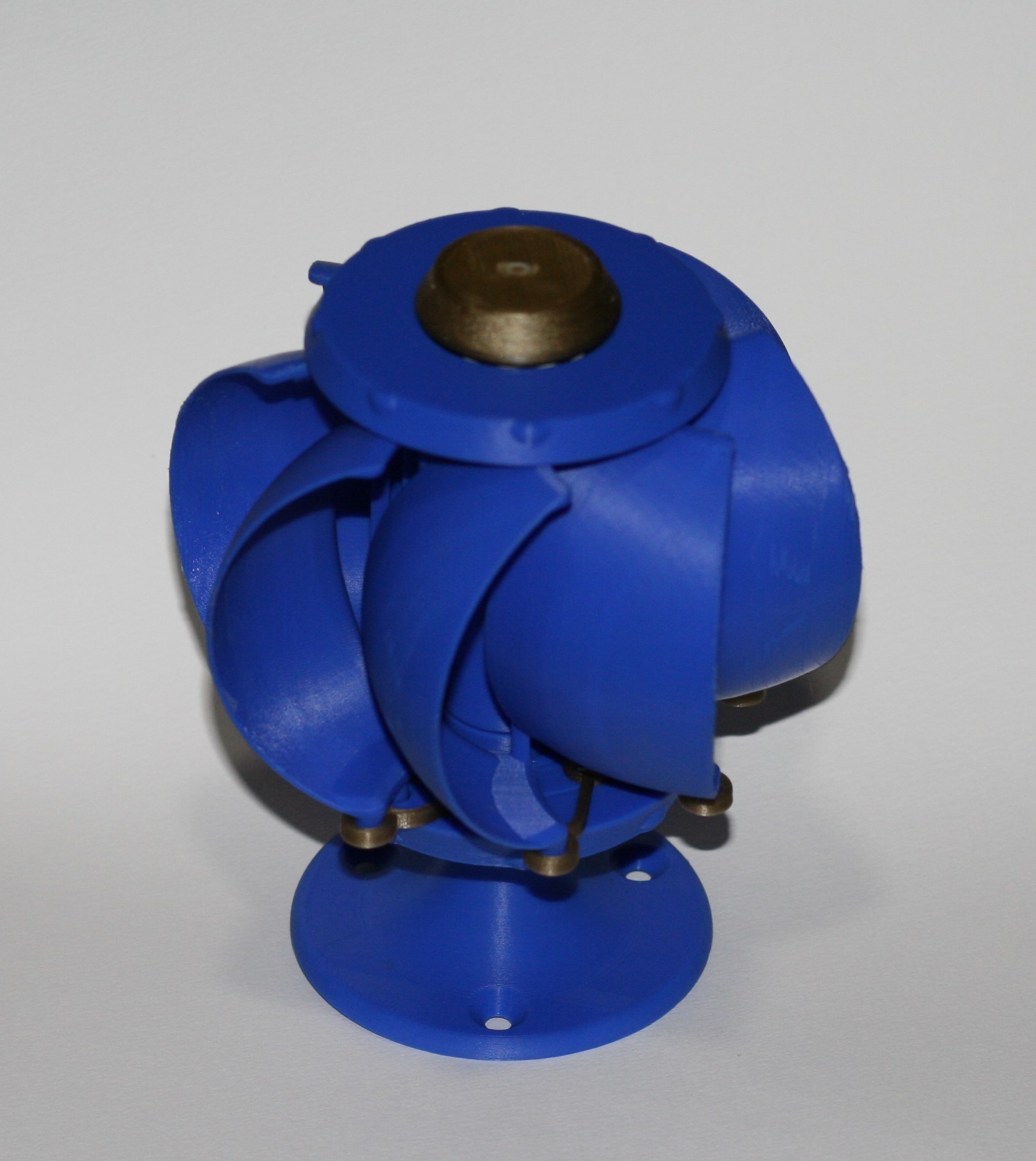

Small decoration wind turbine with vertical axis. At standstill, the blades are open wide, which gives it a good starting torque. When the wind is strong, it closes again to limit the rotation speed and support a very strong wind. At the base I wanted to turn a small dynamo to make electricity, but I couldn't find a dynamo of the right size.

3D printing settings

Mounting material: 1 threaded rod M5 per 140mm for the axle and 24 soft air ball of diameter 6mm for the bearings.

Printable with a 0.4mm nozzle in PLA with a 100mm by 100mm platen. The paddles are to be printed in full, the other parts can be printed with 20% fill.

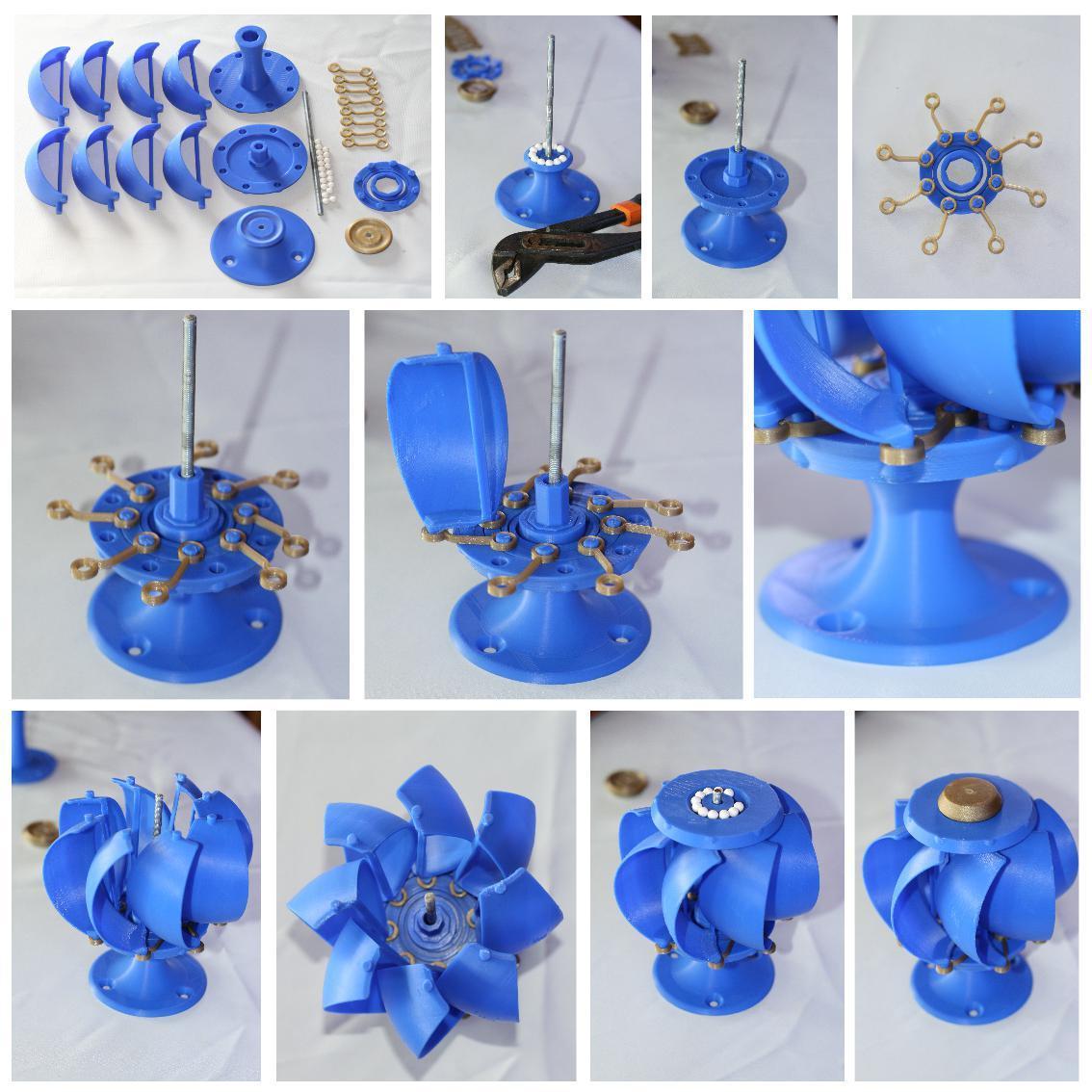

parts to be printed: 8 Connecting rod, 8 Blade, 1 BearingButt, 1 Top, 1 Font, 1 Spring and 1 Bracket to install it with three screws or 1 TubeBracket to install it at the end of a 28mm inner diameter tube.

The MiniEoliene file is just to see the assembly of the parts not to be printed.

  • 3D file format: STL
  • Publication date: 2020/03/22 at 20:49
