Echo dot && plus battery +backup

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 196 views
  • 1 download

3D model description

Sometimes one just want to travel with some gadgets to make their life easier... $;-)

I came with this battery backup to unplug my echo on the go - it serves echo plus, echo dot && other 5V@2A usb hunger devices.

For sure I could plug some 12V≈15V (15W) power source to this and turn it into a uninterrupted power source for any USB gadget (iPhones, iPads, androids, etc...) - but the goal here is to let echo travel without wires around home/outdoor spots.

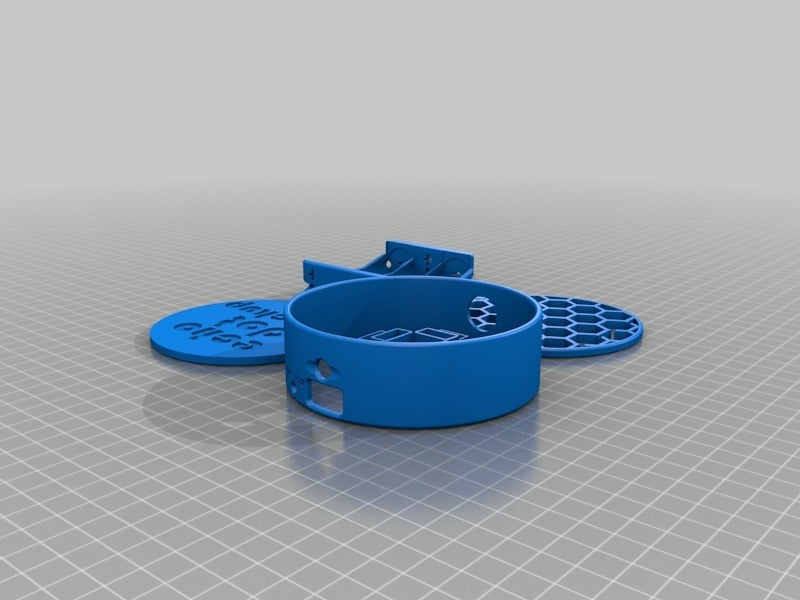

I 3D printed the .stl file on my E3D BigBox using proto-pasta HTPLA carbon fiber original, but some could do it ABS too. My printing settings (Simplify 3D):
√ 15% infill;
√ 0,2mm high; 2x2x2 top/botton/outline layers;
√ fast honeycomb/concentric 15/35/100% interior fill/outline overlap/infill extrusion width;
√ no support;
√ 217º/60ºC extruder/bed;
√ 2200mm/min 65/100% outline under/solid infill speed (I like it slow ≈ 5hours top);

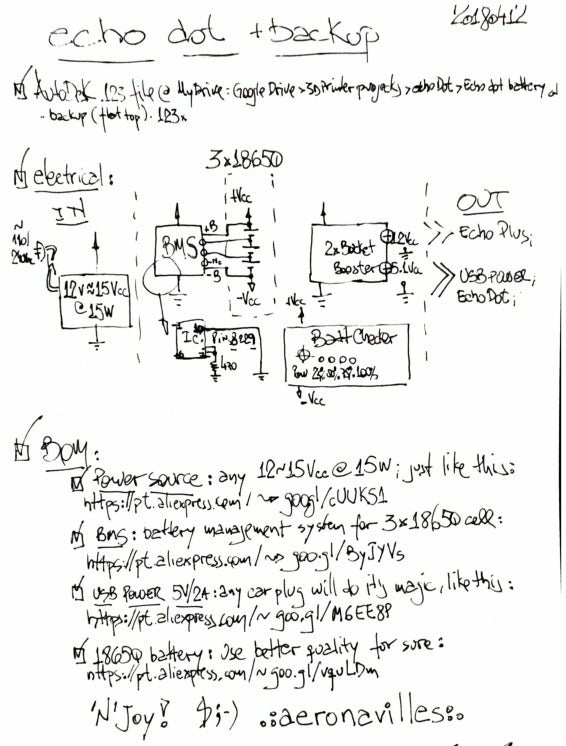

Some info available on the .pdf + BOM:
√ goo.gl/vquLDm
√ goo.gl/M6EE8P
√ goo.gl/ByJYVs
√ goo.gl/cUUKS1
√ goo.gl/xG6fDa

Video: https://youtu.be/KtE0YGA0yI4

'N'Joy! $:-)
.:aeronavilles:.

3D printing settings

-

  • 3D file format: PDF and STL
  • Publication date: 2021/04/15 at 01:05

License

CC BY
