Door Photoframe

3D model description

New July 17, 2018(door_photoframe_107_door.stl...)

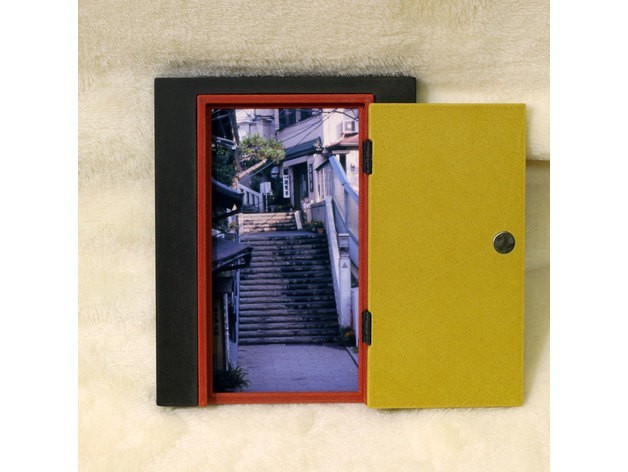

This is a small photoframe with door.
The door has name plate, then the place is opend by door.

This photoframe has magnets at backside, so you can attach it to any steel plate like refrigerator.

VR is here.
http://www.11moon.com/minne/door_photoframe/door_photoframe.html

Additional parts

2 psc ø1.0*10 mm pins

1 psc ø1.0*8 mm pins

1 psc ø1.0*4 mm pins

4 psc ø3.0*8 mm pins.

6 psc ø8*2 mm magnets

3D printing settings

Printer:

m200 (hand made)

Rafts:

No

Supports:

No

Resolution:

many

Infill:

30%

Notes:
Print conditions

___common
Modeler: CINEMA 4D R19
Slicer: Simplify3D
Printer: m200(hand made)
Firmware: Repetier

Layers: top 5, bottom 4, side 3
Infill: 30 %
Skirt: 5 turns, 0.5 mm gap
Support: none

Jerk: 15
Acceleration: 1600mm/sec^2
Raft: none

___for door, frame, gate
Filament: FormFutura EasyWood
Nozzle: 0.4 mm HSS-CO (length 2.4 mm)
Print width: 0.44 mm
Layer height: 0.22 mm
Injection ratio: normal
Retraction length: 0.90 mm
Extra Restart Distance: 0.05 mm

Temprature: 185 C

Print Speed: 1500 mm/min (80% at outline, infill, support)

Print time: 130, 60, 150 min

___for base
Filament: 3DXTexh CFR-PETG
Nozzle: 0.4 mm HSS-CO (length 2.4 mm)
Print width: 0.44 mm
Layer height: 0.22 mm
Injection ratio: normal
Retraction length: 0.90 mm
Extra Restart Distance: 0.05 mm

Temprature: 260 C

Print Speed: 2100 mm/min (80% at outline, infill, support)

Print time: 180 min

___for hinge
Filament: 3DXTexh CFR-PETG
Nozzle: 0.2 mm HSS-CO (length 0.8 mm)
Print width: 0.22 mm
Layer height: 0.11 mm
Injection ratio: normal
Retraction length: 0.60 mm

Temprature: 260 C

Print Speed: 1200 mm/min (80% at outline, infill, support)

Print time: 30 min

___for name plate
Filament: FormFutura Stone Fill
Nozzle: 0.25 mm HSS-CO (length 1.2 mm)
Print width: 0.28 mm
Layer height: 0.14 mm
Injection ratio: normal
Retraction length: 0.75 mm
Extra Restart Distance: 0.05 mm

Temprature: 225 C

Print Speed: 1200 mm/min (80% at outline, infill, support)

Print time: 40 min

___for name plate
Filament: ColorFabb Bronze Fill
Nozzle: 0.20 mm HSS-CO (length 0.8 mm)
Print width: 0.22 mm
Layer height: 0.11 mm
Injection ratio: normal
Retraction length: 0.60 mm

Temprature: 185 C

Print Speed: 900 mm/min (80% at outline, infill, support)

Print time: 60 min

  • 3D model format: STL
