3D model description

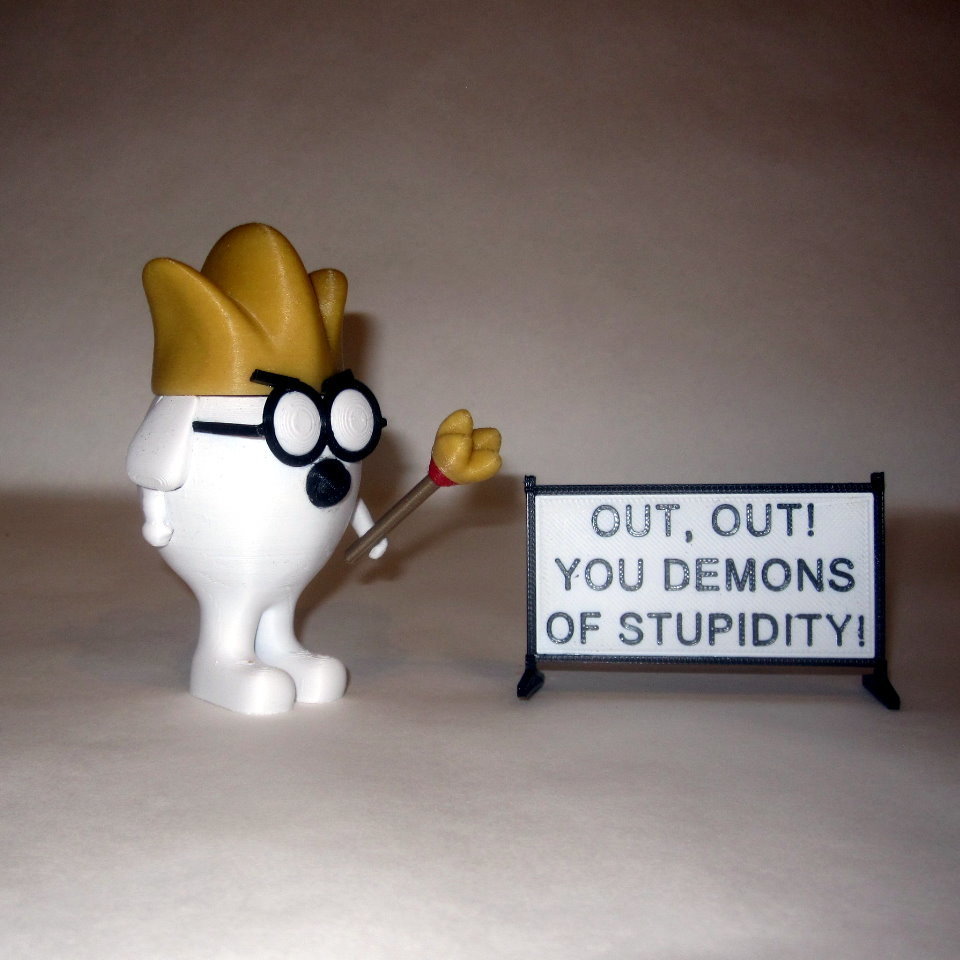

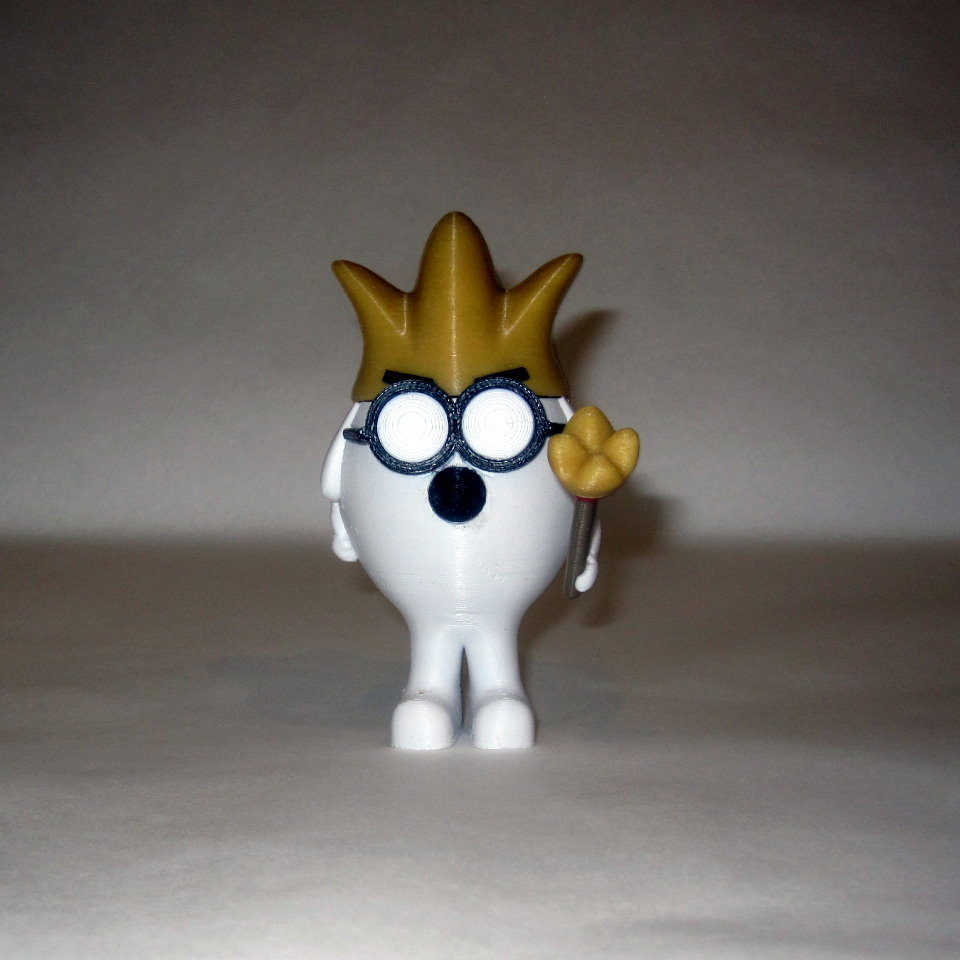

Dogbert, from the Dilbert comic strip by Scott Adams.
He is a megalomaniac, dreaming to conquer the world and enslave all of humanity.
No supports are required. If you have the right filament colors, no painting is needed.
The completed model is 99mm tall after assembly. This model is in proportion to the Dilbert, Wally and Pointy Haired Boss models that I've previously posted.
FlashForge Creator X
See notes below for helpful printing and assembly instructions
Building the model
Colors (there are no multiple printed pieces)
text_12 (see below for optional two color printing instructions with a single extruder)
Printing and assembly tips
1-No supports are required.
2-I used a brim on a few pieces, use your discretion based on your own preference:
-arm_left has a small base and has a steep part angle.
-wand_stick has a small base and is tall
3-The eyes piece has an included 'brim' which is part of the design. Do not clean it off.
4-For printing the words with a white background and black lettering, see my full instructions included with the quotes from my Dilbert Quotes upload
-The diagrams in the pictures section will help in assembling the model and is quite straightforward.
-The model is meant to be glued together.
-I suggest gluing the wand_stick to arm_left before gluing the arm to the body. I happened to do this last and it was a bit tricky getting the completed wand to stay in the right position to dry.
-For some people, small parts can be hard to put together and glue. Personally, I glued in the glasses_arms into the notches in the body in front of the ears with some tacky glue first. While the glasses_arms glue was still tacky, I placed the glasses (with the eyes already inserted and glued) into the notch on the body above the nose and glued them into the glasses_arms. It all turned out quite simple to glue into place.
3D printer file information
3D design format: ZIP Folder details Close
- Publication date: 2016/09/20 at 21:14
Retired software engineer, learning CAD design and 3D printing. When creating models, I strive for support free designs and fun creations.
