PEDAL DISPENSER FOR HYDROALCOHOLIC GEL

distri.jpg STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
distri_zoom.jpg STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
pedale_zoom.jpg STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
bloc_mur.stl STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
Charniere.stl STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
Goupille.stl STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
Poulie.stl STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
Poussoir.stl STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
rotule.stl STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
Vis_ext.stl STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
Vis_int.stl STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
bloc.stl STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
Pedale.stl STL file PEDAL DISPENSER FOR HYDROALCOHOLIC GEL・3D print design to download
Share
Add to
Make
?
Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

Forestier57

Forestier57

3D model description

This is a foot-operated hydroalcoholic gel dispenser system with a low kick.

The system requires a three-legged trestle (https://www.leroymerlin.fr/v3/p/produits/treteau-bois-design-astigarraga-h-74-x-l-50-cm-e1401434286), with the addition of a small board at the base to fix the pedal and some screws (4 for the pedal, 4 for the gearbox, 2 for the block and 2 to fix the board to the trestle).

Everything is printed in 0.2 17% fill except the pedal in 33% fill.

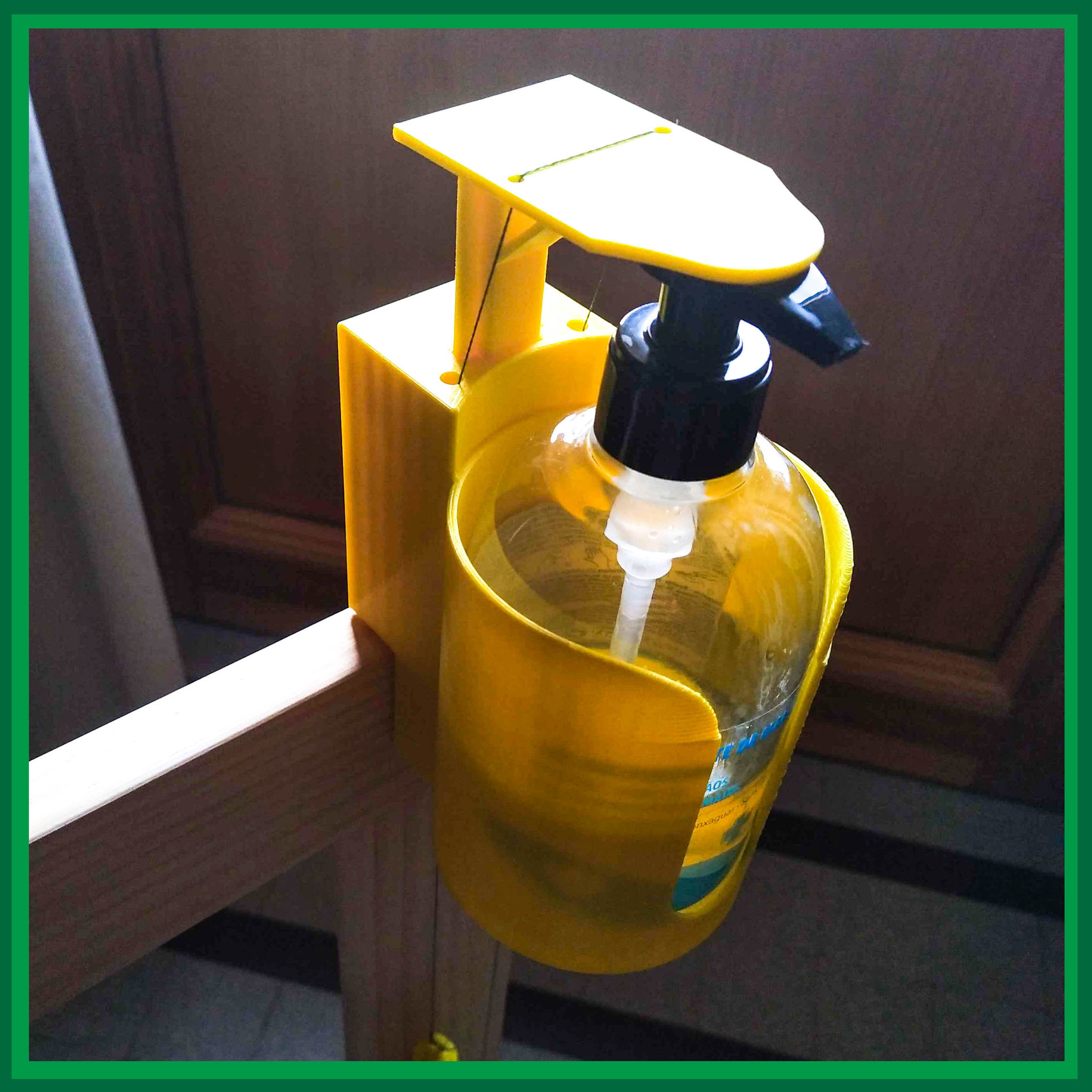

The support is fixed on the top (either the one with the notch, or the flat one if you want to lower the system), the piston must be sanded lightly and oiled to make it easier to raise it by the sole spring of the distributor.

The pedal is held by a pin in 2 fixing systems. The deflection system works with 2 fixings, 1 pin and 2 "bearings".

Resistant fishing line passes through the holes provided and is fixed to the adjustment elements. They allow the line to be tensioned and, above all, by simply unscrewing it, the dispenser can be filled.

Compatible for 0.5L dispenser (about 80mm diam)

https://youtu.be/jcYSrOTR-D4

3D printing settings

0.2mm layer, 17% filling except the pedal in 33%.
