Transmission device by angle gearing and screw-nut system

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 3 likes
  • 57 downloads

3D model description

It is a transmission subassembly that makes up a retractor designed to work on the large facial deviation useful for martial arts.

Maybe some components can be used by a few handymen?

This subassembly is composed of the following plastic parts:

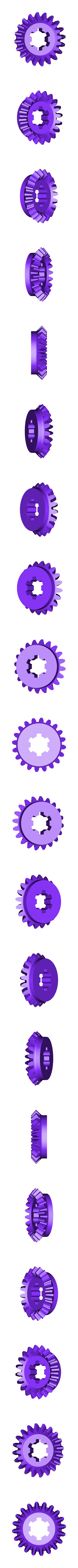

  • 1 gear wheel with drive groove

  • 1 splined transmission shaft with its 2 upper and lower bearings and its interface for a crank handle

  • 1 receiving gearwheel with internal thread M16 and a pin hole to connect it to the M16 steel rod

  • 1 bearing sandwiched between the gearwheel and the notched nut

  • 1 receiver nut threaded M16

  • 1 bearing at the end of the threaded rod

  • 1 fixed frame

The set is mounted on a wooden board (see the complete spacer presented in another of my creations).

  • 3D file format: STL and ZIP
  • Publication date: 2018/10/17 at 18:14

Creator

Designs 18
Downloads 728
Sales US$4
Followers 10

Ingénieur à la retraite
