3D model description

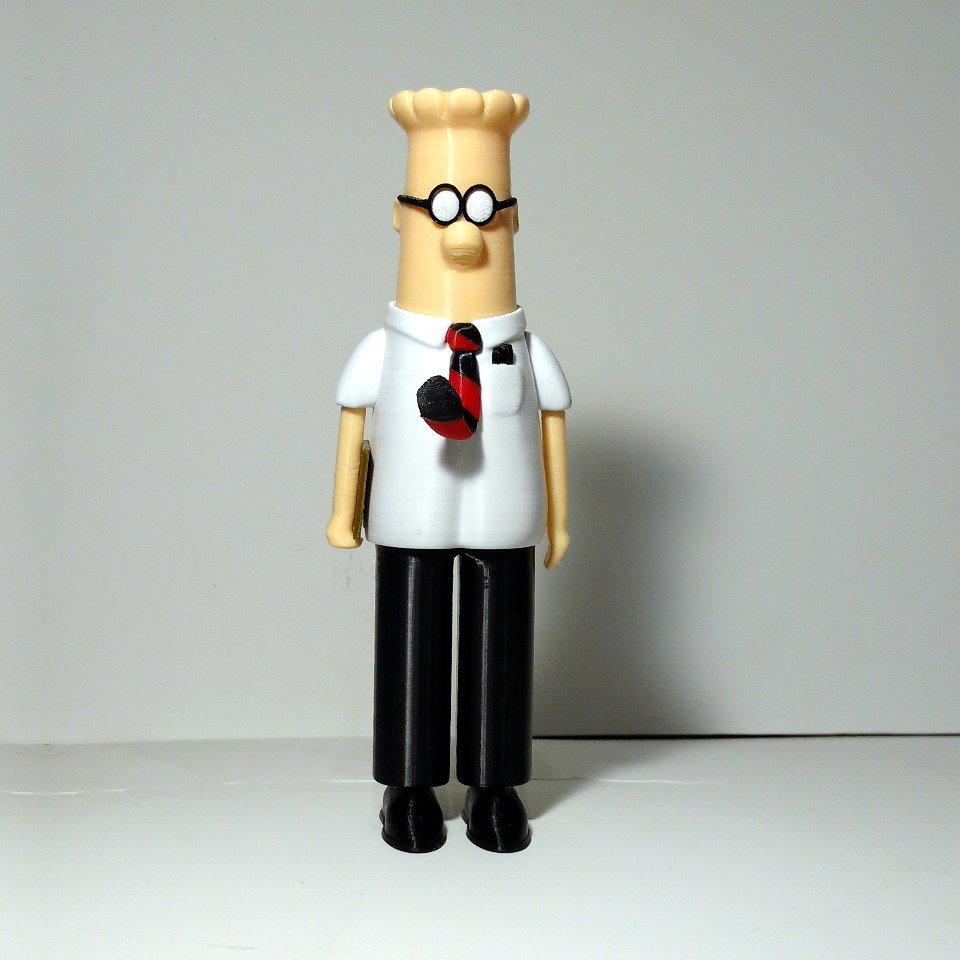

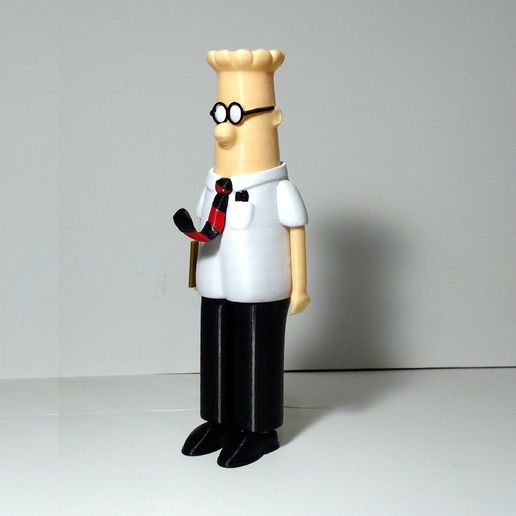

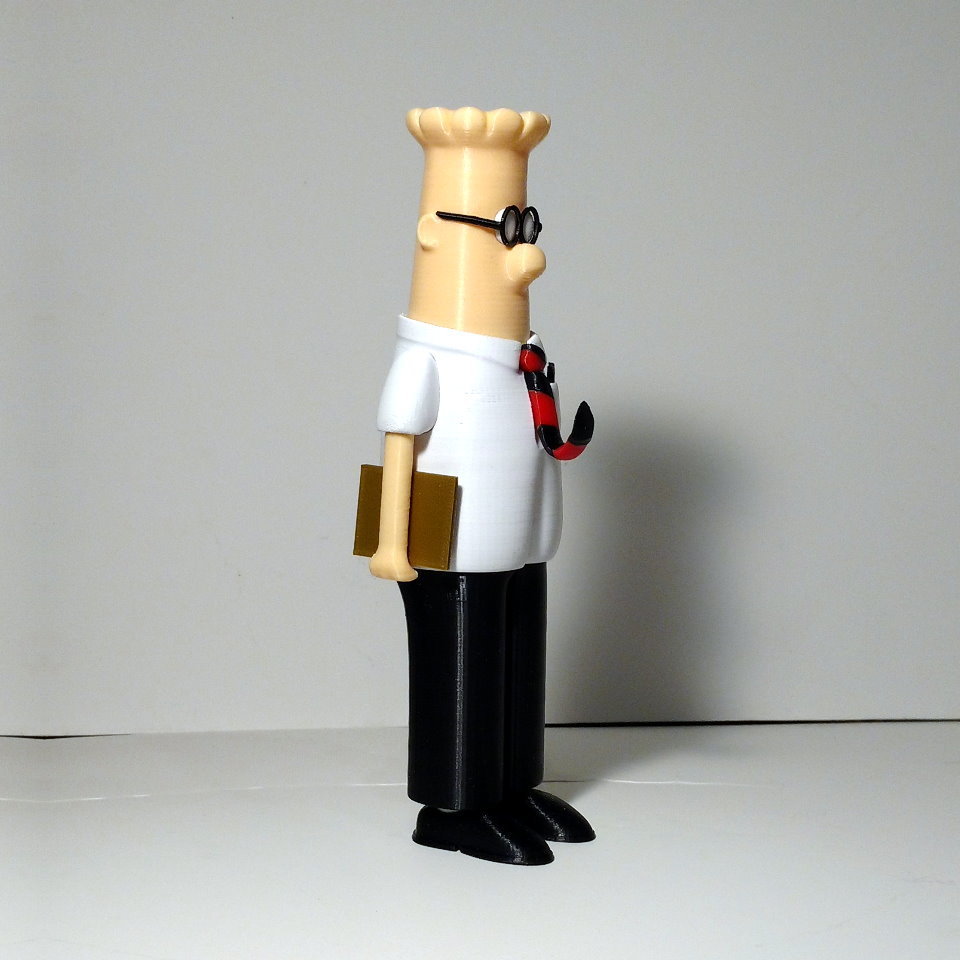

Dilbert, from the comic strip 'Dilbert' by Scott Adams.

If you have not experienced the profound wisdom that Scott Adams voices through Dilbert, then I highly suggest that you check out his comic strip.

No supports are required. If you have the right filament colors, no painting is needed.

The completed model is 225mm tall after assembly.

Enjoy!


Print Settings

Printer: FlashForge Creator X
Rafts: Doesn't Matter
Supports: No
Resolution: .2mm
Infill: 10%

Notes:
See below for some printing tips.
Building the model

Colors and multiple printed pieces
Following are the colors that I used and notes if pieces are to be printed multiple times.
..
Skin/Beige:
head
arm_left
arm_right
..
White:
socks (2 copies)
sleeve_right
sleeve_left
shirt
eye_right
eye_left
..
Black:
shoes (2 copies)
pants
glasses
pens
tie_a
tie_c
tie_e
tie_g
..
Red
tie_b
tie_d
tie_f
..
Gold
folder
..
Any color (hidden connector)
bump (2 copies)

Printing and assembly tips
Printing Tips:
1-The glasses were designed to be printed with 2 shells (.4mm nozzle). Other settings should work, but I find for small pieces two shells helps ensure a good print.
..
2-Since the tie is made up of smallish pieces, people with 'fat fingers', like myself, might make a mess when gluing the pieces of the tie together. I decided (based on my wife's suggestion) to include a small hole through all the tie pieces to help in positioning them while gluing. I pushed a piece of 1.75mm filament slightly into one piece and cut it short so that 2mm or so stuck out. The next piece can then be pushed onto this and the two pieces will stay together while gluing. Continue this process for the rest of the tie pieces, if needed.
..
Assembly tips

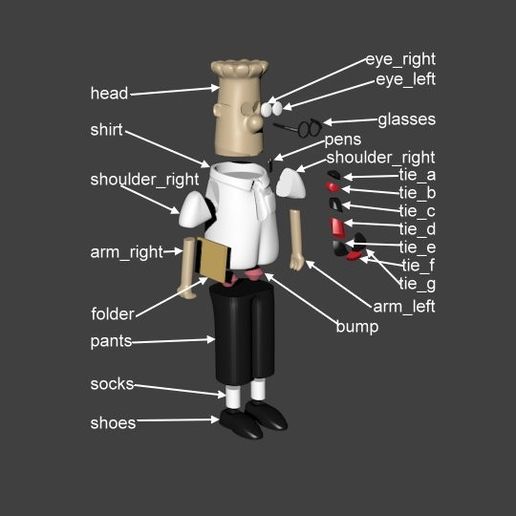

-The diagram in the photos section will help in assembling the model.
-The model is meant to be glued together.
-Assembling the model is straight forward. Just be sure to glue all of the tie pieces together to create the full tie separately. I suggest attaching the completed tie to the rest of the model as the last step.
