DHT-22 / DHT22 Wall box with ESP8266 - updated

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 25 downloads

3D model description

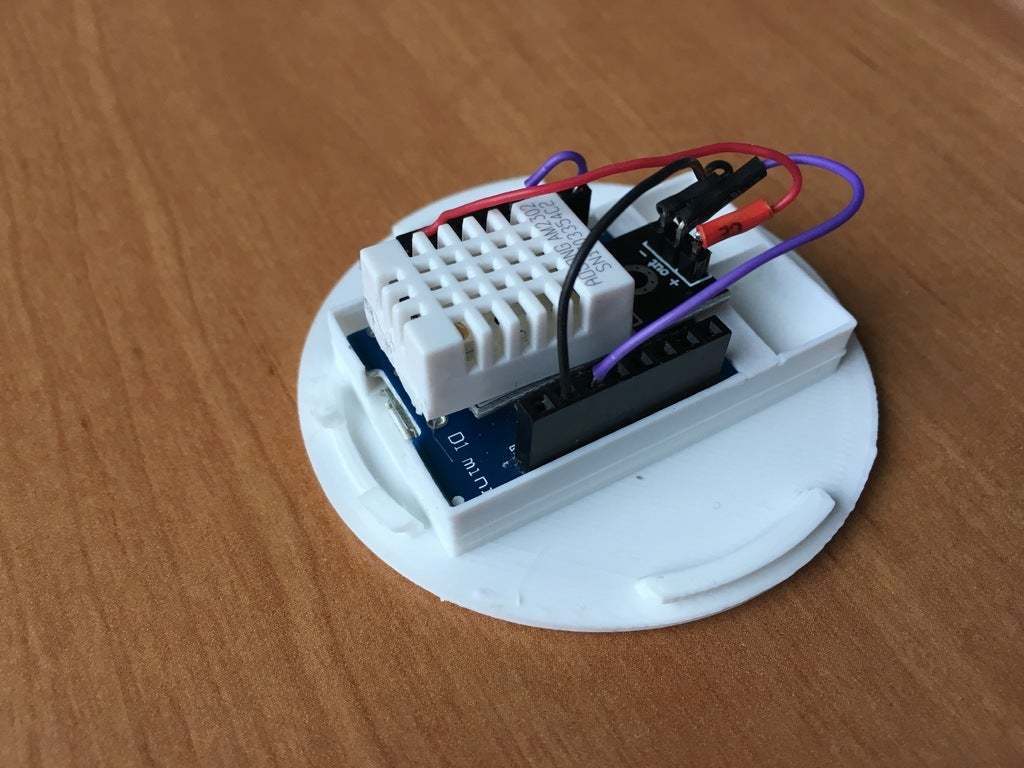

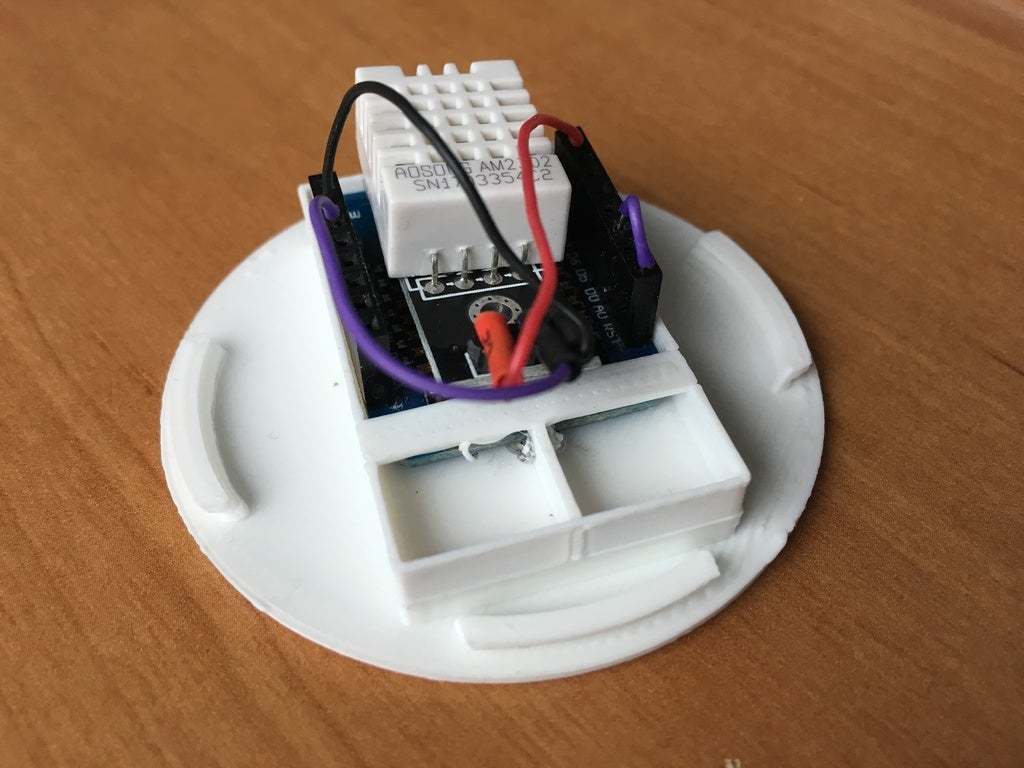

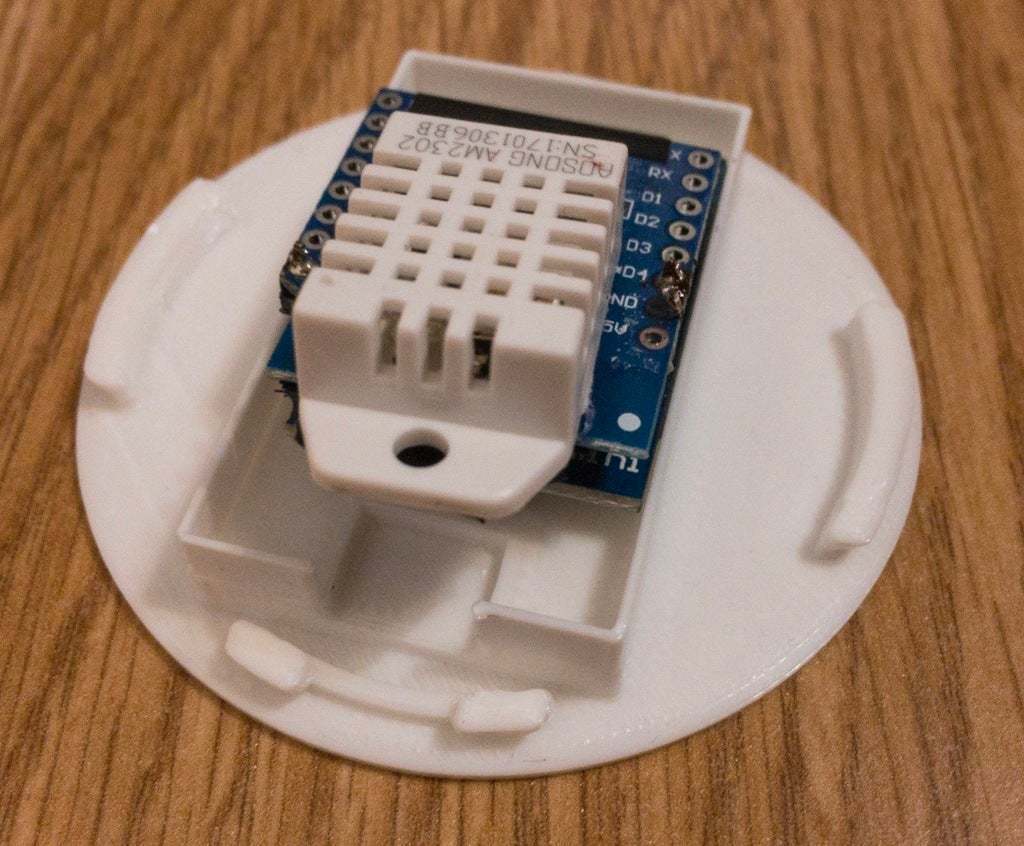

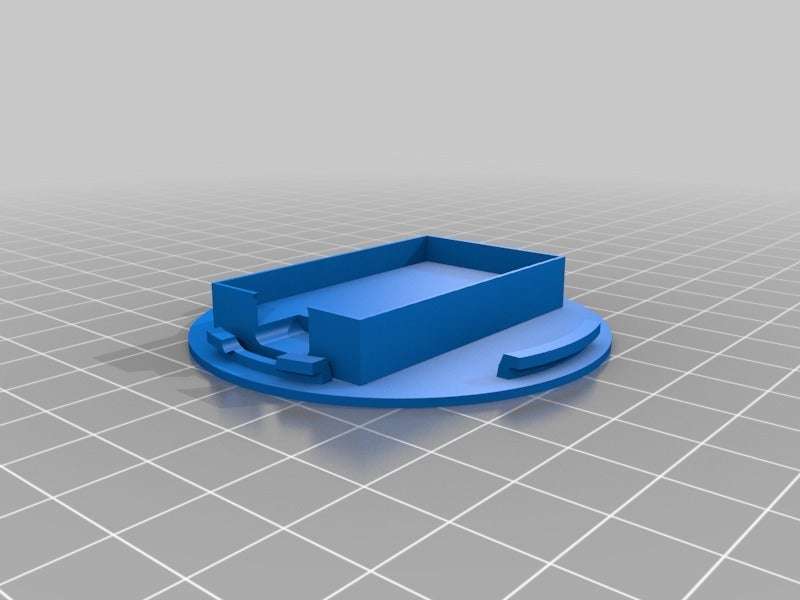

update: I added some easy remove support for better Wemos D1 mini board hold in position.

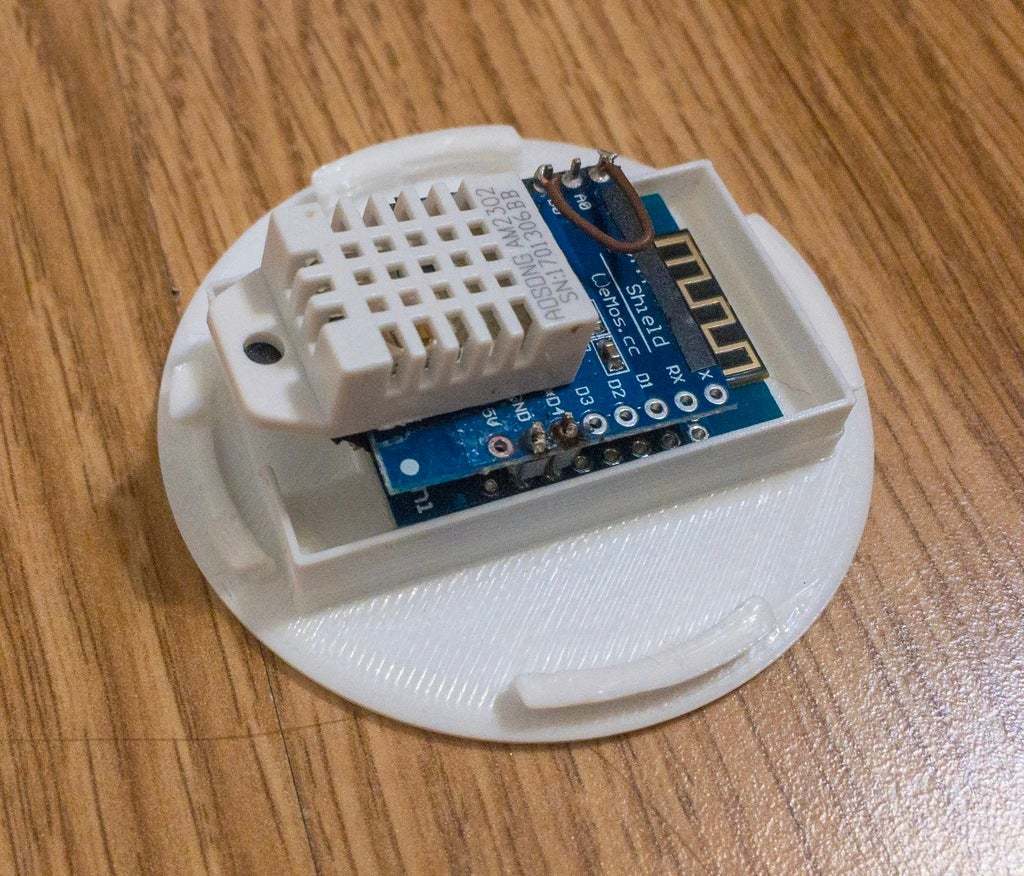

This is 3rd try of wall holder DHT-22. I uploaded SCad file, you can change some values. It would be necessary to improve the ESP fit.

// You must use Deep_sleep (1minute or more) mode to prevent sensor self heating from Wemos D1

ESP8266
https://www.aliexpress.com/item/D1-mini-V2-Mini-NodeMcu-4M-bytes-Lua-WIFI-Internet-of-Things-development-board-based-ESP8266/32706031465.html?spm=a2g0s.9042311.0.0.iTgoyR

DHT-22
https://www.aliexpress.com/item/1PCS-DHT-Pro-Shield-for-WeMos-D1-mini-DHT22-Single-bus-digital-temperature-and-humidity-sensor/32760514228.html?spm=a2g0s.9042311.0.0.A4WXSx

3D printer file information

  • 3D design format: SCAD and STL Folder details Close
    • dht-pracovna-kryt.stl
    • dht-pracovna-spodek.stl
    • dht-pracovna.scad

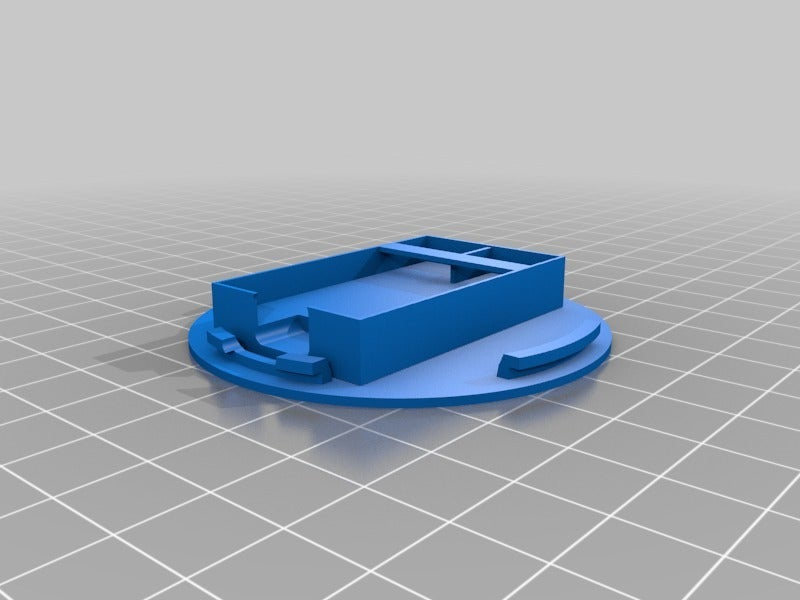

    • dht-pracovna_bottom.stl
  • Publication date: 2020/04/15 at 15:23
