Crayfish Fishing Lure Open Pour Mold

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 3.1k views
  • 4 likes
  • 18 downloads

3D model description

The Crayfish

This is a open pour mold for a crayfish soft plastic fishing lure.

More info and Video of the pouring technique of this mold can be seen at https://www.theneverendingprojectslist.com/fishingprojects/softplasticcrayfish/

I printed this mold in PLA+ and try to pour my Plastisol at or around 300°. (I use Dead On Plastix's brand of Plastisol)

I do not know the longevity of a printed mold. Your results may vary depending on brand/type of filament used.

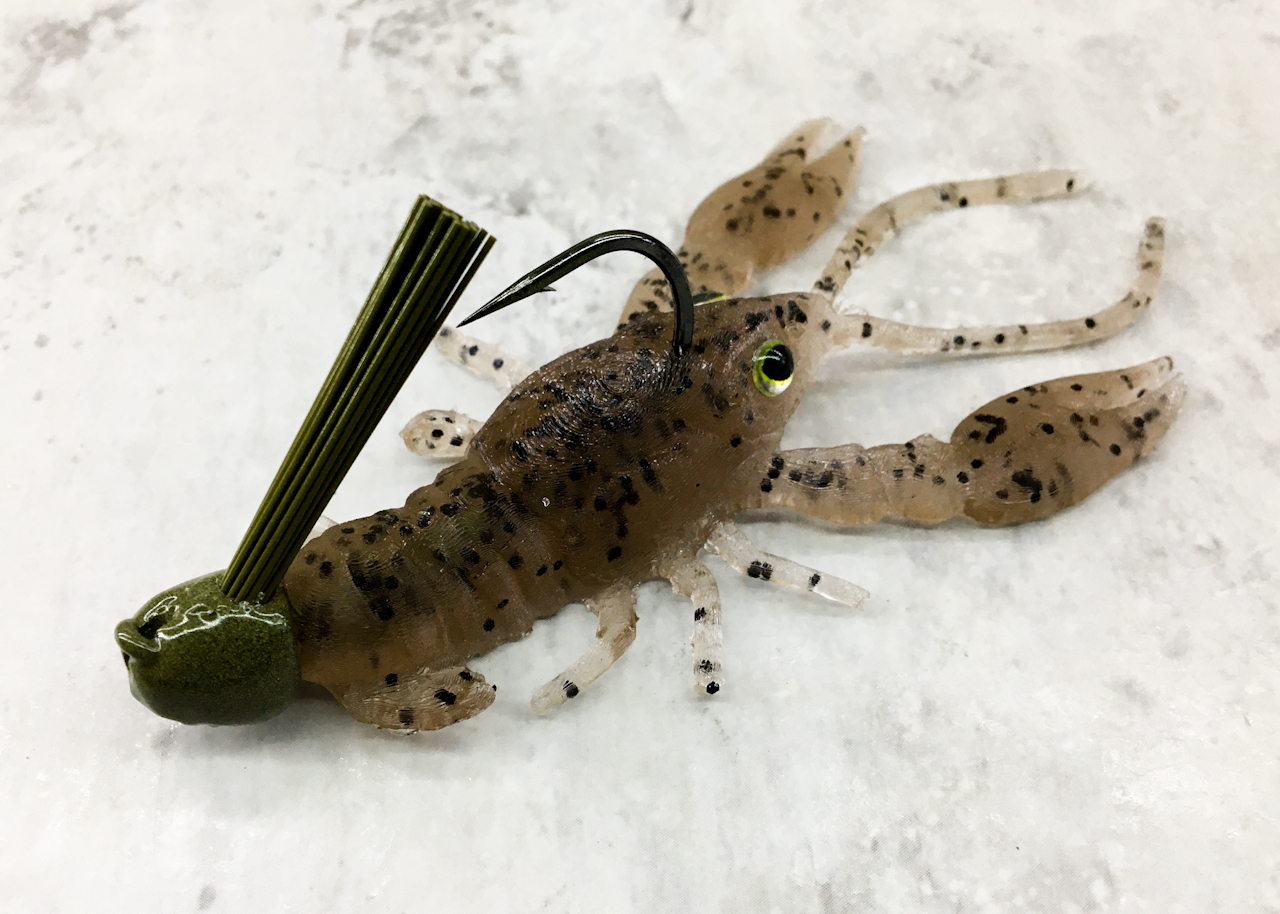

I've included the embedded jig head version (seen in the video) too but sorry I do not know what size jig head I used. If you really want to try this version print it out and maybe bring it to the store to find one that fits the mold.

NOTICE - My files and designs are all Copyrighted © and are exclusively for private and personal use. Even if you purchased these files that Copyright means you are NOT allowed to sell the model or any derivative of the model for economic or financial gain. For example, you cannot sell the digital model, a derivative or adaptation of that model, nor can you sell prints of the model. I do however grant permission for persons who purchase any soft bait molds to sell the rubber soft baits you make with one of my printed soft bait molds.... but again you CAN NOT sell the actual models of the baits.


3D printing settings

I print this mold in PLA+ with the following settings
(You'll have to experiment with what works best for you.)

Layer Height = .10mm
Top Solid Layers = at least 6 (I use 15)
Bottom Solid Layers = 3
Outline/Perimeter Shells = 4
Supports = Not Needed
Infill = 25%

3D printer file information

  • 3D design format: STL Folder details Close
    • Cray Fish Open Pour Embedded Jighead.stl
    • Cray Fish Open Pour V1.stl

    Learn more about the formats

  • Publication date: 2020/07/16 at 01:43

Copyright

©

Tags

Creator

Hi... I'm Steve Thone and I make things.... these are some of those projects.

Visit my website to see more of my work. https://www.theneverendingprojectslist.com
