Cani-vtt or bikejoring attachment

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 2 likes

3D model description

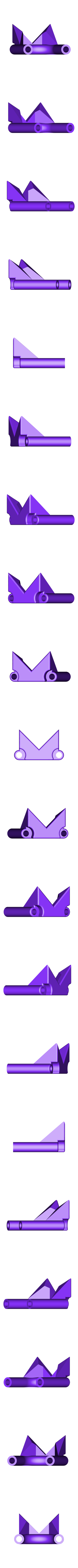

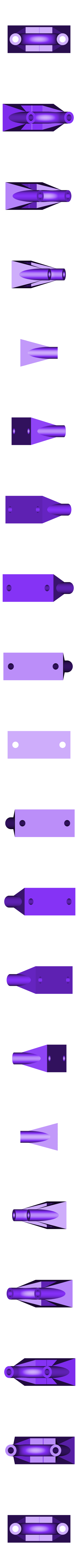

bicycle parts (frame) for Cani-vtt or bikejoring and cani-trotinette.

Advantage in case of fall the piece breaks, not causing additional damage on you or the animal. (tested)

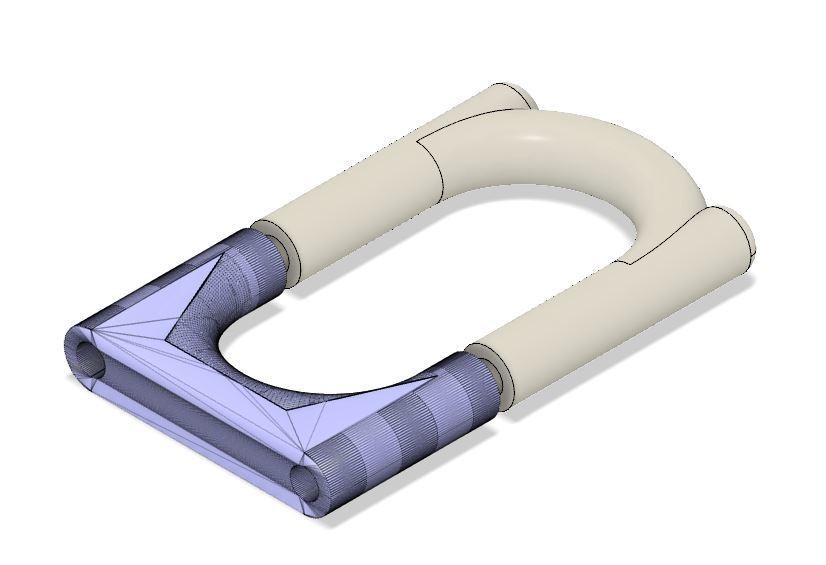

a traditional drawbar is composed:

  • a fixing (U-shaped threaded rod with its screws)

  • a ball joint (Boge Powerjoint m8)

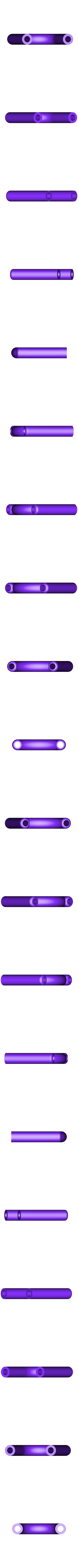

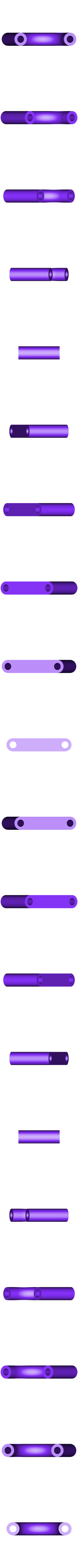

  • a bar,

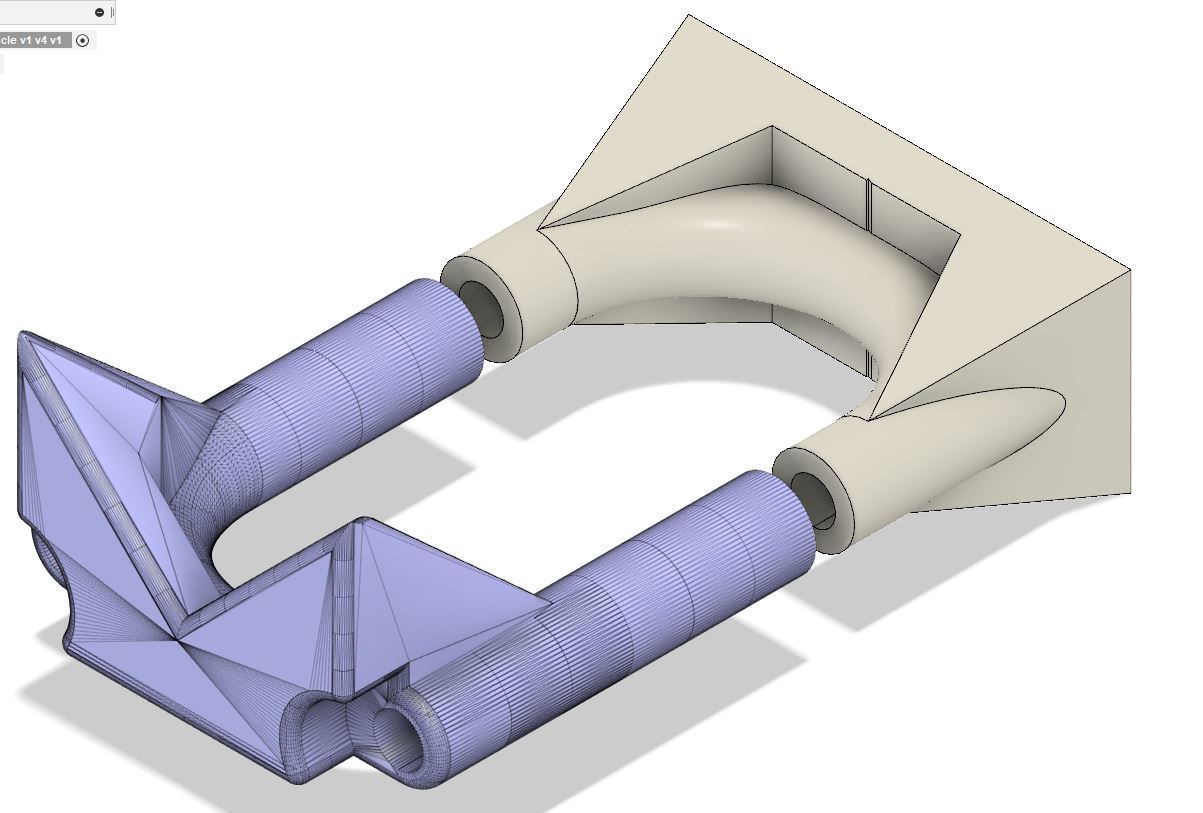

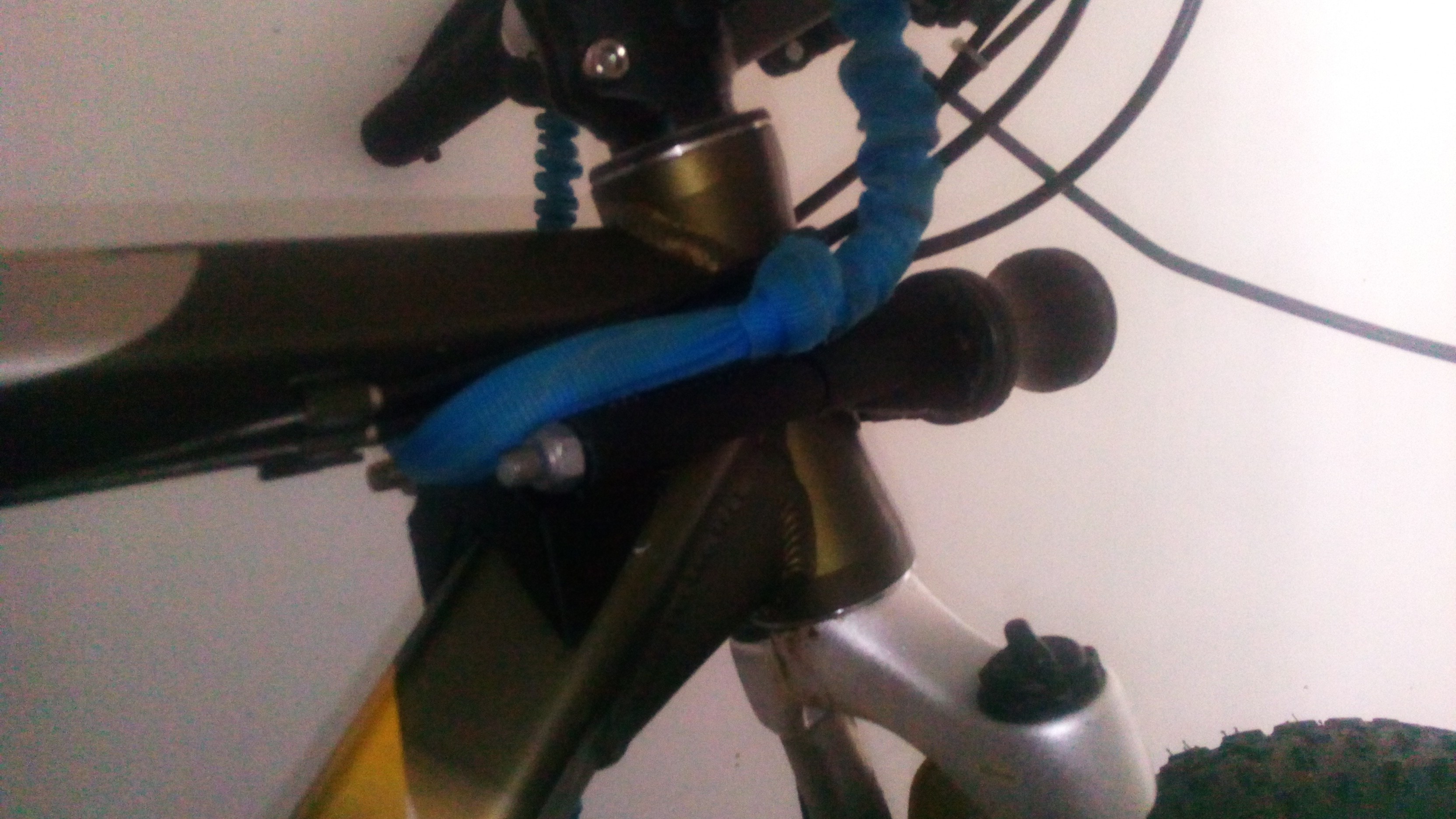

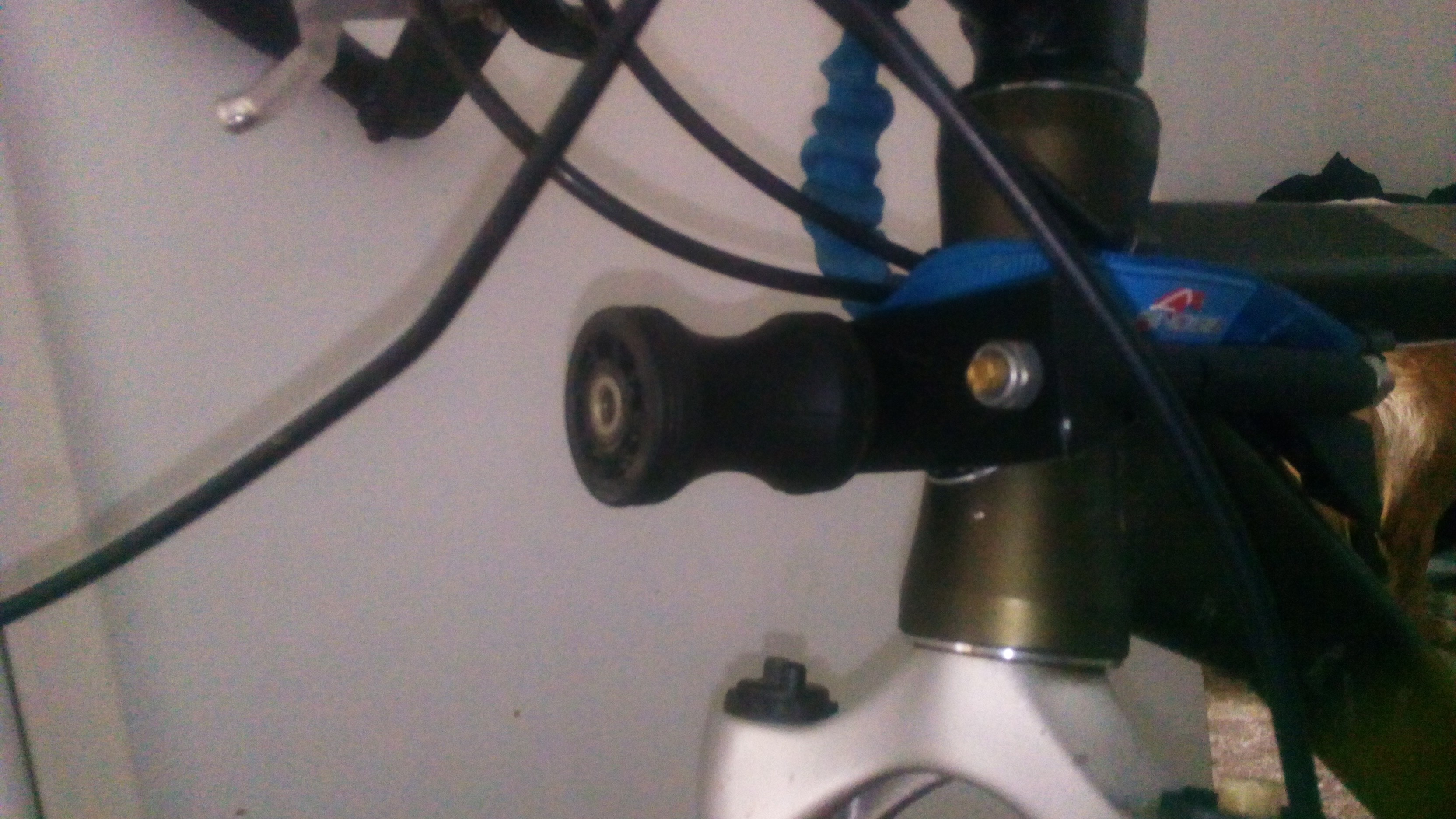

my realization allows not to damage the bicycle while adapting itself to forms of exotic tubing (of frame), in my case in rhombus.

I need 2 threaded rods and 3 nuts with stop (M8)

I tested the piece in PLA (bad resistance to shock and UV) with my dog a cross st Bernard (very powerful),

the part resists 3 good months, 2 out per week, ideally, I recommend ABS for this type of part. personally in PLA I consider it as a fusible part (safety)

for easy mounting of the holes with a drill bit.

attention for beginners in the discipline. "used a harness traction for the dog" no collar, no harness training.

3D printing settings

20% or more filling (max 40%)

printing of the standing room, especially not lying down (for FDM)

1% or 0.01 scale increase (recommended)

nozzle size 0.4, 210°c

70° bed

printing speed 30mm/s

Delta and a8

  • 3D file format: STL and ZIP
  • Publication date: 2018/07/27 at 10:44
