C-MAG

?
Creation's quality: 0.5/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.8k views
  • 4 likes
  • 1 download

3D model description

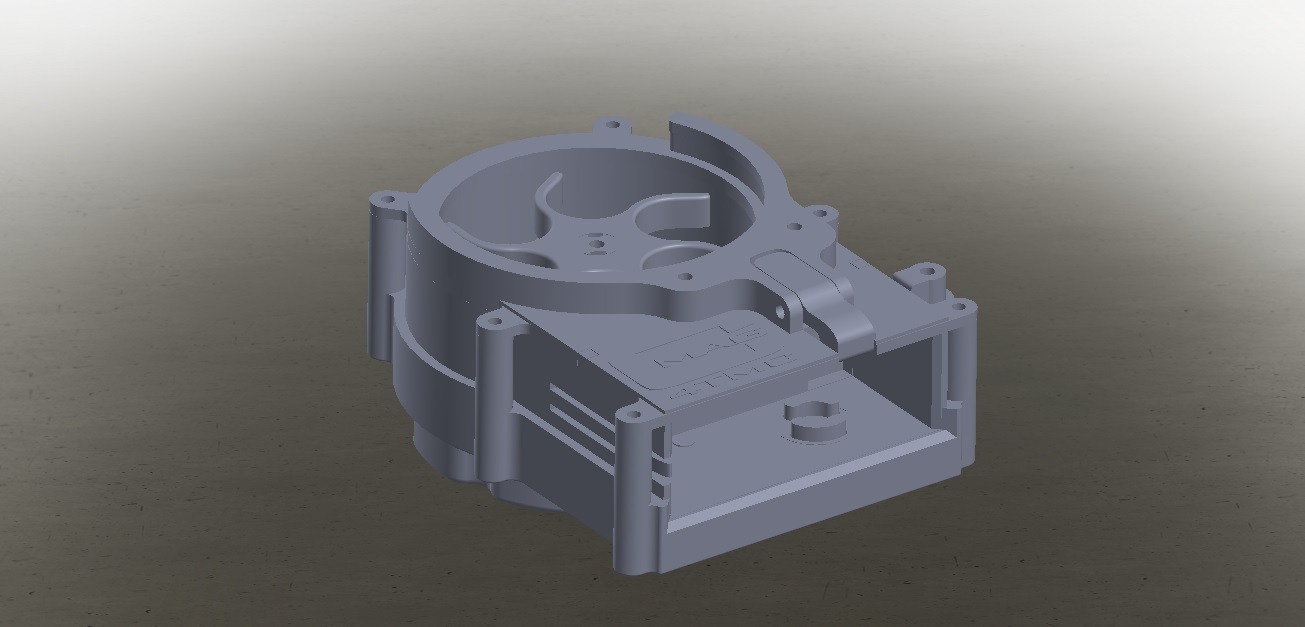

RELOADING SYSTEM FOR TIPPMANN TMC CHARGERS.

THIS SYSTEM ALLOWS YOU TO FILL THE MAGAZINES IN AN EASY AND FAST WAY, REDUCING THE RELOADING TIME FROM 2 MINUTES TO 35 SECONDS THANKS TO ITS DOUBLE FUNCTION MECHANISM, WHICH RETRACTS THE SPRING AND FEEDS THE CAPSULES SIMULTANEOUSLY. USE IT BEFORE AND DURING YOUR PAINTBALL GAMES TO RELOAD YOUR MAGAZINES QUICKLY AND SURPRISE YOUR OPPONENTS.

A POD (GXG OR SIMILAR) IS REQUIRED TO CONTAIN THE CAPSULES/PAINTBALLS DURING USE.

I SHARE A VIDEO OF THE MK1 VERSION:

https://www.youtube.com/watch?v=u3Sb3t1LWbY

THE MODEL OF THE PRESENT PUBLICATION IS THE MK2 VERSION, SOON WILL BE AVAILABLE THE VERSION FOR FST15 CHARGERS.

I HOPE IT WILL BE USEFUL AND YOU CAN ENJOY USING IT FOR MAGFED/GOTCHA/PAINTBALL.

IF YOU DECIDE TO SELL THE PRINTED SYSTEM GO AHEAD, I ONLY ASK PLEASE DO NOT DISTRIBUTE THE FILES, AS THERE IS A LOT OF WORK BEHIND THIS DESIGN.

ANY QUESTIONS PLEASE LEAVE THEM IN THE COMMENTS AND WE WILL BE HAPPY TO HELP YOU ;)

FINALLY I WOULD APPRECIATE IF YOU SHARE THIS PUBLICATION AND GIVE A LIKE TO MY WORK.

GREETINGS AND ENJOY ;)


3D printing settings

1:1 SCALE

MATERIAL: ABS

NOZZLE: 0.4MM

TEMPERATURE: HOTEND 240°C, BED 90°C - 100°C

SPEED 40MM/S

WALLS 4MM

BACKFILL 40% MINIMUM

REQUIRES FASTENERS (ADJUST TO CLOSER FIT):

6 M3 X 40MM

1 M3 X 45MM

2 M3 X 15MM

1 M3 X 18MM

3D printer file information

  • 3D design format: RAR and STL Folder details Close
    • C-MAG MK2 - Boton clutch-1.STL
    • C-MAG MK2 - Boton tornillo clutch-1.STL
    • C-MAG MK2 - C-MAG PA MK2-1.STL
    • C-MAG MK2 - C-MAG PB MK2-1.STL
    • C-MAG MK2 - C-MAG PC MK2-1.STL
    • C-MAG MK2 - Clutch-1.STL
    • C-MAG MK2 - Corona 70mm-1.STL
    • C-MAG MK2 - Eje piñon-1.STL
    • C-MAG MK2 - Helice PA-1.STL
    • C-MAG MK2 - Helice PB-1.STL
    • C-MAG MK2 - Perilla PA-1.STL
    • C-MAG MK2 - Perilla PB-1.STL
    • C-MAG MK2 - Perno Helice-1.STL
    • C-MAG MK2 - Piñon 28mm A-1.STL
    • C-MAG MK2 - Piñon 28mm B-1.STL
    • C-MAG MK2 - Pod Clip-1.STL
    • C-MAG MK2 - Seguro Cargador MK2-1.STL
    • C-MAG MK2.rar
  • Last update: 2021/04/13 at 05:12
  • Publication date: 2020/11/20 at 05:00
