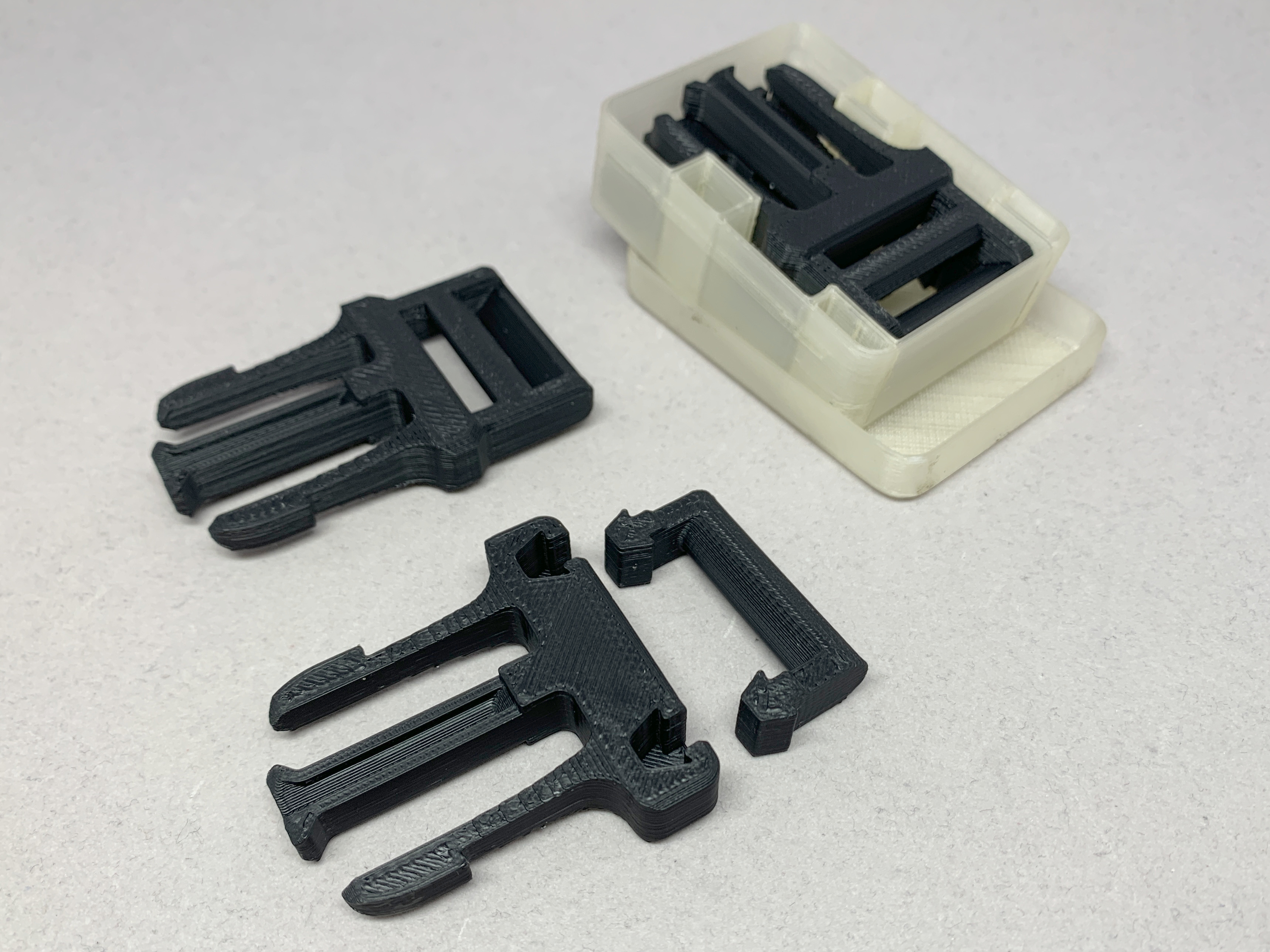

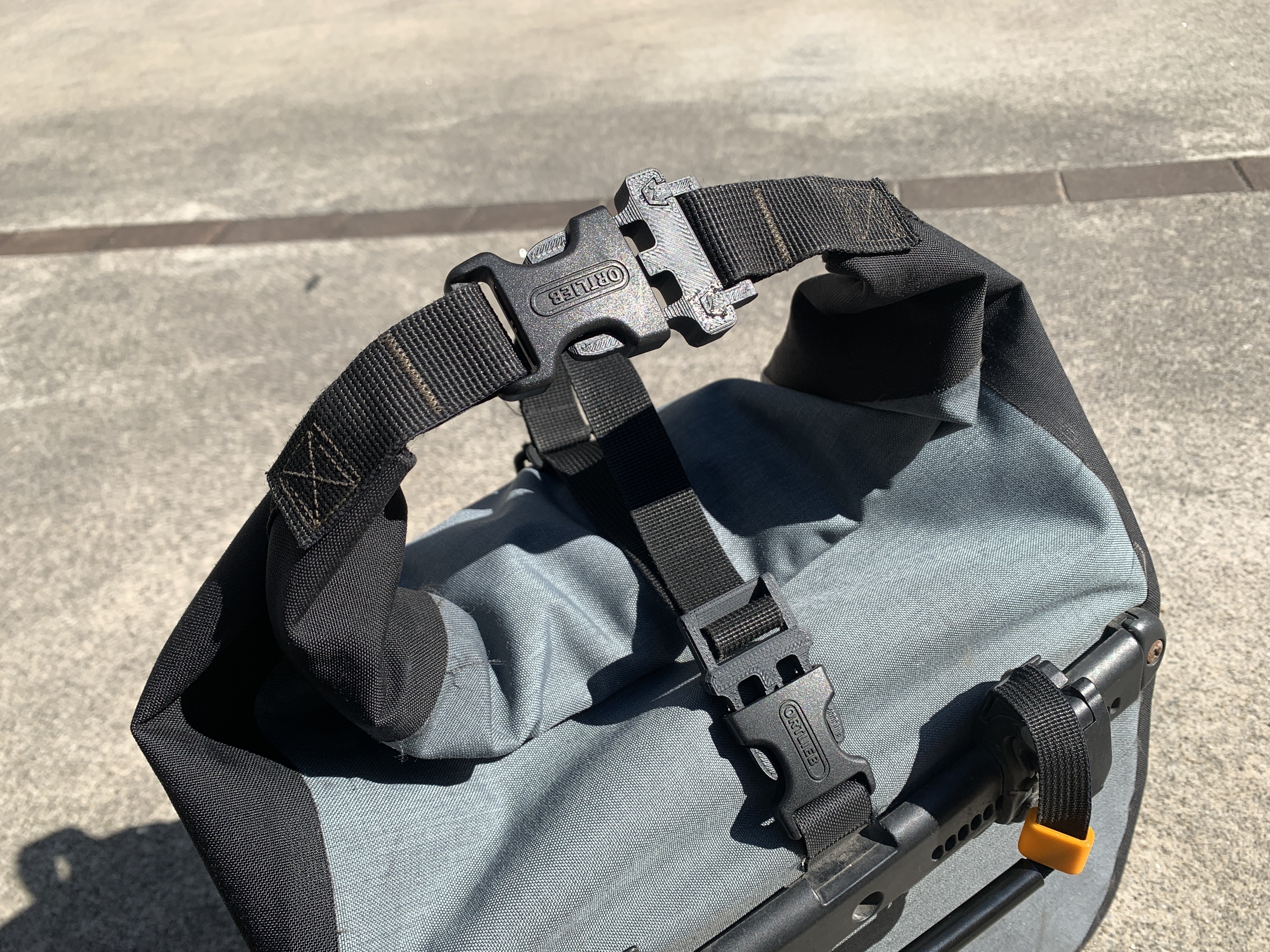

Buckle replacement for Ortlieb bag V2

3D model description

This is an improved version of my remix
https://www.thingiverse.com/thing:3384521
of bustamania's "Buckle replacement for Ortlieb bag".
https://www.thingiverse.com/thing:276409

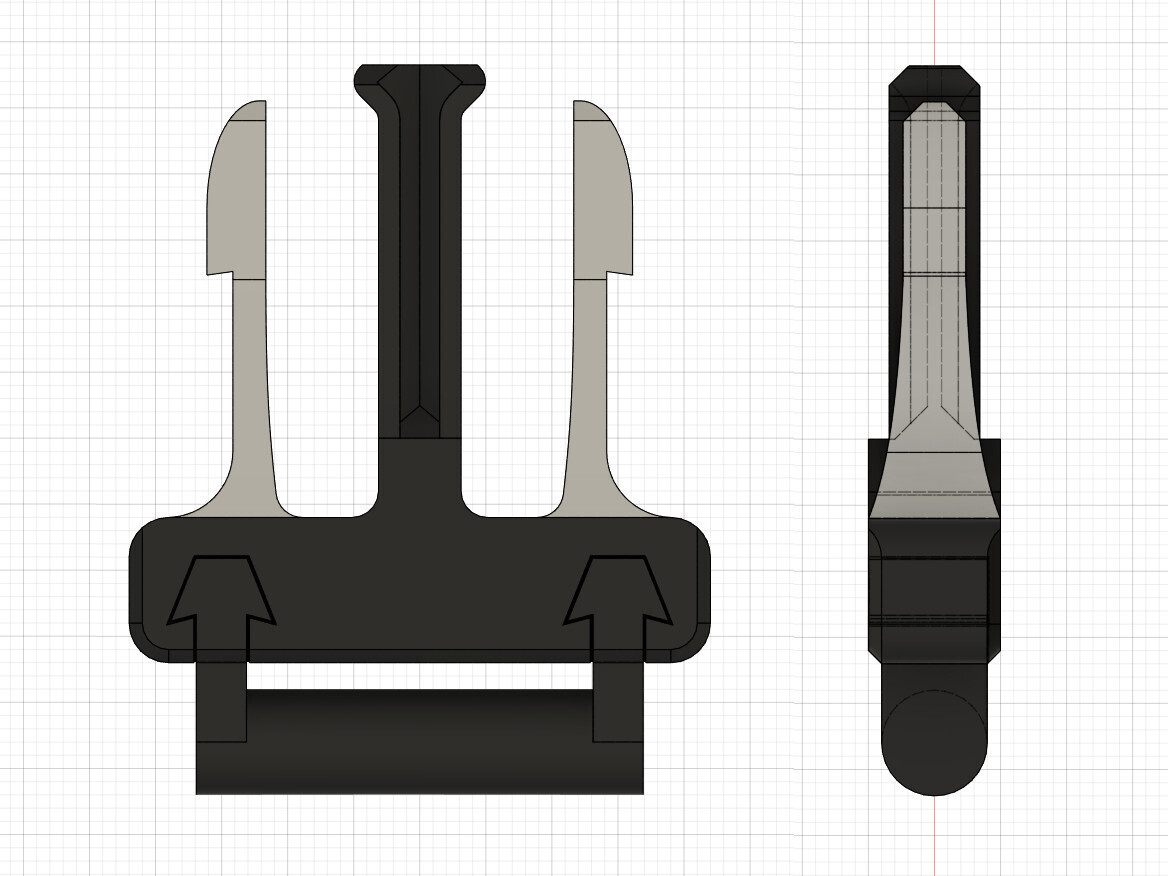

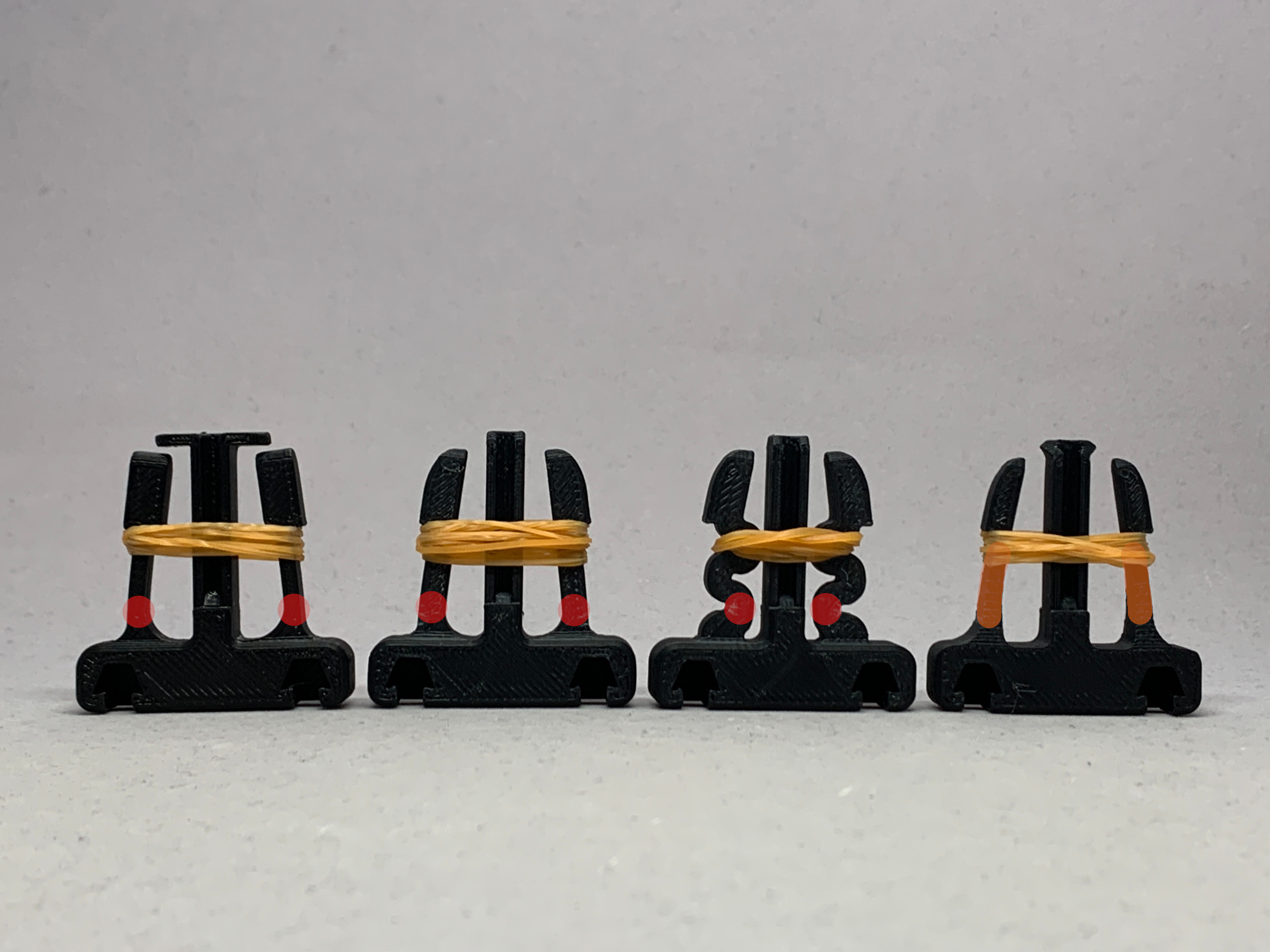

  • more durable spring ( distributed bending stress )
  • rounded tips (smooth buckle removing)
  • simplified central guide rail

https://youtu.be/Ws3cMYhs-3Y

[Japanese]
オルトリーブのバックルの交換部品です。ベルトの縫製をやり直すことなく交換できます。
bustamaniaさんのデータからリミックスしたものを公開していましたが、1年ほど使っていると爪の根本が一部折れてしまったので、さらに改良しました。

・爪のばね構造を、曲げの負荷を全体に分散させる形に変更
・指で押す先端部分を丸く(バックルをスルッと外せる)
・中央のレールの形状を簡素化

  • 3D file format: STL
