BT-80 Simulated Nozzle

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This is an upscale of the BT-50 simulated nozzle (Estes Part No. 072665) that is designed to fit Estes and Rocketarium BT-80 airframe tubing.

There are three models that will either fit a 29mm or 38mm motor mount tube:

1) No shoulder,

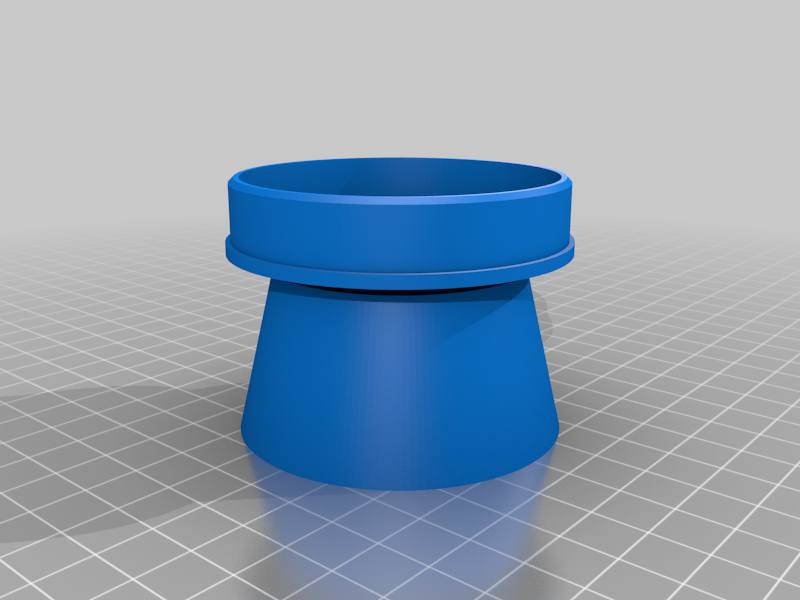

2) Short shoulder (about 12mm tall or 1/2 inch),

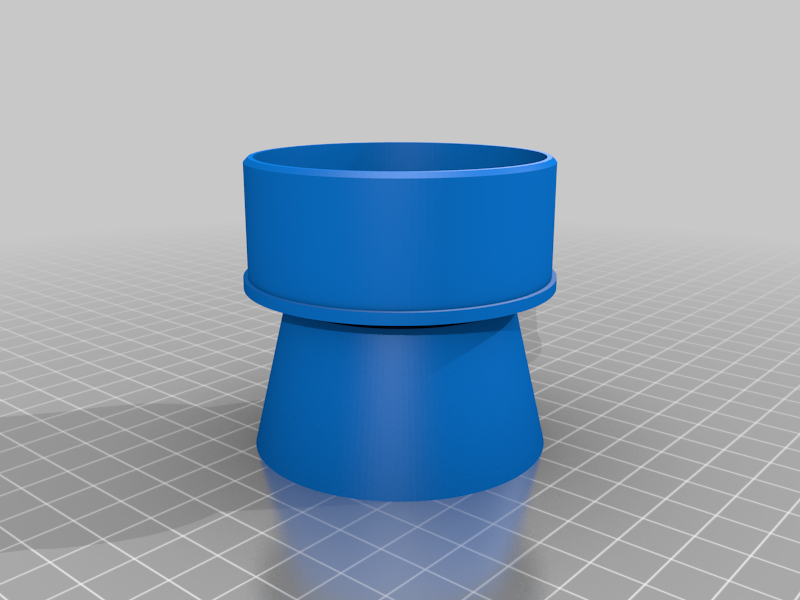

3) Tall shoulder (about 25mm tall or 1 inch).

I would suggest printing these models with PETG or another high temperature filament.

Other simulated nozzle designs:

BT-55 Simulated Nozzle (from Estes PNC-50BB)
https://www.thingiverse.com/thing:4141174

Estes Part No. 072665 BT-60 Nozzle Portion
https://www.thingiverse.com/thing:4119920

Q-Modeling Stiletto Simulated Nozzle
https://www.thingiverse.com/thing:4174342


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close

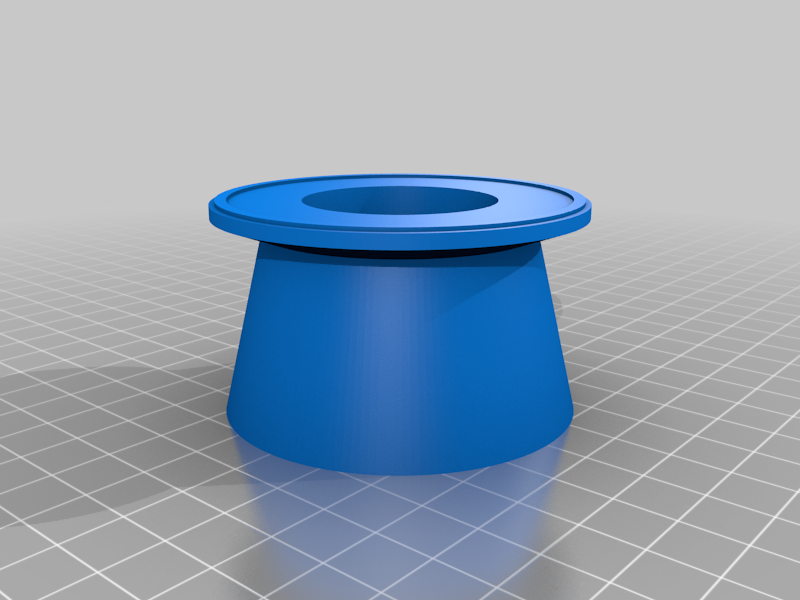

    • BT-80_Nozzle_No_Shoulder_29mm.stl

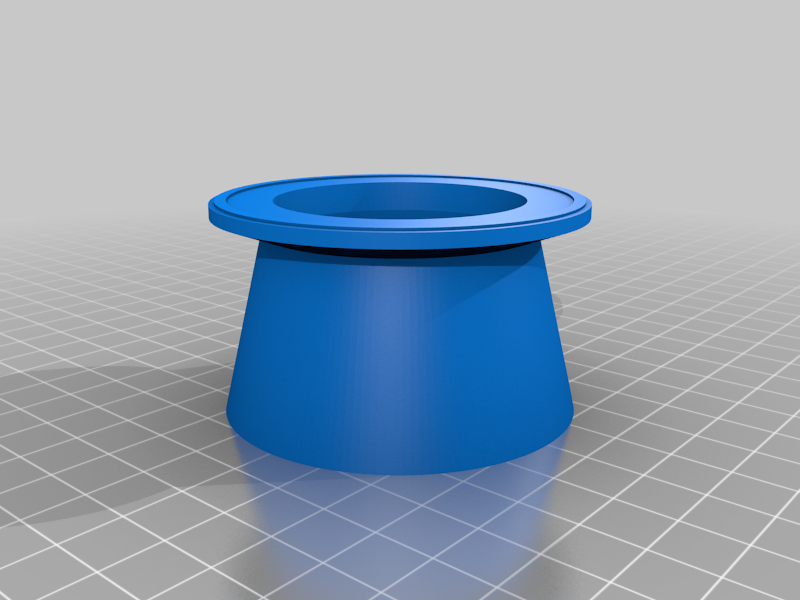

    • BT-80_Nozzle_no_shoulder_38mm.stl
    • BT-80_Nozzle_short_shoulder_29mm.stl
    • BT-80_Nozzle_short_shoulder_38mm.stl
    • BT-80_Nozzle_tall_shoulder_29mm.stl
    • BT-80_Nozzle_tall_shoulder_38mm.stl

    Learn more about the formats

  • Publication date: 2021-08-22 at 01:09
    ?
    Published to Thingiverse on: 2021-08-21 at 01:22

License

CC BY
