3D model description
This project is a tubing coupler that is designed to hold ejection electronics for your rocket that fits Estes BT-55 tubing.
There are two models 1) coupler, 2) end cap.

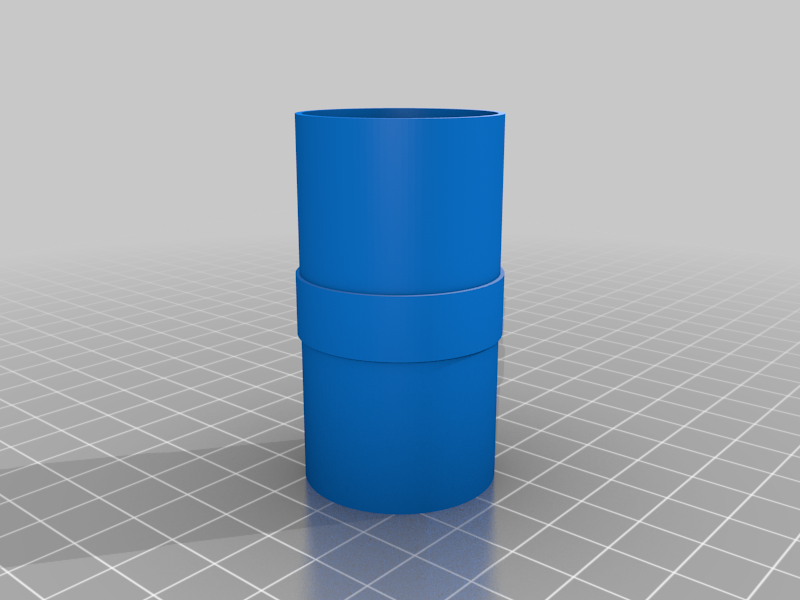

There are three versions of the coupler 1) 3.5mm wide BT-55 band, 2) 7mm wide BT-55 band, 3) 10mm wide BT-55 band

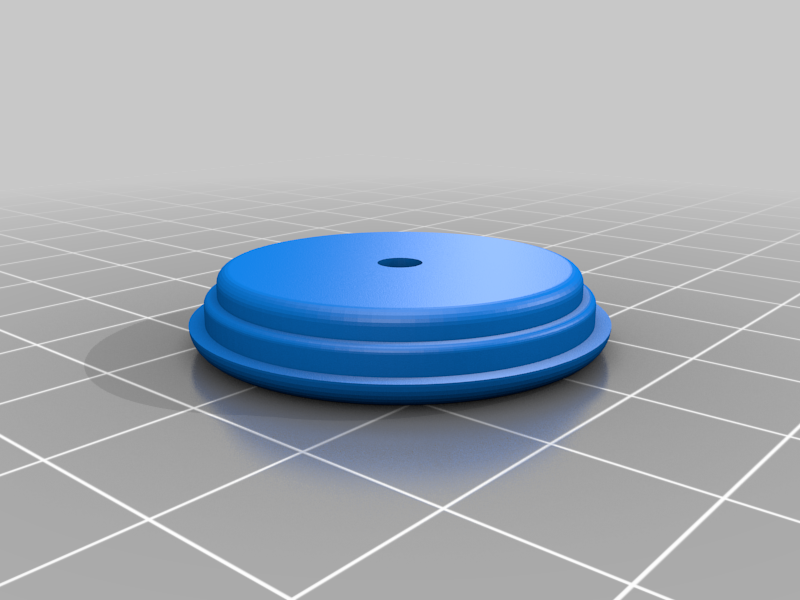

The end cap has a hole in the center that is 3.5mm in diameter.

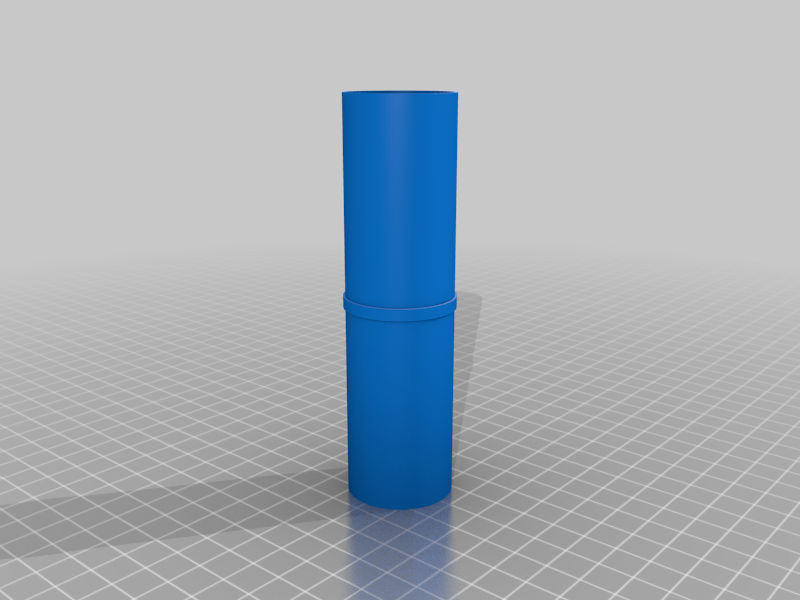

There are two lengths of couplers 1) 60mm (2.36 inches), 2) 120mm (4.72 inches)
3D printing settings
-
3D printer file information
-
3D design format: STL Folder details Close
- BT-55_Coupler_AvBay.stl
- BT-55_Coupler_AvBay_10mm_Band.stl
- BT-55_Coupler_AvBay_7mm_Band.stl
- BT-55_Coupler_AvBay_Double_Length.stl
- BT-55_Coupler_AvBay_Double_Length_10mm_Band.stl
- BT-55_Coupler_AvBay_Double_Length_7mm_Band.stl
- BT-55_Coupler_AvBay_Endcap.stl
-
