BNC-20B Nose Cone

?
Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This 3D model is of the Estes BNC-20B nose cone (P/N 070230) that is designed to fit Estes BT-20 tubing.

There are eight models you can download.

1) Nose cone with shoulder,
2) Nose cone without the shoulder,

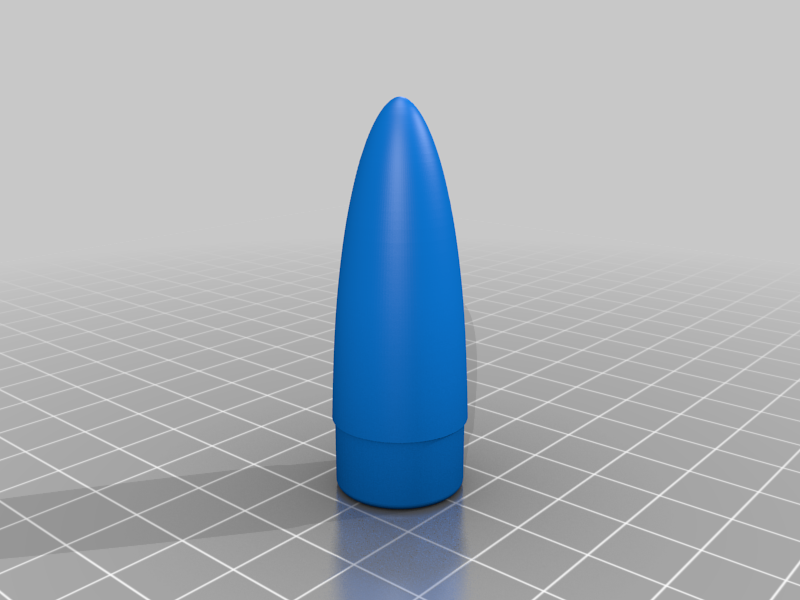

3) Nose cone with the shoulder that is solid,

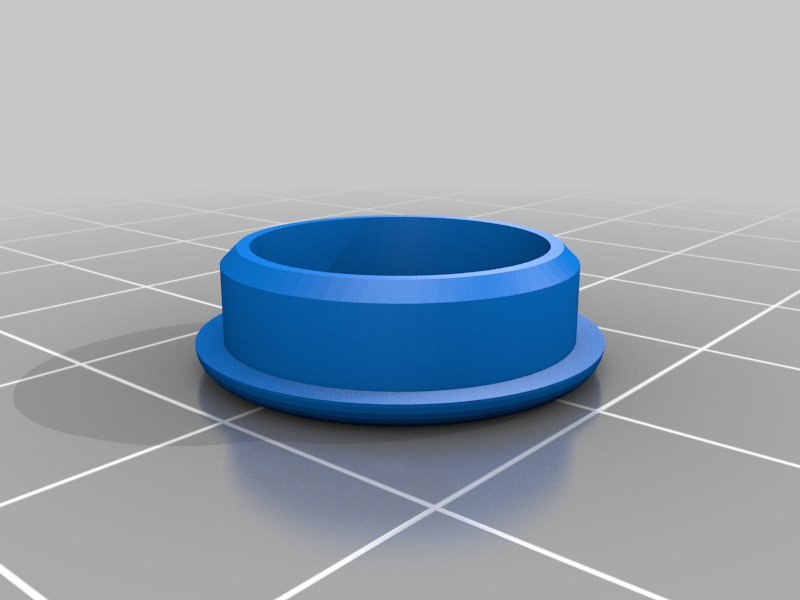

4) End cap with a 3.5mm hole.

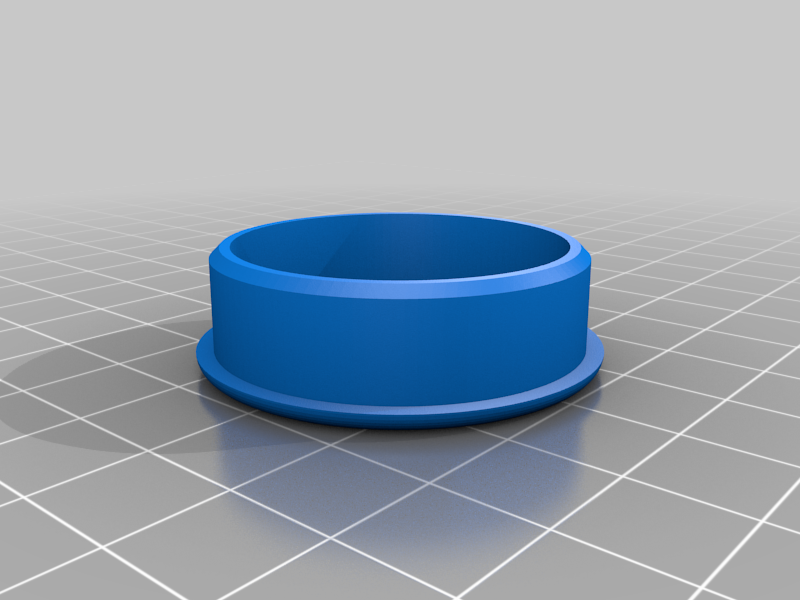

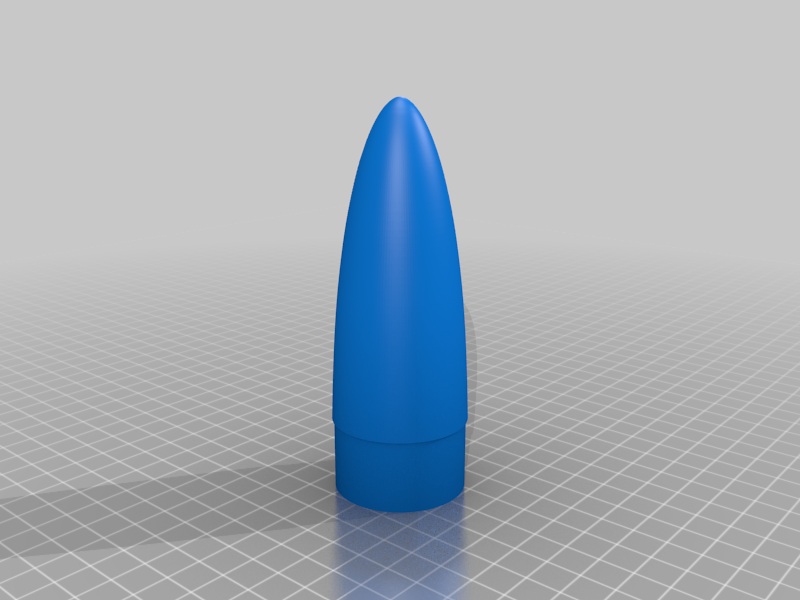

5-8) All the same above except it has been upscaled to fit Estes BT-60 airframe tubing.
Estes kits that use this nose cone:

Kit # Kit Name
K-5 Apogee II
K-19 Invader
K-24 Gyroc

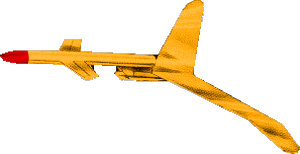

K-34 Nighthawk

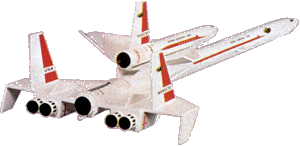

K-42 Orbital Transport
1205 Apogee II
1224 Gyroc
1242 Orbital Transport
1355 Spin Fin
1366 Star Speeder
1984 Phaser

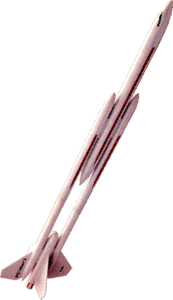

2033 Trident II


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • BNC-20B_Nose_Cone.stl
    • BNC-20B_Nose_Cone_BT-60.stl
    • BNC-20B_Nose_Cone_BT-60_End_Cap.stl
    • BNC-20B_Nose_Cone_BT-60_No_Shoulder.stl
    • BNC-20B_Nose_Cone_BT-60_Solid.stl
    • BNC-20B_Nose_Cone_End_Cap.stl
    • BNC-20B_Nose_Cone_No_Shoulder.stl
    • BNC-20B_Nose_Cone_Solid.stl

    Learn more about the formats

  • Publication date: 2022-06-27 at 01:02
    ?
    Published to Thingiverse on: 2022-06-26 at 13:43

License

CC BY
