Bicycle backlight holder for 8mm roundbar rack-extension

Download free STL file Bicycle backlight holder for 8mm roundbar rack-extension • Object to 3D print, Milan_GajicDownload free STL file Bicycle backlight holder for 8mm roundbar rack-extension • Object to 3D print, Milan_GajicDownload free STL file Bicycle backlight holder for 8mm roundbar rack-extension • Object to 3D print, Milan_GajicDownload free STL file Bicycle backlight holder for 8mm roundbar rack-extension • Object to 3D print, Milan_GajicDownload free STL file Bicycle backlight holder for 8mm roundbar rack-extension • Object to 3D print, Milan_GajicDownload free STL file Bicycle backlight holder for 8mm roundbar rack-extension • Object to 3D print, Milan_GajicDownload free STL file Bicycle backlight holder for 8mm roundbar rack-extension • Object to 3D print, Milan_GajicDownload free STL file Bicycle backlight holder for 8mm roundbar rack-extension • Object to 3D print, Milan_GajicDownload free STL file Bicycle backlight holder for 8mm roundbar rack-extension • Object to 3D print, Milan_GajicDownload free STL file Bicycle backlight holder for 8mm roundbar rack-extension • Object to 3D print, Milan_Gajic

Did you 3D print this model?

3D model description

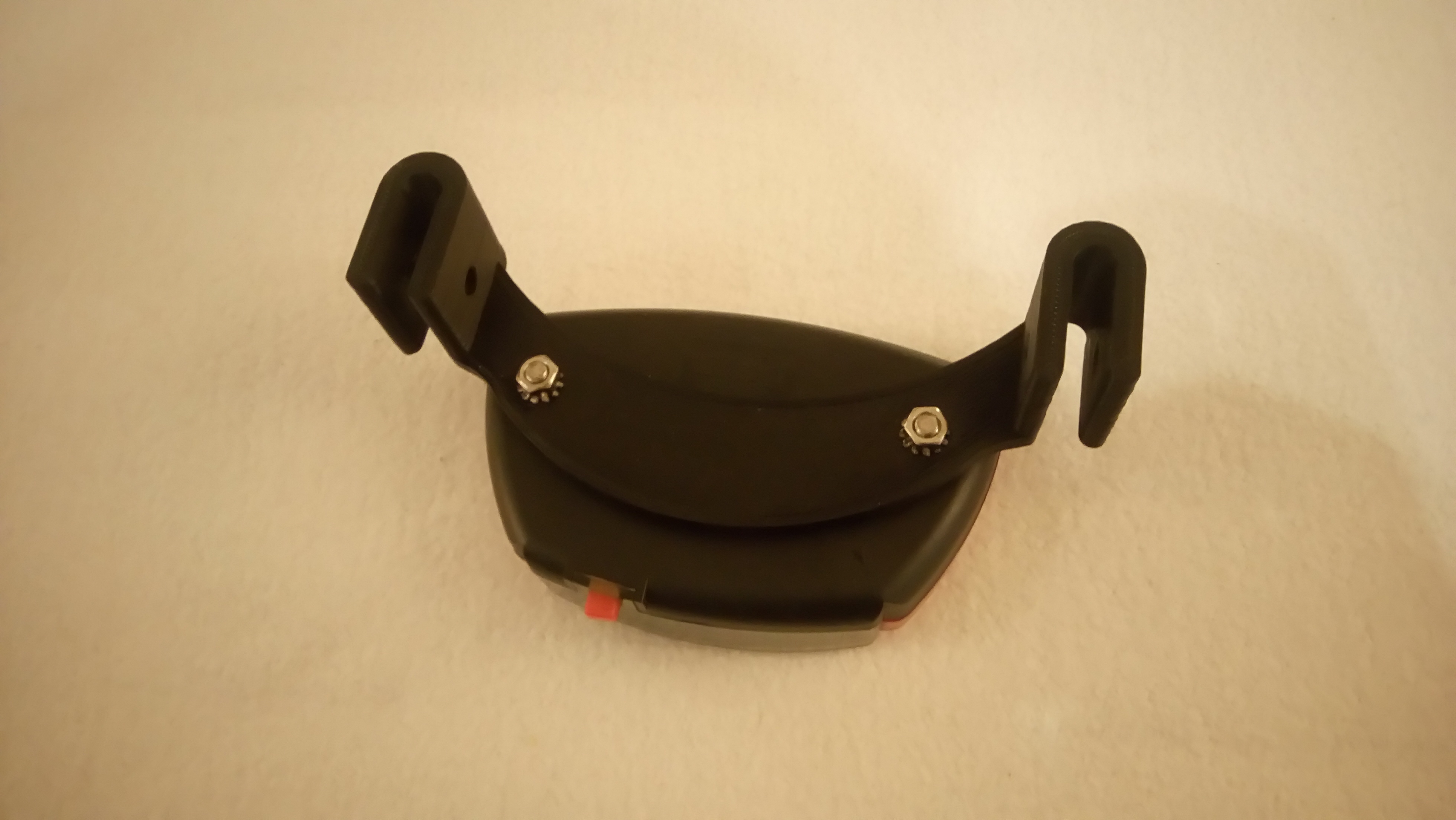

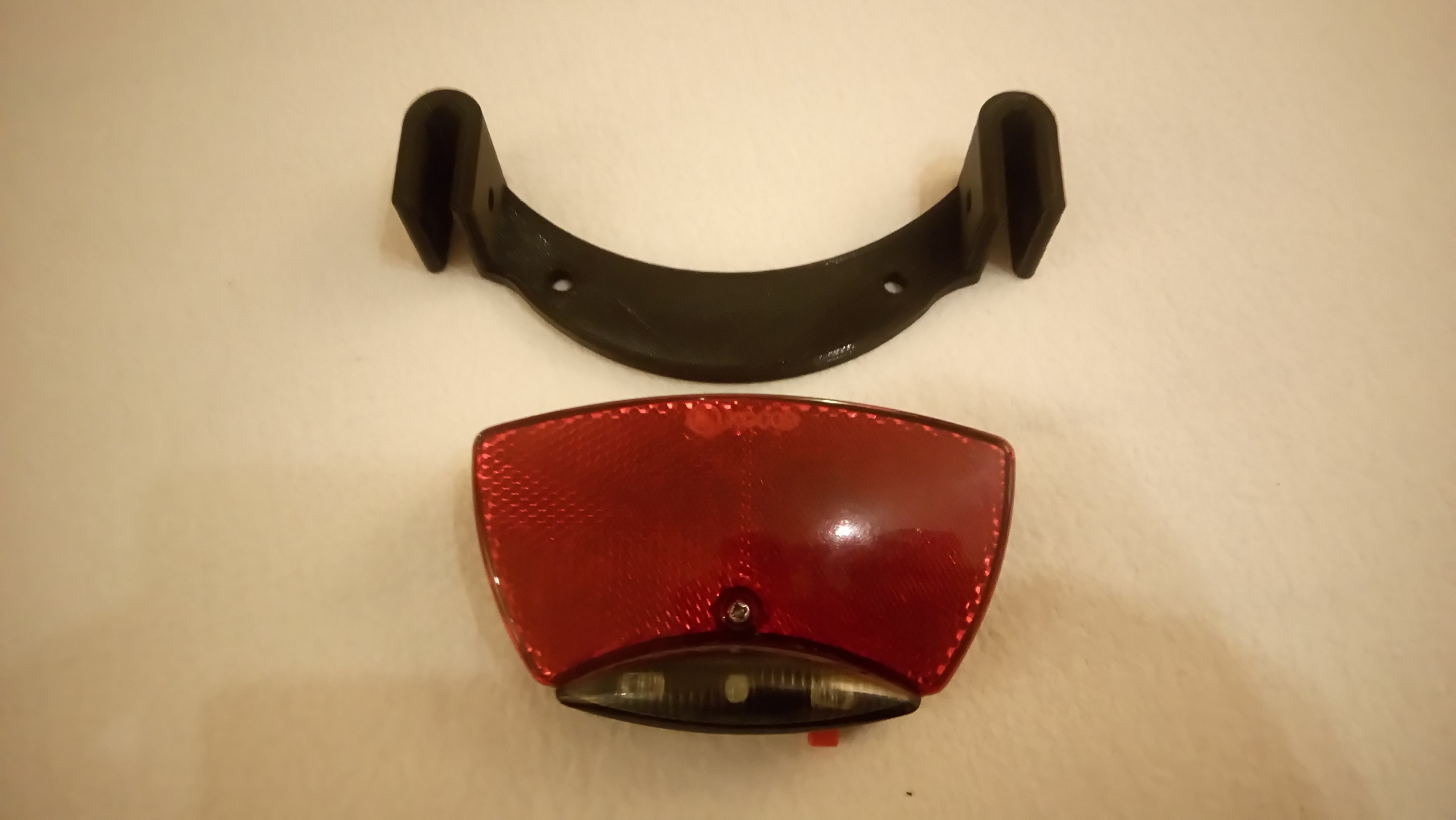

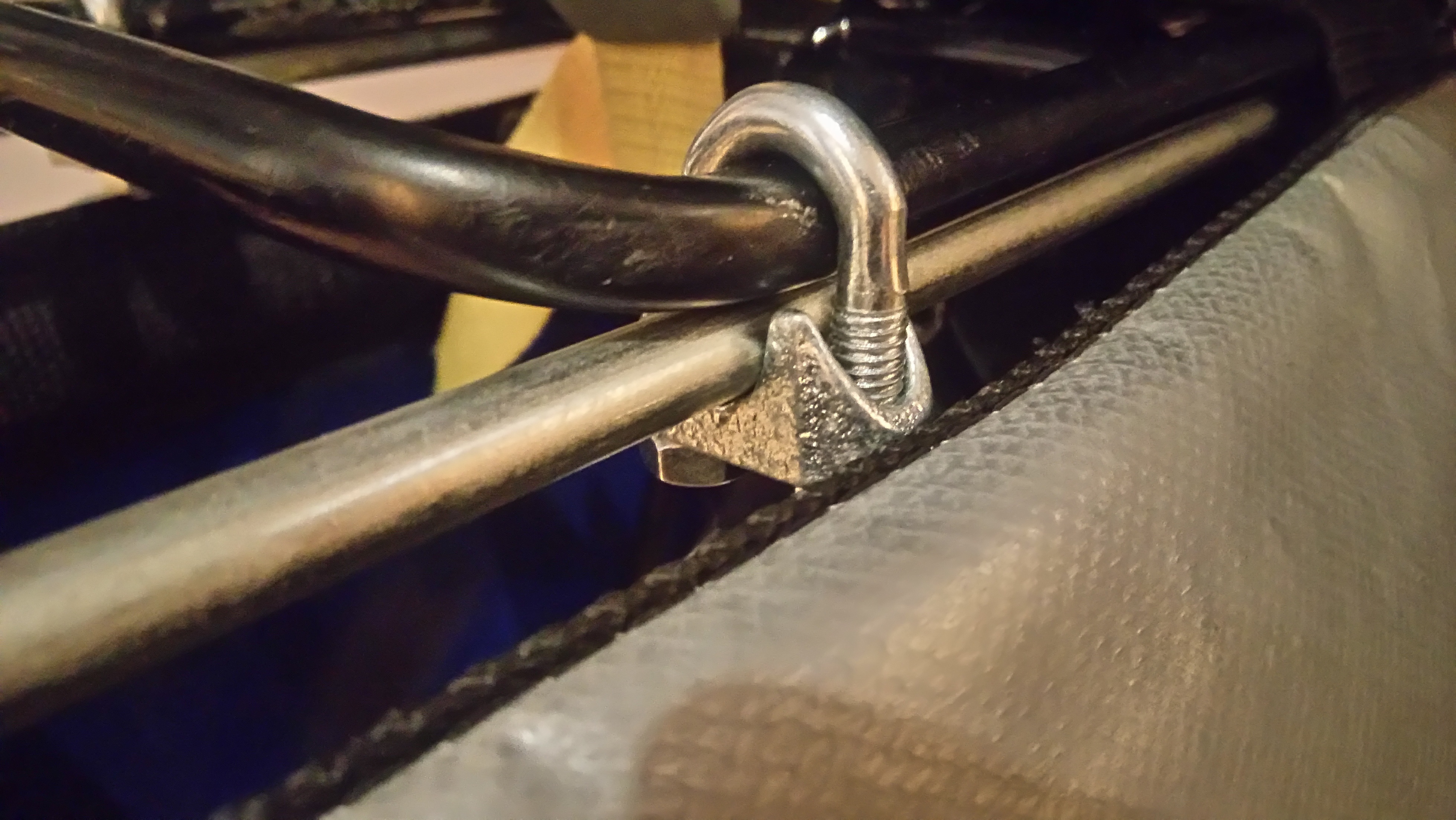

I extended the bicycle rack with some 8mm rod to accomodate for bags and child-seat.

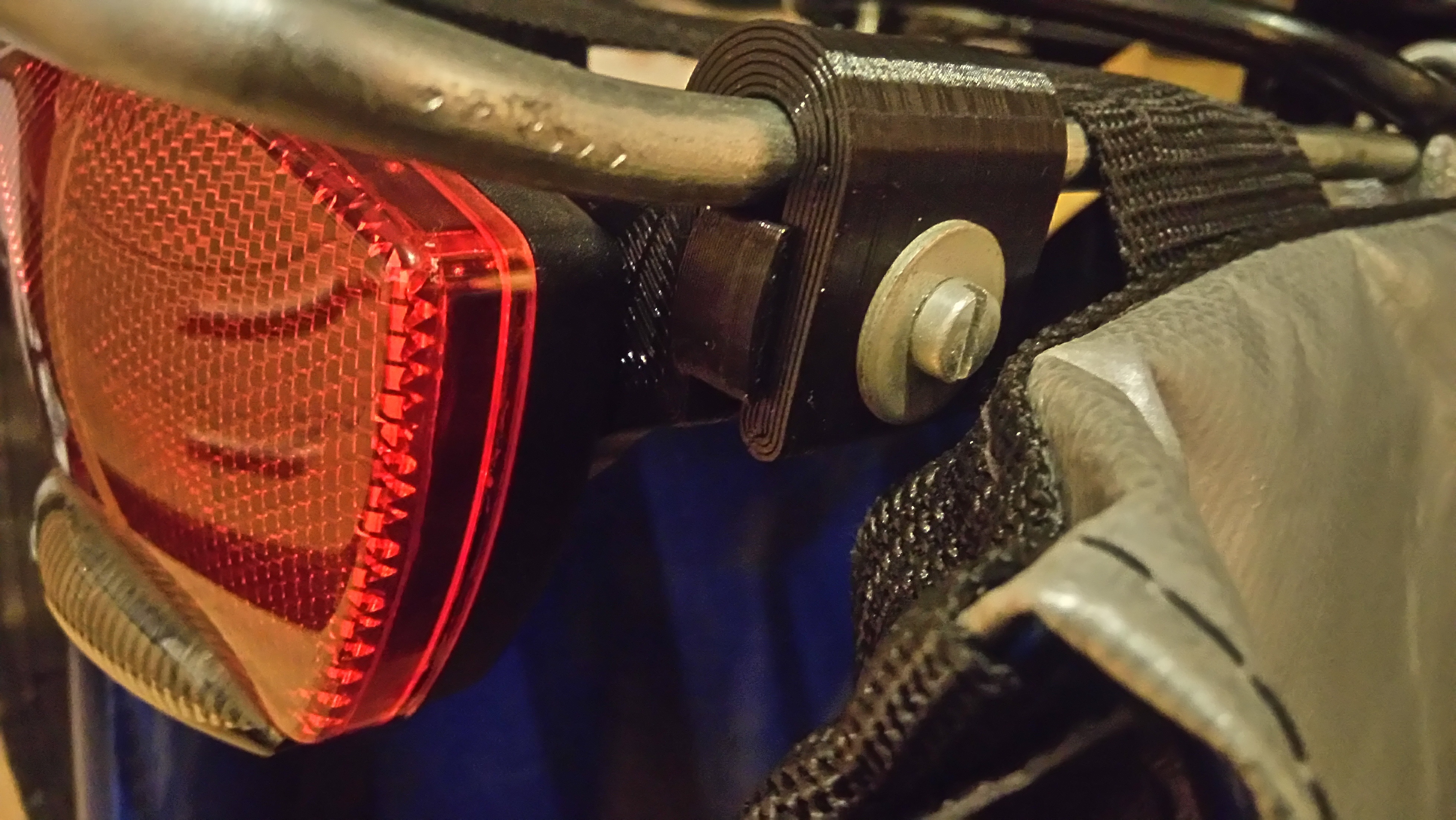

The backlight had to be moved back to the extension to remain visible.

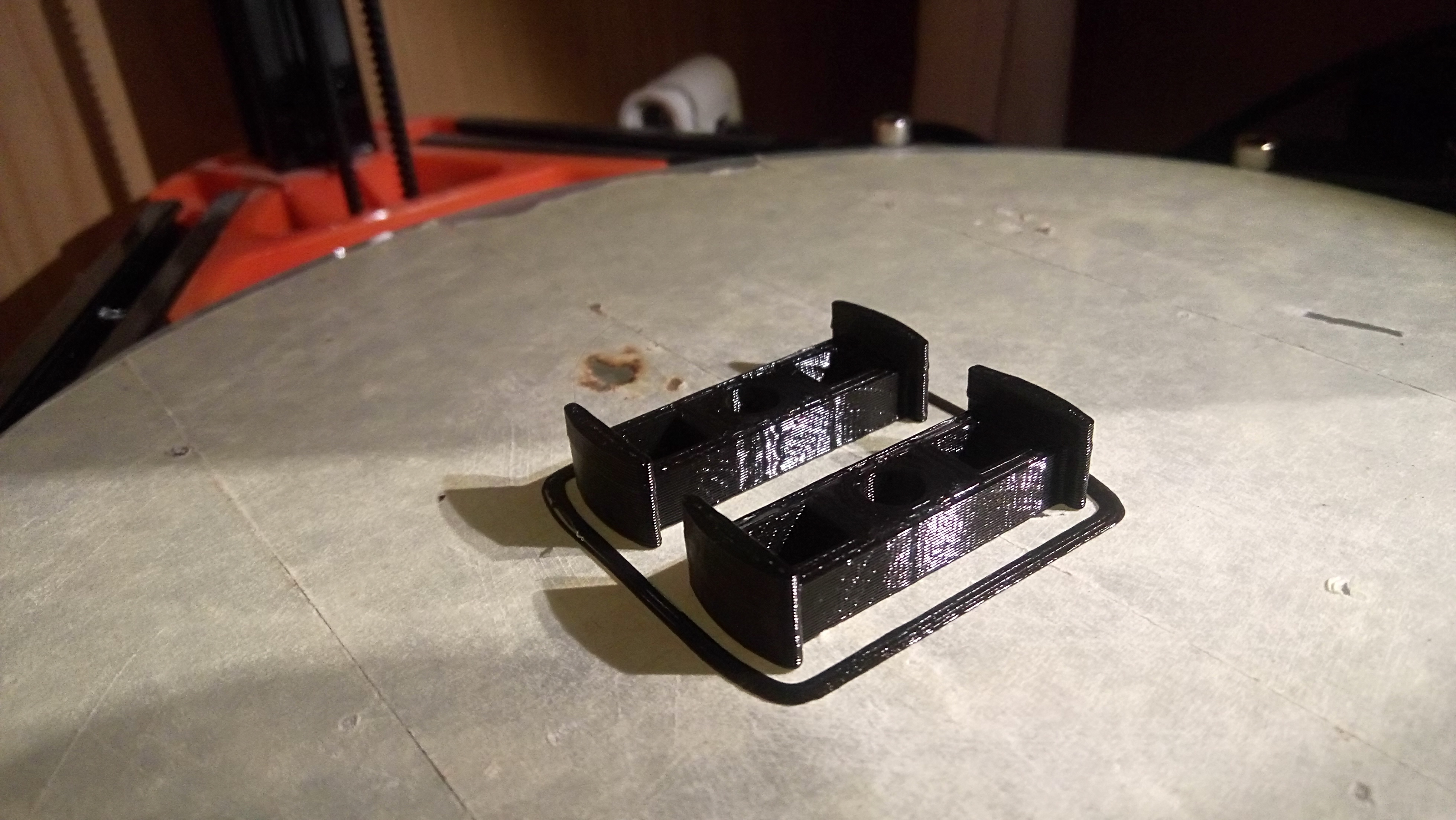

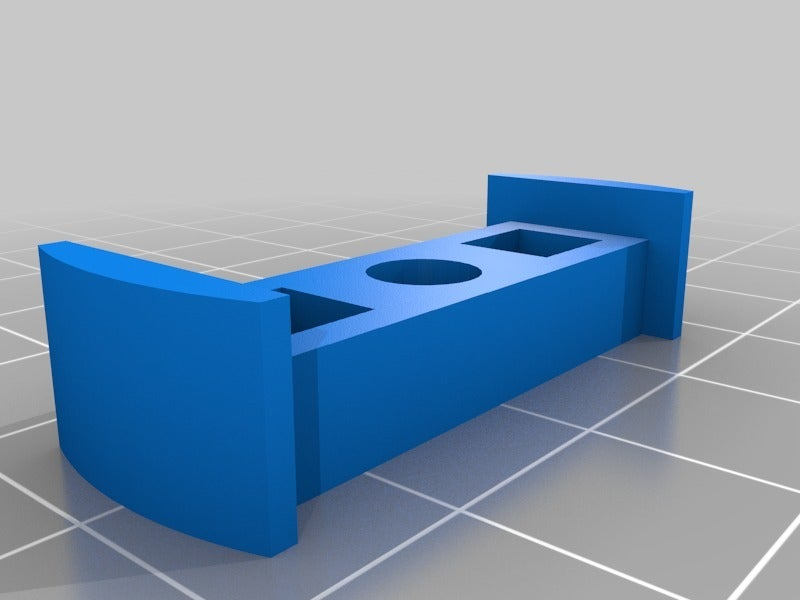

The spacer prevents the clip from snapping when the screws are tightened.

Use 5 perimeters, 3 bottom and top layers, .3mm layers, 25% infill, no support.

Two 25x5mm screws and nuts are needed as wel as 4 corresponding washers.

  • 3D file format: SKP and STL

Tags

Creator

Designs 178
Downloads 1771
Followers

I always loved making, braking, fixing, mending and abusing things. Especially the latter: making what I need by using things that were not intended for that purpose. A 3D printer is one of the nicest tools I ever owned: you figure out what you need, you find something that sort of works and then make the parts to bridge the gap. Custom parts for whatever purpose at barely any cost at all; maker heaven.

License

CC BY
