AR-15 Magazine Loading Spoon

3D model description

Intro and Purpose

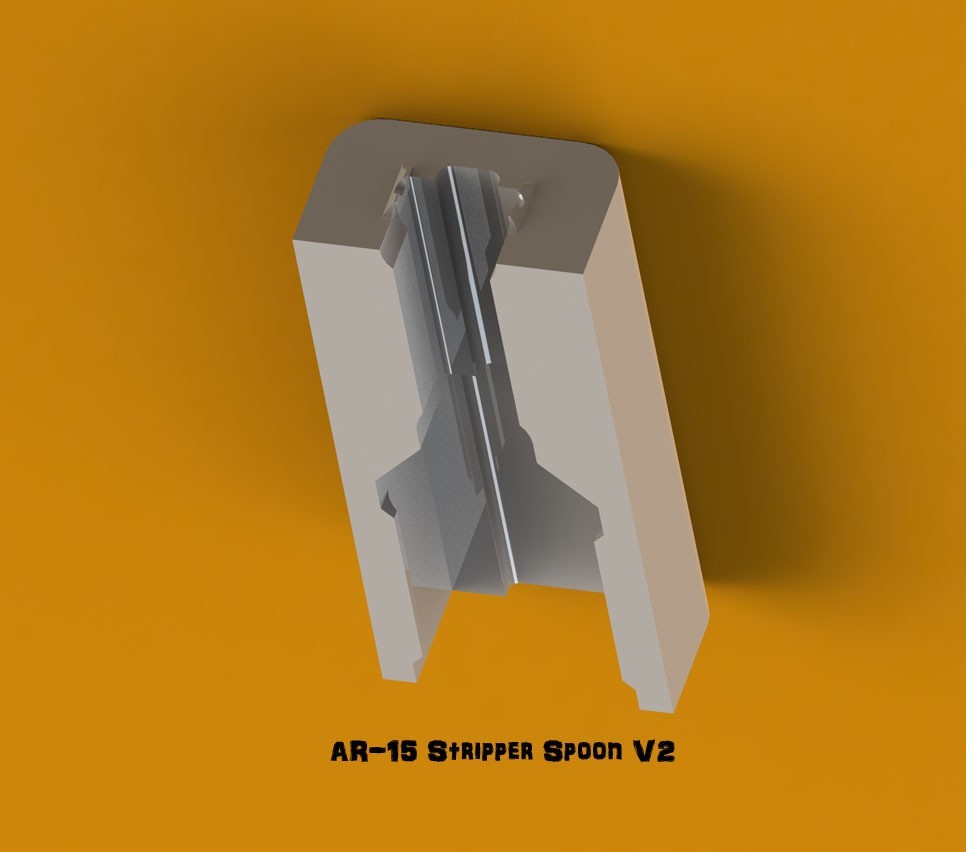

The following is an 3d printed version of an AR-15 stripper spoon, used to load AR-15 magazines. Spoons frequently get lost, and often get bent into an unusable form. A plastic replacement should not only be cheaper, but also more reliable.


Creation

In order to create this object I took actual dimensions of multiple stripper spoons and created a plastic one with some beefing up.


Use

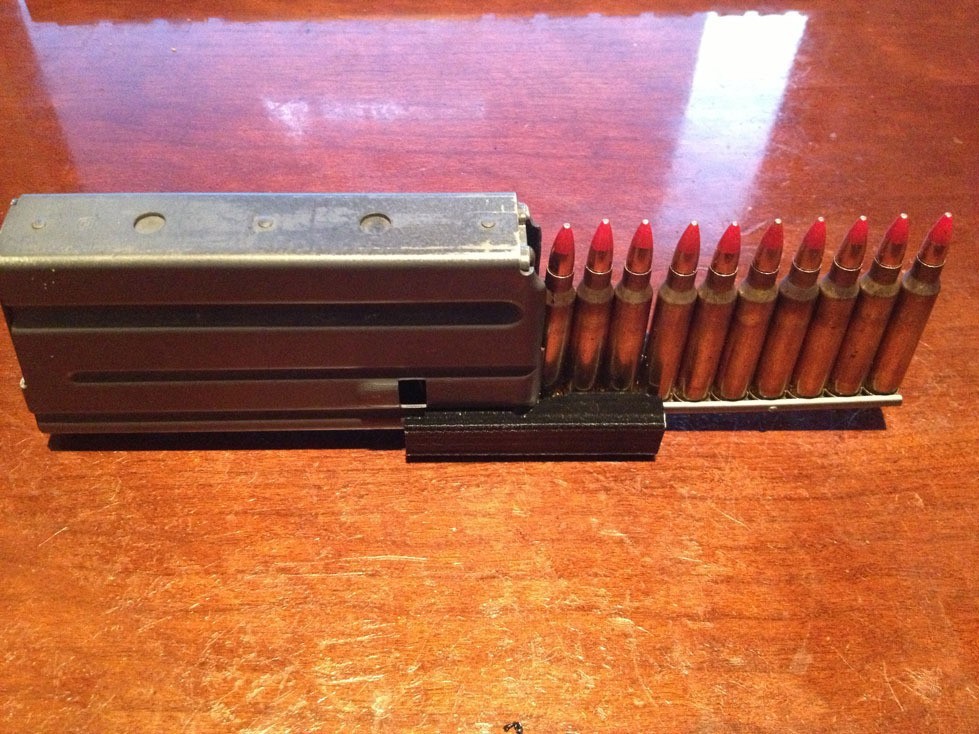

This object is intended to assist in the loading of 10 round stripper clips into either 20 or 30rd standard AR-15 STANAG magazines and others compatible.

Use of this spoon is identical to metal loading spoons

To do this task, first grasp magazine firmly. Place spoon on magazine and seat firmly. Take stripper and insert into small slot in spoon. Lift top round and make perpendicular to clip. Leverage force down so the rear of the cases are being pressed. Push down. Remove stripper and spoon. Repeat as needed.


Change List

  • V2: Tweaked dimensions a bit, works fine now. V1 was too tight.
  • V1: Initial release, untested

3D printing settings

50% infil, 1 shell recommended.

  • 3D model format: STL

Tags

Creator

License

CC BY
