Anet A8 storage boxes

Makes created by the community

Did you 3D print this model?

3D model description

Storage boxes and drawers for tools, spare parts, etc. #DAGOCULTS

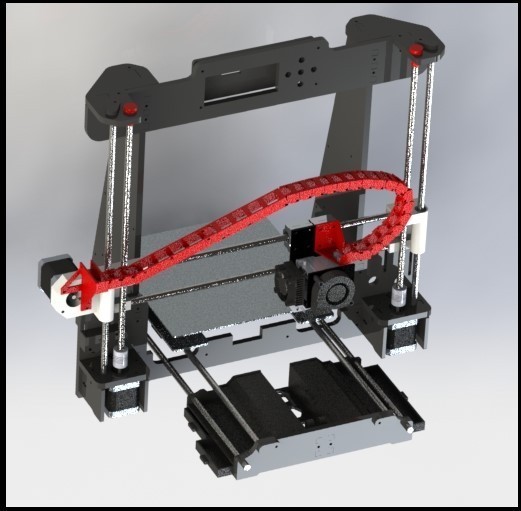

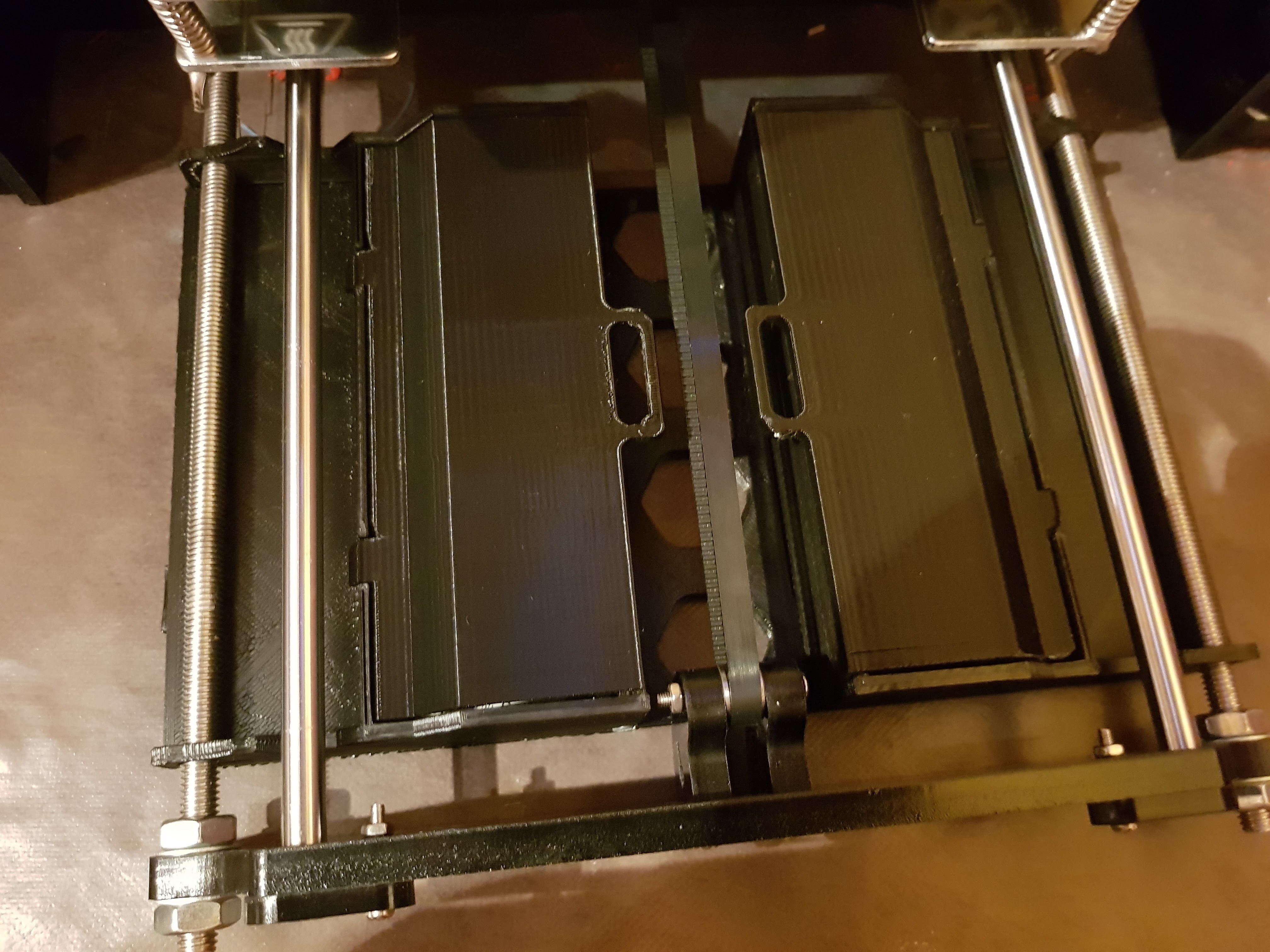

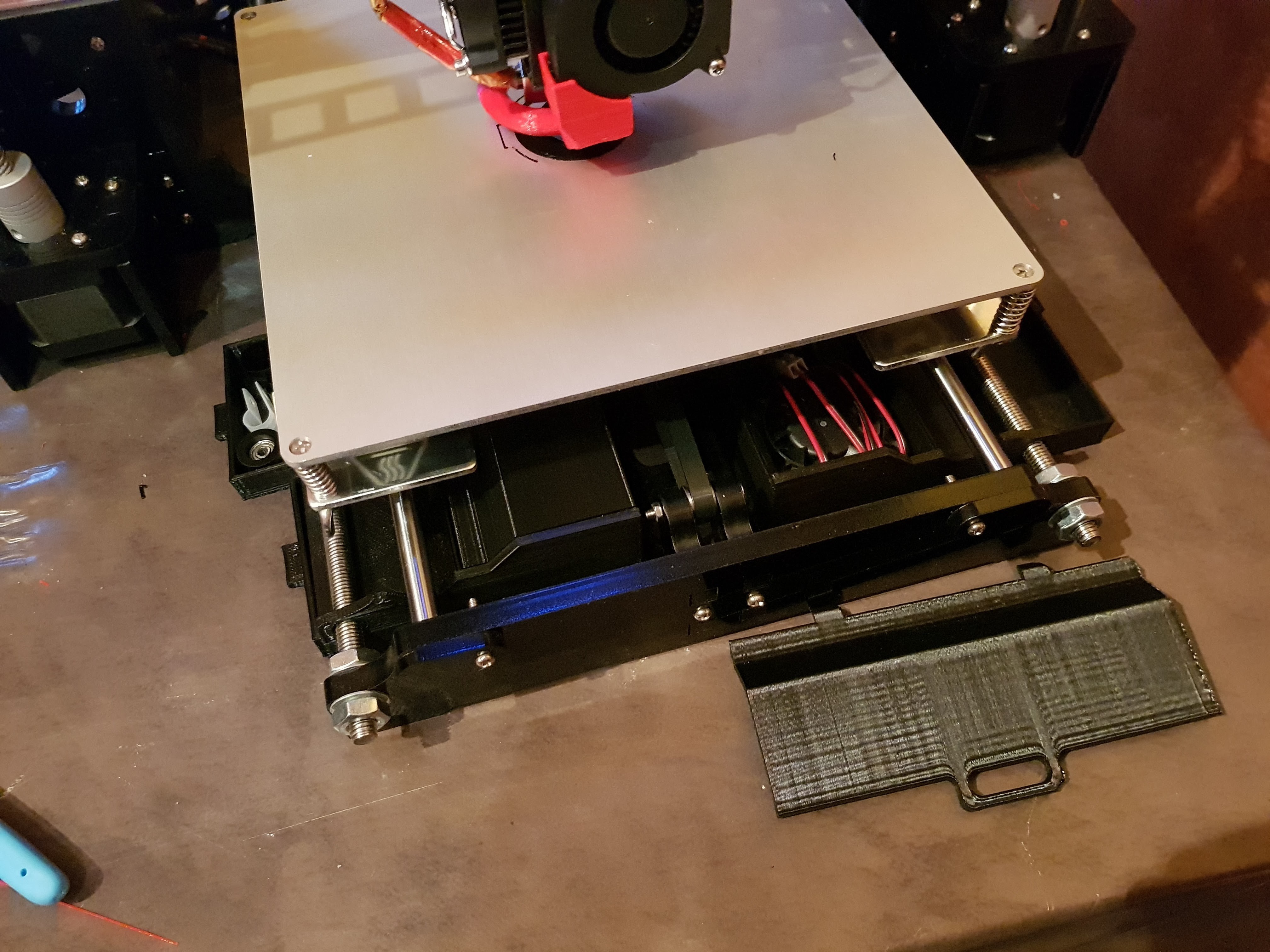

The assembly is assembled and fixed on the threaded structure rods of the Anet A8. It is designed to assemble on the printer while taking into account the constraints of geometry and not to prevent the operation of the printer

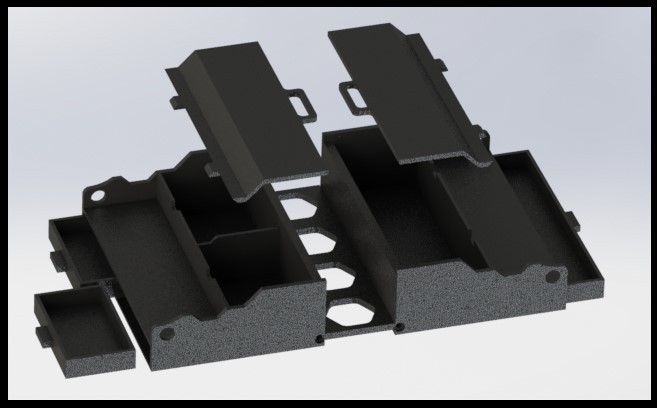

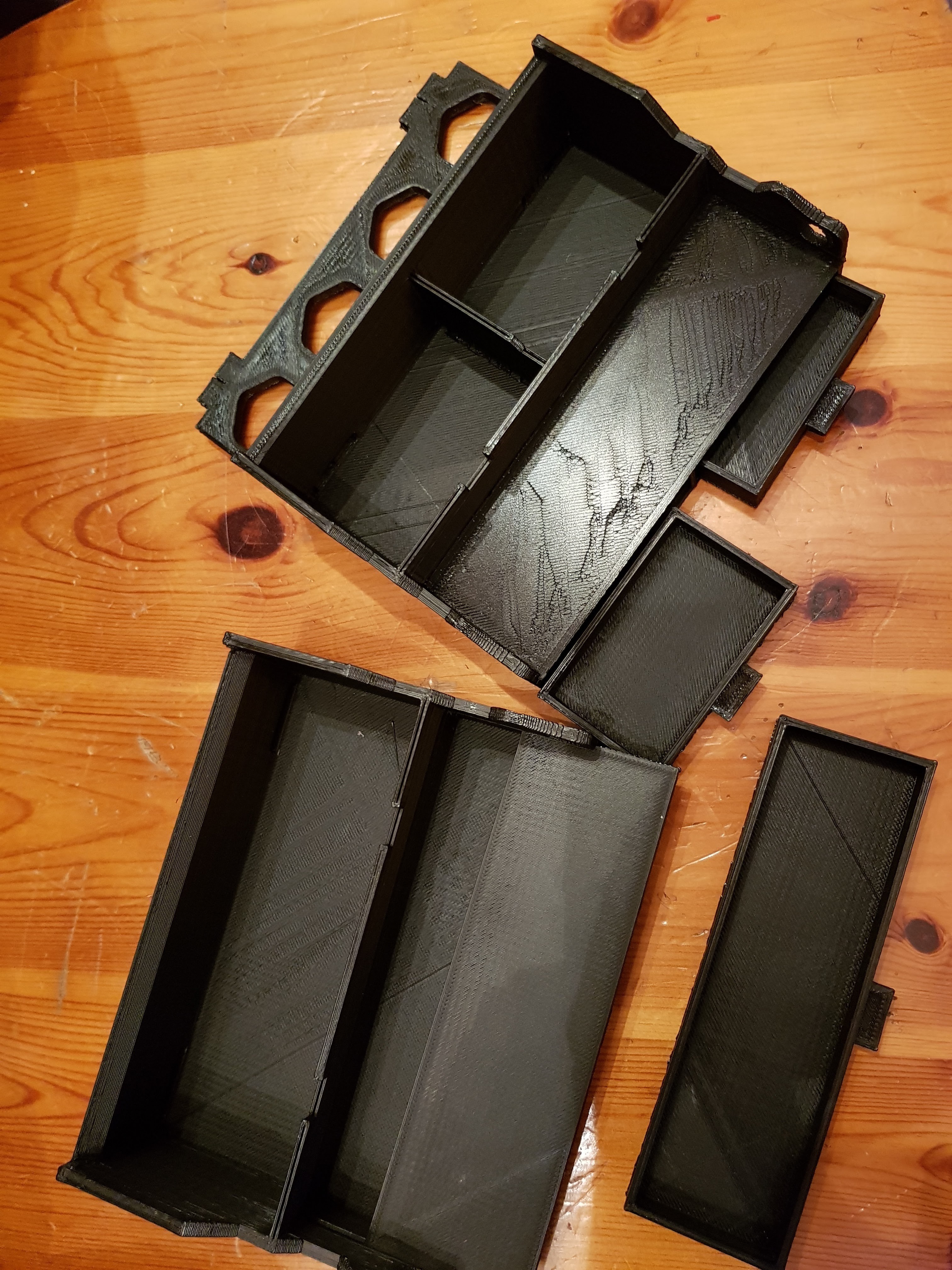

The set of files includes:
- a box with a large storage compartment box: 140 * 98 * 42, storage: 134 * 48.5 * 36.5)
- one box with two small storage compartments (box: 140 * 98 * 42, 2 * storage: 66 * 48.5 * (137 * 42 * 2.40)
- a closure for the large drawer (137 * 42 * 2.40)
- a large drawer (133 * 39 * 12)
- a closure for small drawers - a cover (132 * 68 * 12.5)

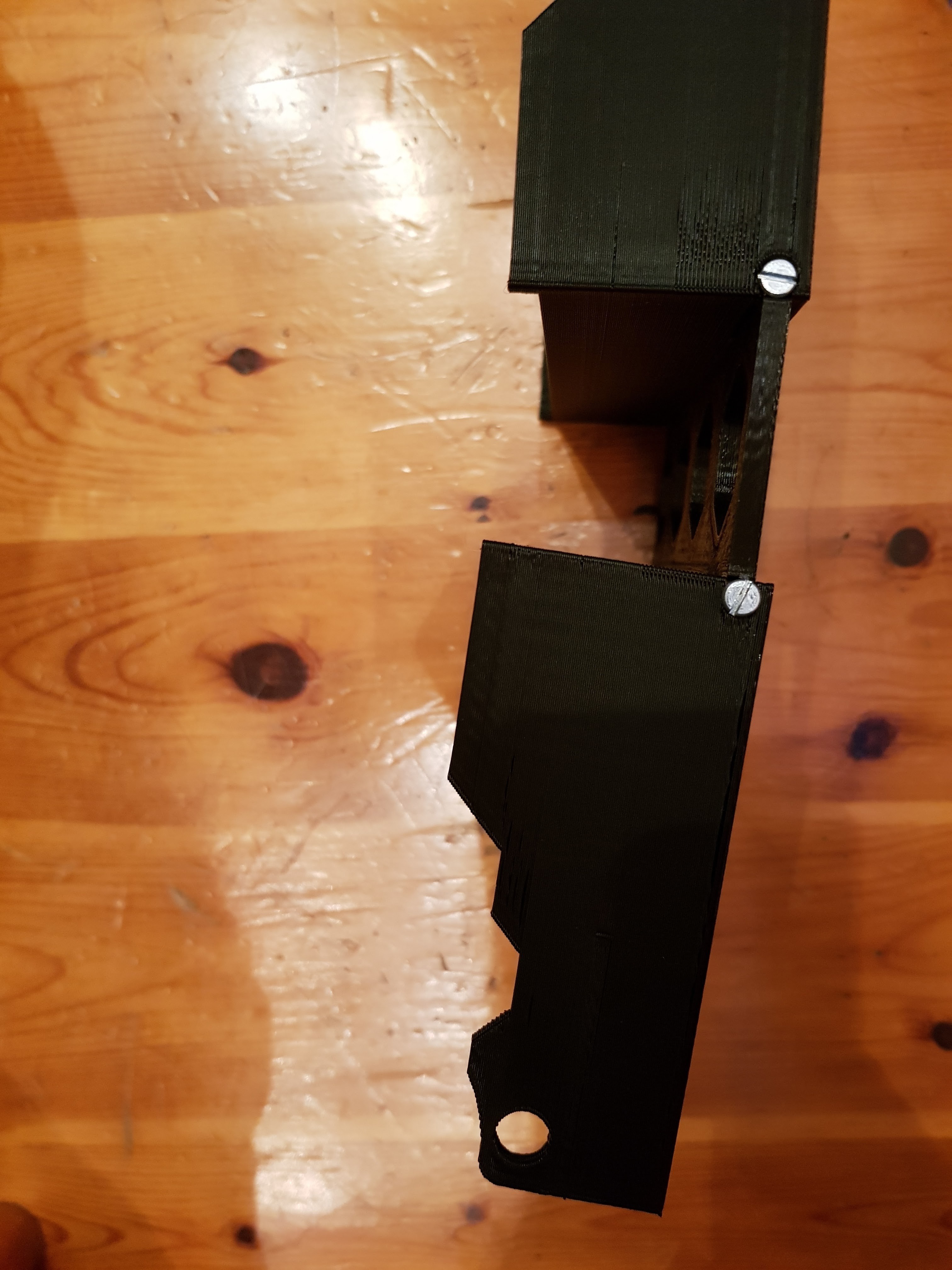

- a support to connect the boxes, it is not necessary and can be fixed with 2 M3 30mm screws and two M3 nuts (140 * 50 * 4)

The assembly is modular: the boxes are identical outside the size of the compartment, the drawers can therefore be assembled on the two boxes.

3D printing settings

Printing with an Anet A8
- filling 15%
- layer height 0.2mm
- speed 75 mm / s
- supports everywhere

  • 3D model format: STL and ZIP

Tags

Creator

License

CC BY SA
