Algae Turf Scrubber

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 6k views
  • 3 likes
  • 14 downloads

3D model description

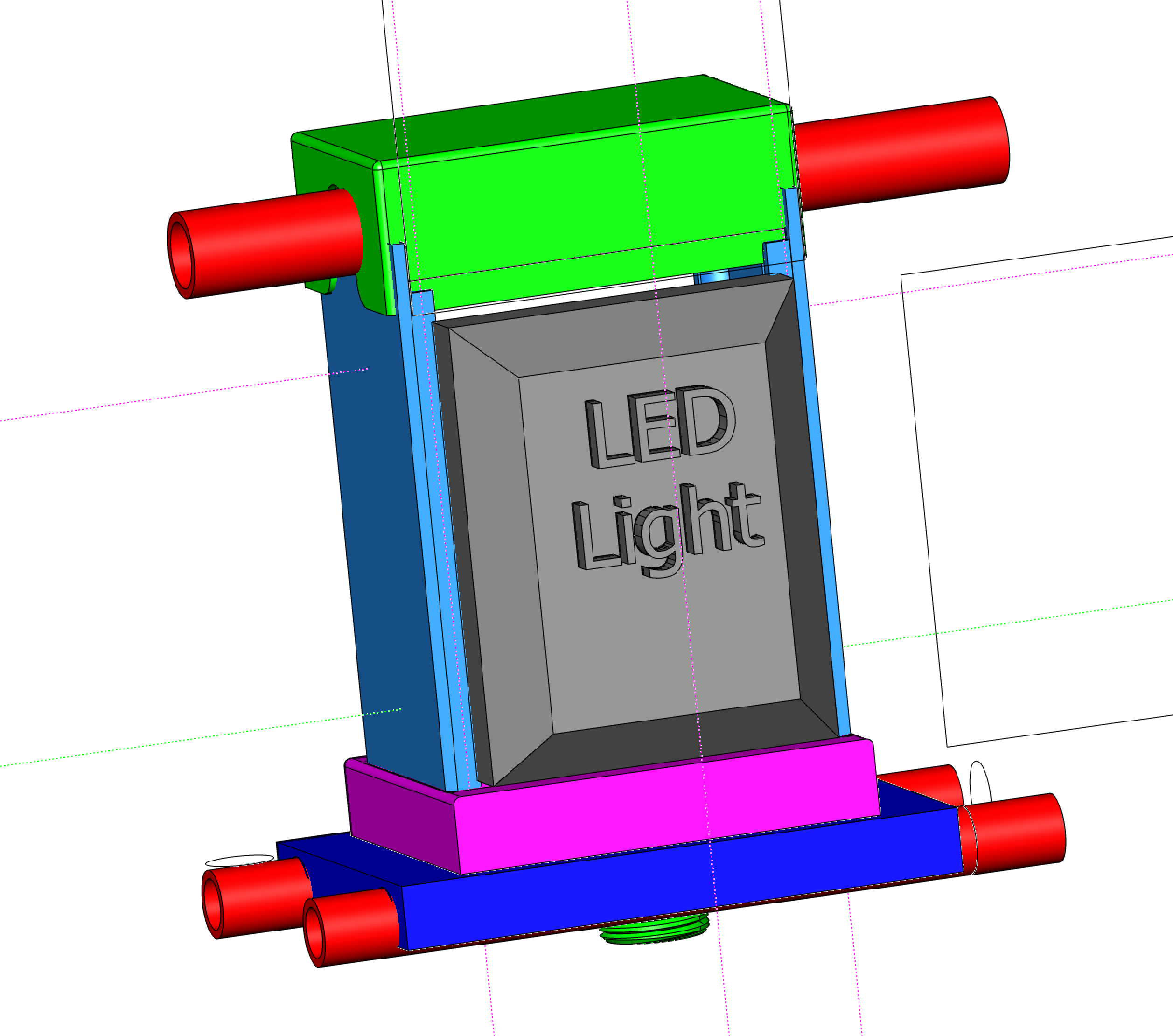

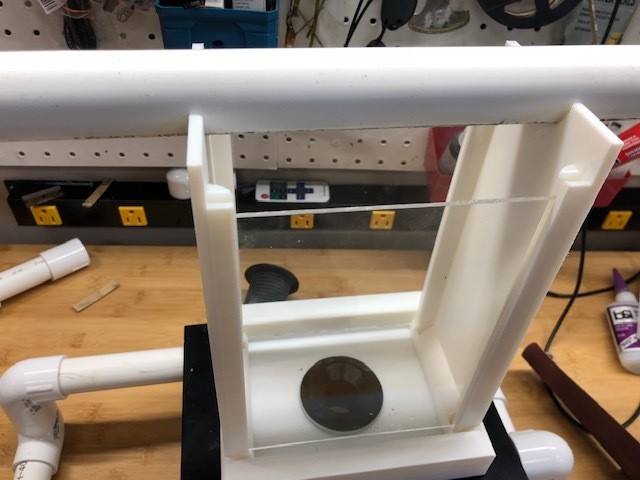

A mid sized algae turf scubber filter for a saltwater aquarium. This will need 2 led lights to be added roughly 20 watts each. This scrubber is sized for 3 cubes of food feeding per day without a skimmer and more if a decent protein skimmer is used.

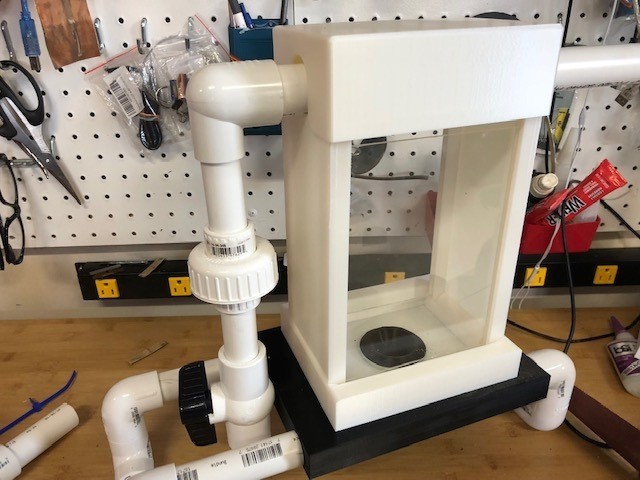

Things needed: Pump, 2mm thick plexiglass, gasket, 1 inch pvc pipe for slotted pipe, 3/4 inch PVC pipe for base over top of aquarium

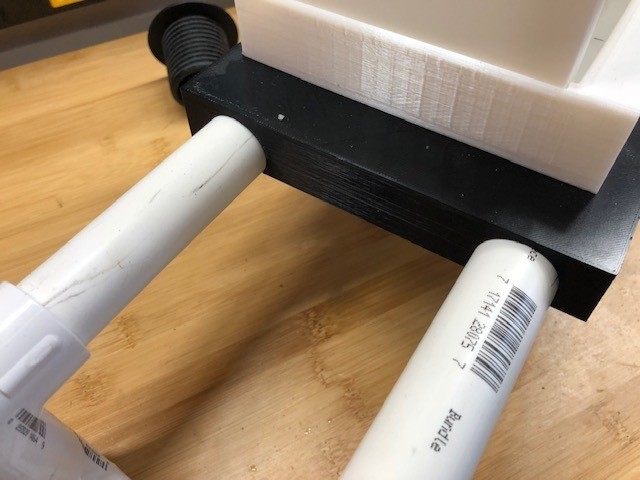

The bottom will bolt to the stand using the 3d printed bulkhead. This is a tight fit, so you should make sure your printer is calibrated or sanding/filing is required.

The slot should be the width of the plastic canvas (used for sewing art available on amazon get #7). The canvas needs to be roughed up with a hole saw. It should be very rough. The canvas will install into the slot and attached with cable ties.

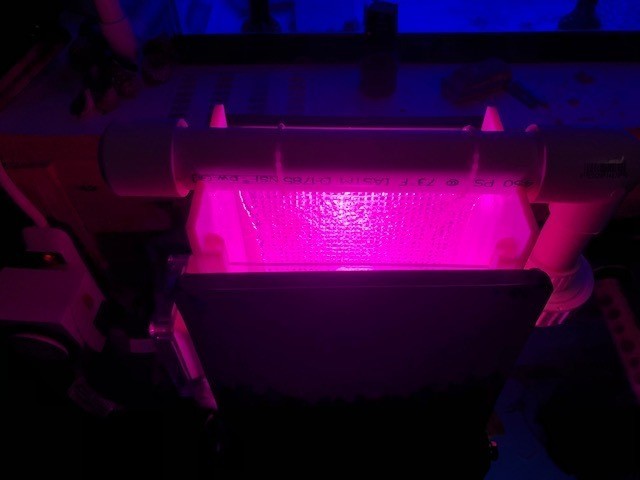

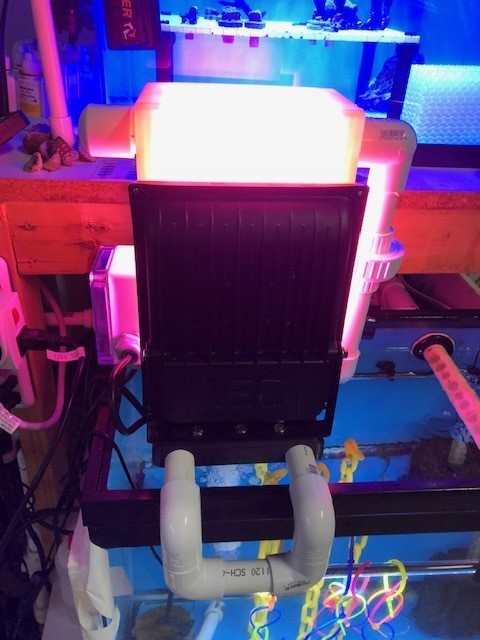

2 LED lights need to be mounted on either side. There are slots for 2 mm plexiglass on the side panels.

The screen should be cleaned using your hand for the first 4-6 weeks and then once you have good green algae growth, then clean with plastic card once every 2 weeks. Expect funky black growth for the first 2-4 weeks. It takes time to get good green growth. Water flow should be a solid sheet across the screen. Depending on your plumbing you will need a pump that will supply 300-500gallons per hour. A valve will be needed to adjust the flow.

The dremel slot tool is needed to help make a straight 1/8 inch slot. Drill 1/8 inch hole at beginning of slot and slowly pull 1/8 inch dremel cutter to length of slot. DO not go back. one direction for best slot. Clean up slot with sandpaper

The light I used was from Banggood.com 30 watt LED https://www.banggood.com/20W-30W-50W-Full-Spectrum-COB-LED-Grow-Plant-Flood-Light-Waterproof-for-Vegetable-Flower-AC85-265V-p-1254330.html?rmmds=myorder&ID=48797

They claim IP65 on this light, I doubt that it is submersible. Make sure you have good grounds inside each light and wire to a GFI circuit for extra safety. A ground probe in the tank is also a very good idea.

The wires are a bit short and need to be extended. Wire to a waterproof box.

This light
may be a bit too powerful. I would suggest starting with 6 hours on 18 hours off.


3D printing settings

I printed in white, which is too transparent. I would suggest printing in black. PETG is the best choice for the bottom as it will be exposed to more water. Print the bottom and sides at 90-100% fill if using PLA

3D printer file information

  • 3D design format: STL Folder details Close
    • ats small bottom.stl
    • ats small bulkhead.stl
    • ats small shelf.stl
    • ats small side.stl
    • ats small top.stl
    • dremel slot tool.stl

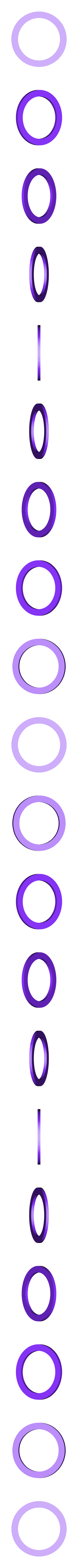

    • gasket.stl

    Learn more about the formats

  • Last update: 2018/10/25 at 19:36
  • Publication date: 2018/10/05 at 21:43
