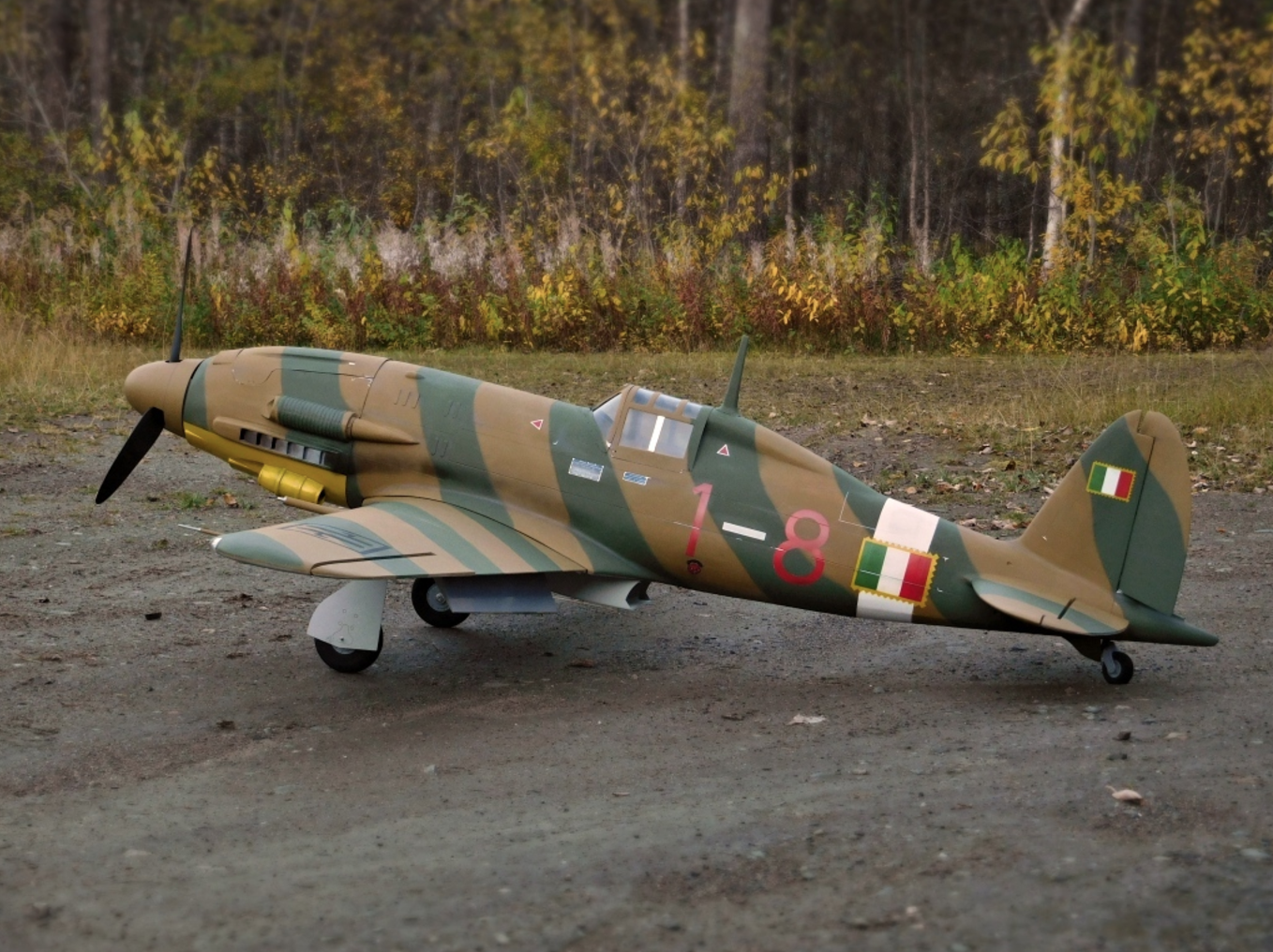

Accessories for the Hobbyking (Piccole Ali) Macchi C.205 Veltro ARF
- 3.8k views
- 10 likes
- 188 downloads
3D model description

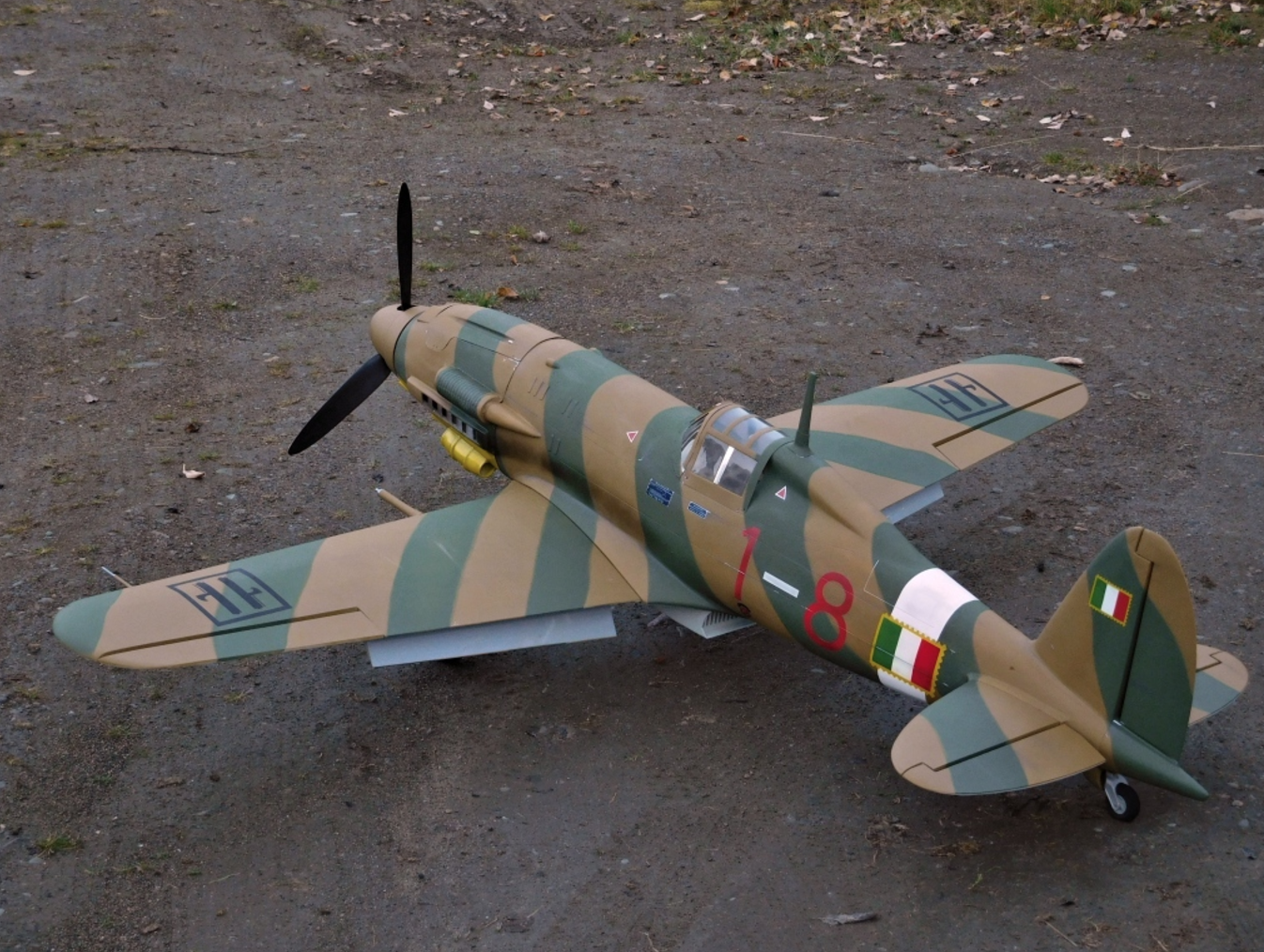

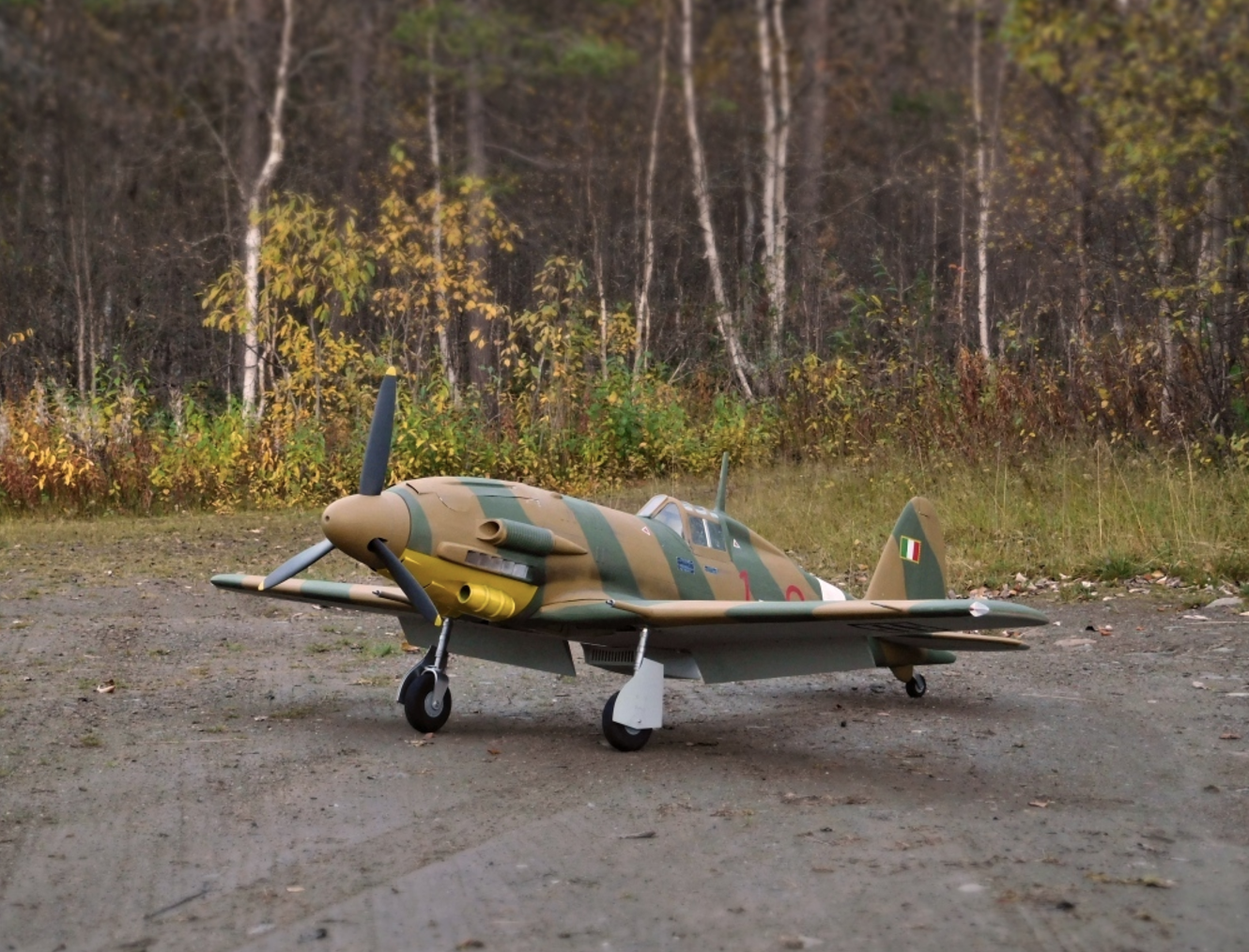

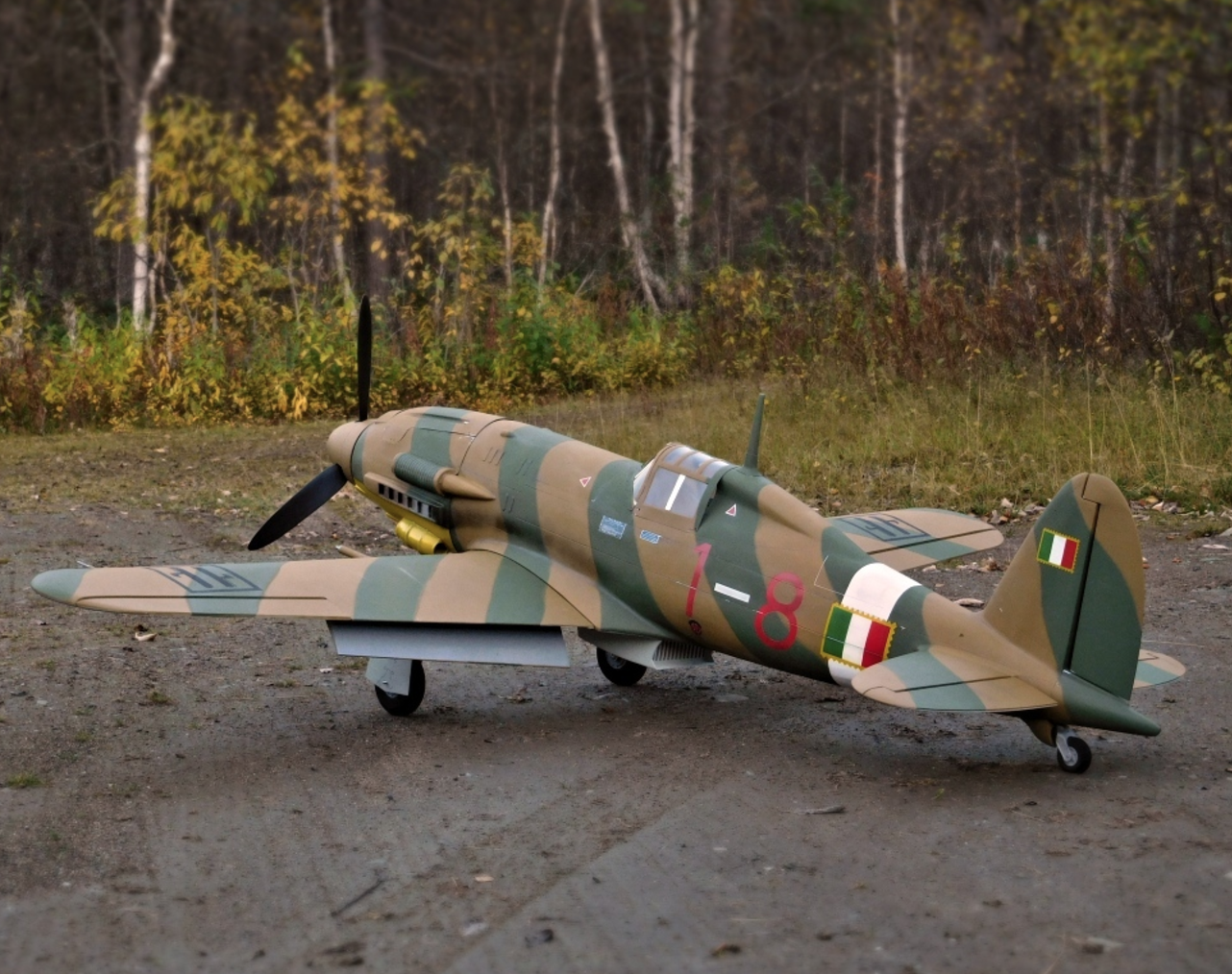

Accessories for improving the scale appearance of the 1910 mm Hobbyking (Piccole Ali) Macchi C.205. They require various modeling skills to install and finish, which I will not go into here. My build log can be found here: http://www.rcgroups.com/forums/showthread.php?t=2632760
Don't forget to tip me if you found it useful. ;) I spent a lot of time designing these parts.
3D printing settings
Eye01 - Eye for connectong the actuation rod for the inner gear door, for example.
Antenna01 - Base for the antenna that comes with the plane.

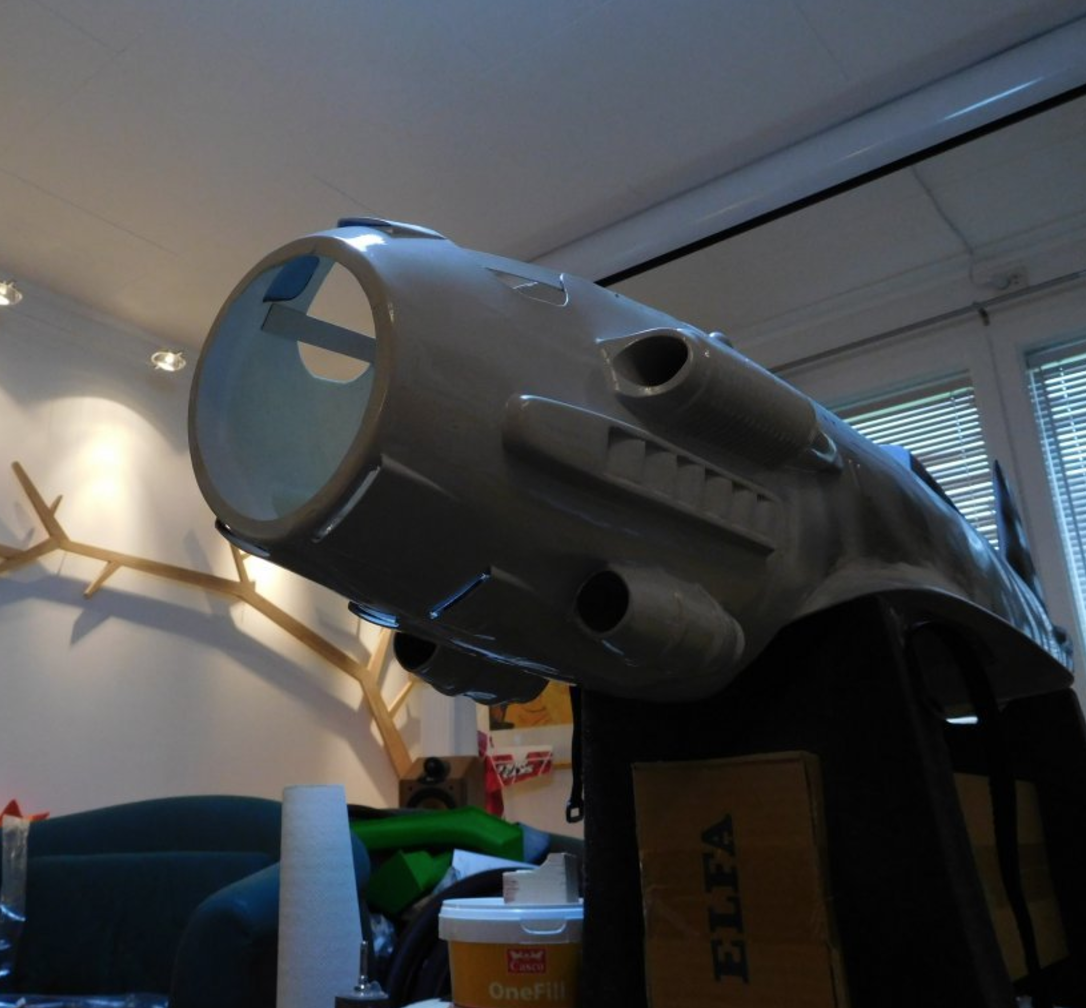

Duct01 - U-duct to guide the airflow from the chin radiator intakes.
Duct02 - Straight duct for channeling the air from the chin radiator intakes.
Gun01 - 20 mm cannon for the wing. Gently heat the base with a heat gun and press against wing leading edge to match the shape. Add a 5mm OD brass tubing to act as gun pipe.

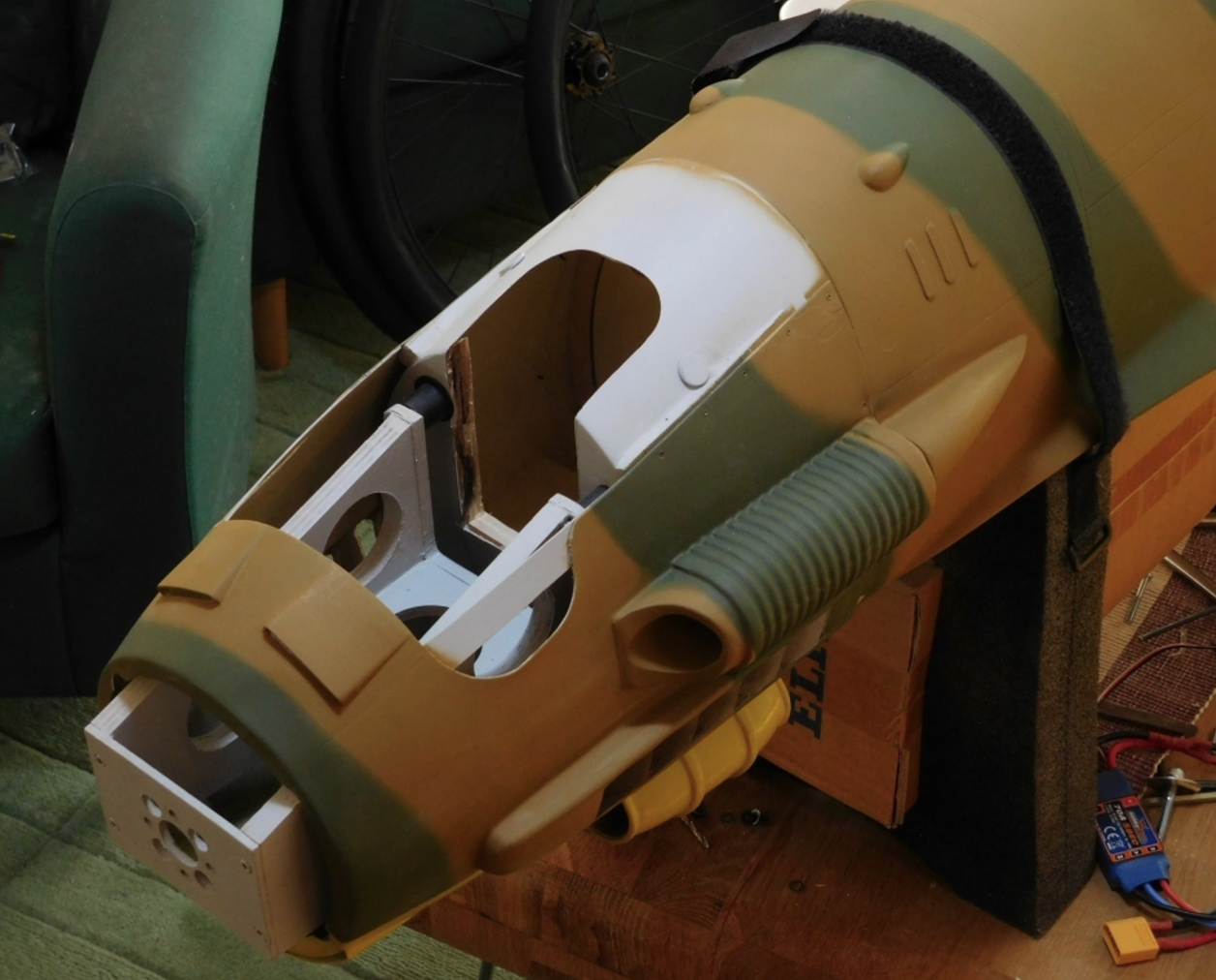

Intake01 - Small intake for the forward intakes around the cowl.
Intake02 - Slightly wider intake for the bottom of the cowl.
Light01 - Teardrop light for the wingtips if lights bays are cut out from the wing tips.

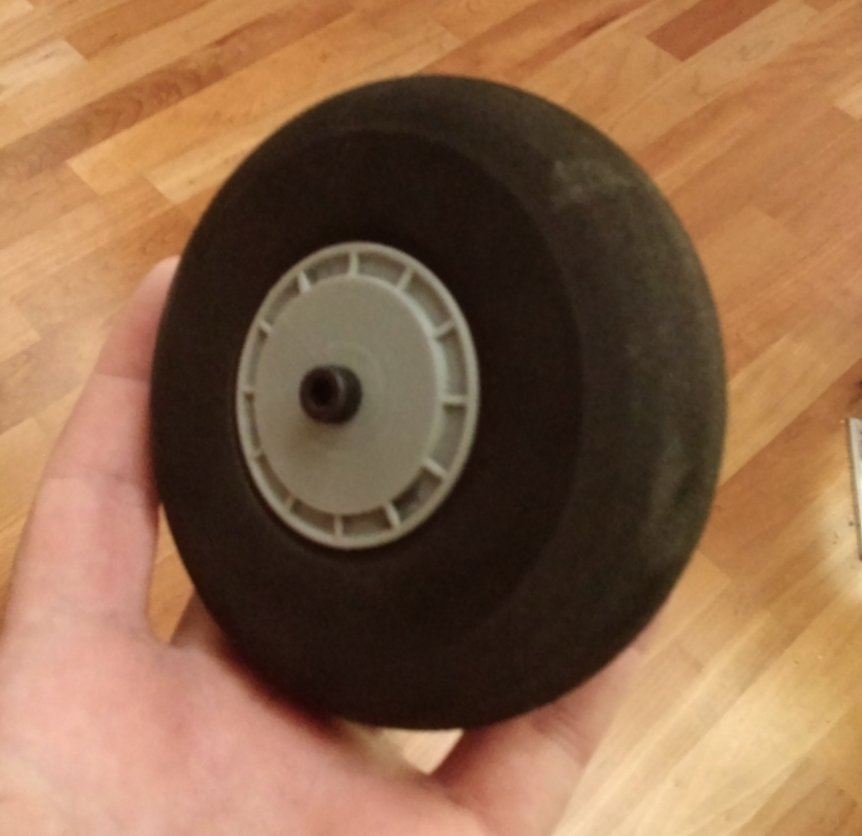

Mainhub01 - Replacement scale wheel hub for 4" foam wheels.

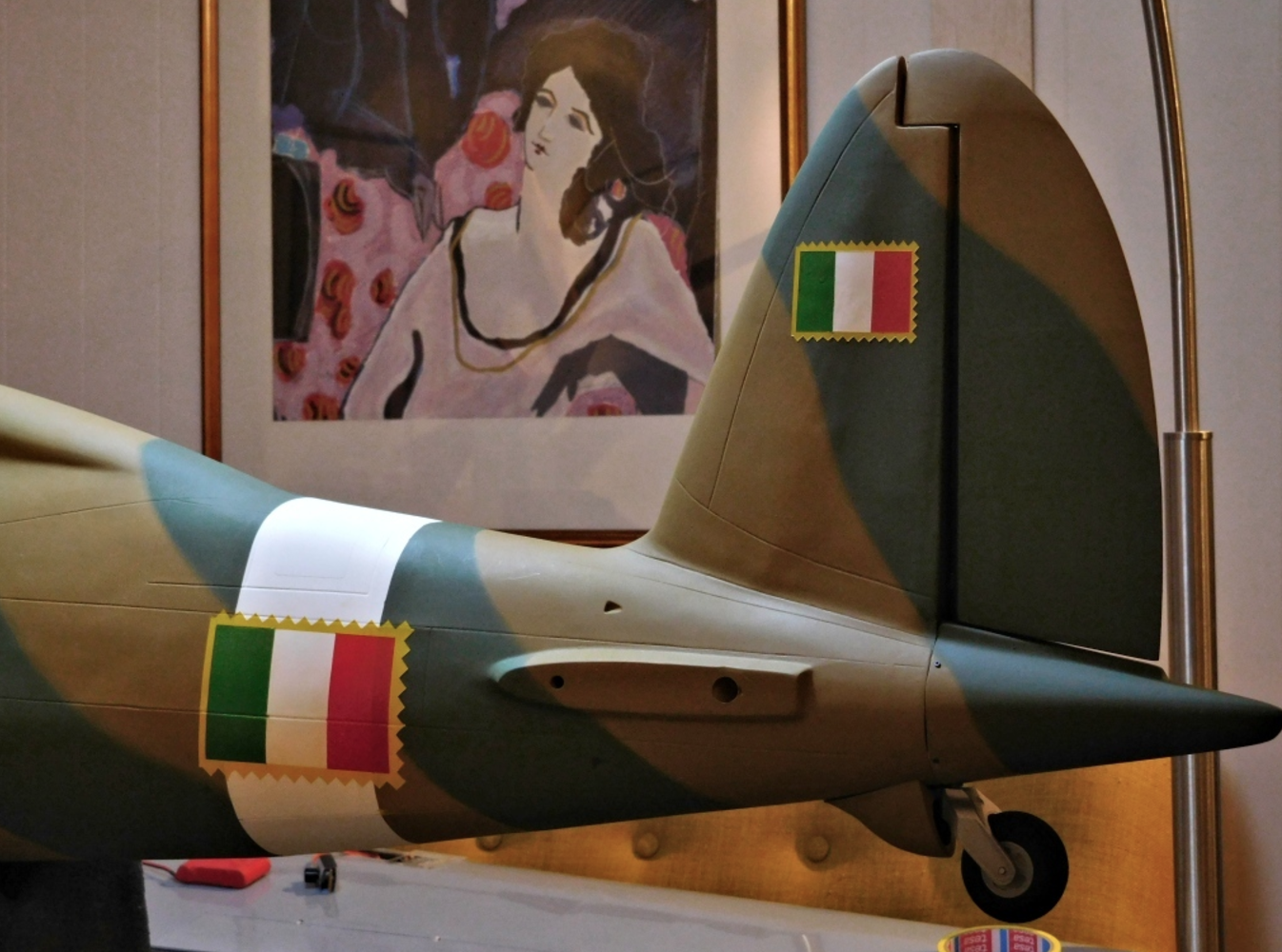

Tailfairing02 - Fairing in front of the tail landing gear.
Valve01 - Butterfly valve for the supercharger intake.
Tube01.STL - Tube thing for the right side of the fuselage.
DFantenna01 - Direction finding antenna for under the fuselage behind the radiator.
Oxygen01- Oxygen filling port behind the cockpit.
The following must be printed from a super tough and strong material, like Taulman 910 Nylon, to work safely:

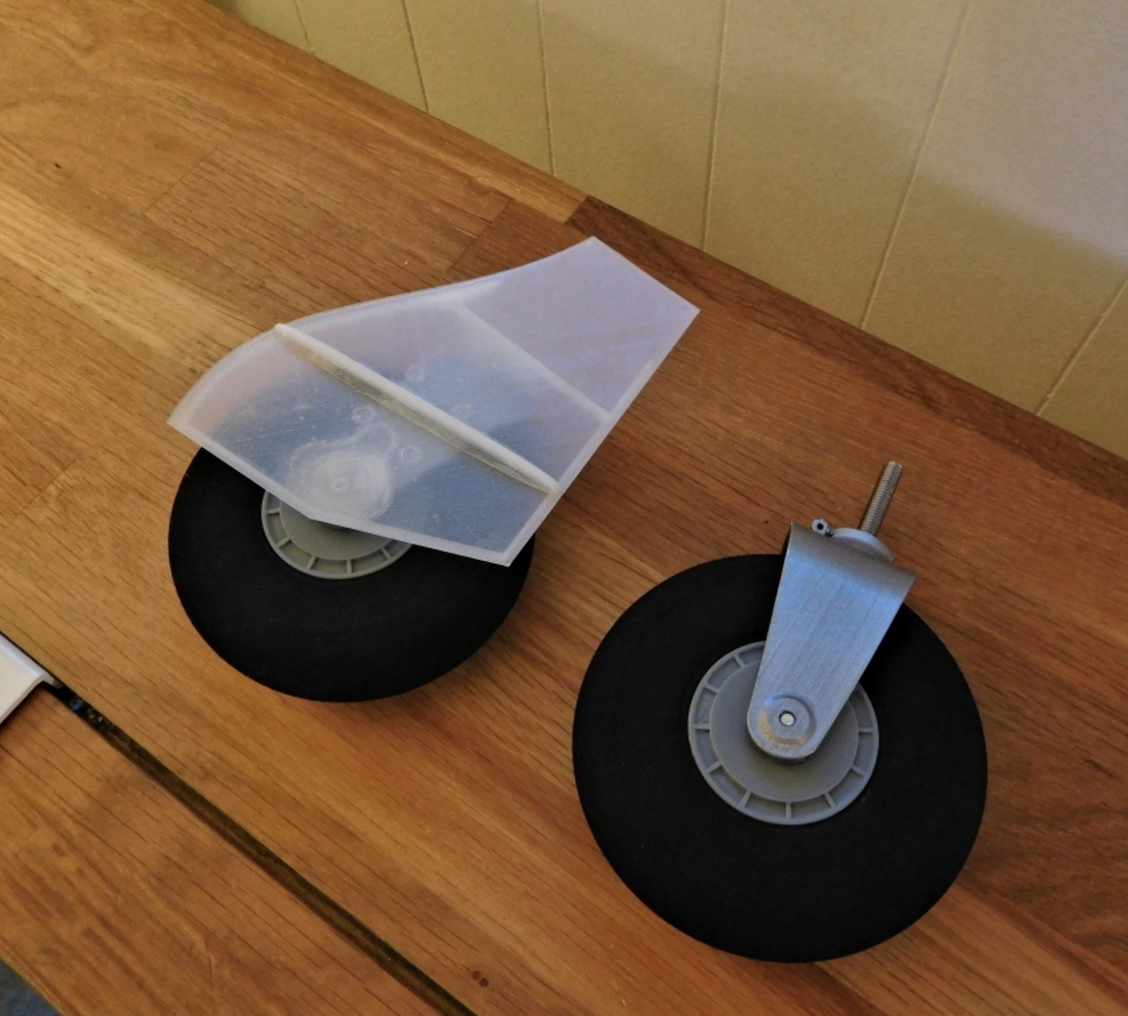

Gearfork04 - Main landing gear fork for 4" wheels. Attack to aluminum "oleo" with M6 countersunk bolt. I fabricate my own "oleos".
Tailgear01 - Scale tail landing gear
The following can be printed from PETG or similar tough materials:
Geardoor01 - Scale stiffeners for the gear door.
Geardoor04 - Gear doors.
Scissor01 - Scale cosmetic scissor links for the main landing gear.

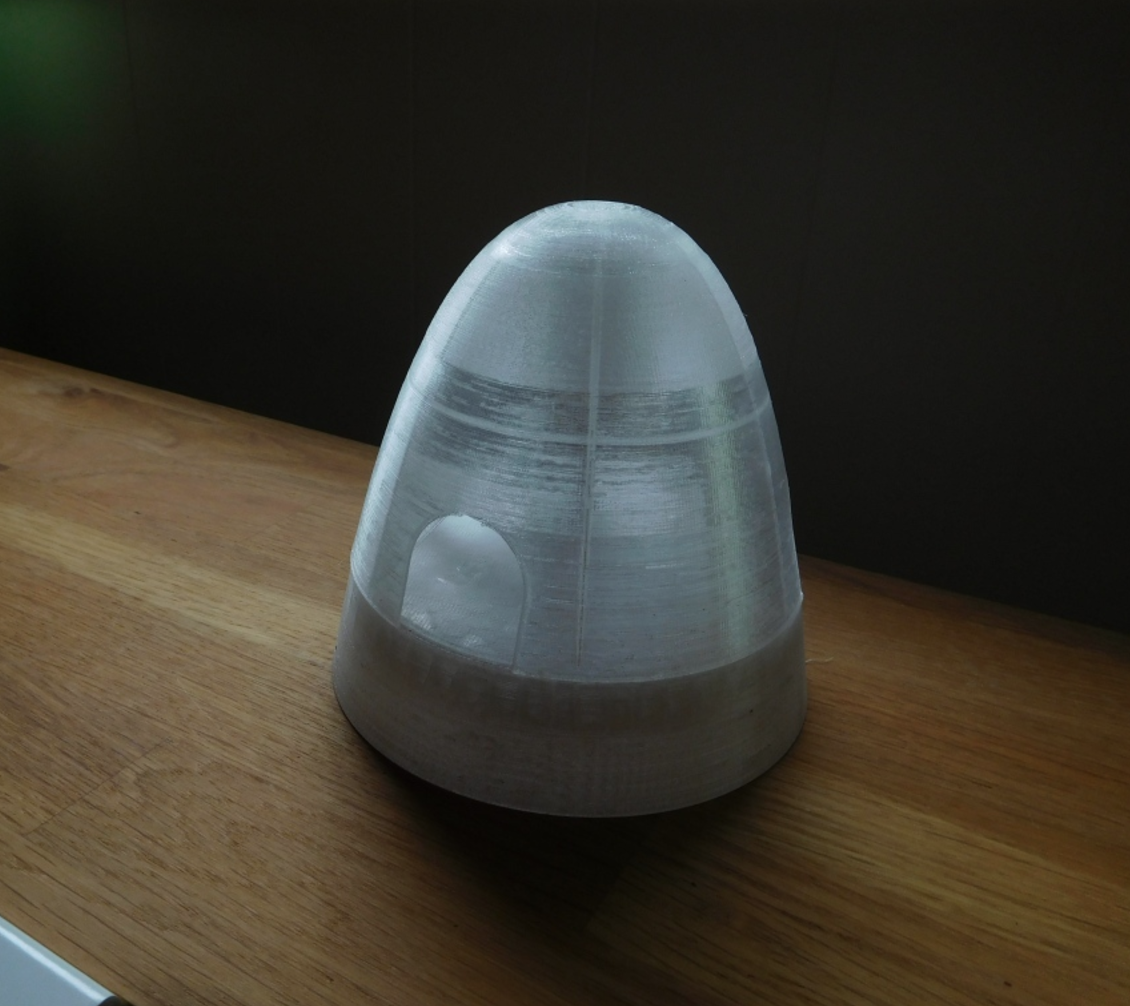

Spinner01 - Front spinner cone. Use an M4 of the appropriate length for your shaft to secure to Nut01.
Spinner03 - Spinner base.
Spinner04 - Spinner centering ring. Glue into the base to aid with cone centering.
Nut01 - Spinner nut for 8x1mm threaded shafts and an M4 screw.
Scissor02 - Upper mount for the scissor link on my landing gear struts.
Geardoor05 - Upper gear doors. Fit with zip ties. Made for 14 mm legs.
3D printer file information
3D design format: STL Folder details Close
- Last update: 2016/11/09 at 11:56
- Publication date: 2016/10/17 at 18:37
Norwegian inventor/designer/cat owner.
Please don't ask for original design files or parametric files.
If you ask a question about a design, ask under the design so that I can answer there.
