A Merry Marblevator Christmas Tree

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 4.9k views
  • 37 likes
  • 422 downloads

3D model description

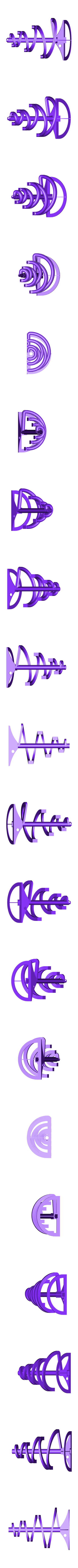

Yes, yes, I know, yet another Marblevator (yawn), but this one is in Christmas Tree form and as an added bonus the track assembly, screw and marble lift housing prints in one piece!

Video of prototype is here: https://www.youtube.com/watch?v=6fe9wRFAmWg&list=UUv_zm49u-RjnCJVwhUO-ecA.

Video of prototype in high speed track break in test here: https://www.youtube.com/watch?v=7WtRruzbctw&index=2&list=UUv_zm49u-RjnCJVwhUO-ecA

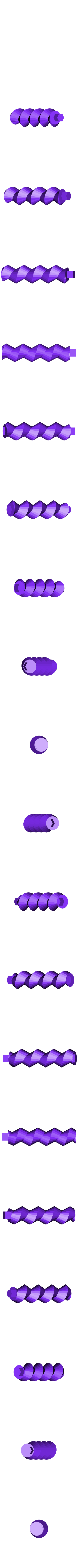

The basic assembly consists of 5 components; "Track.stl", "Screw Lower.stl", "Screw Middle.stl", "Screw Upper.stl", and "Cap.stl" (I dissected the screw components for those with a limited build area).

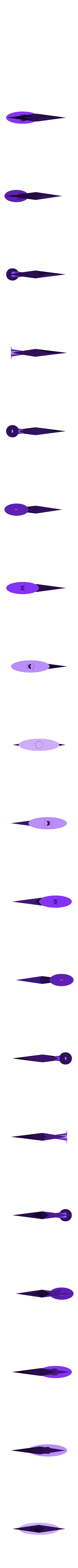

Optional accessories adding to the decor include "Star.stl" (never waste a PTO), "Ornament Ball.stl" and "Clip Ornament.stl". With "Clip Ornament.stl" and "Ornament Ball.stl", you can customize your Merry Marblevator Christmas Tree to your liking.

I'm still working on some presents for under the tree and additional ornament styles, and my wife is sewing a skirt for the base, but I posted this for those who wanted to get a head start on printing this thing before, well you know, Christmas. Hence, the work in process status.

Designed using Sketchup Make 2015, and printed in PLA on a Makerbot Replicator 2 using Makerware 2.3.3.42 "Standard" Settings (.2mm layer height, 2 shells, 10% infill).

Merry Christmas!

Oh, and thanks, Archimedes!


3D printing settings

Parts I purchased:

1) 60RPM Speed Reducer Rectangle Shape N20# Magnetic Mini Geared Motor 6V DC (Amazon, http://www.amazon.com/gp/product/B00AUCGJX0/ref=oh_aui_detailpage_o08_s01?ie=UTF8&psc=1).

2) Coaxial Power Jack (Radio Shack part number 274-1583).

3) 3.0 Vdc Power Supply (Radio Shack part number 273-315 with the "N" style plug 273-345, you get one free with the power supply).

4) 14 or so "marbles" (8mm ball bearings purchased at a local Ace hardware store, also available on Amazon). You can use just one if you so desire, but 14 makes sure there are marbles on the track at all times if you want to run the motor at 6vdc.

5) Large rubber sticky feet (available at hardware and dollar stores).

Study "Assembly.skp".

Print all pieces as shown in "Assembly.skp". Carefully remove the hold down pad on "Star.stl". If anyone has warping problems printing "Track.stl" (I've printed 6 without warping problems but I carefully trammeled the build plate with a feeler gauge before each print) I can add hold downs if required.

Test fit and trim, file, sand, etc. all parts as necessary for smooth movement of moving surfaces, and tight fit for non moving surfaces. Depending on the colors you chose and your printer settings, more or less trimming, filing and/or sanding will be required. After assembly of the three screw pieces, I used the completed assembly as a "ream" of sorts to clean out the larger tube on "Track.stl". I also used a #2 pencil to clean out any tiny filament strings on the track surface of "Track.stl". By carefully cleaning the track, marble entry and exit points, and spine tubes will make sure your assembly operates properly.

Assemble as per "Assembly.skp".

Wiring is pretty straight forward and simple, however you'll need minimal soldering skills and soldering equipment. Basically, solder a 3" red wire between the gear motor "plus" terminal and the coaxial power jack "Center" terminal, then solder a 3" black wire between the gear motor "minus" terminal and the coaxial power jack "Shield" terminal.

Comment if questions.

Hope you like it, and Merry Christmas!!
