70mm 12-blade EDF fan. Fits Starmax F-5 EDF.

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 4.1k views
  • 15 likes
  • 268 downloads

3D model description

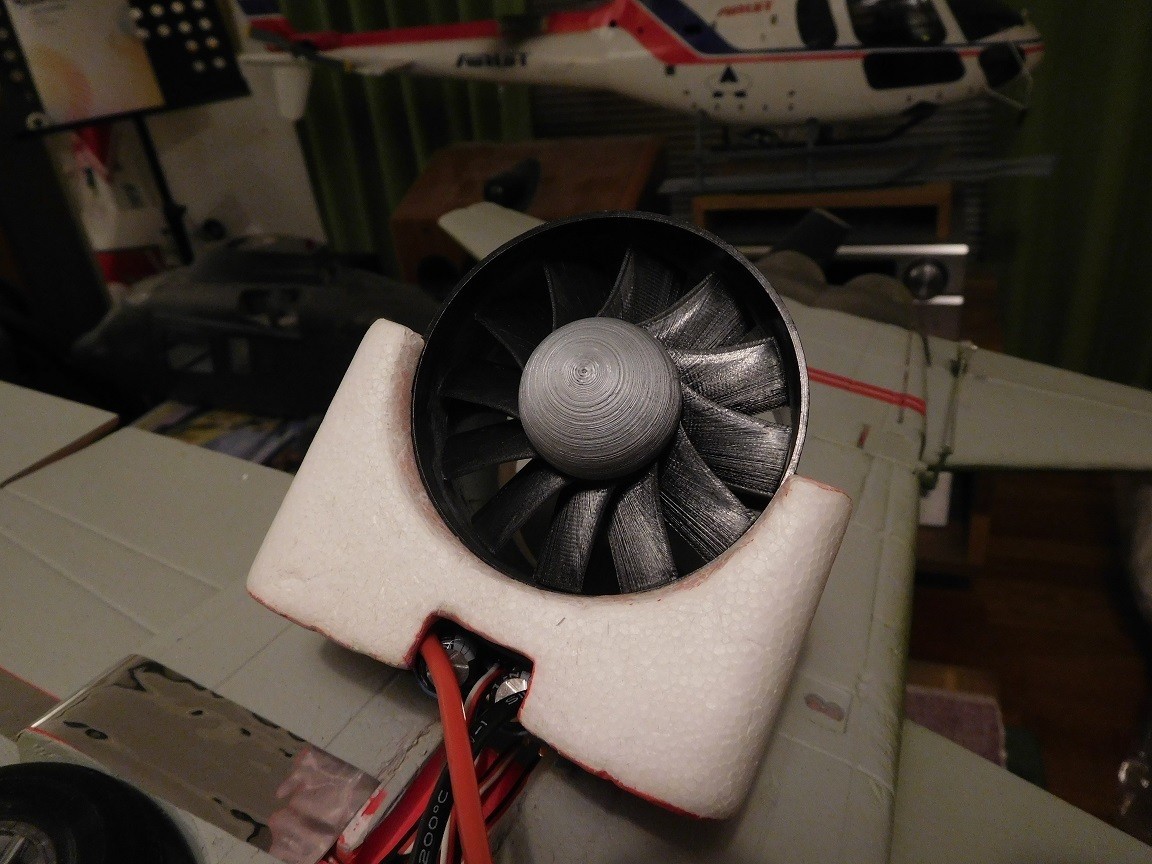

I made this 12 blade fan to replace the stock five blade fan that came with the Starmax F-5.

It produces 830 g of thrust @ 630 W with the stock Starmax F-5 motor and 4S battery.

Warning: If you run this or any other EDF fan outside a plane, make sure you wear protective goggles and keep fingers away from the intake.

Balance the fan by screwing in M3 grub screws into the holes around the hub of the fan by trial and error. Hold the duct in your hand and spin up slowly to feel for balance after you insert screws in different holes.

Grub screw kit and my affiliate code with Banggood:
https://www.banggood.com/240Pcs-Alloy-Steel-Hex-Socket-Head-Grub-Screw-Cup-Point-Assortment-With-Case-p-1164476.html?p=HD240528697332015103

Impeller12 is the 12 blade fan.
Cone01 is the cone that goes in front of the fan.
Cone02 is a cone for the back of the motor housing.

3D printing settings

Print the fan itself at 0,08to 0,12 mm layer height with zero infill, two perimeters and at least 1 mm thick top and bottom. Cut away the thin support under the tips of the blades after printing.

Print the cones solid.

  • 3D file format: STL
  • Publication date: 2018/03/06 at 23:22
