3D Printed Underwater Camera Vehicle

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 3.1k views
  • 3 likes

3D model description

This is an ideal vehicle for all underwater needs. It can be used to help anglers identify the best sites for casting, it can be used to survey the condition of harbours, canals etc, it can be used to look for treasure or lost items. The list is as endless as your imagination.

The main parts (as well as the bait/tug/camera boat (http://cults3d.com/en/various/bait-camera-tug-boat) and Marine Science Platform) were all designed and 3D printed in ABS.

You'll notice the lead boat also has a Go Pro camera at the rear. This works both above and below the boat. The Marine Science Platform is being towed and manoeuvred by the action of the lead boat.

Underneath the science platform the Underwater Camera Vehicle had a Go Pro Hero 3 Black attached. It is able to capture a huge amount of information that would be otherwise - unseen.

Here is a movie of it in action: https://youtu.be/QirHDfrsfIE

This is a great professional tool as well as being great for families to use for leisure activities.

If you wish to have a custom build to accommodate your underwater camera - it can be built to size. Please feel free to contract us to discuss.

You can find us at:
superbstlfiles@gmail.com
https://www.facebook.com/SuperbSTLfiles/
https://twitter.com/SuperbSTLfiles
Instagram: superbstlfiles


3D printing settings

This is 4 files - you print 2 of each.

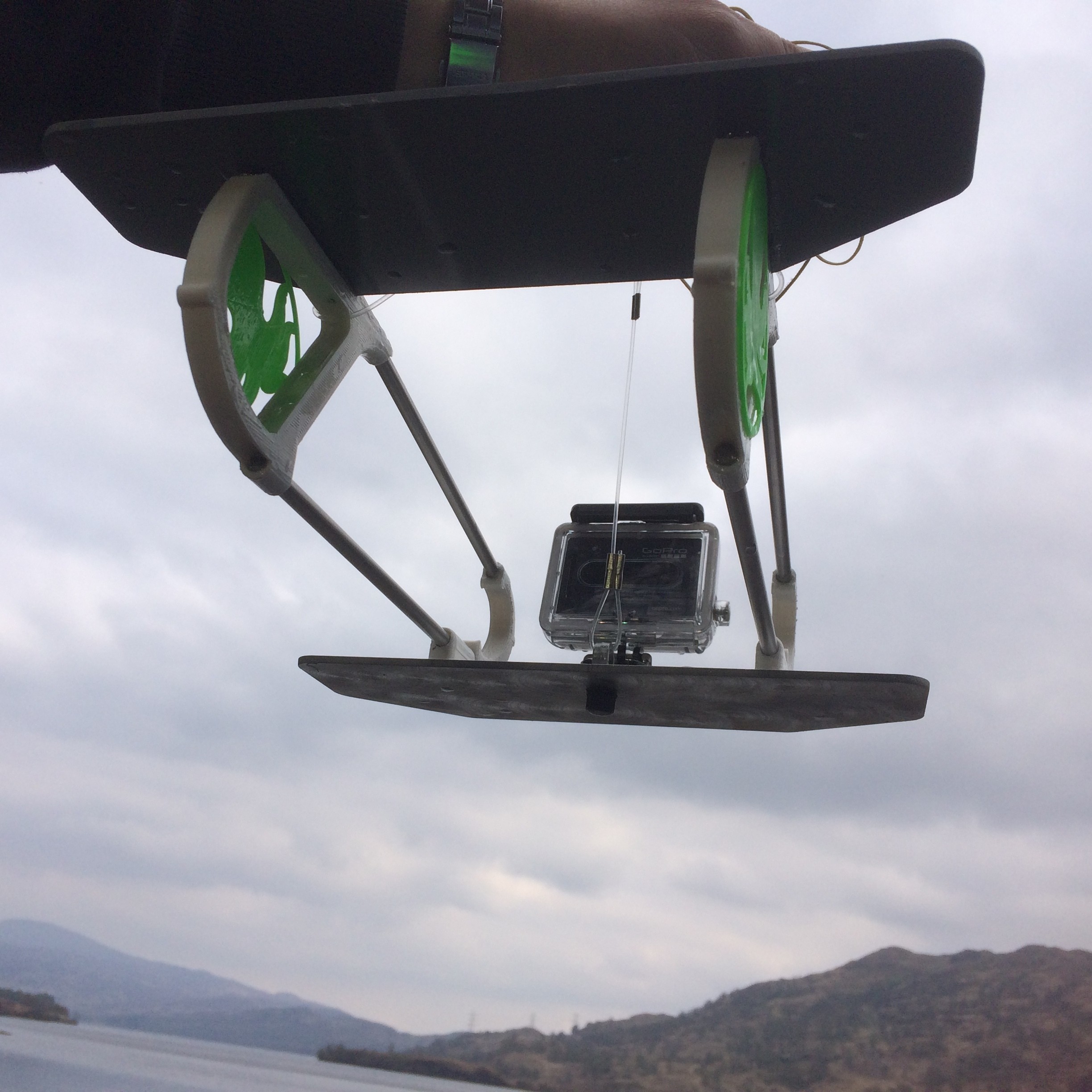

1) Assemble it with front and back wings - as per photo. We have plastic at the back and aluminium at the front - but you can use whatever you want to.
2) 6 mm stainless steel 6mm rods were used for the chassis.
3) Copy what you see in the photo for the bridle.

Approx 14 metres of ABS in total
Printed layer 0.2
100% infill
Slow print

3D printer file information

  • 3D design format: STL Folder details Close
    • 3d printed TUV FRONT Part.STL
    • 3d printed TUV REAR Part.STL
    • 3d printed TUV Squid fin.STL
    • 3d printed TUV front fin mount.STL
  • Last update: 2017/05/12 at 10:53
  • Publication date: 2017/05/03 at 16:06

Copyright

©

Tags

Creator

Designs 16
Downloads 245
Sales US$87
Followers 8

With a history of designing a variety of products from turbines to ROVs and a multitude of products in between - it's great now to be move ahead and work in the world of 3d printing.

What a fantastic way to get shapes and angles that normal manufacturing is incapable of. This is just the beginning...the coming years will bring many more advancement. It's an exciting time to be designing!
