2020 Prototyping Base Plate
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/14976618/illustration-file/a6bd1b84-2262-496c-a9fb-4cbb25d39599/IMG_20181002_183200.jpg)
/https://files.cults3d.com/uploaders/14976618/illustration-file/a6bd1b84-2262-496c-a9fb-4cbb25d39599/IMG_20181002_183200.jpg)
/https://files.cults3d.com/uploaders/14976618/illustration-file/52e14300-d667-4afe-8215-ce6dafd754ed/3395b2795144522174d13ed37091fba0.png)
/https://files.cults3d.com/uploaders/14976618/illustration-file/22b737d4-bd56-4f53-8501-1f570e4c11eb/0571c01fda56d12962511efbbe1e241c.png)
/https://files.cults3d.com/uploaders/14976618/illustration-file/87543571-18af-4706-82d7-29f3ae1e31c4/c77630fe7864312b19762a8e3f22c72e.png)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 633 views
- 4 likes
- 15 downloads
3D model description

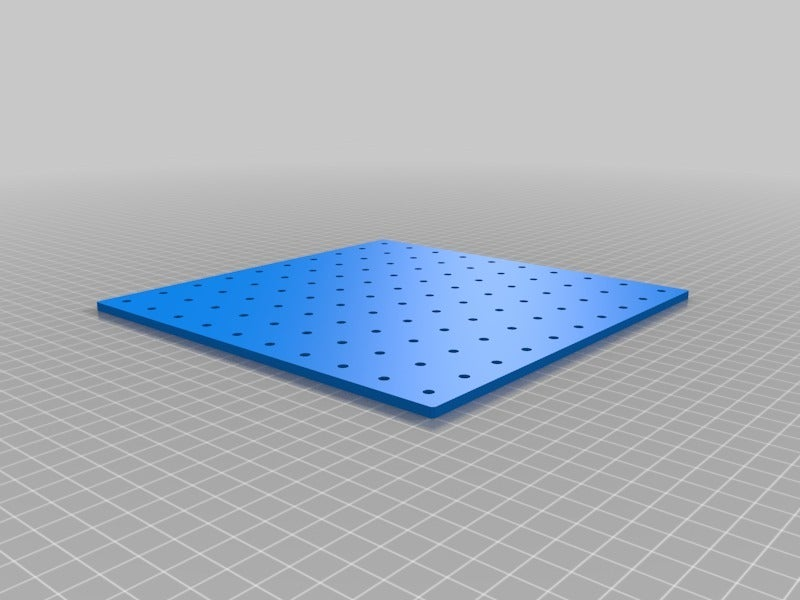

This design is a simple Base Plate compatible with most std 2020 engineering parts.
Dimensions:
200 x 200 x 4 mm.
Printed from PETG.

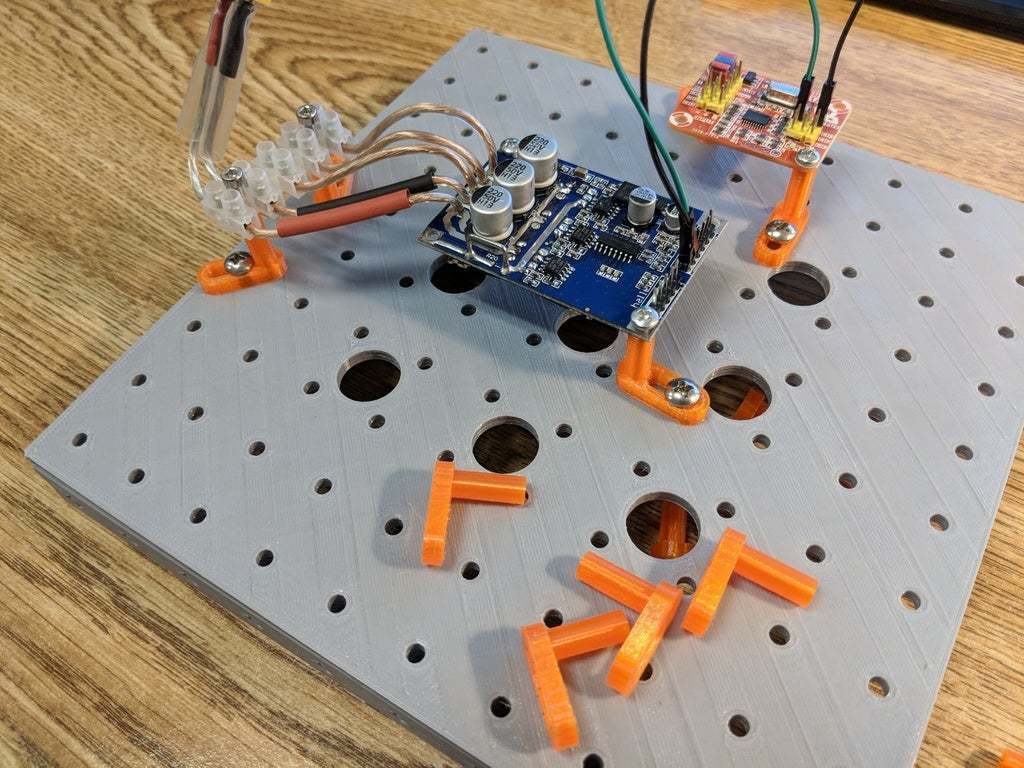

I designed this because I needed a support structure to "neatly" holds circuit boards and electronics on board of a robot prototype.
I decided to be compatible with the popular 2020 engineering extrusion standard so that many other can use this design.

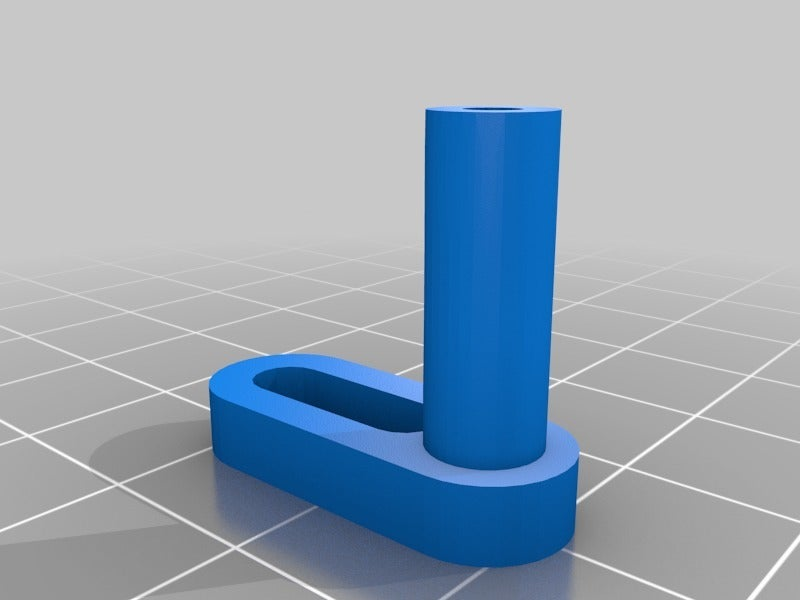

This design comes with adjustable stand-offs for M3 screws.
3D printer file information
-
3D design format: STL Folder details Close
- 2020BasePlate200x200x4RevA.stl

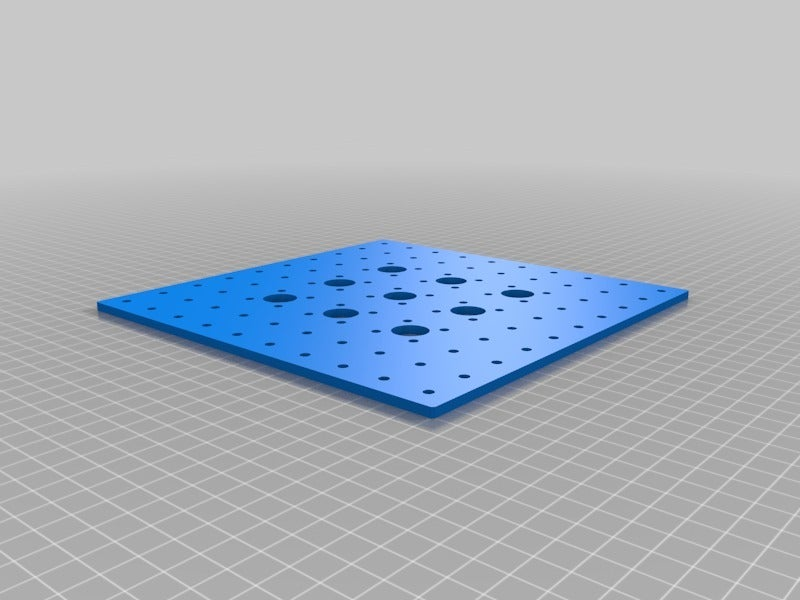

- 2020BasePlate200x200x4withWirePassagesRevA.stl
