2020 Compatible Beam

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

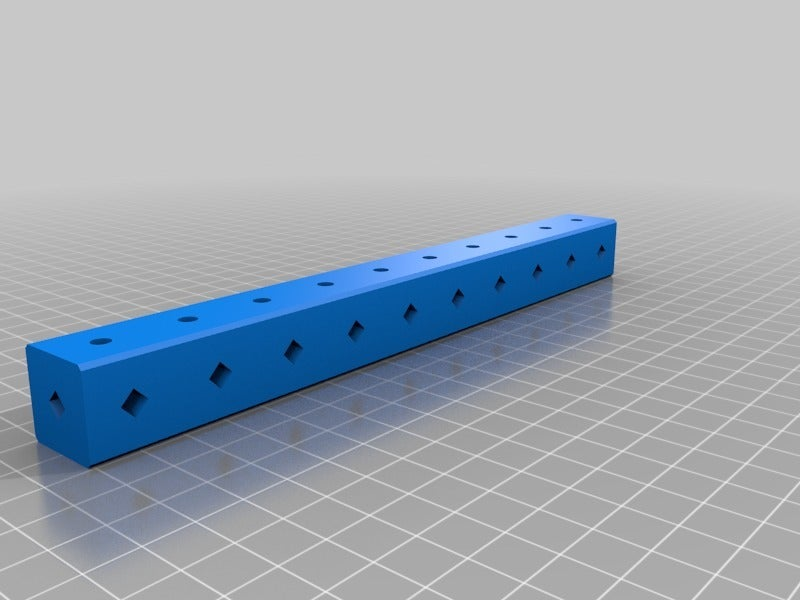

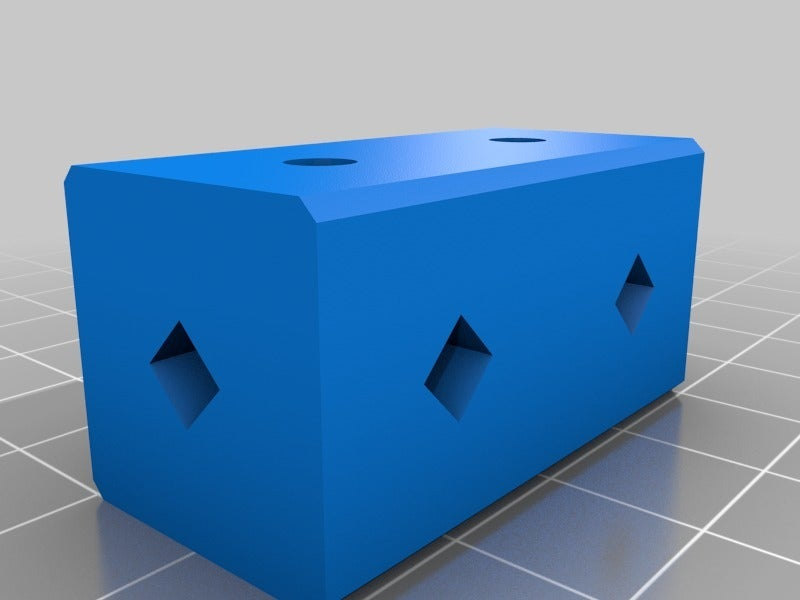

This simple 2020 mm construction beam is designed to print horizontally without supports.
I designed this because the std extrusions only print well upright, but then they are not as strong as horizontally printer parts.

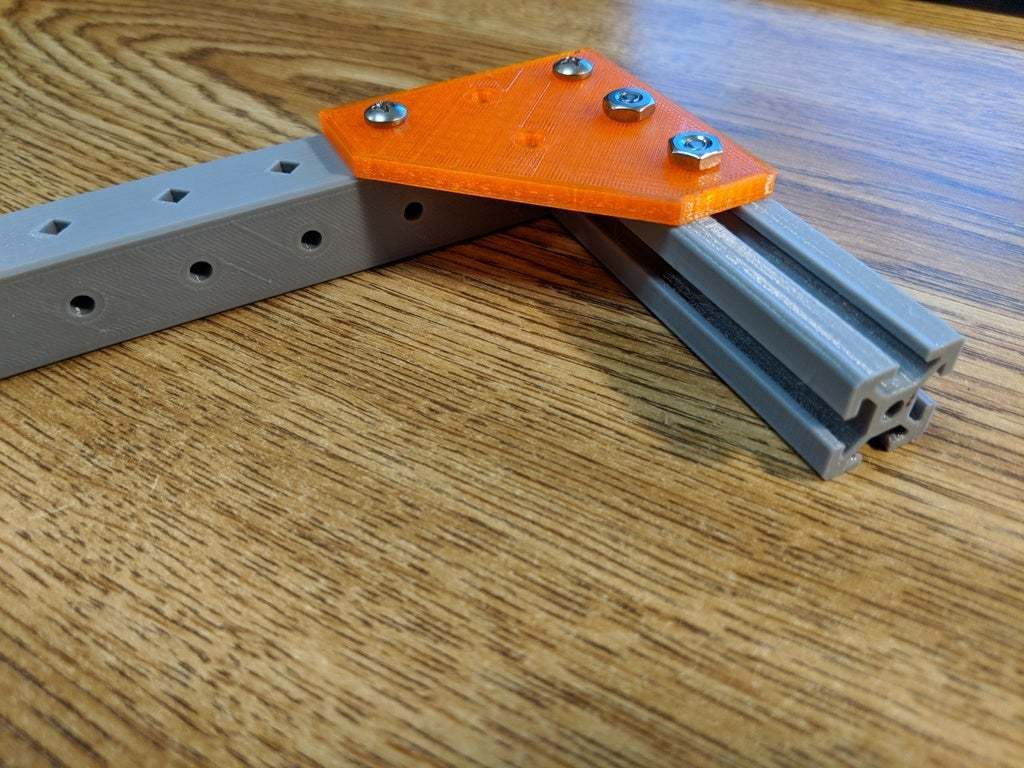

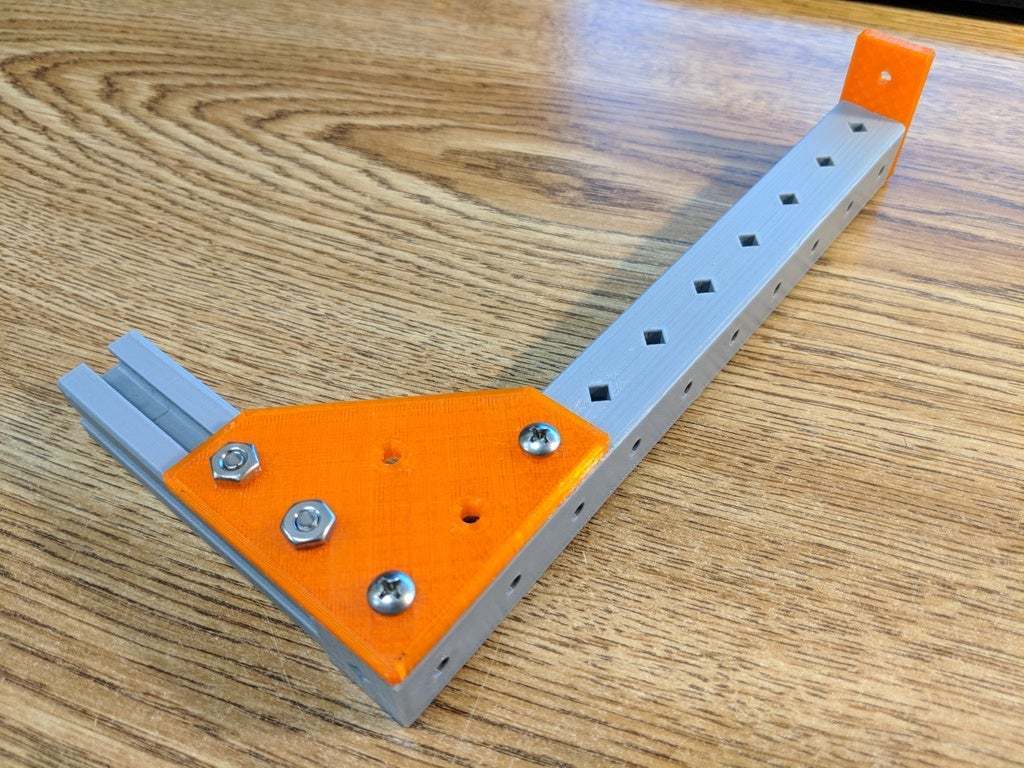

The samples in the pictures are printed from AmazonBasics gray PETG, that is now my go-to PETG for most mechanical parts that require toughness.

Features:
Compatible with many 2020 bracketry designs.
Stronger than the std 2020 printed vertically.
Square holes remove the need for supports.

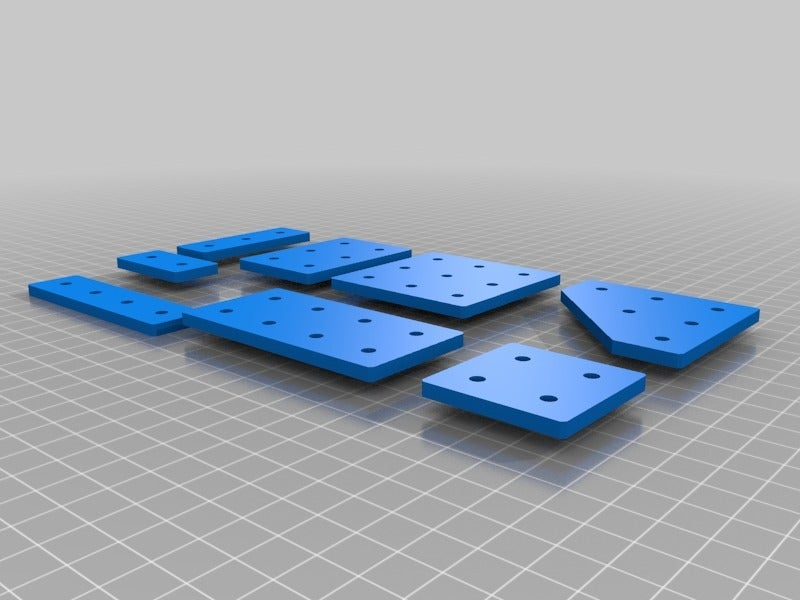

I also add an .STL of a set of plates for convenience, but there are plenty of them on the Thingiverse already.

I will probably share a few other beam profiles in the future with various size holes and extrusion style grooves.

3D printer file information

  • 3D design format: STL Folder details Close
    • 2020CompatibleBeam200RevB.stl
    • 2020CompatibleBeam40RevB.stl
    • 2020CompatibleBeam80RevB.stl
    • SetOf2020CompatiblePlatesRevA.stl

    Learn more about the formats

  • Publication date: 2020-03-31 at 14:51
    ?
    Published to Thingiverse on: 2018-10-03 at 01:17

License

CC BY SA

Tags

Creator

I believe 3D printing and design sharing can reduce the environmental impact of product packaging and shipping, save countless hours of engineering time, and accelerate innovation.

...and it is a lot of fun!!!
