2 DOF fully compliant space pointing mechanism

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.9k views
  • 4 likes
  • 39 downloads

3D model description

Please take a 2 min survey to help us know how we can offer more models like this! https://goo.gl/forms/MiyWYwno927Wb4TH2

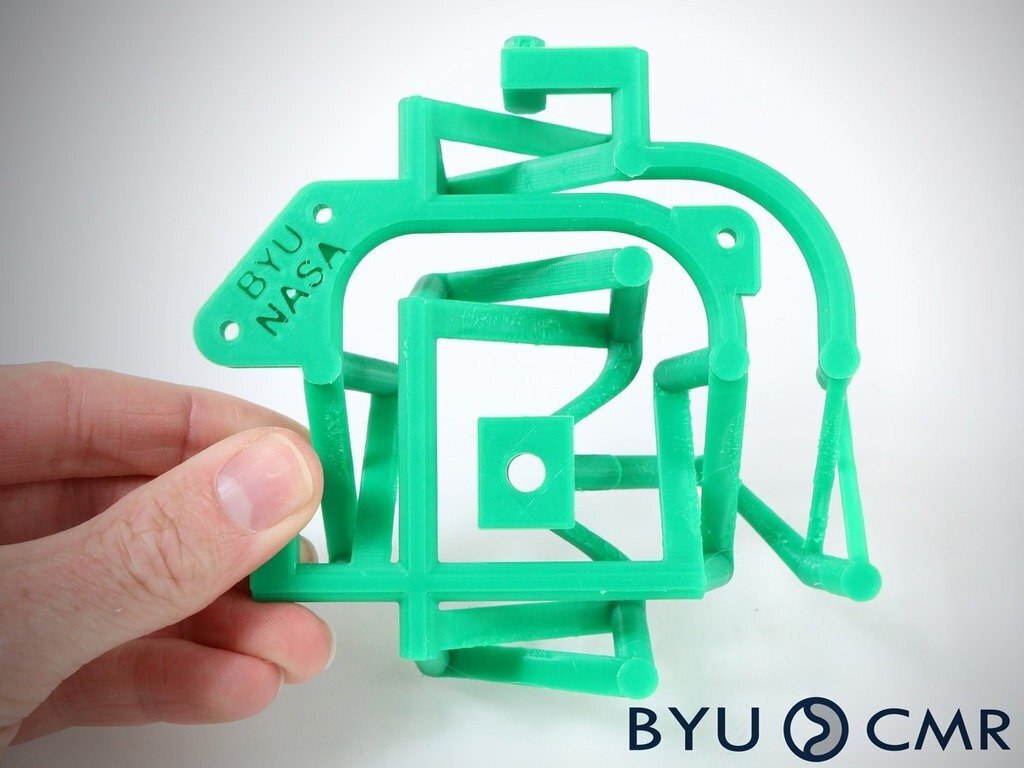

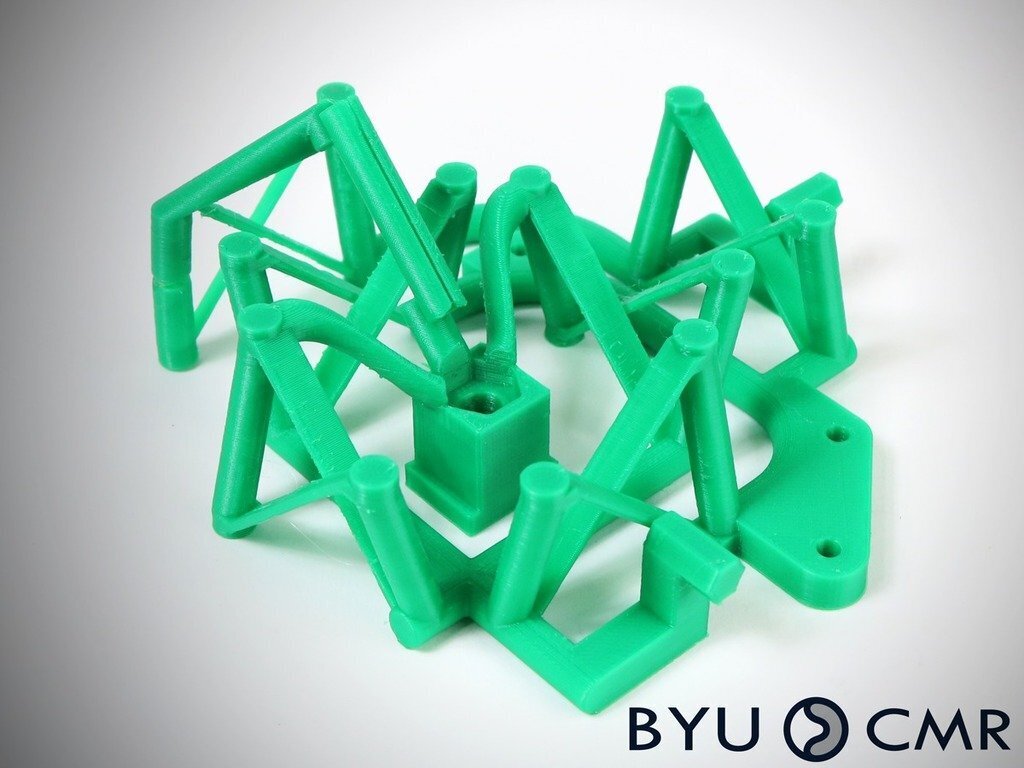

This two degree-of-freedom pointer device uses compliant mechanism technology to obtain its motion. It was developed by the BYU Compliant Mechanisms Research group (compliantmechanisms.byu.edu), under a grant from NASA.

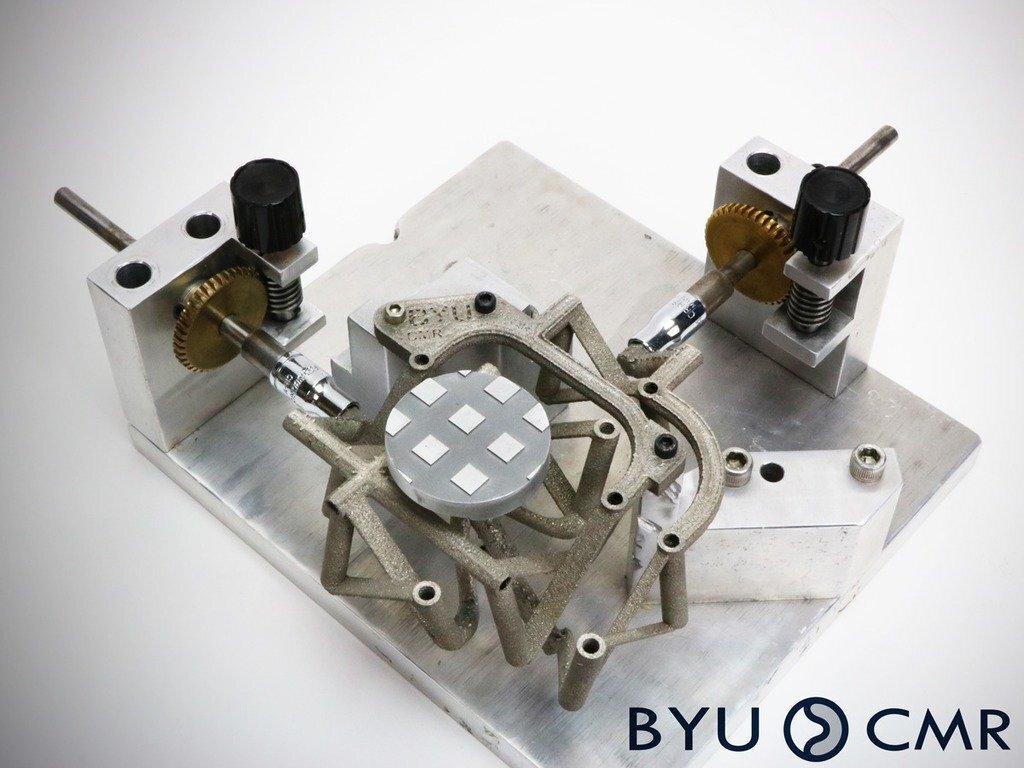

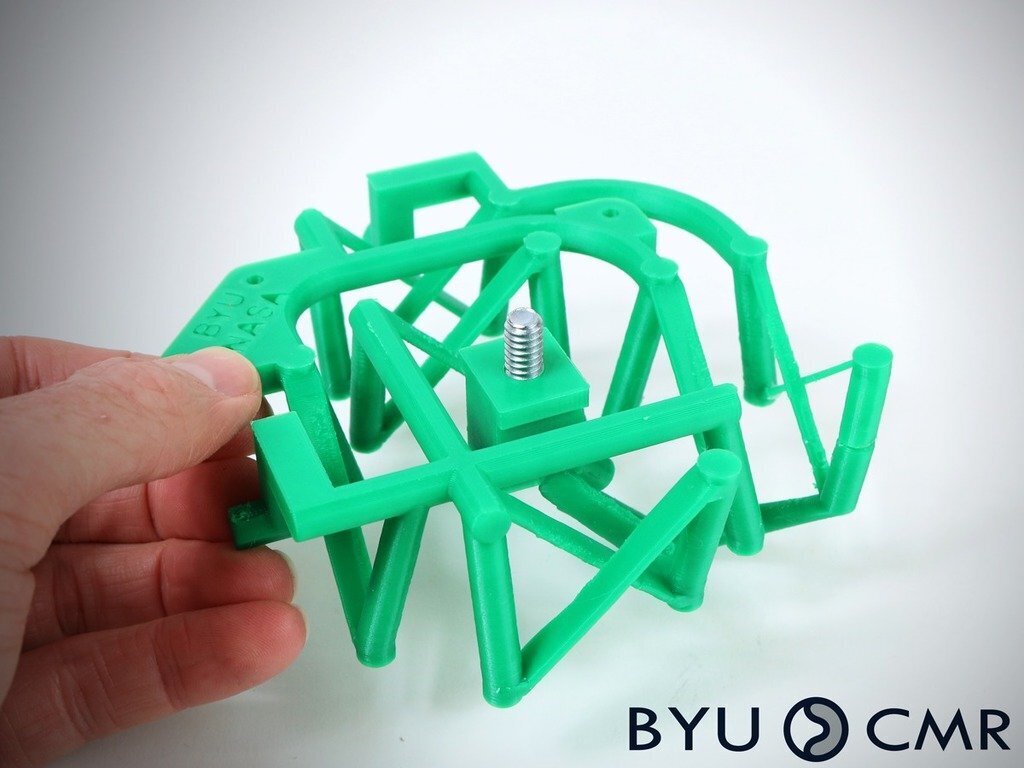

3 versions of the device are included: the original file used in the metal prototype, and two modified versions for FDM printing with an improved output connection (one has thicker flexures for easier printing). The improved output connection measures 0.55x0.6" and has a 0.25" hole. This hole fits a 1/4"-20 bolt nicely (this is the same bolt used for tripod mounts), including a hex indentation on the bottom of the device. The adjuster knobs are 0.25" hexagons, measured across to the other parallel side.

  • 3D file format: STL

Tags

Creator

Designs 23
Downloads 1.2k
Followers 33

The BYU Compliant Mechanisms Research Group (CMR) involves students and faculty who strive to make an impact by creating compliant mechanism theories and applications that are novel, used by others, and make a difference for good.

website

License

CC BY
