1515 Conformal Rail Button Backplate Mount

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 98 views
  • 1 download

3D model description

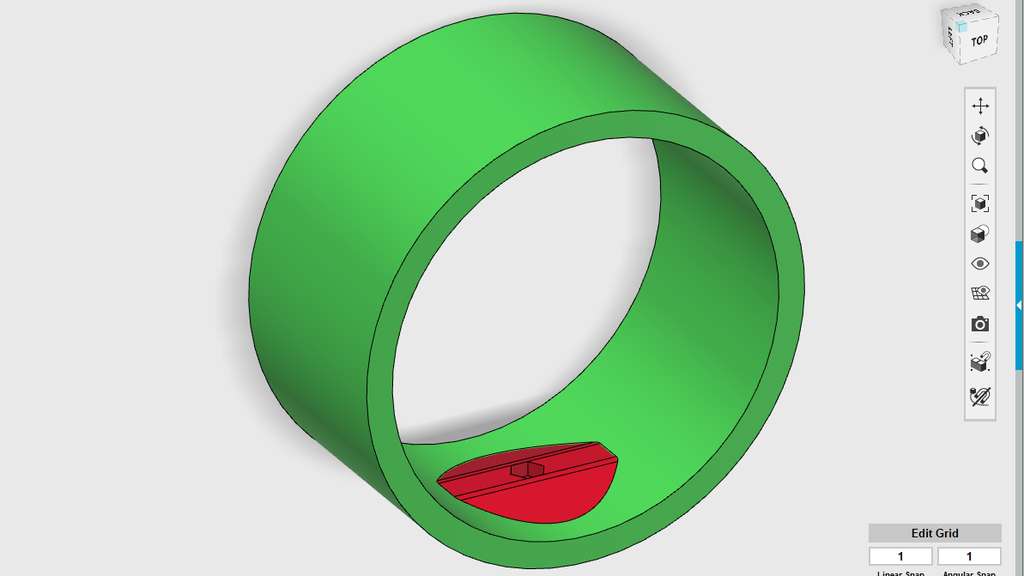

This is a continuation from my 1010 Conformal Rail Button Backplate Mount design that has been upgraded to 1515 rail buttons for use on 1515 launch rails. It's purpose is to provide a way to mount the rail button nut so that it does not interfere with the operation of the recovery system.

1010 Conformal Rail Button Backplate Mount
https://www.thingiverse.com/thing:3467549

This place where the nut sits is designed to fit the 1/4"-20 nut.

There are two designs:

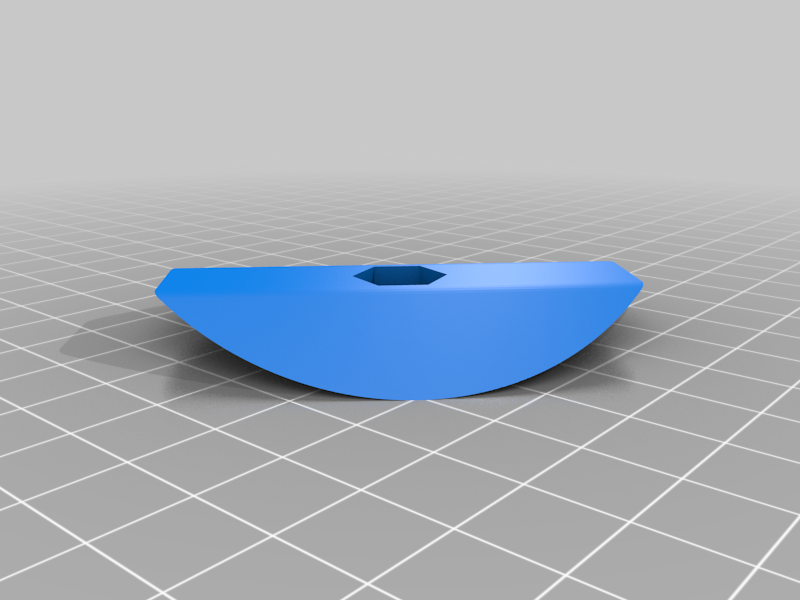

A) This will fit 6 inch airframe tubing that has an ID of 6.0 inches (152.4mm).

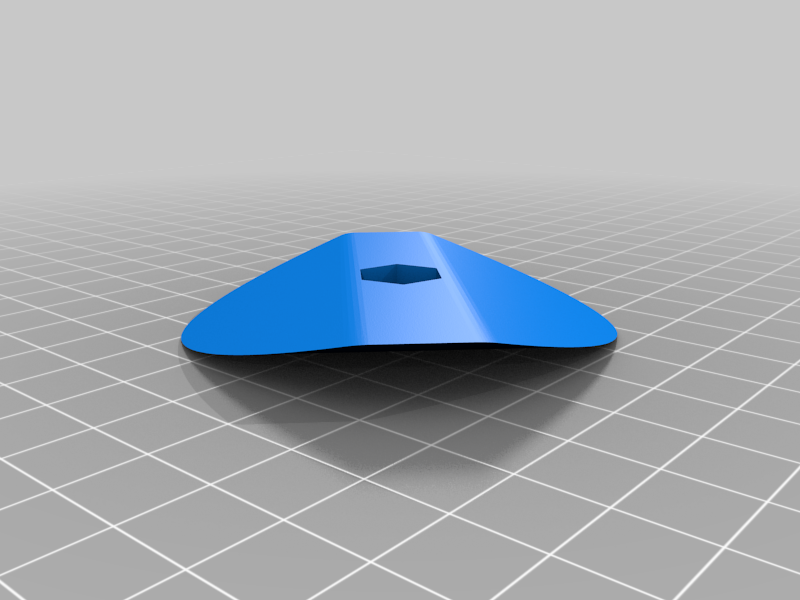

B) This will fit 6 inch coupler tubing that has an ID of 5.775 inches (146.69mm)

If you need a rail button take a look at a look at a couple of my designs below.

1515 Aero Rail Button Conformal 3.1 inch (79mm)
https://www.thingiverse.com/thing:4606668

1515 Aero Rail Button Conformal (3.1 inch/76mm tubing) w/Standoff
https://www.thingiverse.com/thing:4595270

  • 3D file format: STL

Tags

Creator

License

CC BY
