1010 Conformal Rail Guide for 75mm Tubing with Backing Plate

?
Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

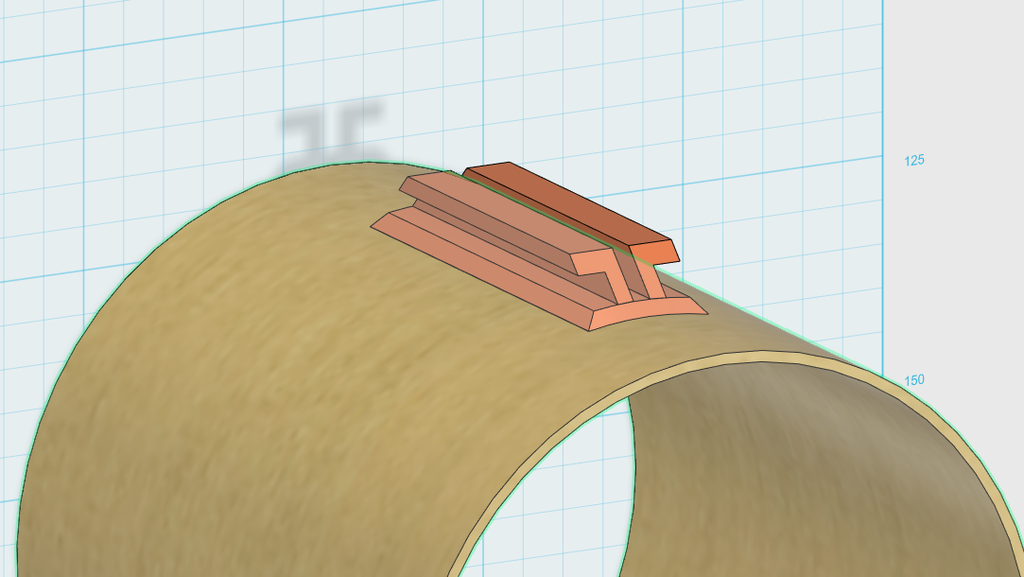

This 1010 rail guide 3D model is an ACME-style conformal rail guide for mid-power rockets and high power rockets. It is conformal to 76mm (3.1 inch) airframe rocketry tubing and will fit the 1010 size of 8020 aluminum extrusion rail.

The first model is designed to use adhesive to attach it to your rocket.

The second version will allow you to use a counter-sink head
and the third, a flat head fastener to attach it to your rocket.

There is a 3D model of a backing plate that will allow you to insert a nut and glue it to the inside of your rocket without causing any problems with the recovery system.

Related 3D models:

1010 Conformal Rail Guide 54mm (Adhesive Version)
https://www.thingiverse.com/thing:3255356

1010 Conformal Rail Guide 38mm (Fastener Version)
https://www.thingiverse.com/thing:3225666

1010 Conformal Rail Guide 38mm (Adhesive Version)
https://www.thingiverse.com/thing:3212759

1515 Conformal Rail Guide 98mm (Adhesive Version)
https://www.thingiverse.com/thing:3251815

1010 Conformal Rail Button Backplate Mount
https://www.thingiverse.com/thing:3467549

1515 Conformal Rail Button Backplate Mount
https://www.thingiverse.com/thing:4735328


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close

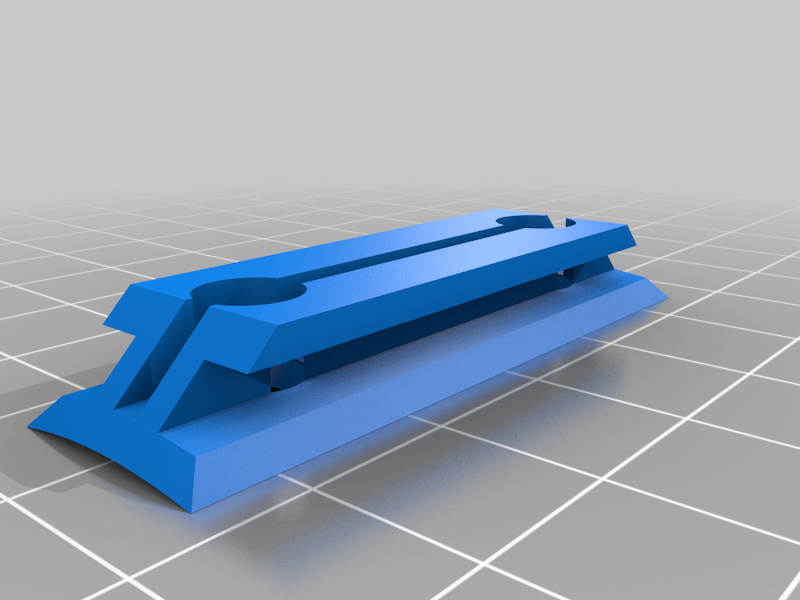

    • 1010_Conformal_Rail_Guide_76mm_CounterSink.stl

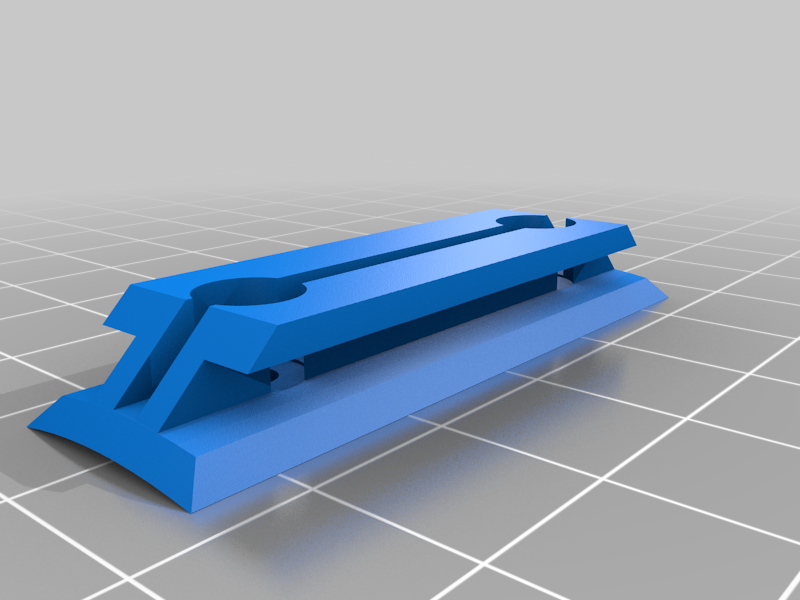

    • 1010_Conformal_Rail_Guide_76mm_Flat_Head.stl
    • 1010_Conformal_Rail_Guide_76mm_Tube_Adhesive.stl
    • 1010_Conformal_Rail_Guide_Backing_Plate.stl

    Learn more about the formats

  • Publication date: 2022-05-01 at 01:02
    ?
    Published to Thingiverse on: 2022-04-30 at 23:22

License

CC BY
