1010 Conformal Aero Rail Button 3/16" (4.76mm) Standoff

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 64 views
  • 1 download

3D model description

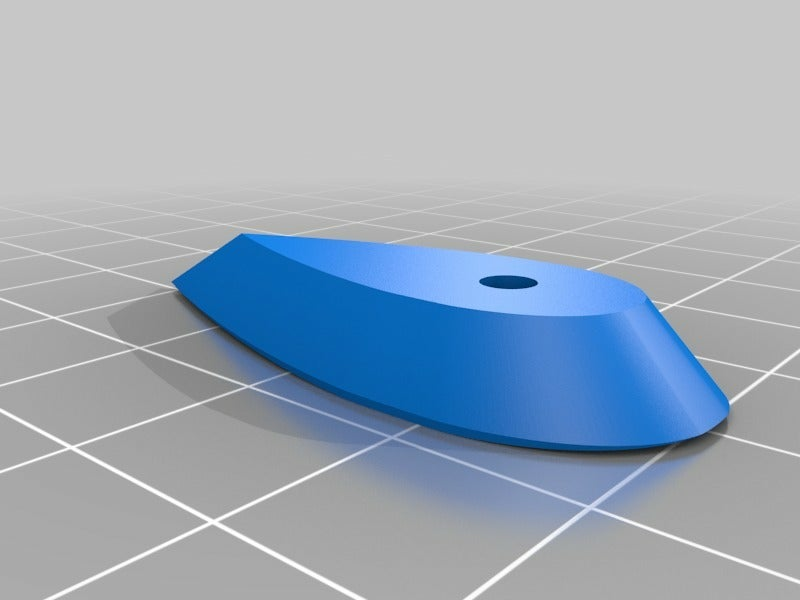

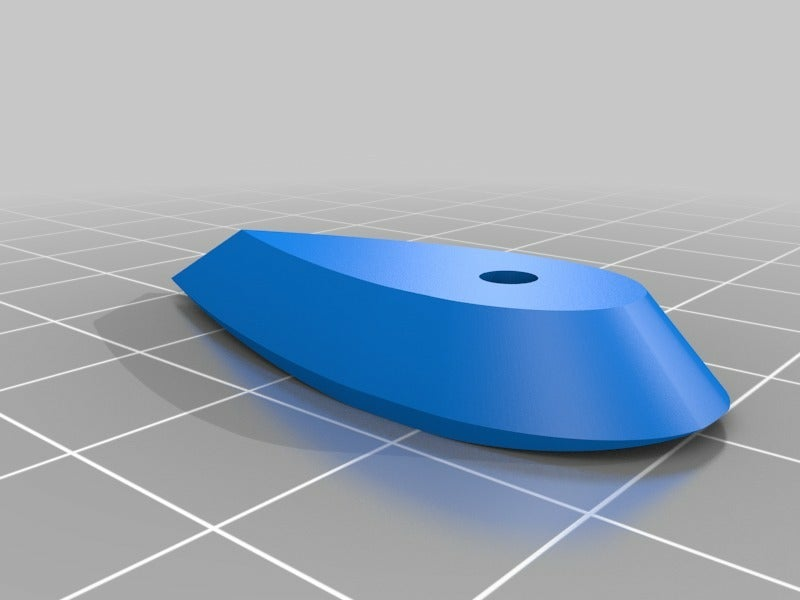

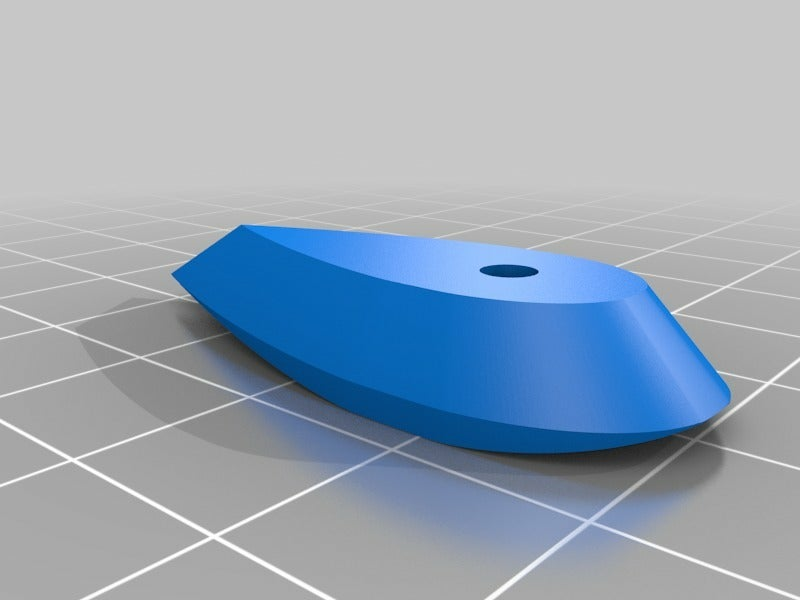

These 3/16" (4.76mm) high 1010 conformal aero rail button standoffs were created to be used with the 1010 aero rail buttons I have designed. They use the NACA0020 airfoil profile for their shape.

They are designed to be more aerodynamic by conforming to the rocket airframe tubes in these standard sizes - 38mm (1.5 in.), 54mm (2.13 in.), 65mm (2.54 in.), 75mm (3 in.), 98mm (4 in.), 140mm (5.5 in.), 155mm (6 in.), and 195mm (7.5 in.).

You can find the 1010 aero rail buttons and standard rail buttons below.

1010 Aero Rail Button
https://www.thingiverse.com/thing:3055066
1010 Aero Rail Button Rounded
https://www.thingiverse.com/thing:3067798

1010 Standard Rail Button
https://www.thingiverse.com/thing:3067689
1010 Standard Rail Button Rounded
https://www.thingiverse.com/thing:3036320

  • 3D file format: STL
  • Publication date: 2020/12/31 at 06:28

Tags

Creator

License

CC BY
