1/35 scale Sd.Ah.56/57 ammunition trailer

?
Creation quality: 5.0/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

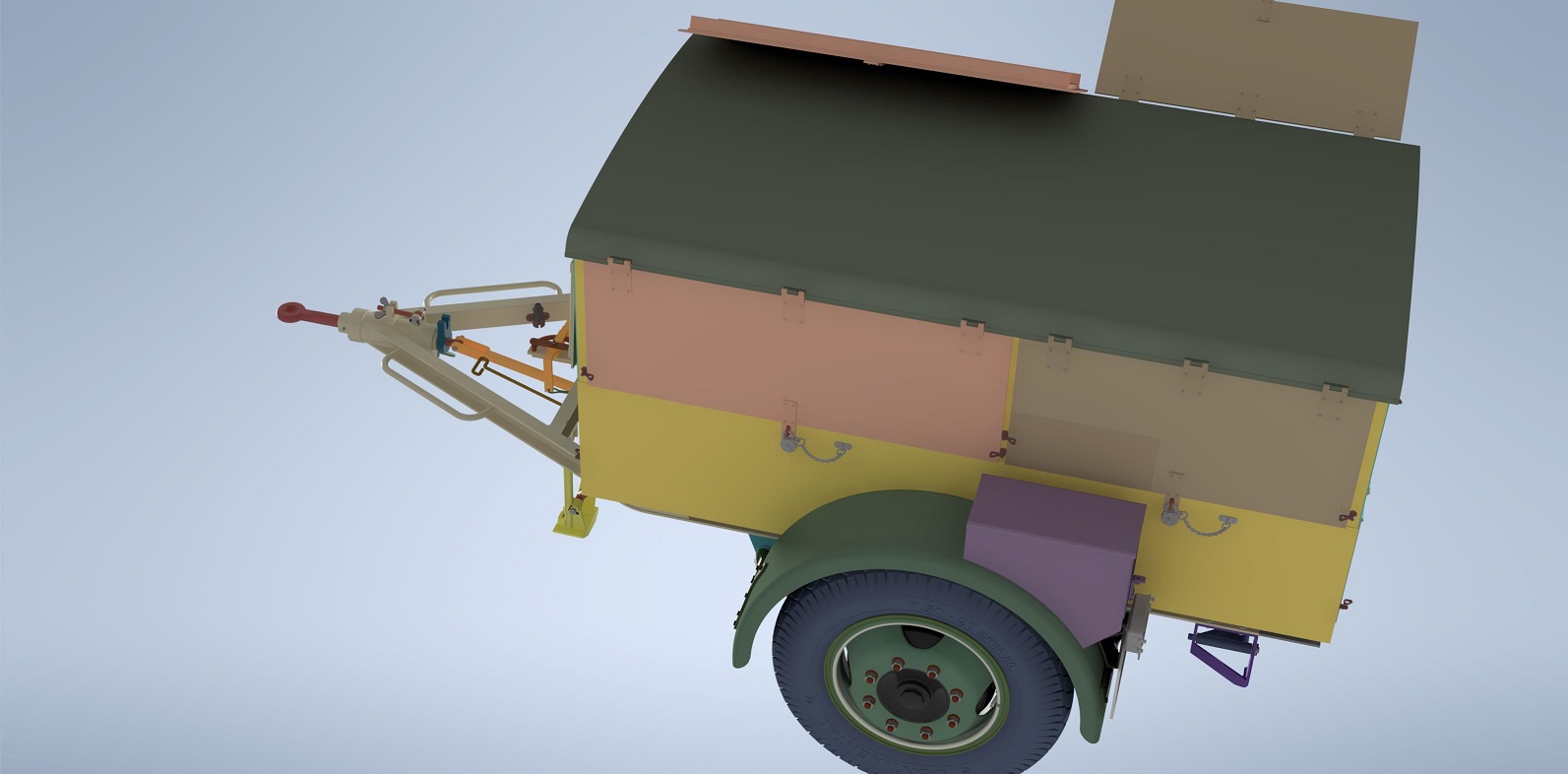

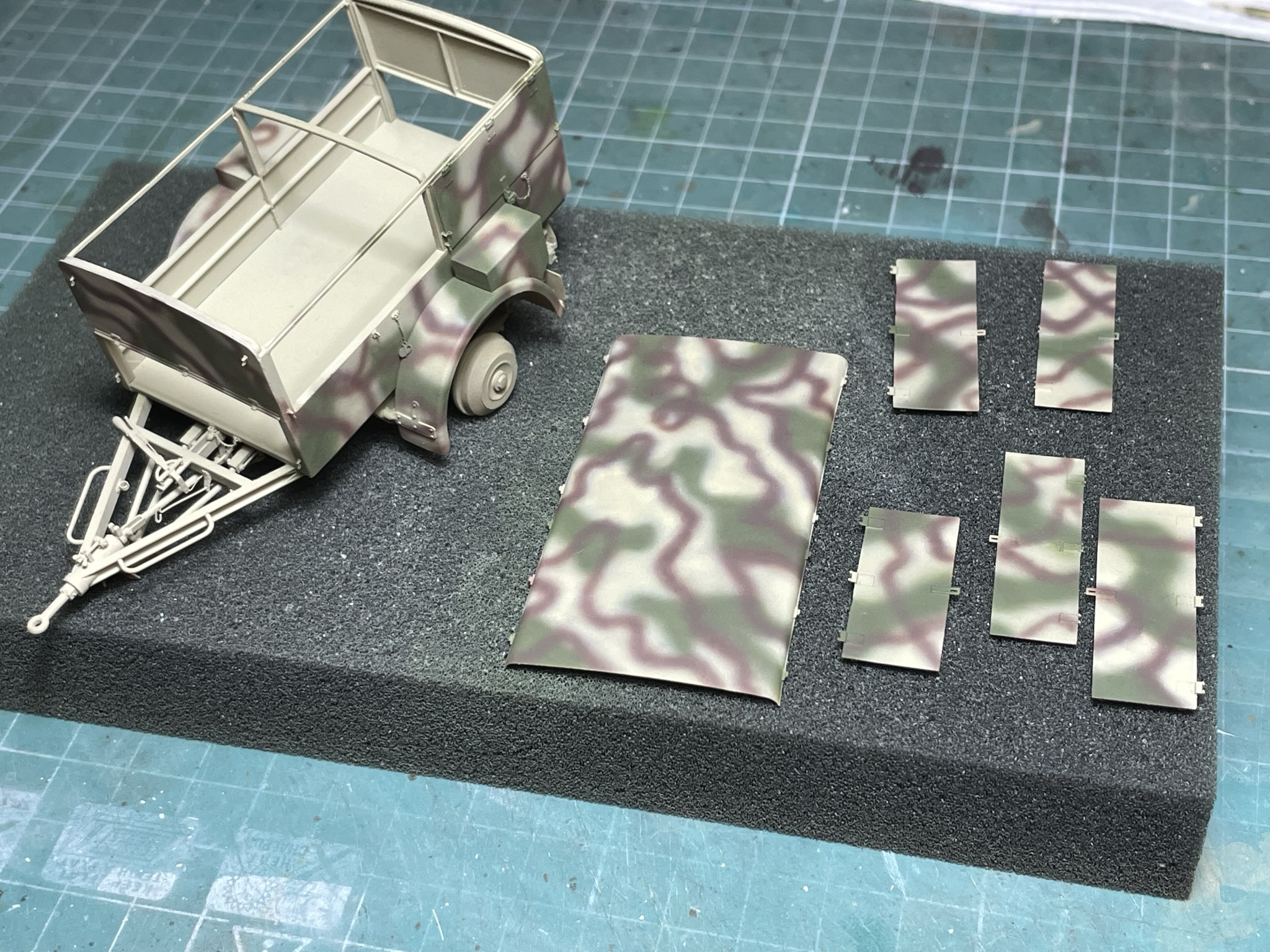

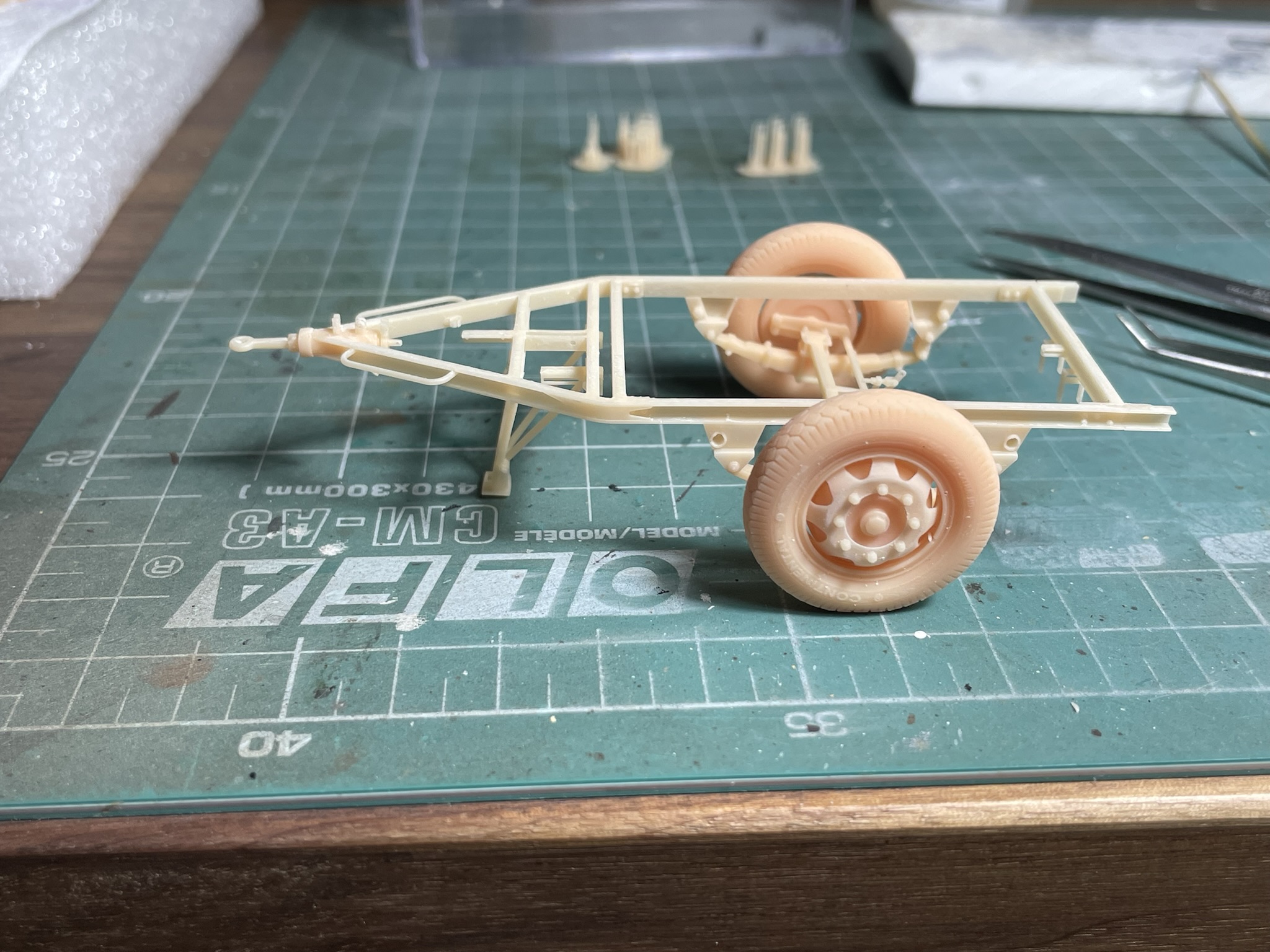

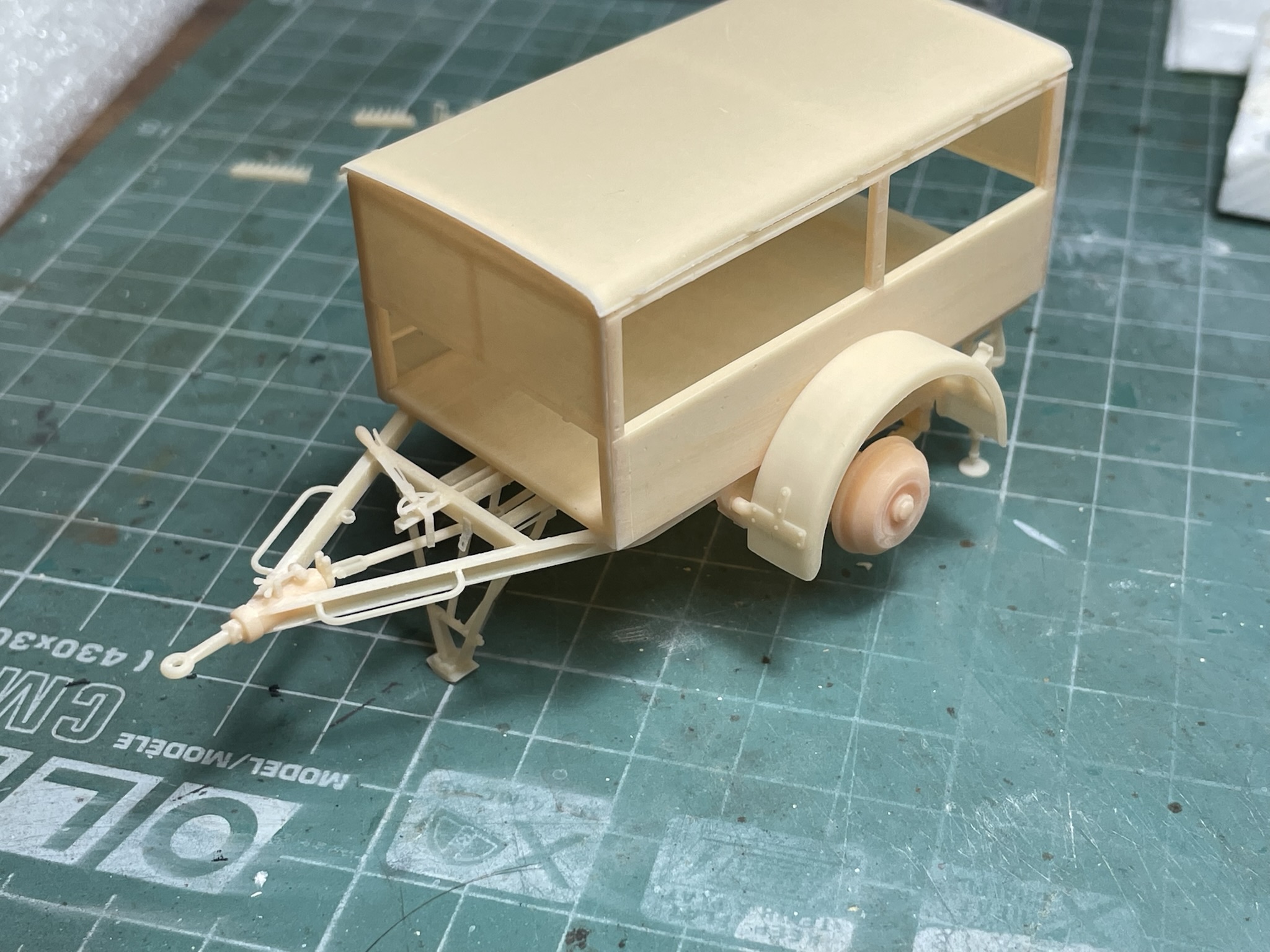

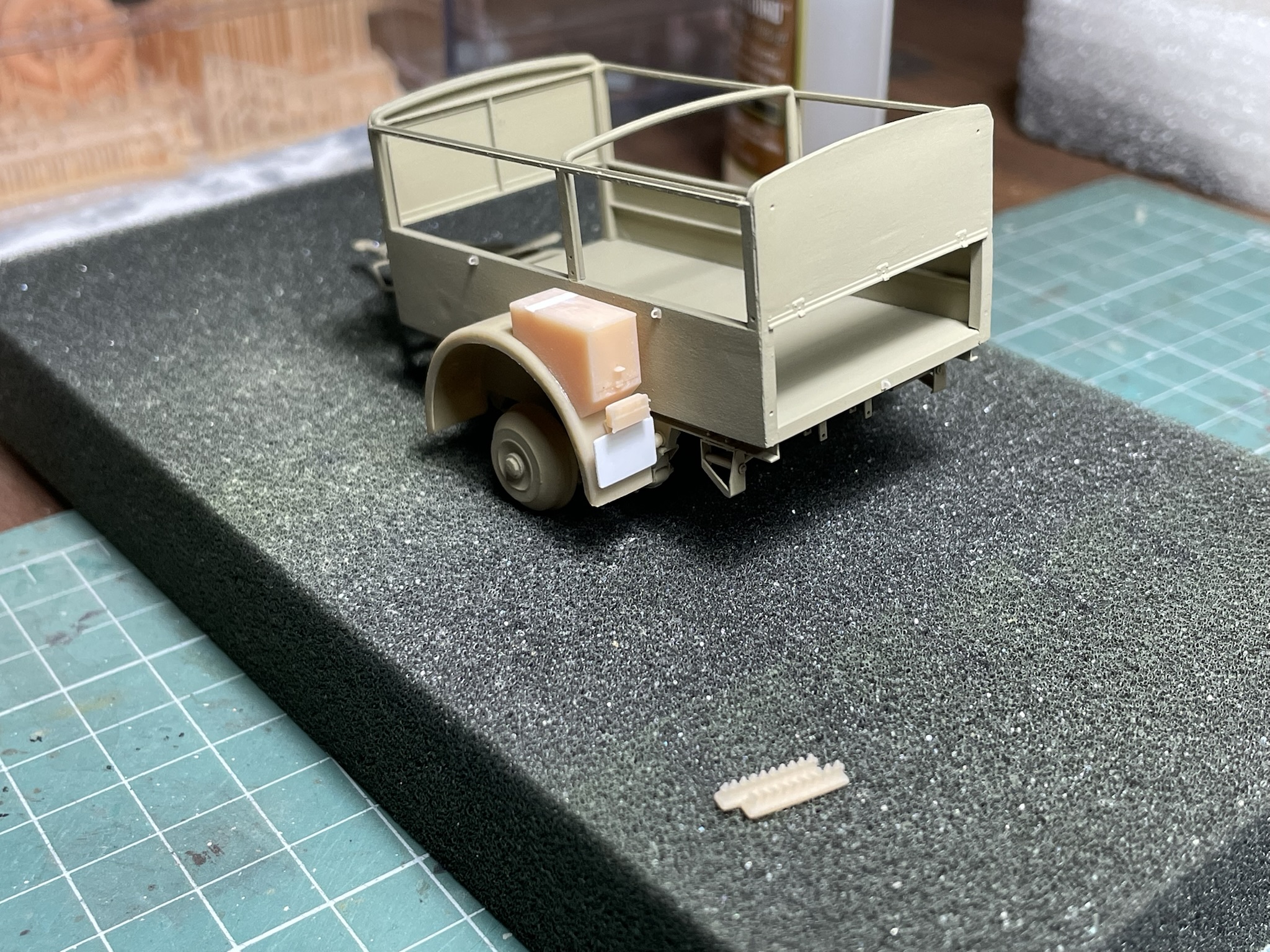

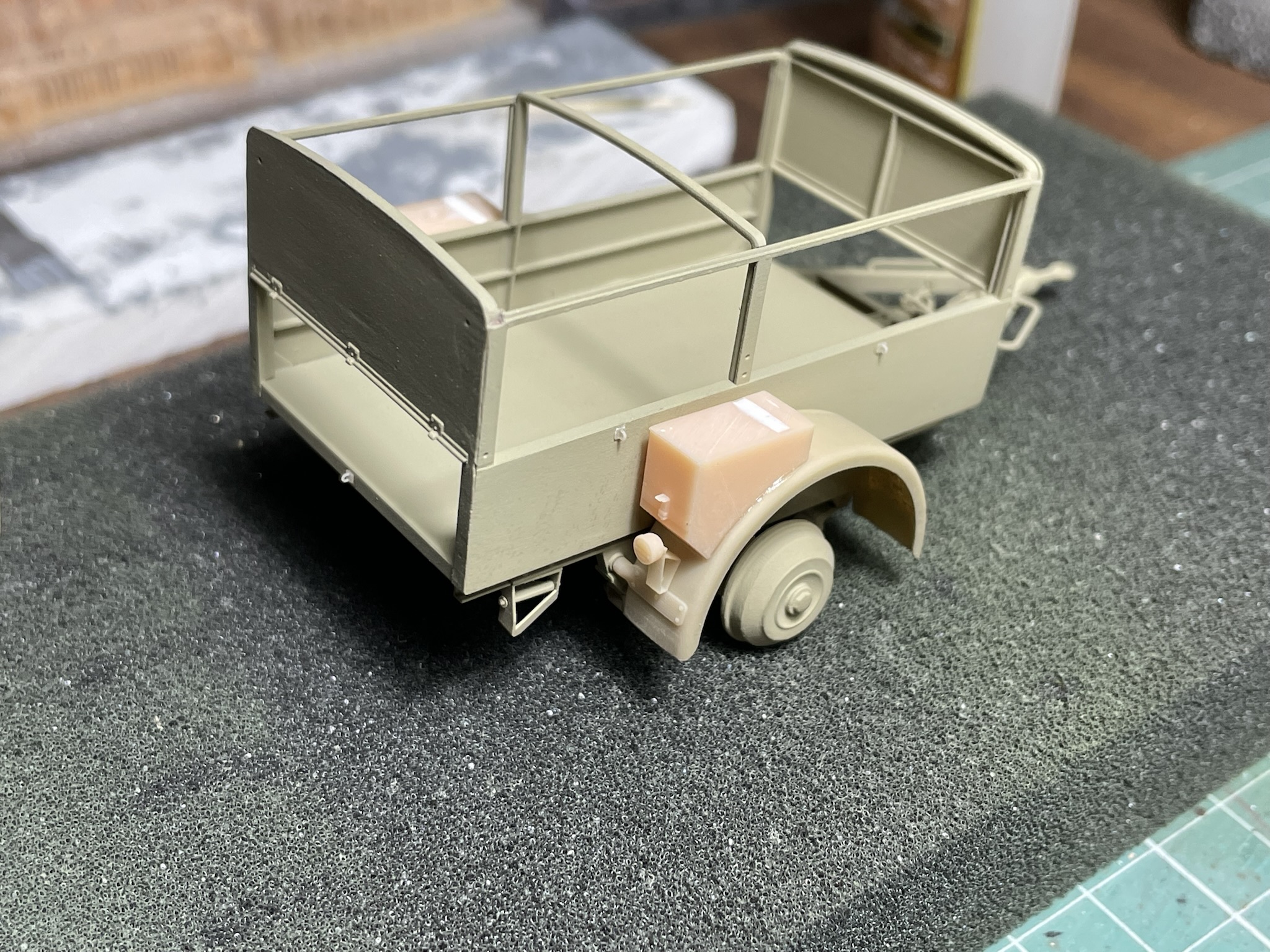

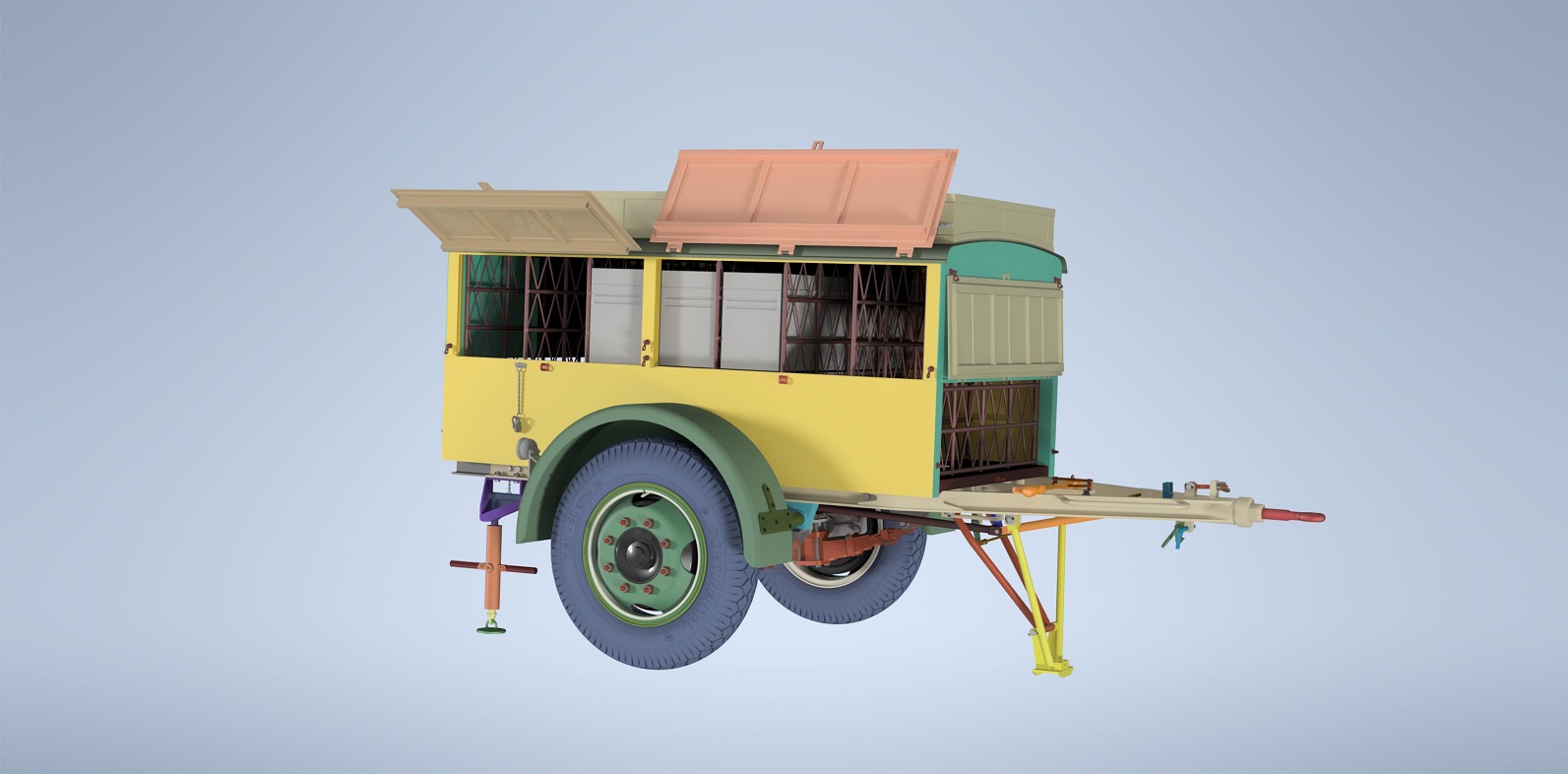

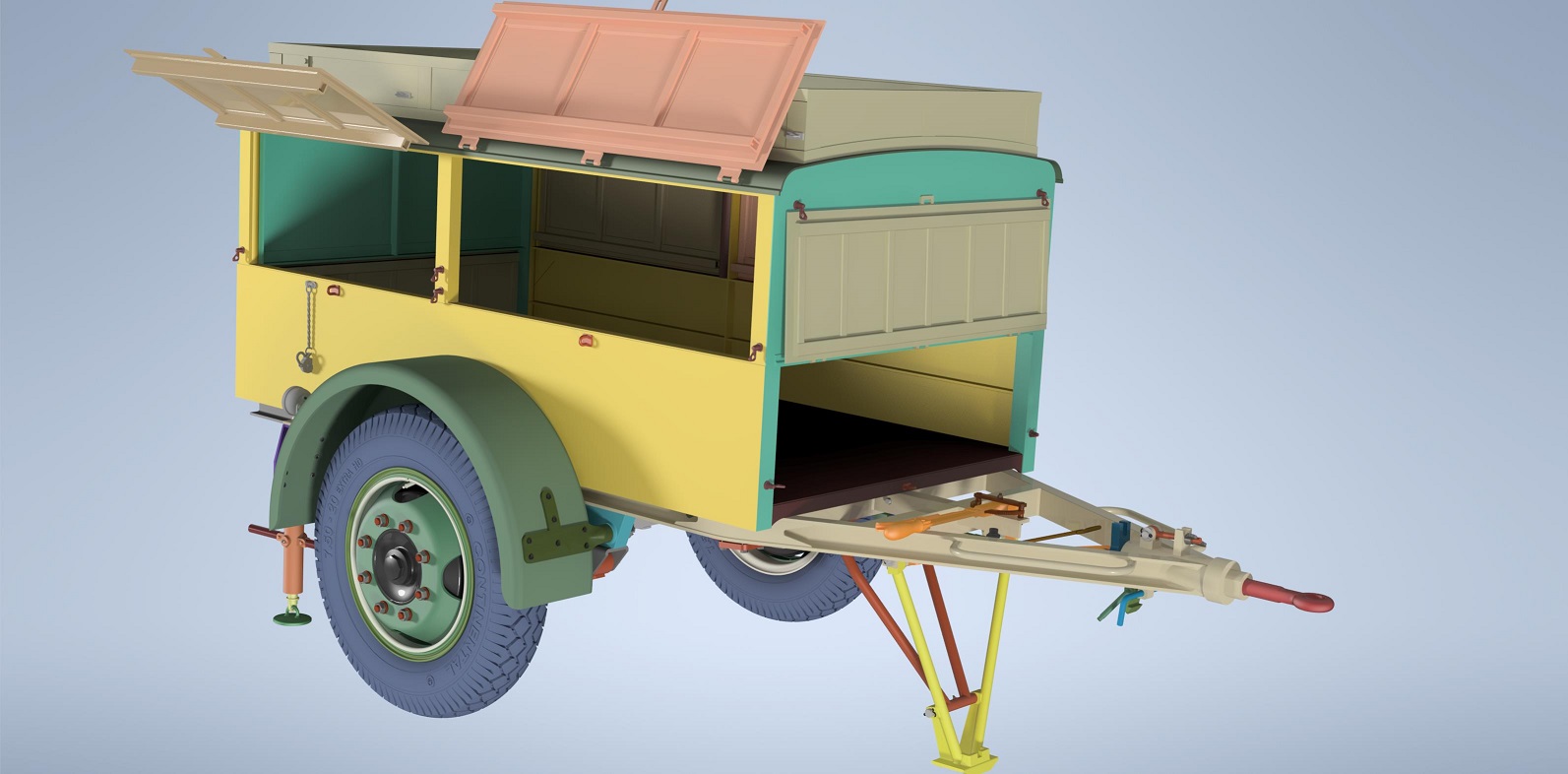

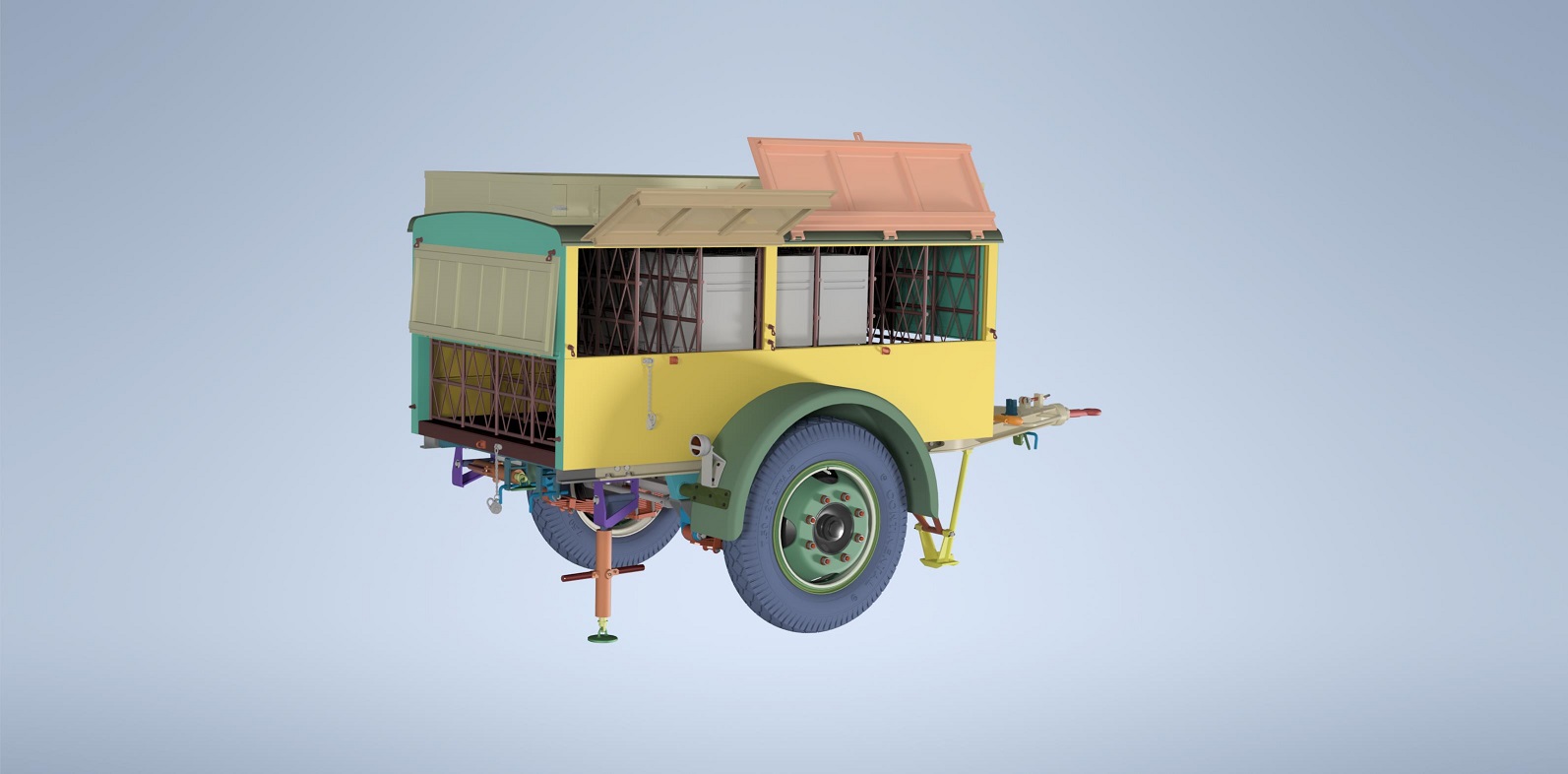

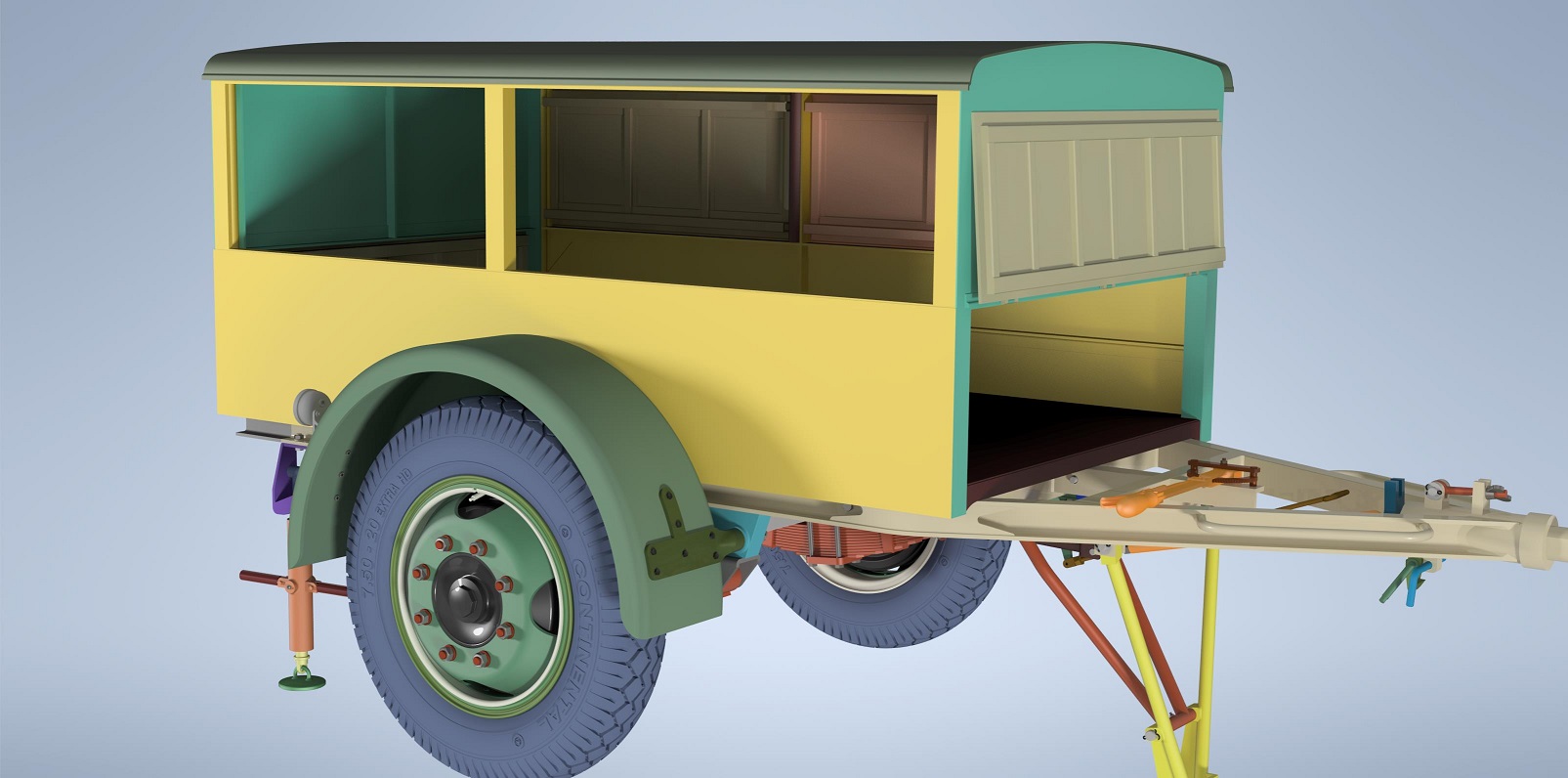

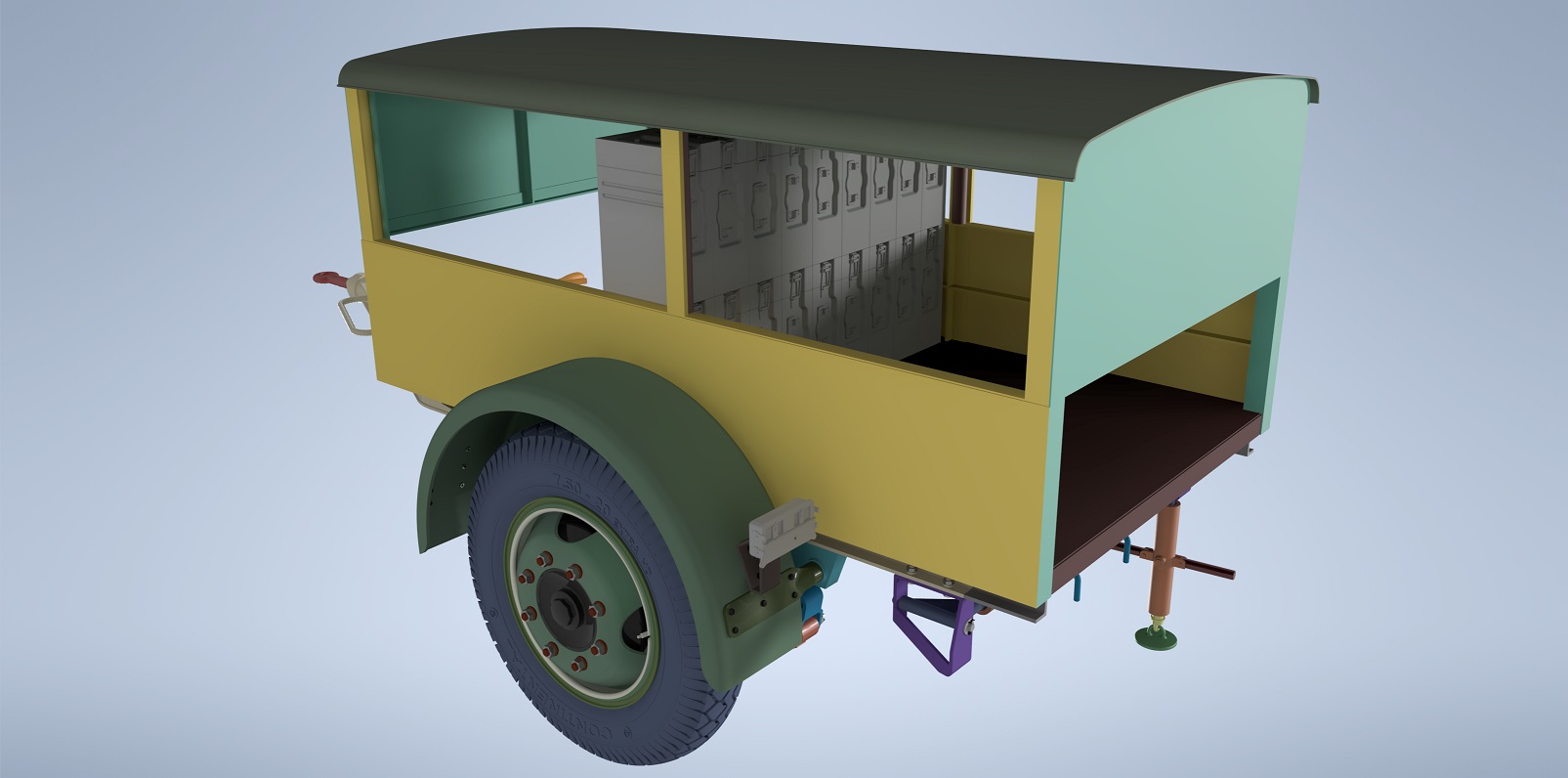

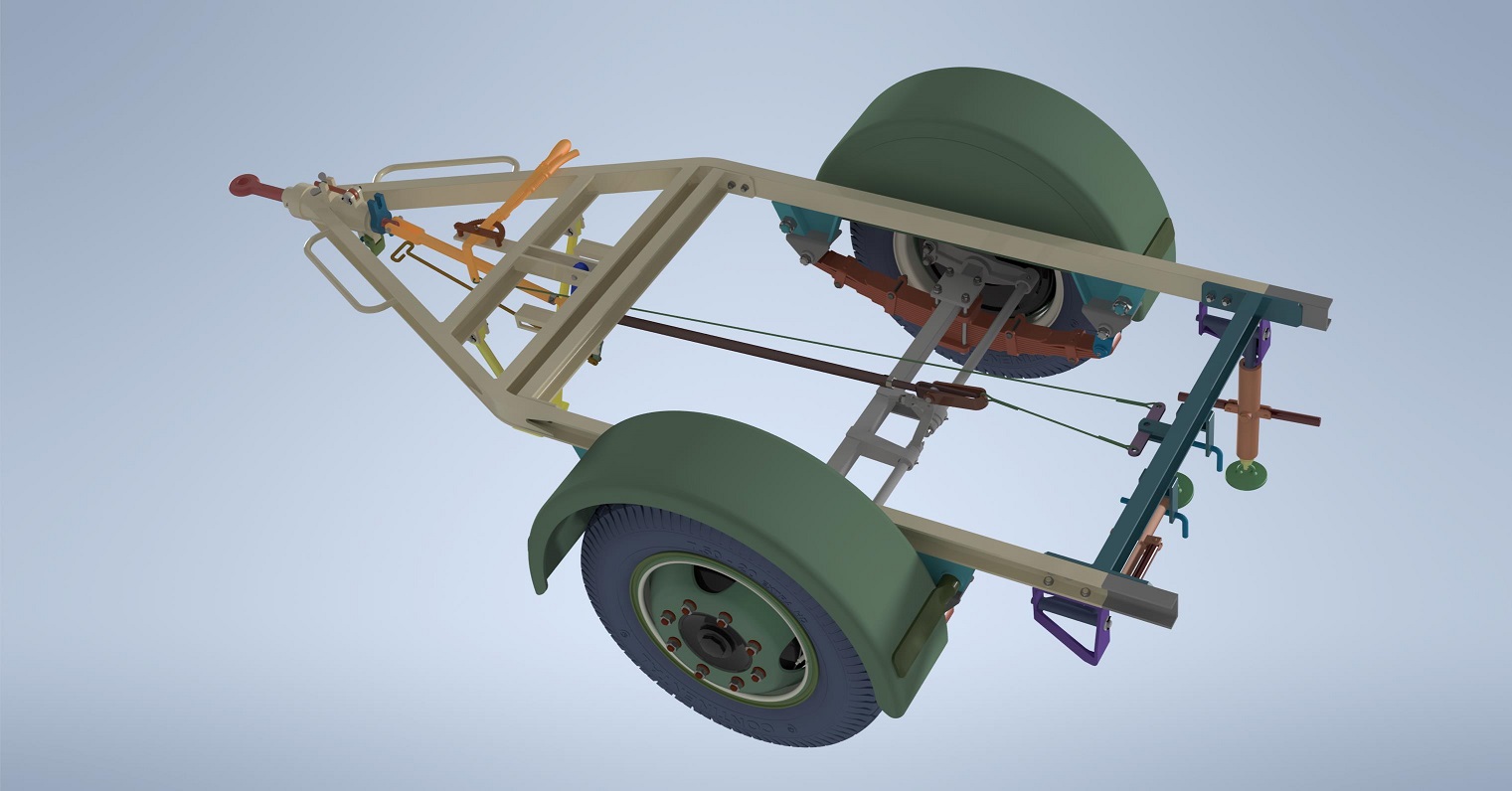

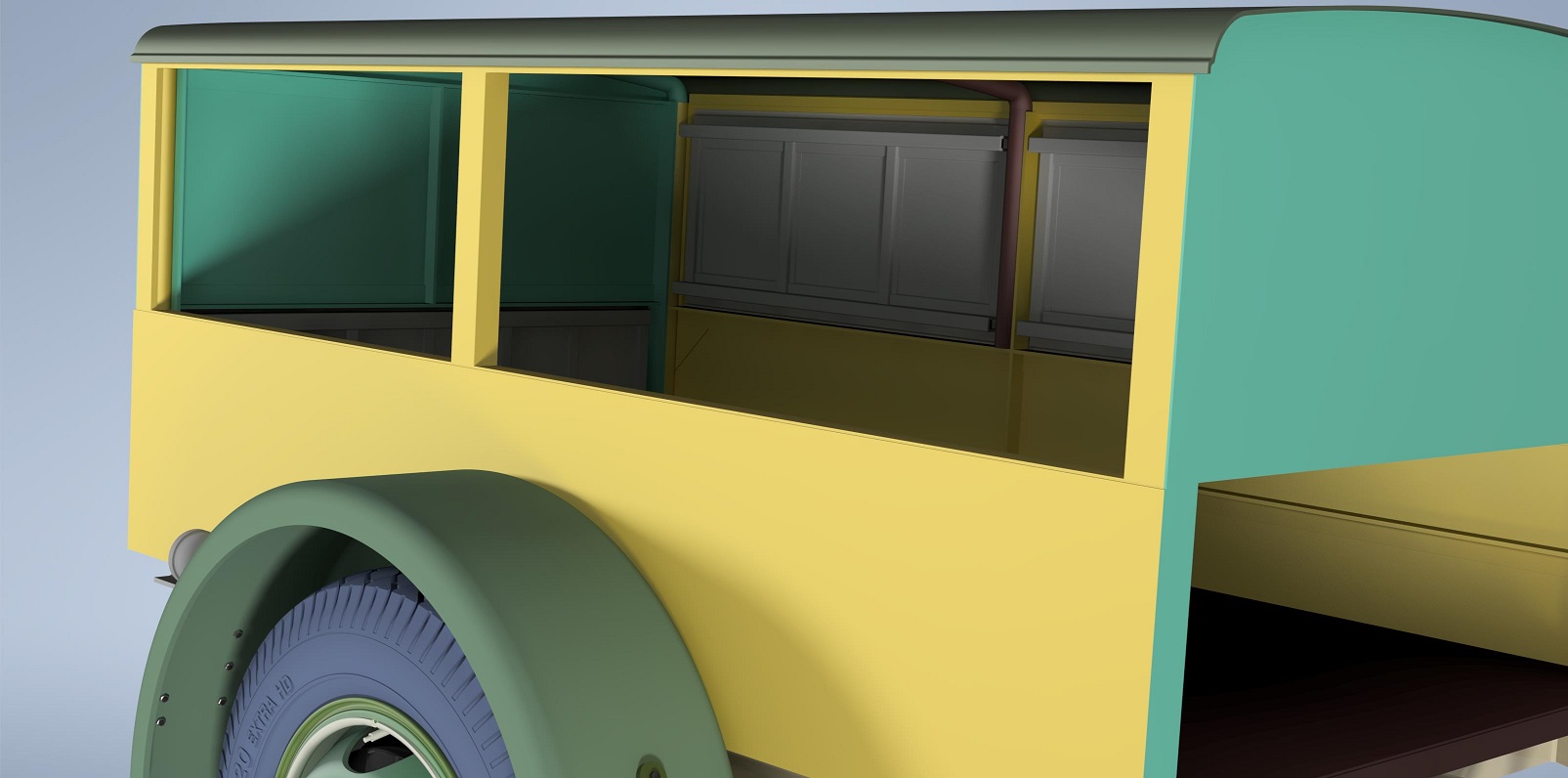

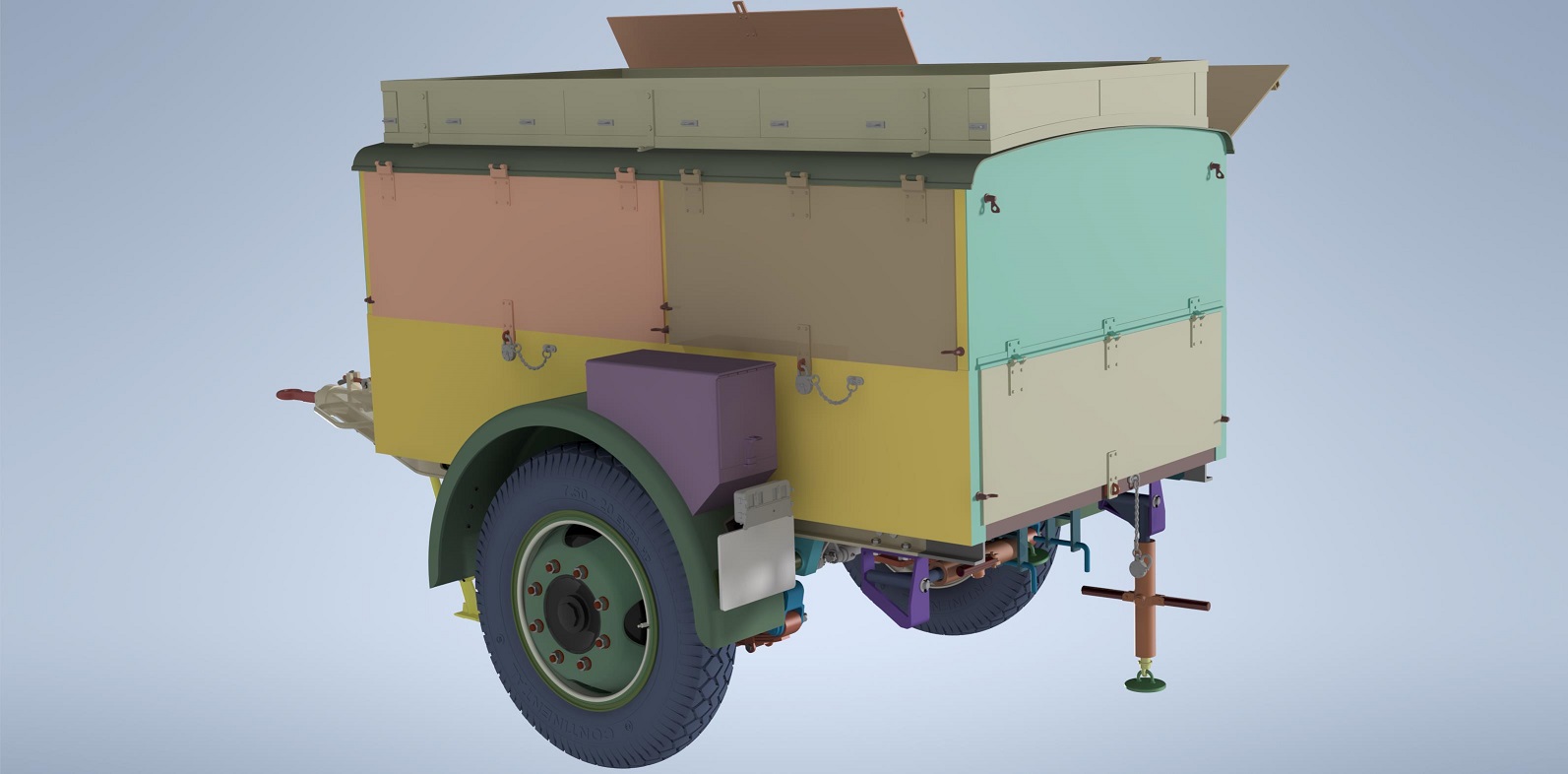

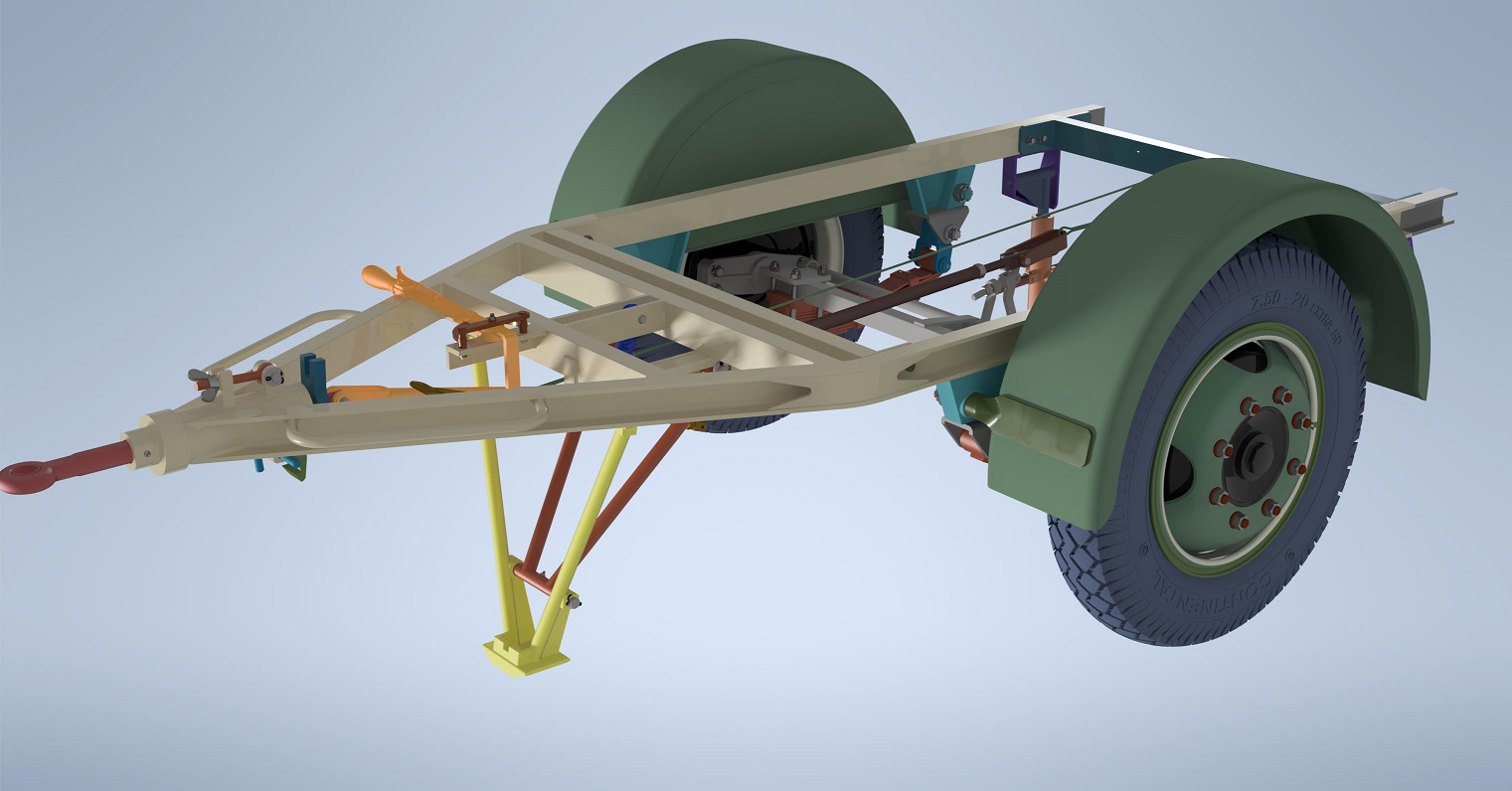

1/35 scale Sd.Ah56/57 ammunition trailer, often seen towed by Sd.Kfz.71 and 7/2. This kit is designed for 50micron or higher resolution printers. I have printed mine on Elegoo Mars Pro2.

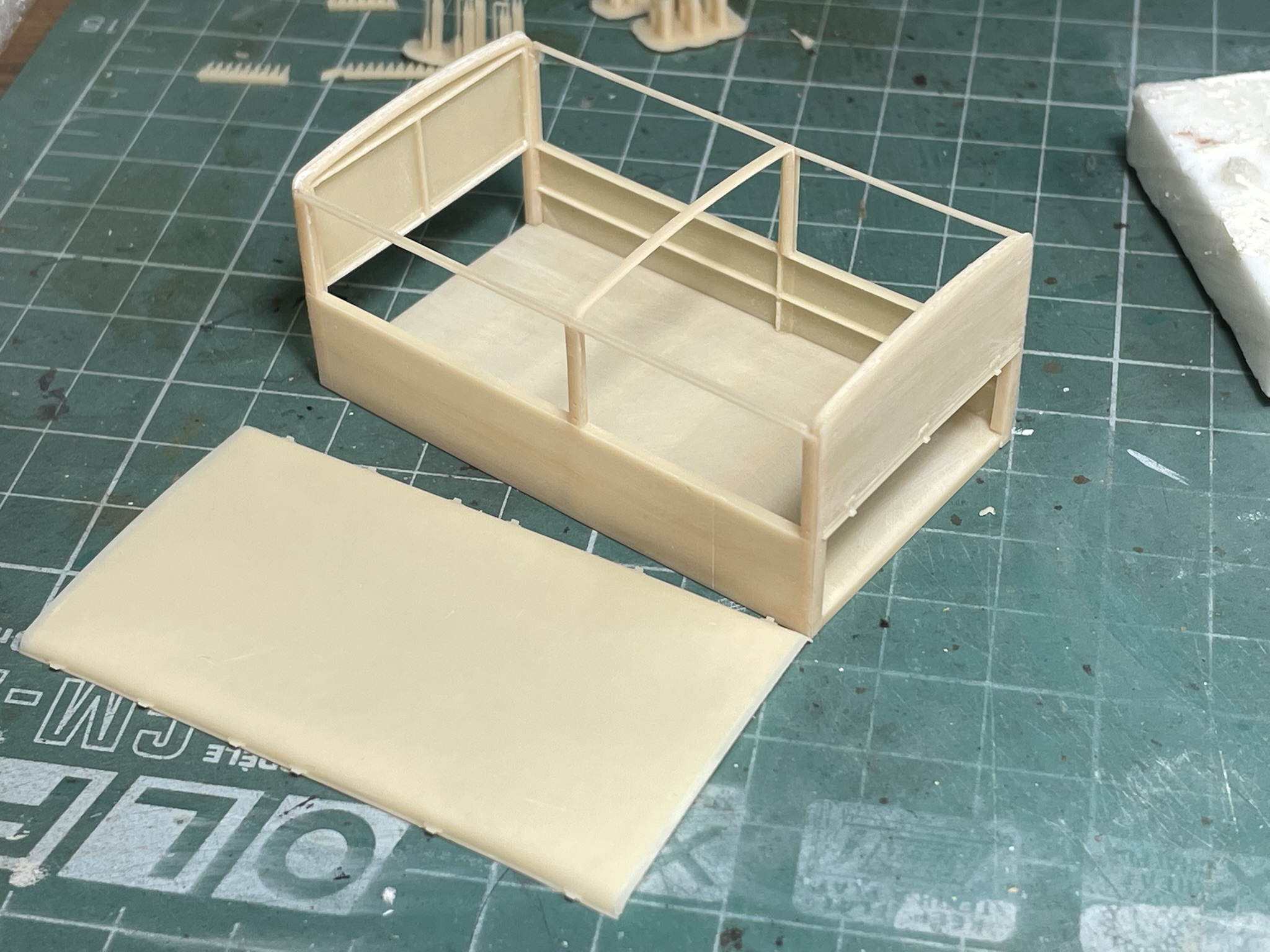

This is complex kit, that will require patience both printing, and assembling.

If you have any questions concerning this model, feel free to contact me via homebrewpart at gmail dot com.

Edit:
I have also included Chitubox files, with supported parts. Now you can rearrange parts and edit parts to your liking, or export parts with supports to your preferred slicer.


3D printing settings

Print @20 to 25 micron steps.

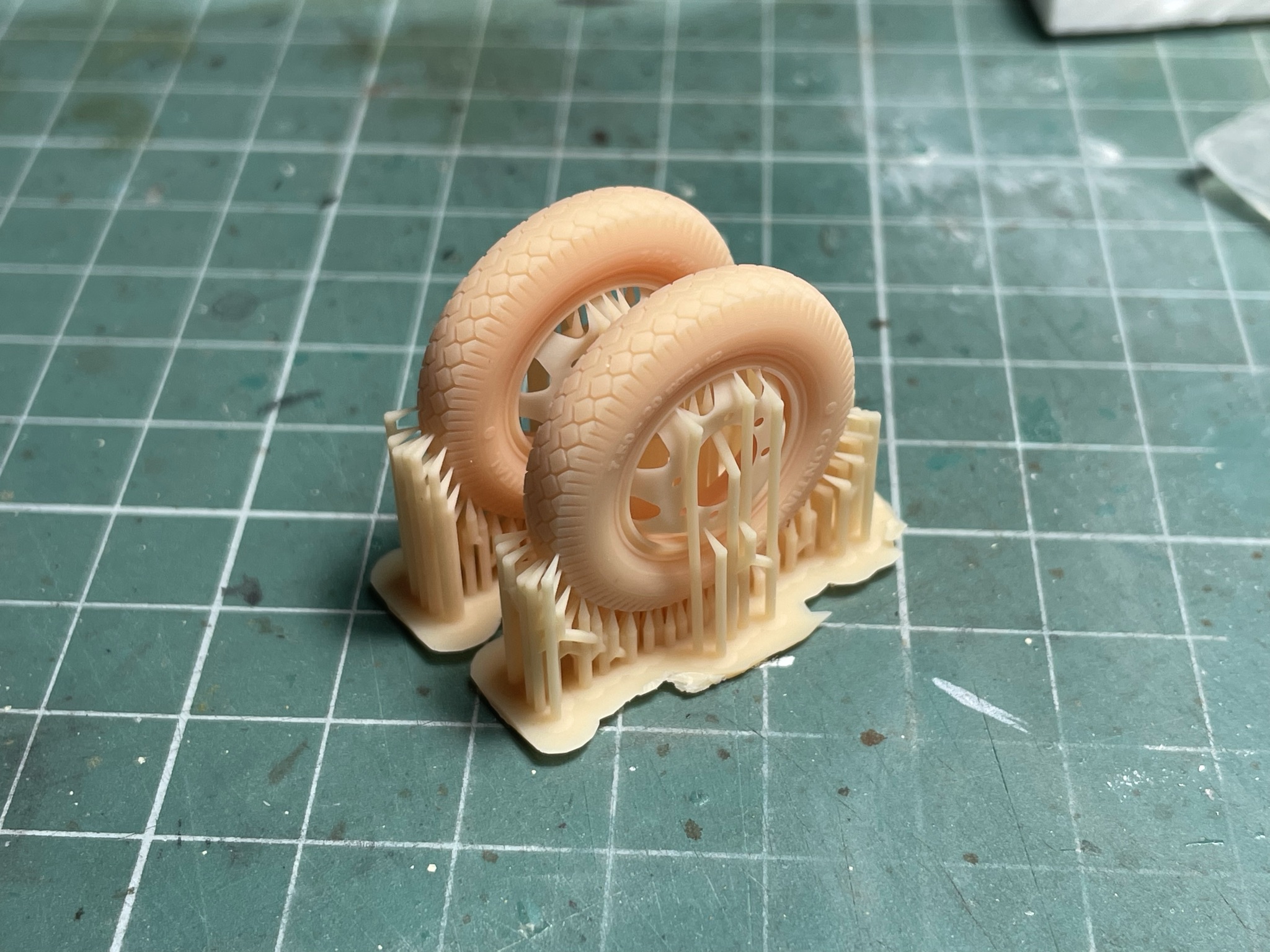

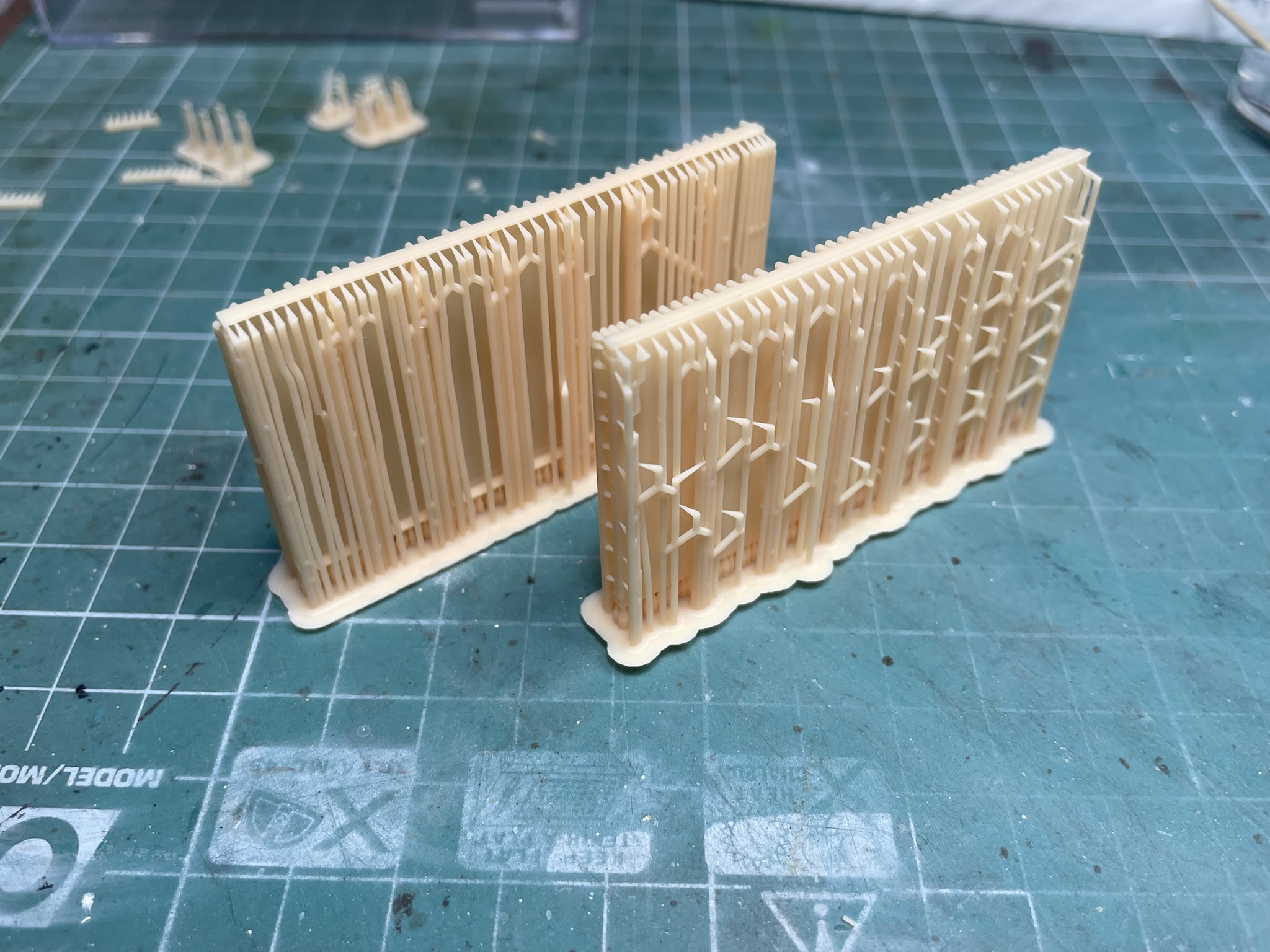

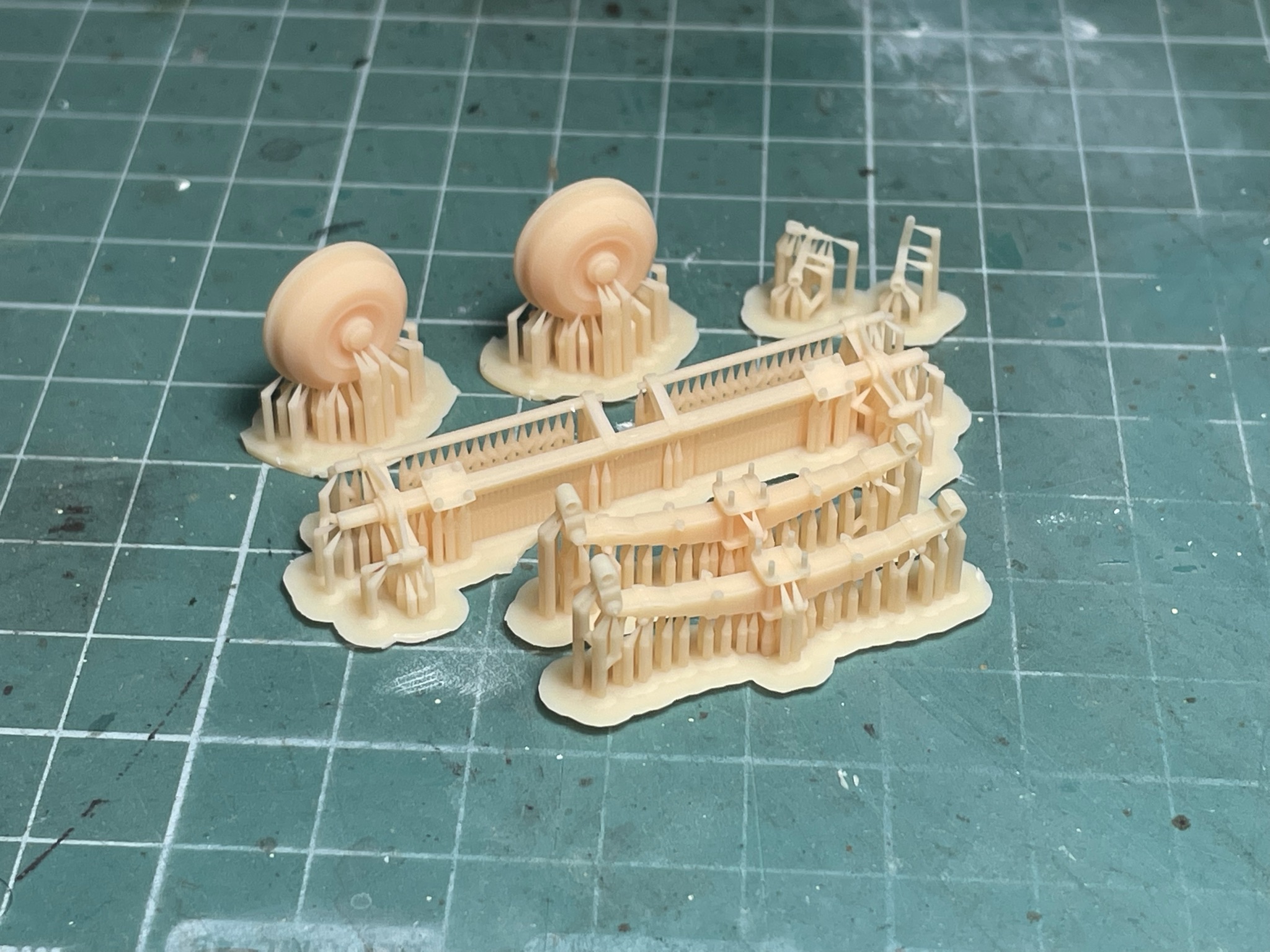

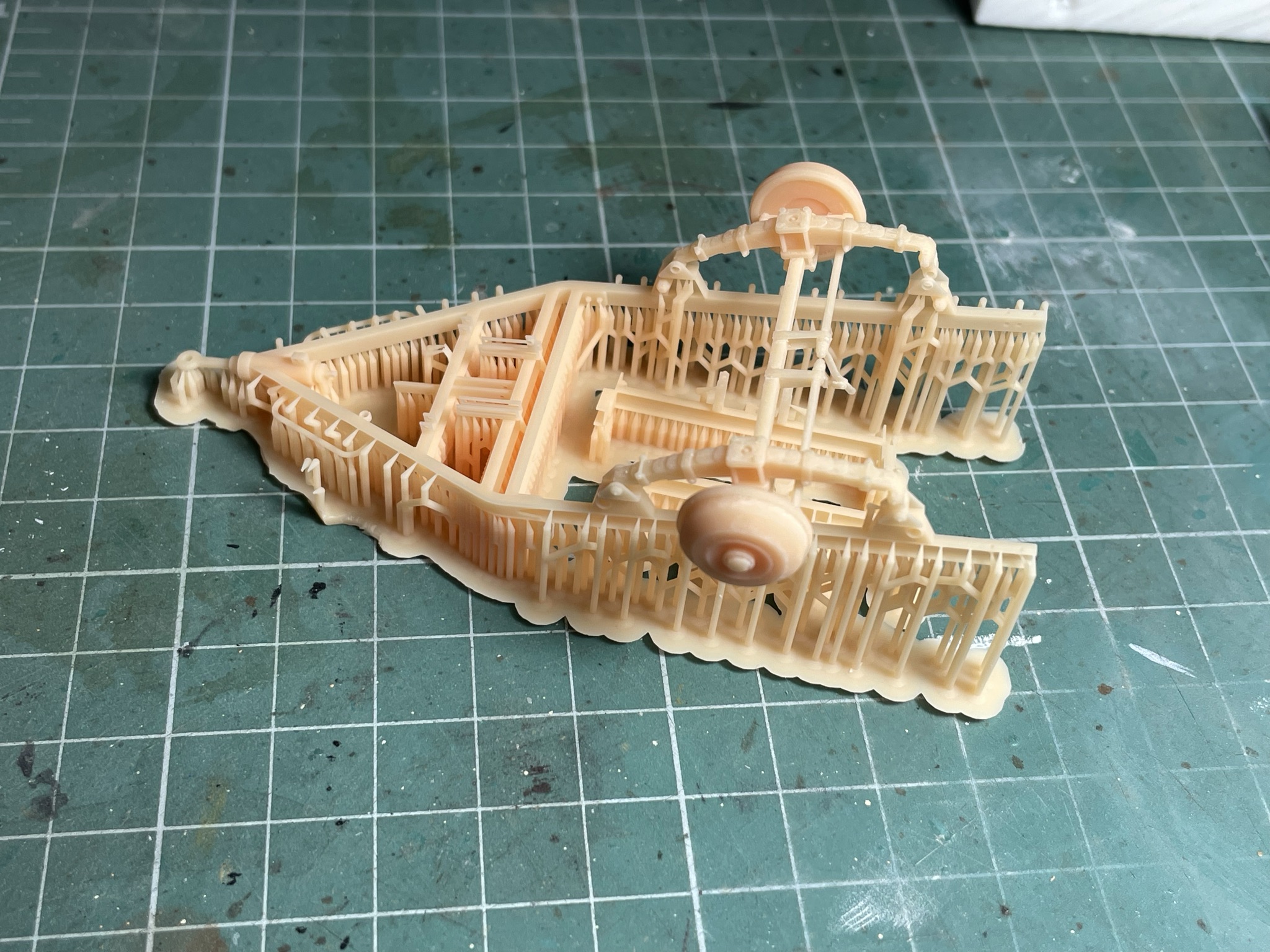

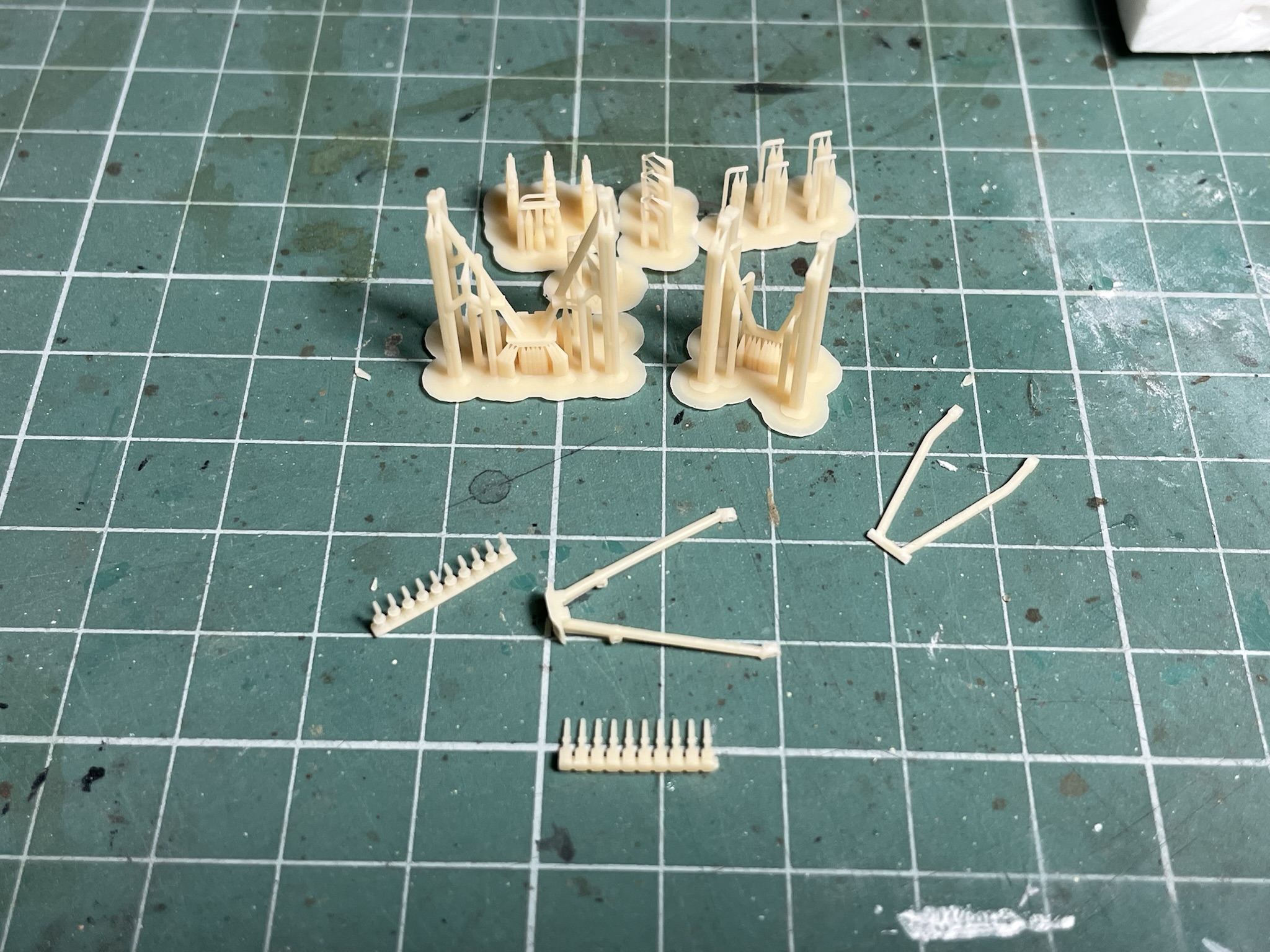

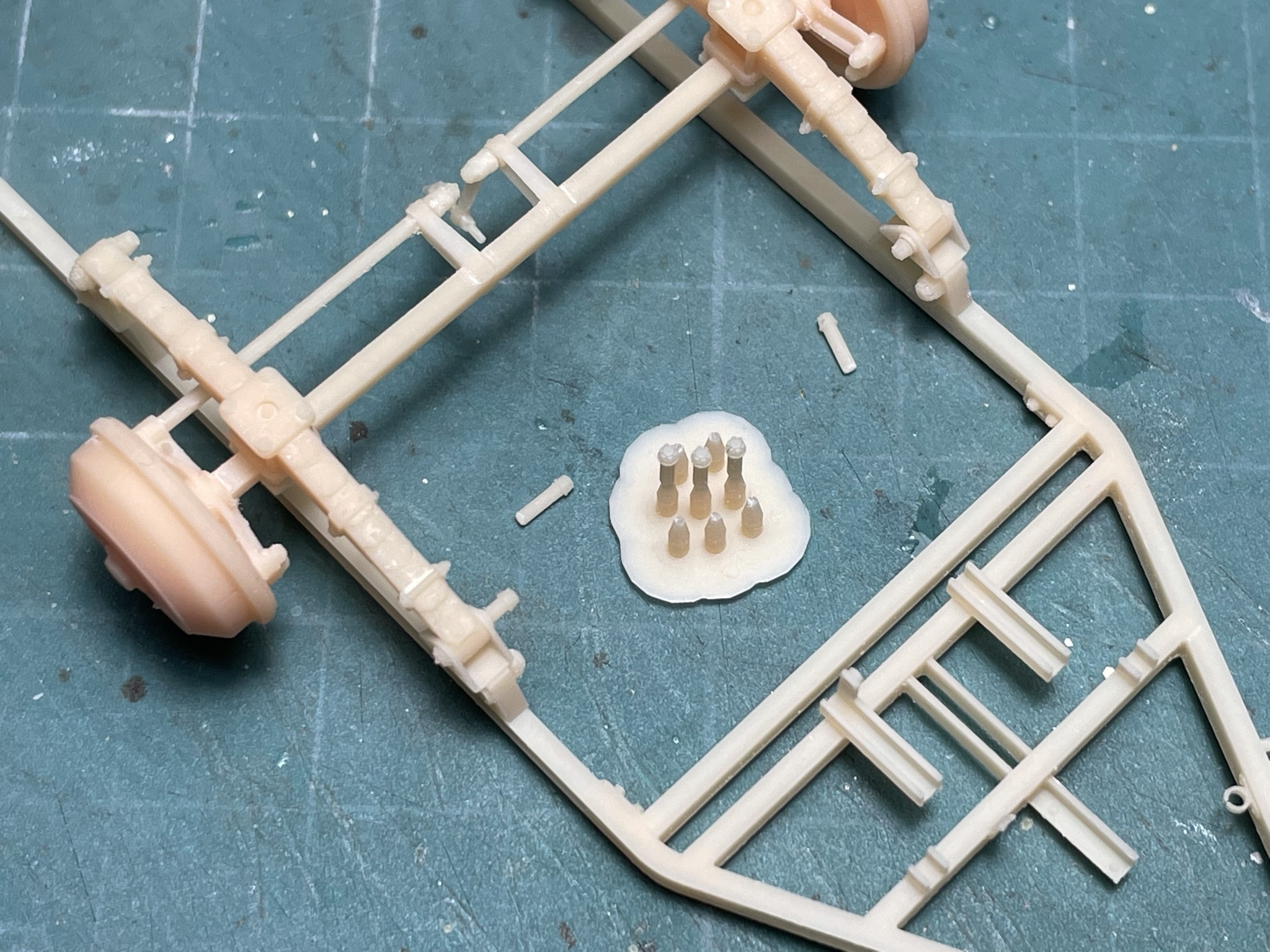

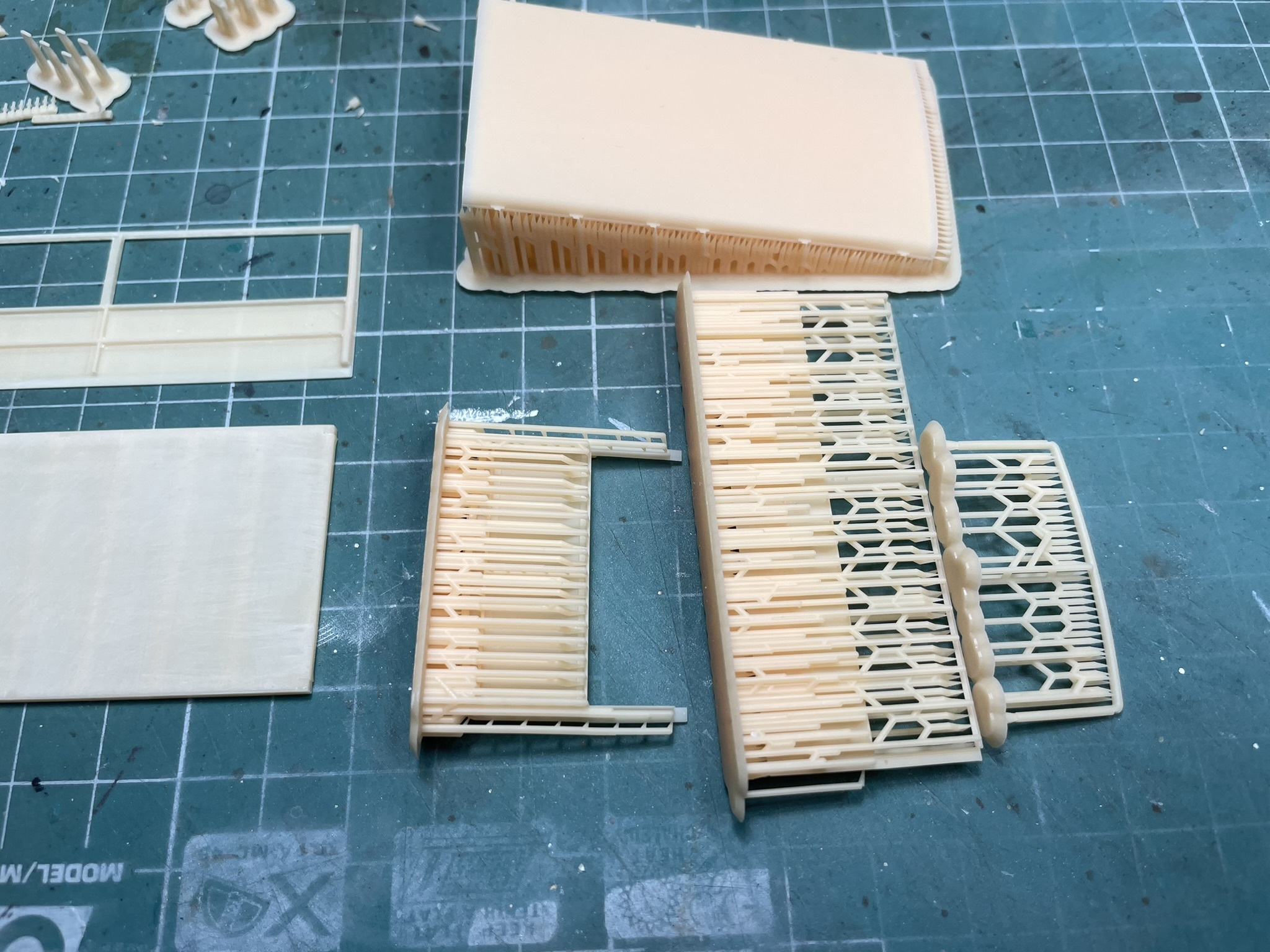

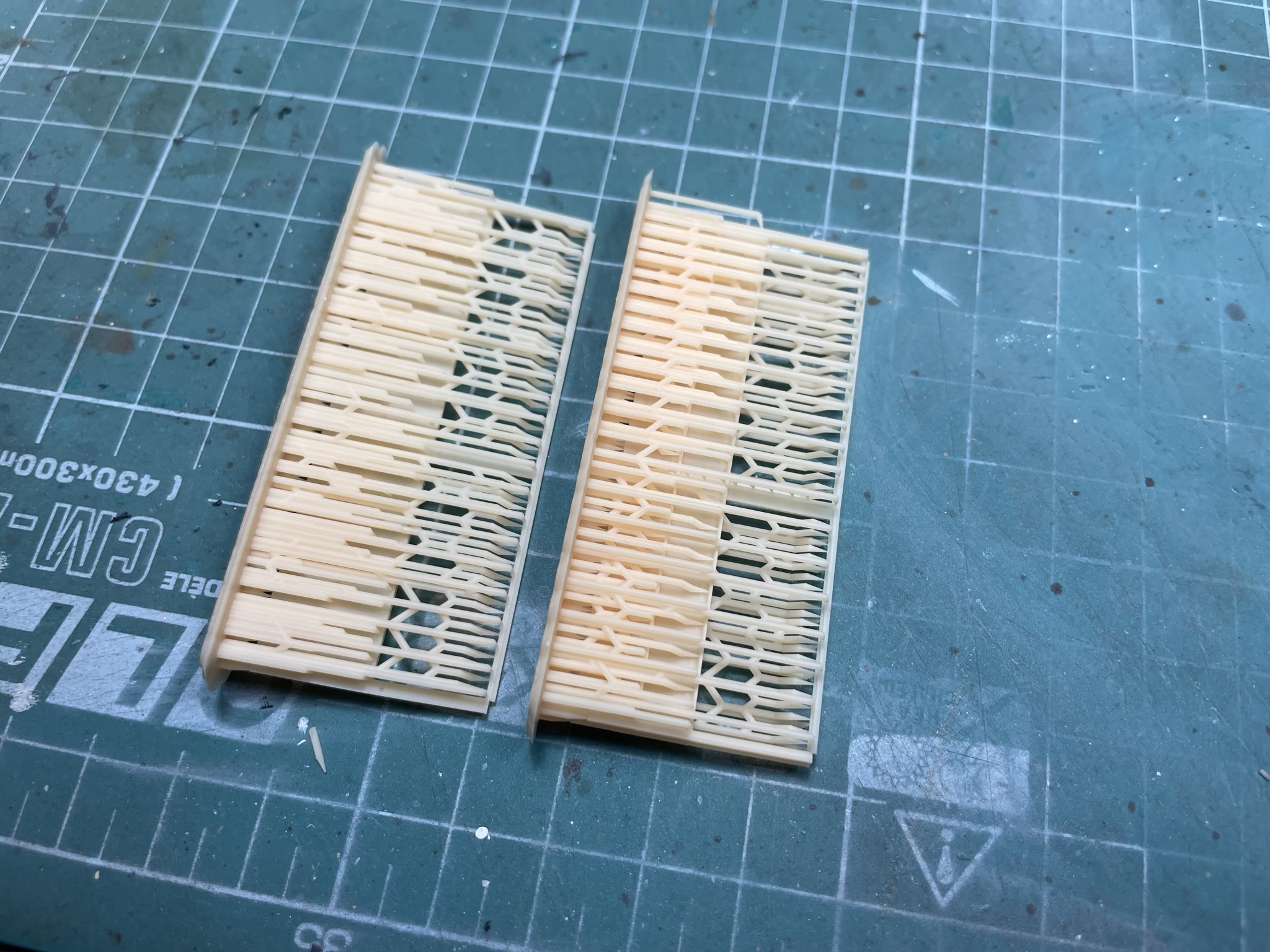

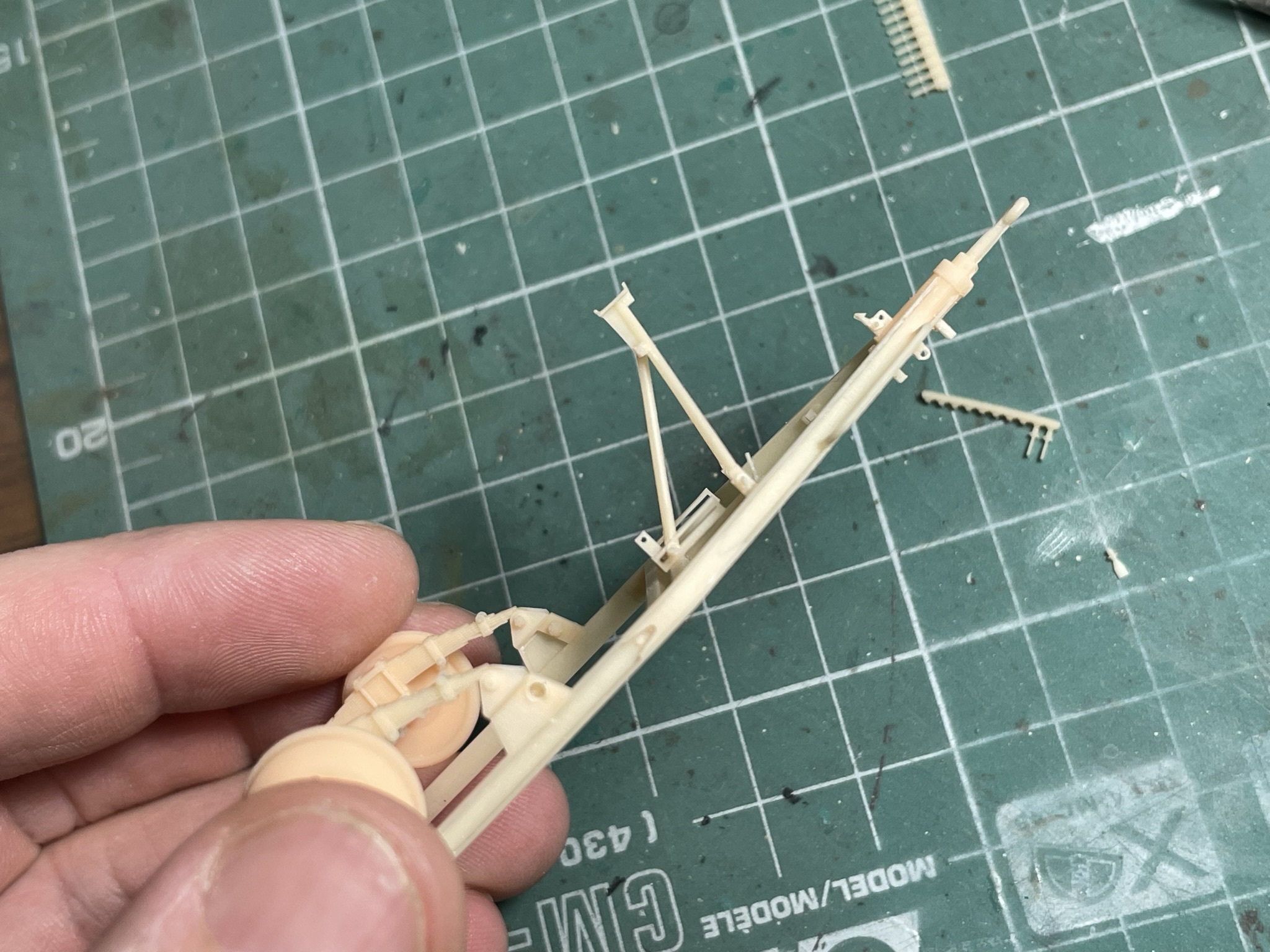

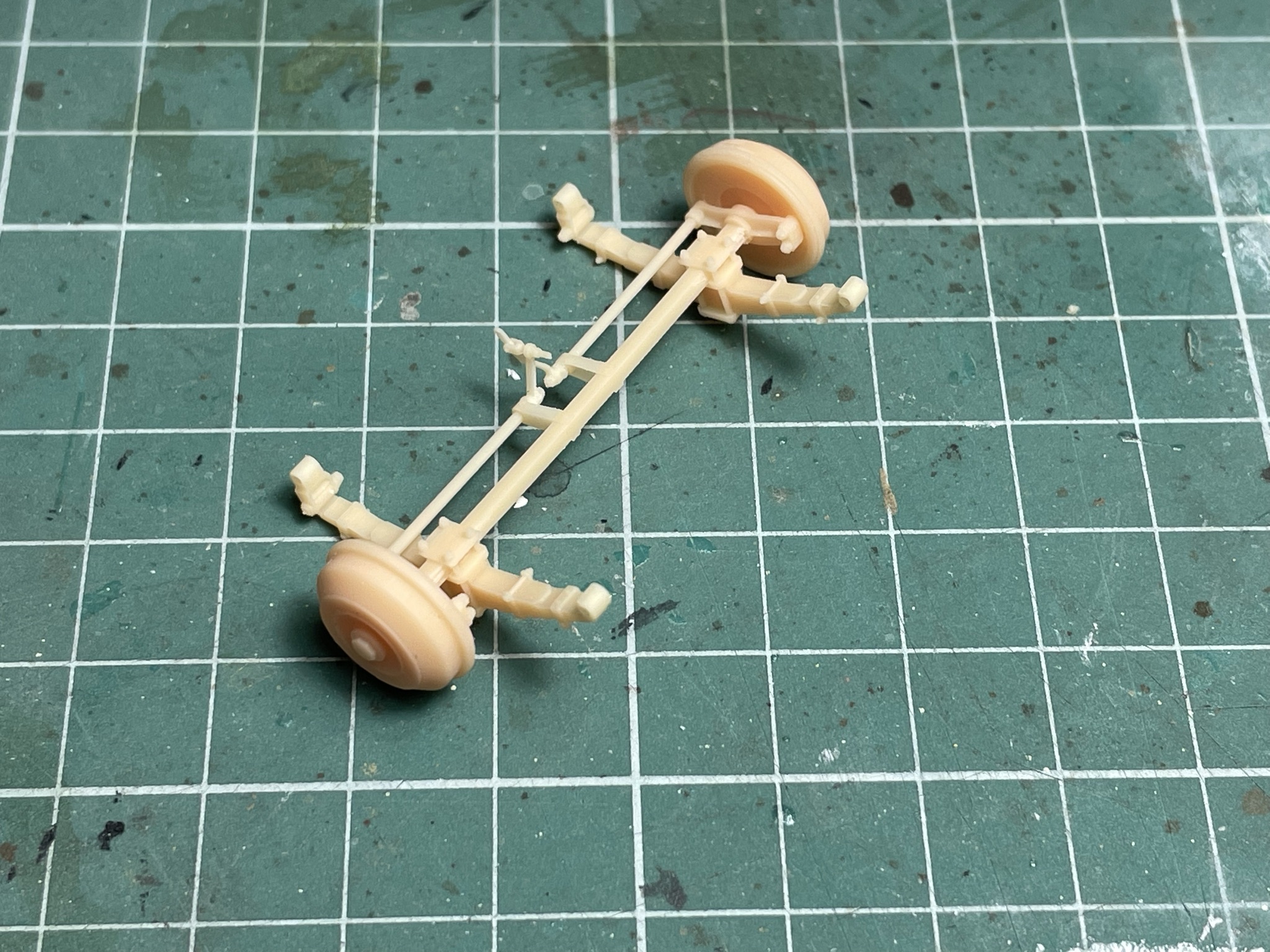

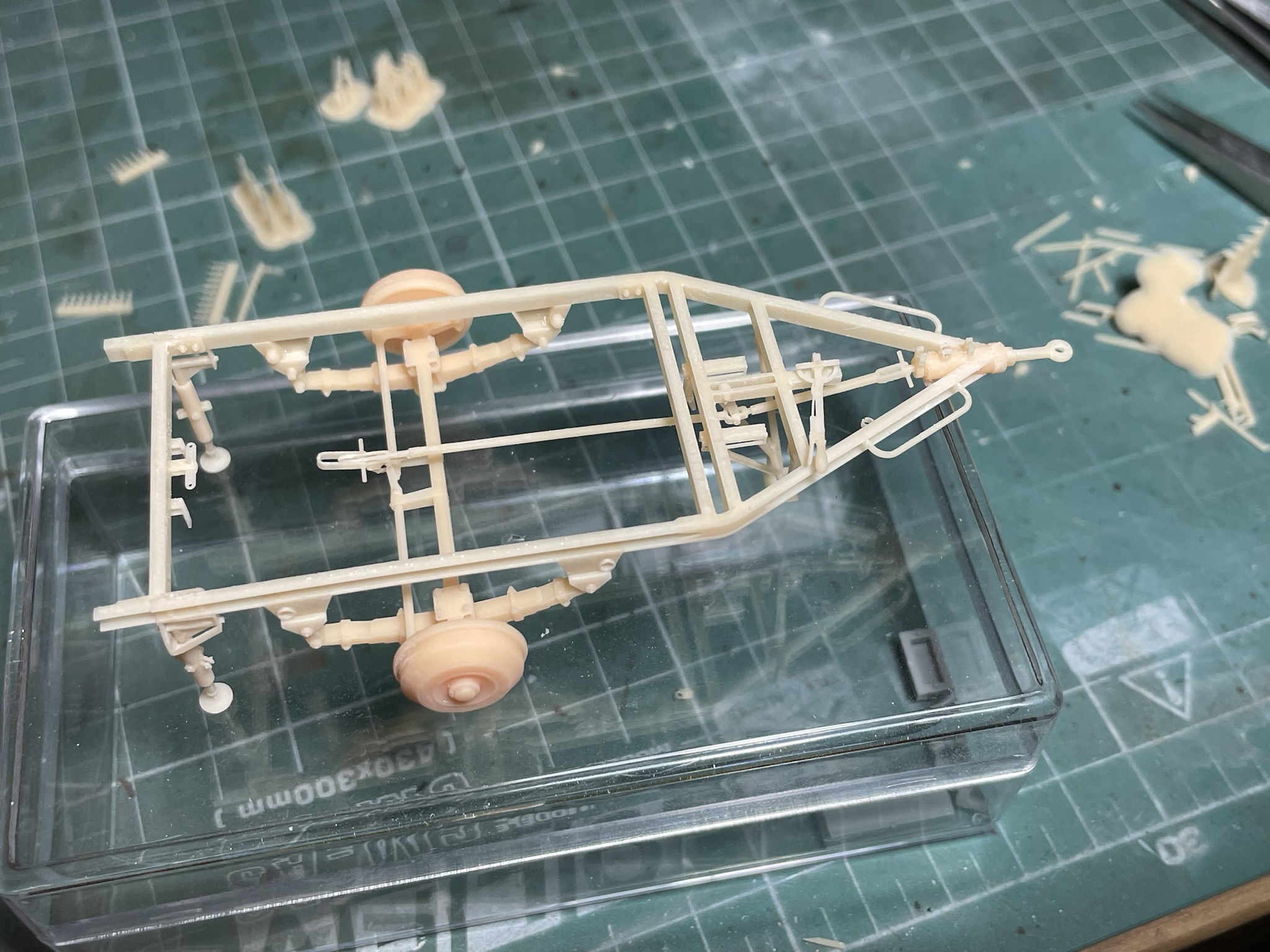

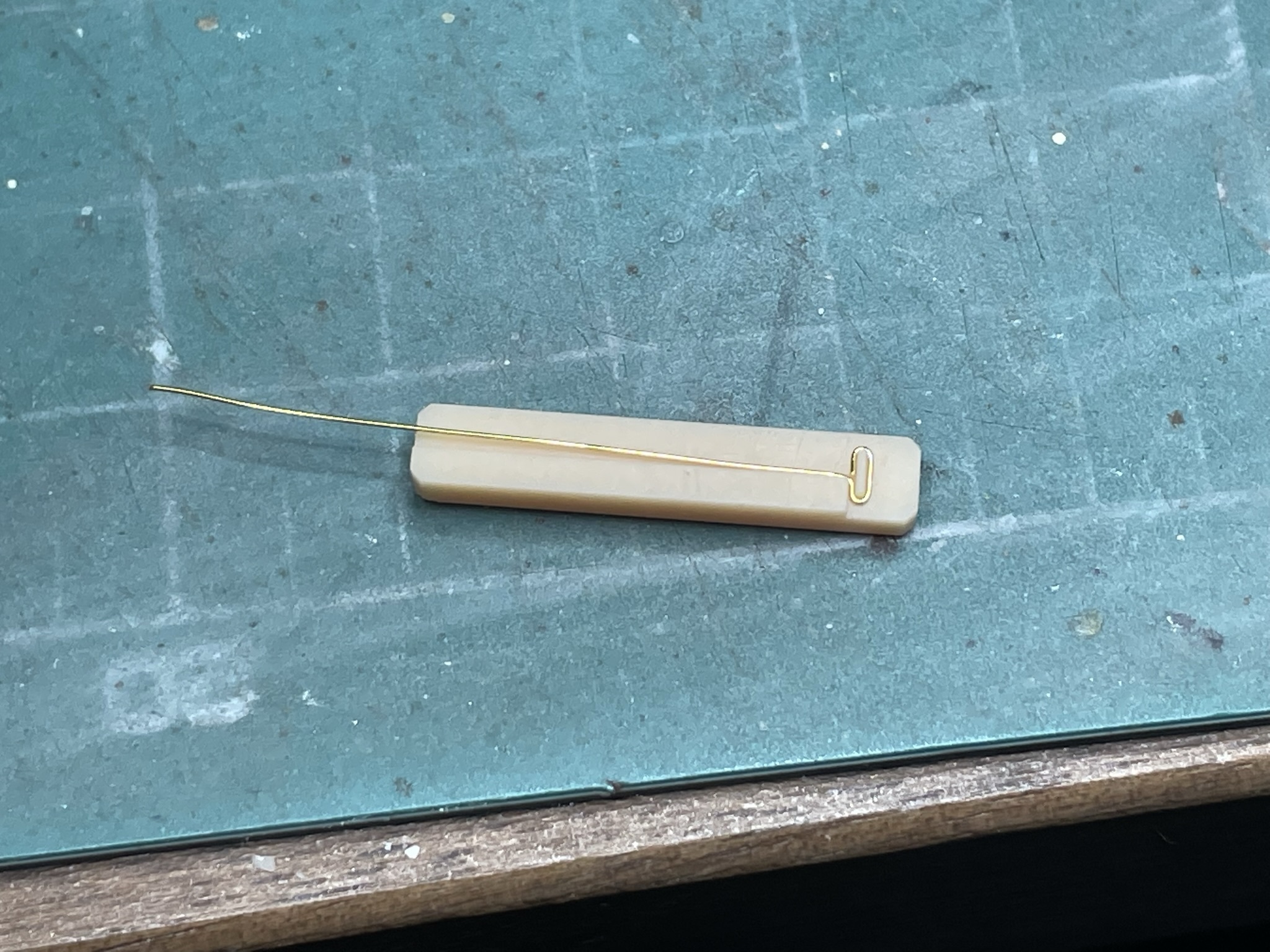

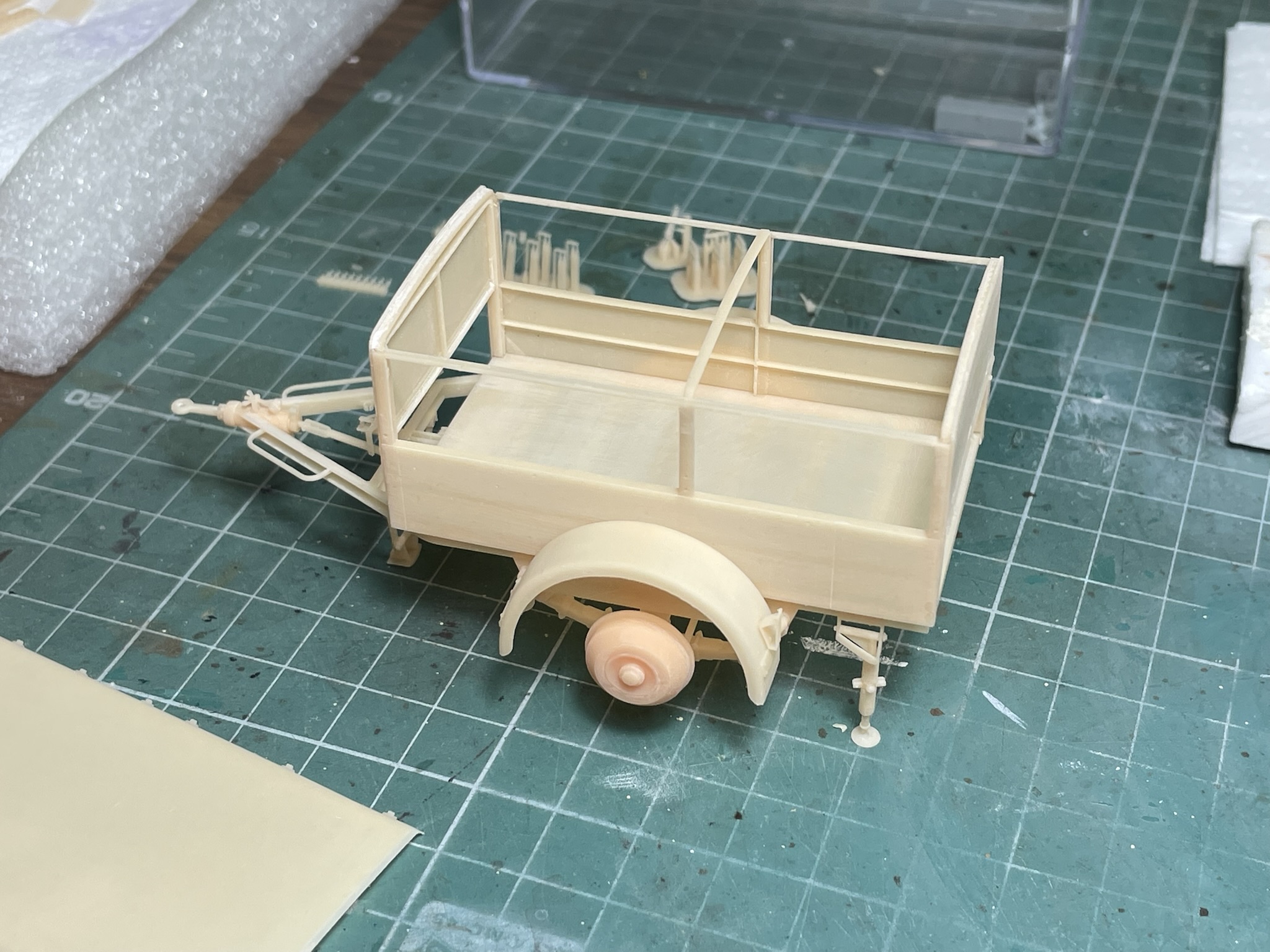

Print body panels vertical. Add supports from both sides, this is mandatory, especially in reinforcement areas. Else way, due to asymmetric pull forces, parts might warp. Look at pictures of printed parts.
Post cure parts with supports!. Only remove from supports after post curing. This will ensure that framework is straight and true. Parts removed prior full curing, might warp as they continue to cure. Leave them on sunny window sill to cure before removal.
If using auto-supports, use small at 90% density or higher. Support settings small, contact shape - sphere, contact depth - 0.1, contact diameter 0.15-0.18. Dont forget to add supports to handles, brackets etc (look at pictures of printed model).

3D printer file information
