Zonestar P802QR2 X Axis Extruder Mount with Tensioner

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 126 views
  • 2 downloads

3D model description

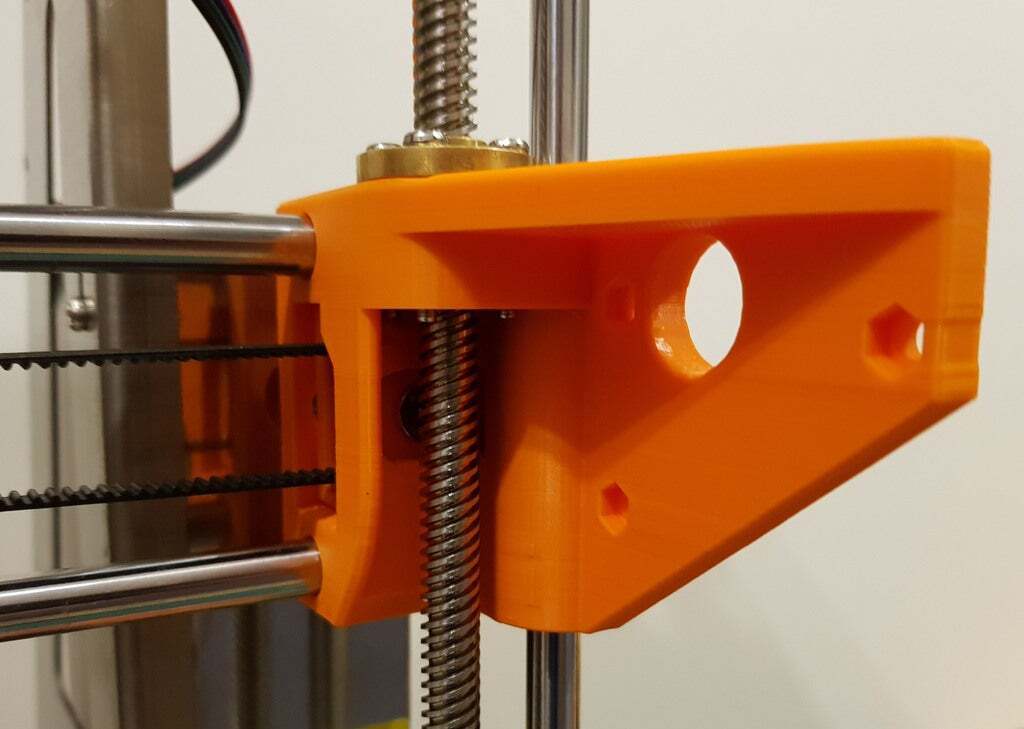

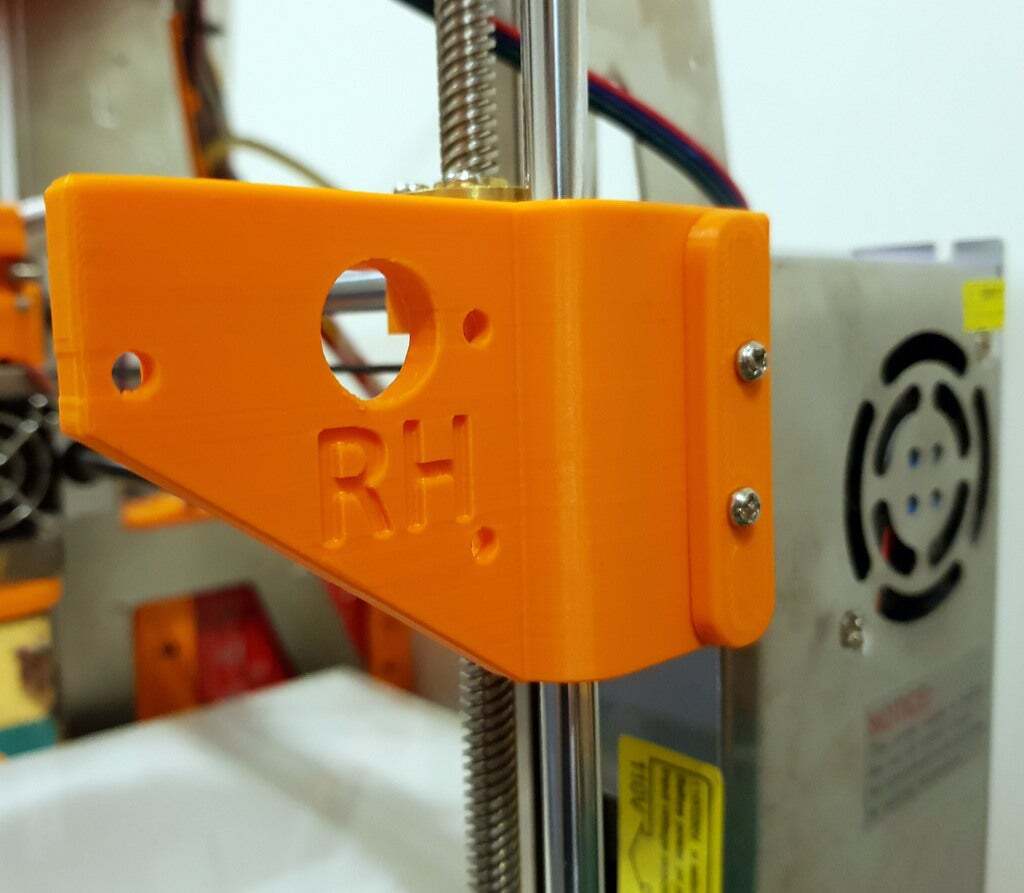

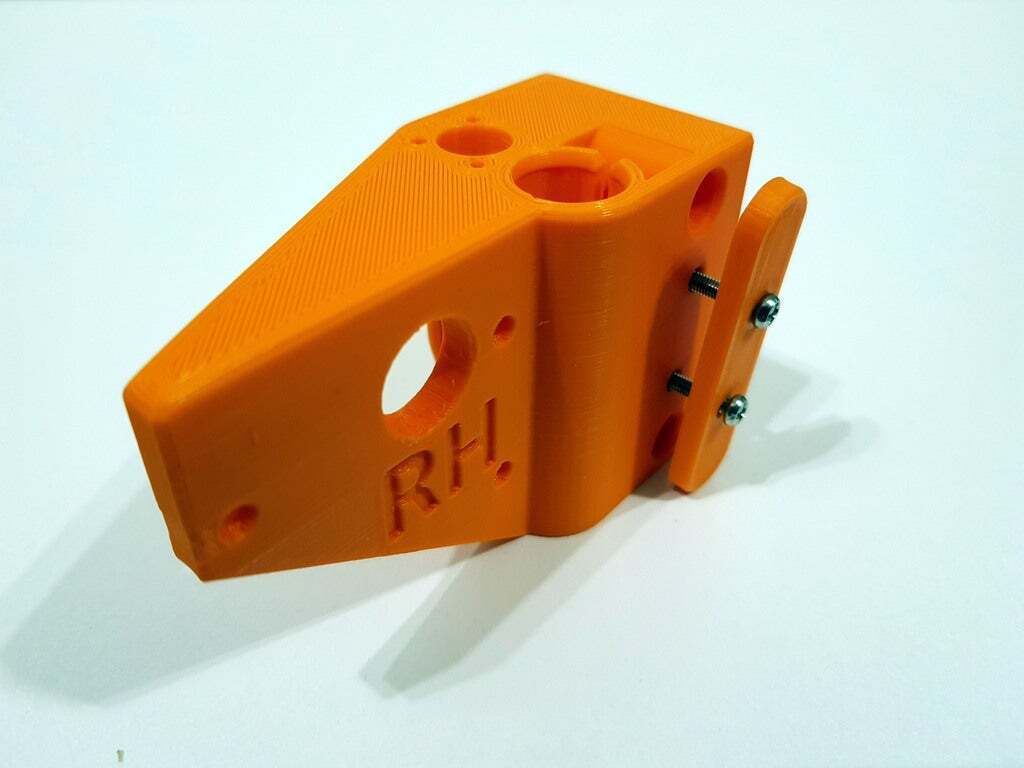

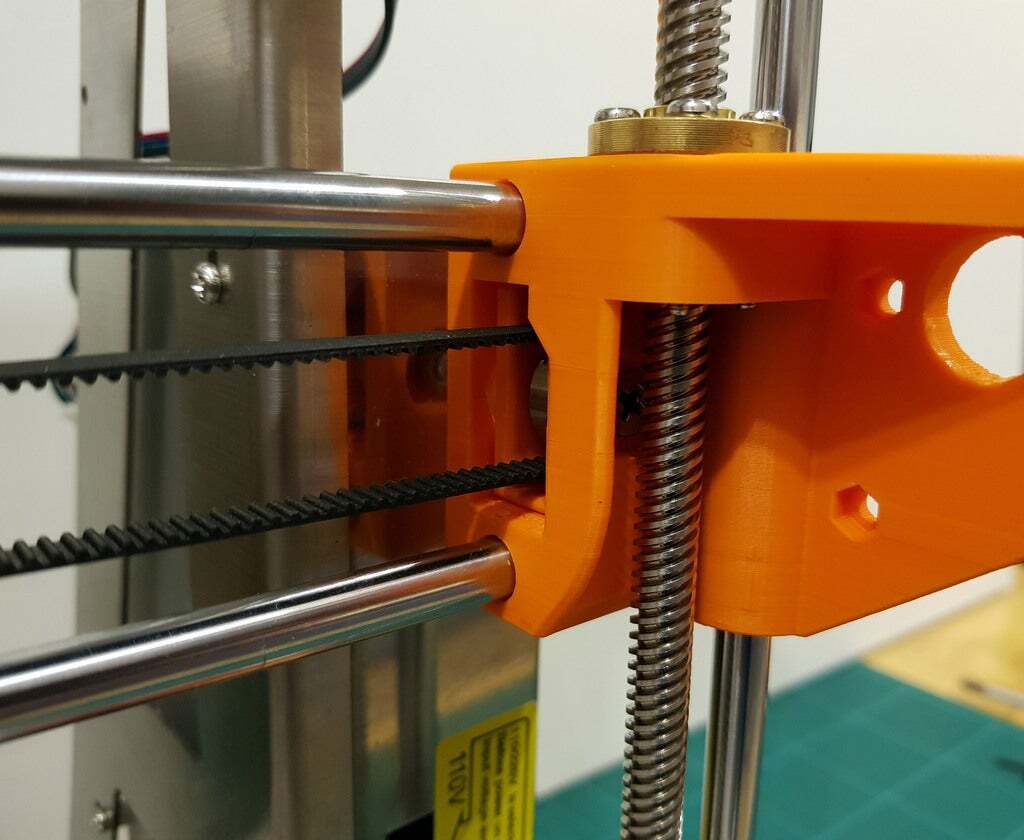

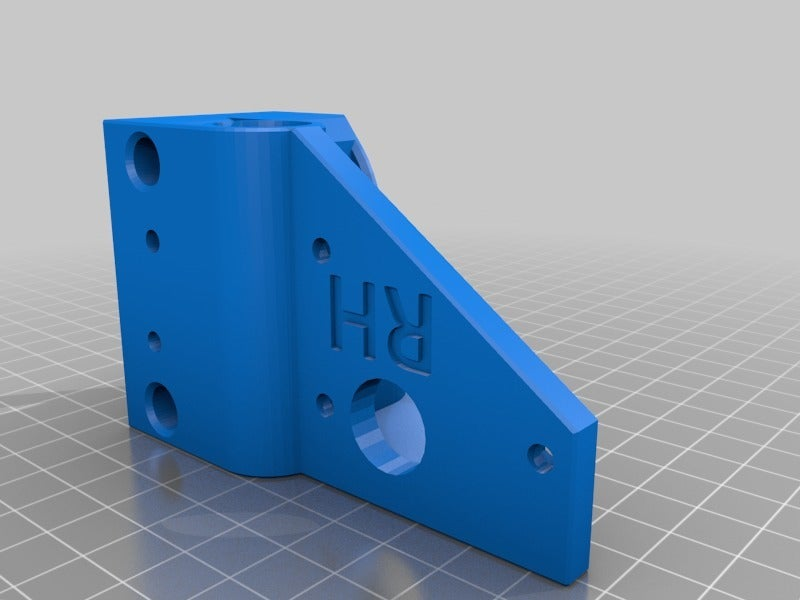

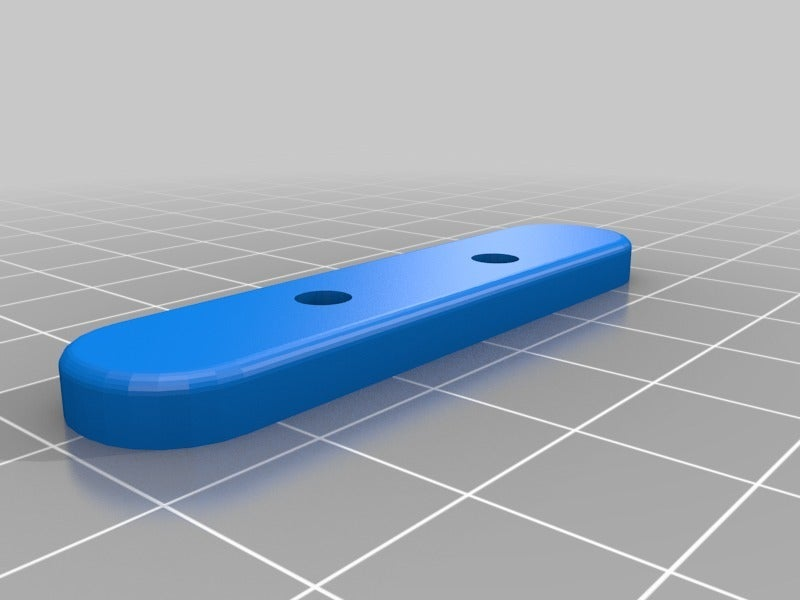

This is a revision of my Right Hand X Axis extruder mounts for the Zonestar P802QR2 (https://www.thingiverse.com/thing:3065295) that includes a Tensioner assembly for the X Axis drive belt.

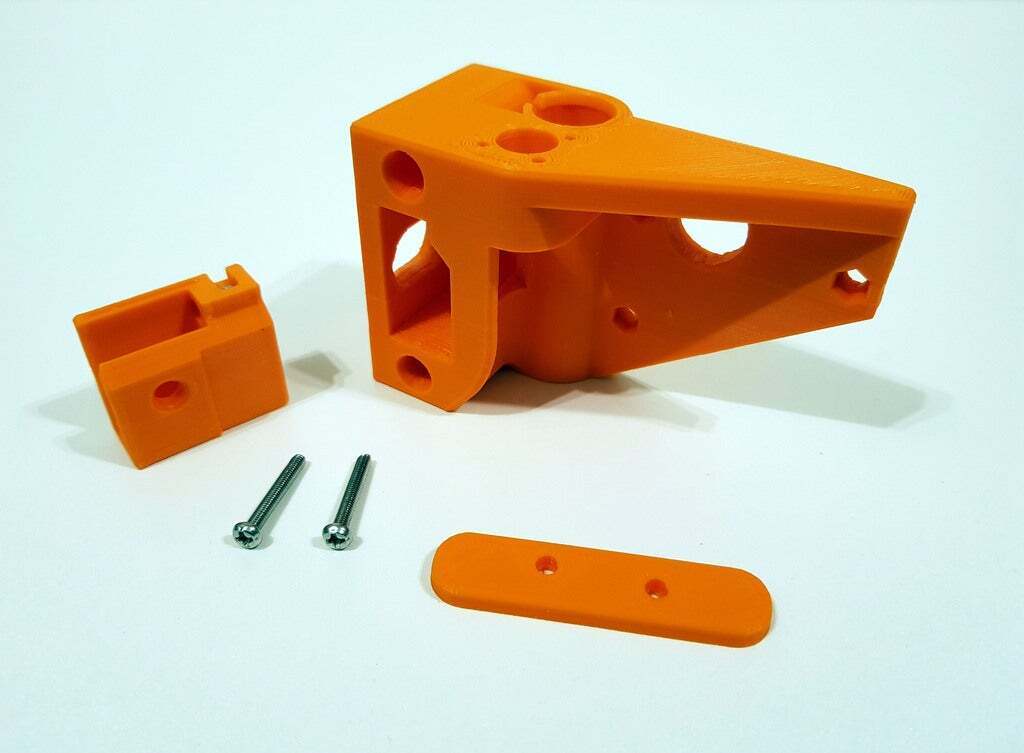

The Thing utilizes the existing bearing and bolt assembly for the belt drive but you will require additional 2 x M3 Nyloc nuts and 2 x 20 mm long M3 bolts ( I used 2 of the spare bolts supplied with the original kit).

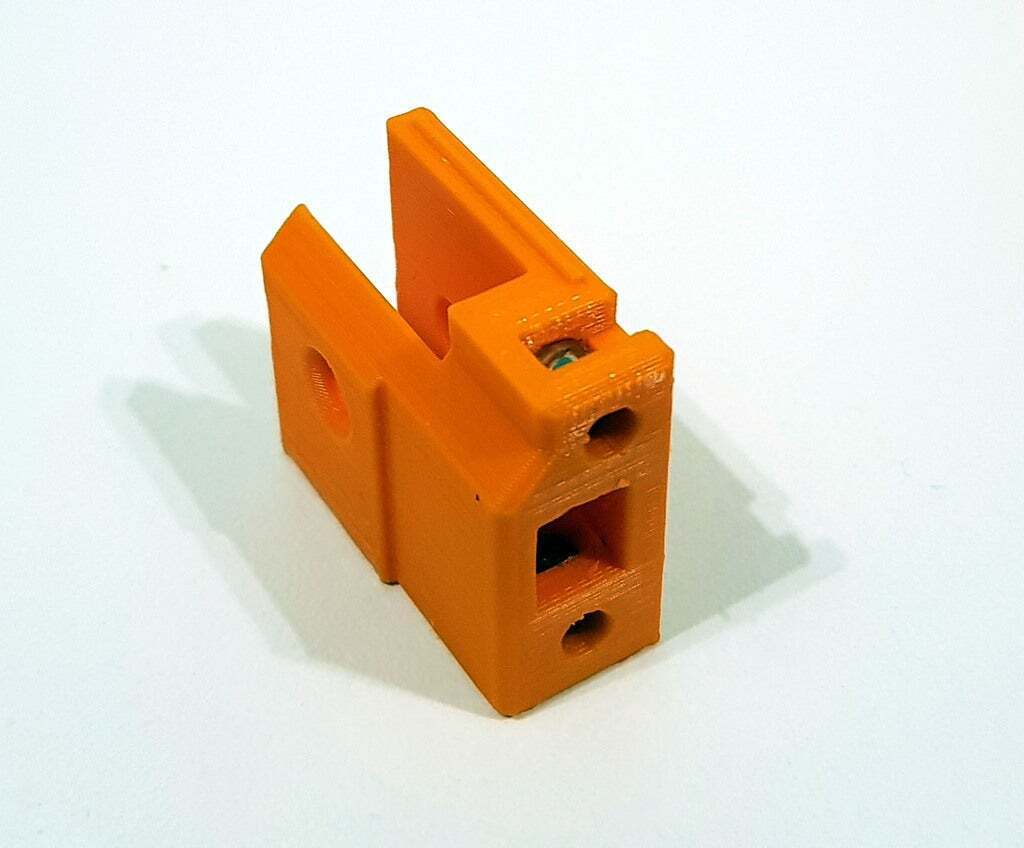

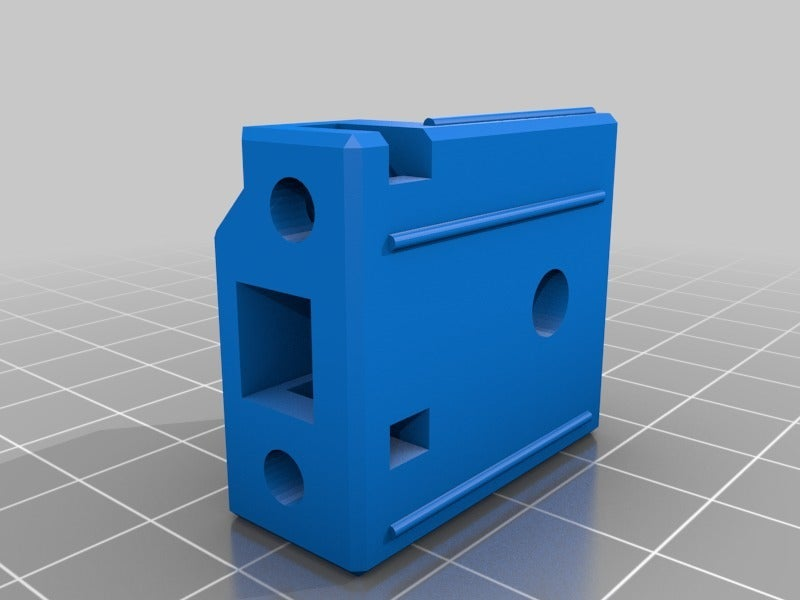

I have included some 0.5mm runners to all sides of the tensioner block. These can be trimmed dependent on printer tolerance to provide a nice snug fit to components.

All parts can be printed without support but may require some cleaning up where there is bridging. I used a 30% infill with 4 perimeters to make the print resilient.

MAKE SURE THE TENSIONER BOLTS DO NOT FOWL\RESTRICT THE DRIVE PULLY\BELT PRIOR TO ASSEMBLY\USE.

UPDATE: 14\10\18 Uploaded new version of Tensioner Block which due to its orientation did not appear correctly in the slicer (although still prints OK).


3D printing settings

-

  • 3D file format: STL
  • Publication date: 2021/05/28 at 01:35

License

CC BY

Tags

Creator

Multi-Disciplinary Professional Designer with 35 years contract experience in Interior, product and Furniture Design. Since receiving a rebadged Wanhau Duplicator Plus (Balco from Aldi) 3d printer from my wonderful wife for Christmas 2018 I am now using my design skills for personal 3D product creation.

3D Printers:

CR-10S
Ender 5
Hypercube Evo
2 X Ender 3 Pros
Ender 3 v2
Prusa Mini Clone
Iframe (not yet published)
