LY Drawbot corrector
:still():format(webp)/https://files.cults3d.com/uploaders/18555091/illustration-file/09f05500-f401-4e67-8c66-274a16f189d5/IMG_20210603_121306.jpg)
/https://preview3d-images.cults3d.com/variants/5pvm2f8p9v4x5kdxpxcau4fe0dyn/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
/https://preview3d-images.cults3d.com/variants/9iv4u34n3w0igftkchq59g9ww3u9/cbbb7afd8a0ec9560f7f7940881f98c31dcb04582a03efcc135070de65821be8)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 905 views
- 0 likes
- 24 downloads
- 0 comments
- 0 makes
Designer
3D model description

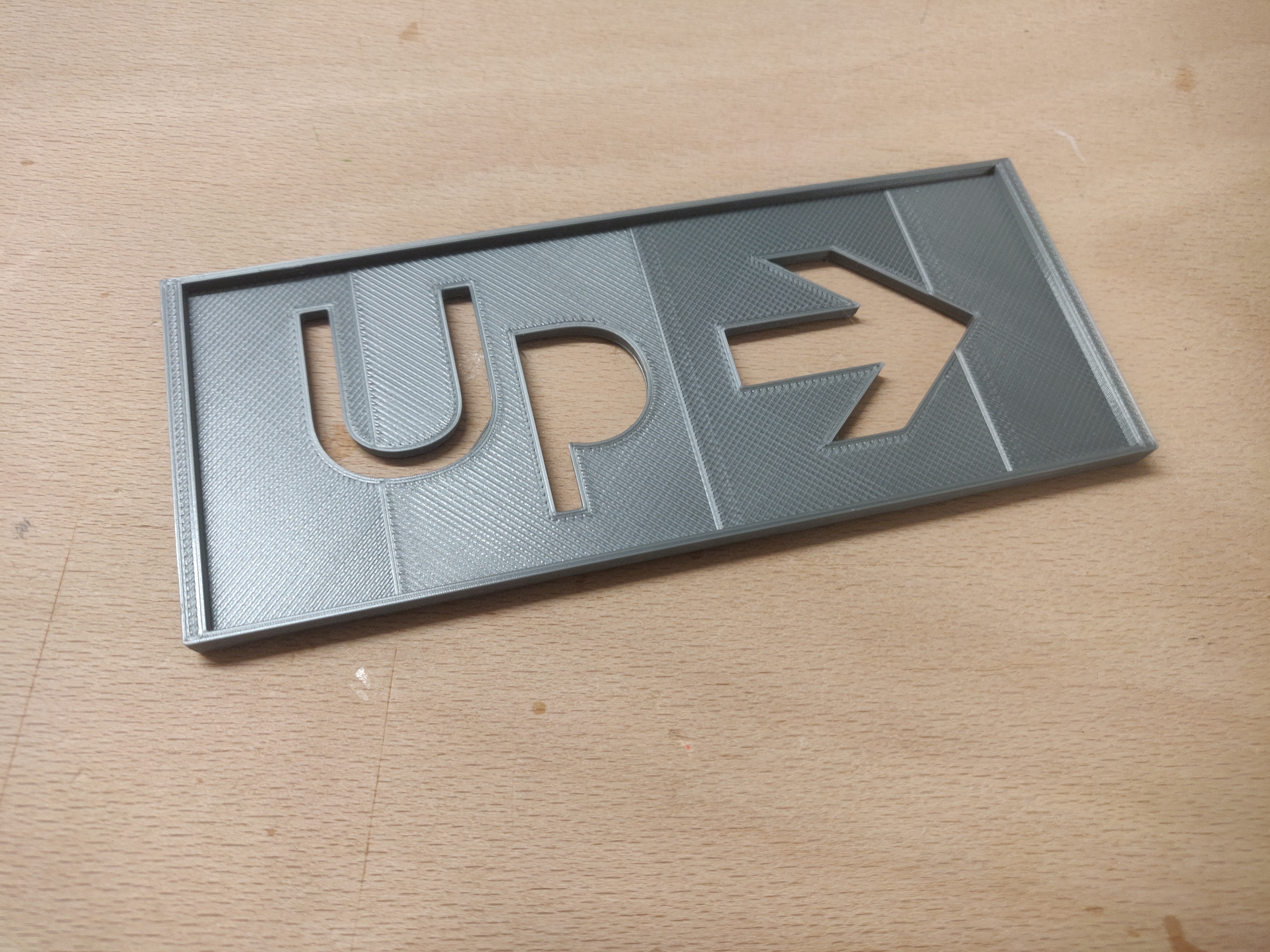

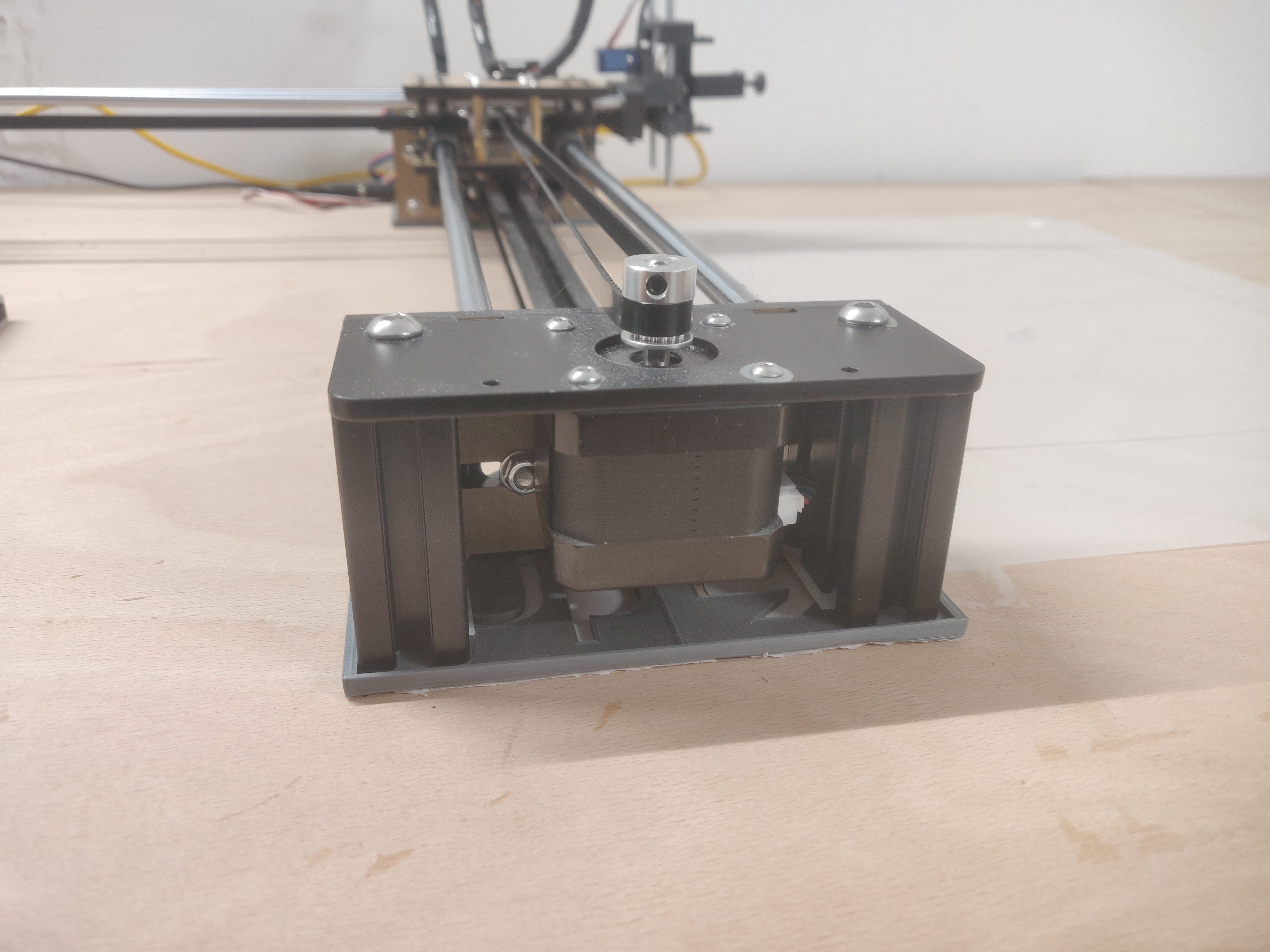

Those models are made to work with the XY plotter machine kit. This kit is based on the first Axidraw developed in open source available for a cheap price. Those models are made to correct the balance made by the weight of the arm when it's fully extend. There is at least 2mm of bending on the arm.
The arrow must be turn in the same way than the arm
The large stl is for electronic side.
3D printing settings
Default print for a 0.4 nozzle is 0.2 layer height
If you want to enhance the precision try printing it with a 0.12mm layer height. What matter is the height, the rest is up to you.
3D printer file information
- Design number: 443081
-
3D design format: STL Folder details Close
- axidDraw-correcteur-Axidraw--large.stl
- axidDraw-correcteur-Axidraw-normal.stl
- Publication date: 2021-06-03 at 10:15
