X Class, Utilaje para soldar cables al ESC

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 715 views
  • 1 like
  • 17 downloads

3D model description

Saludos mundo Thingiverse!!

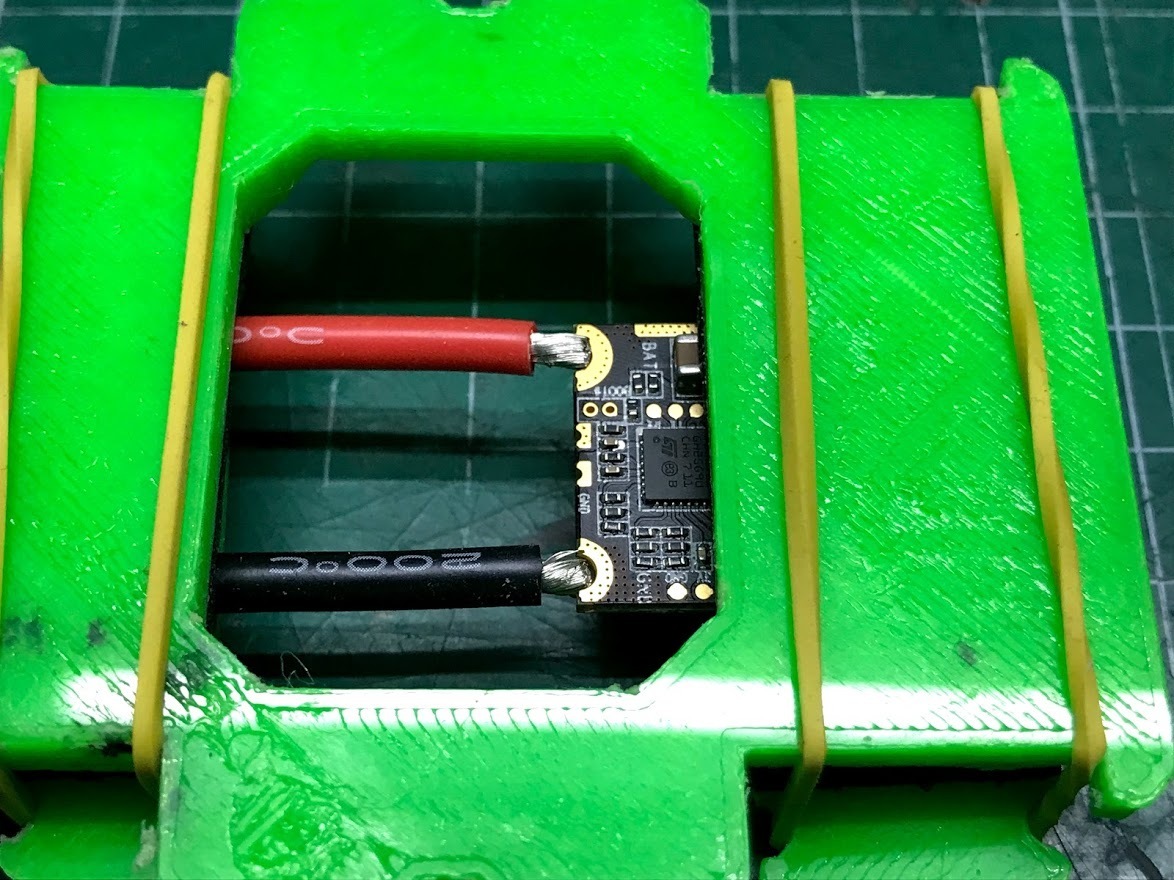

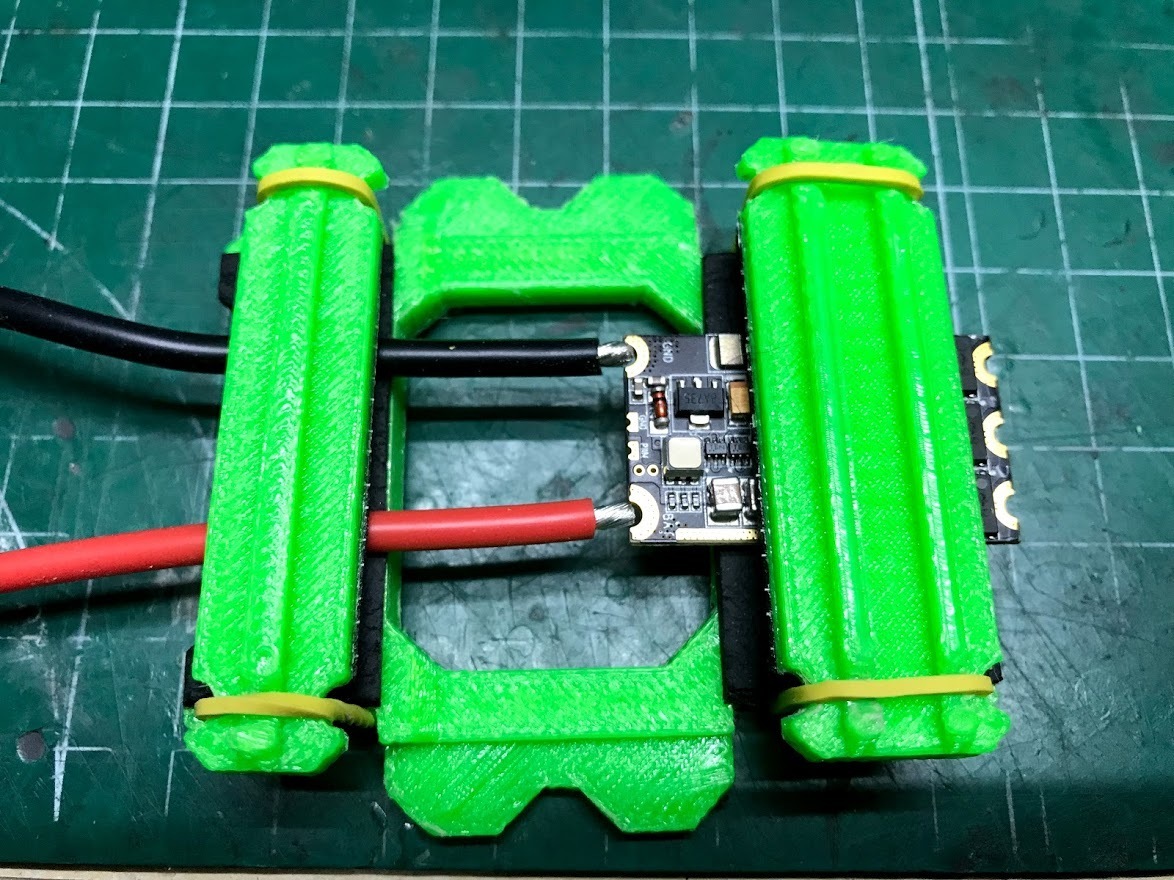

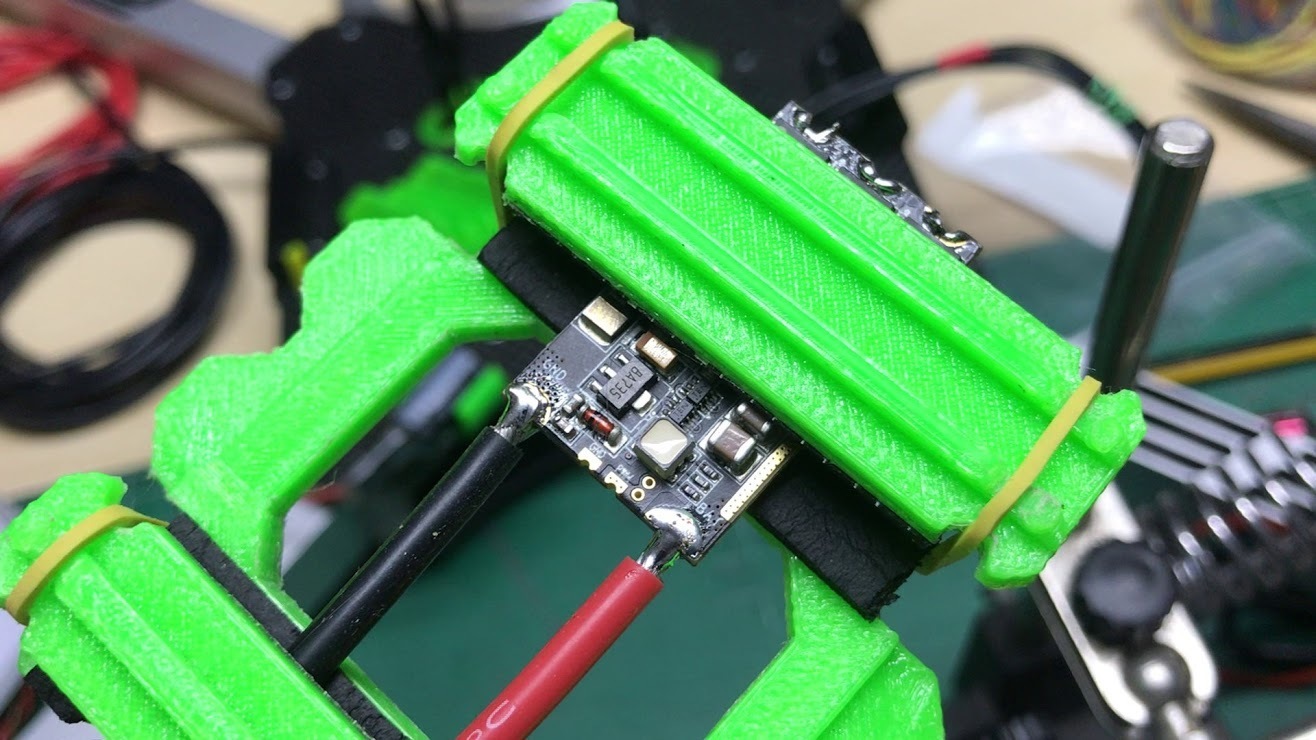

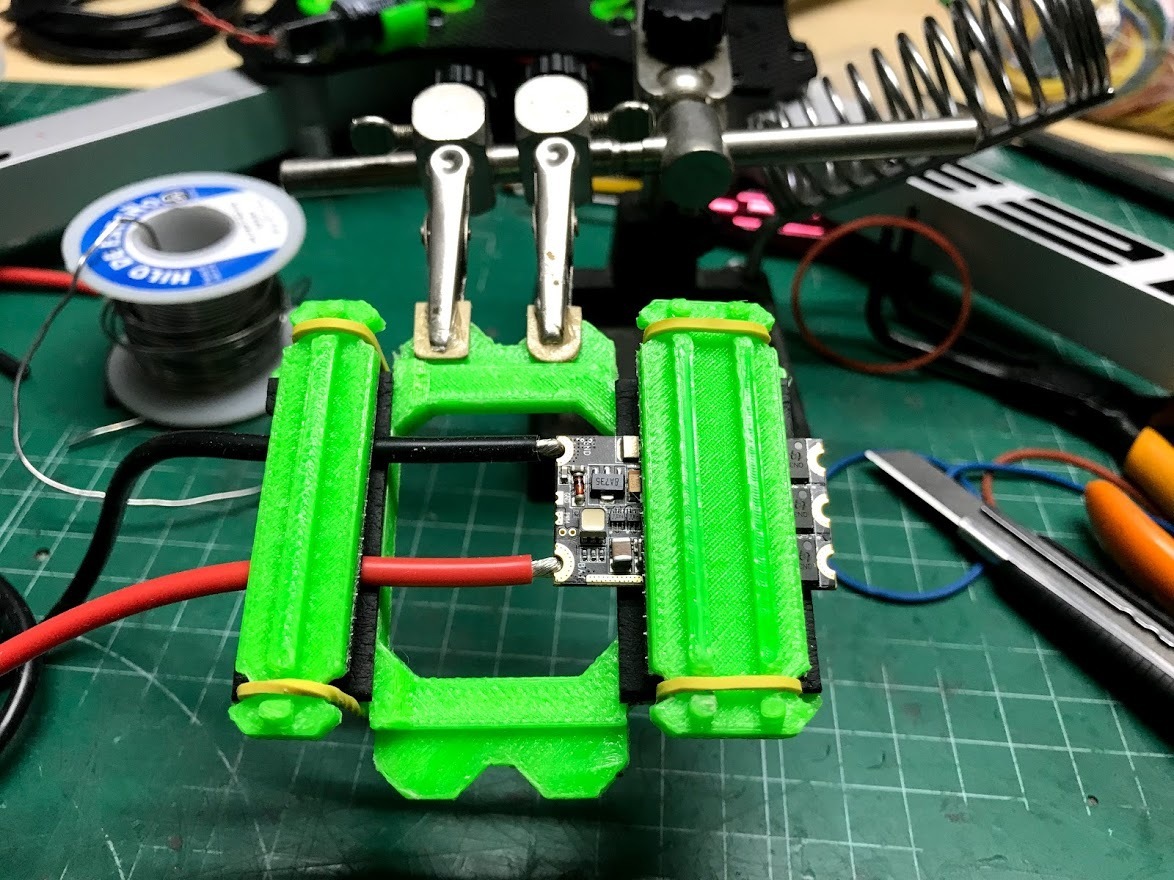

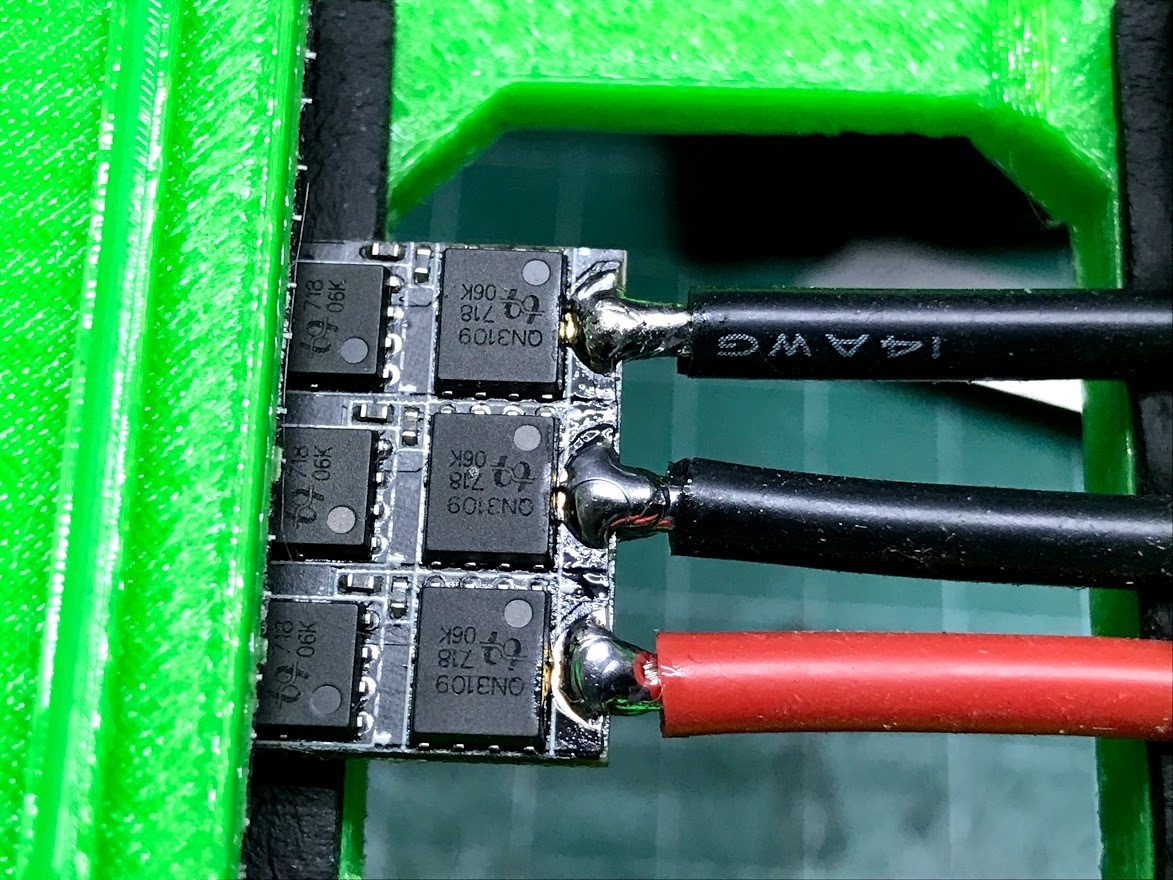

Los ESC,s que salen últimamente al mercado para X Class (y otros..) son mas gruesos y los pads para soldar cubren ambas caras, y además hay otros con un corte de media luna (foto 3). Como mi pulso ya no es lo que era =).. he diseñado un utilaje para tener los cables en la posición correcta con respecto al ESC y así poder soldarlo sin problema!!

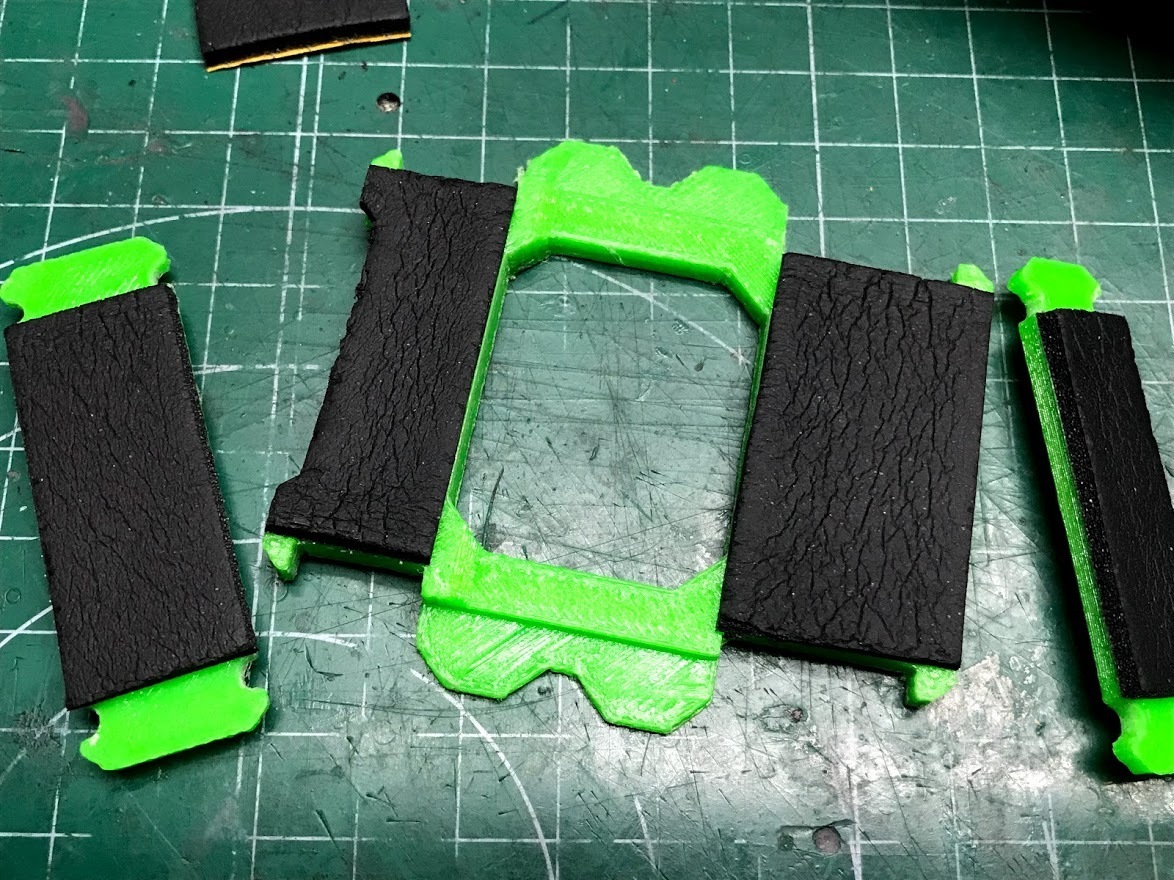

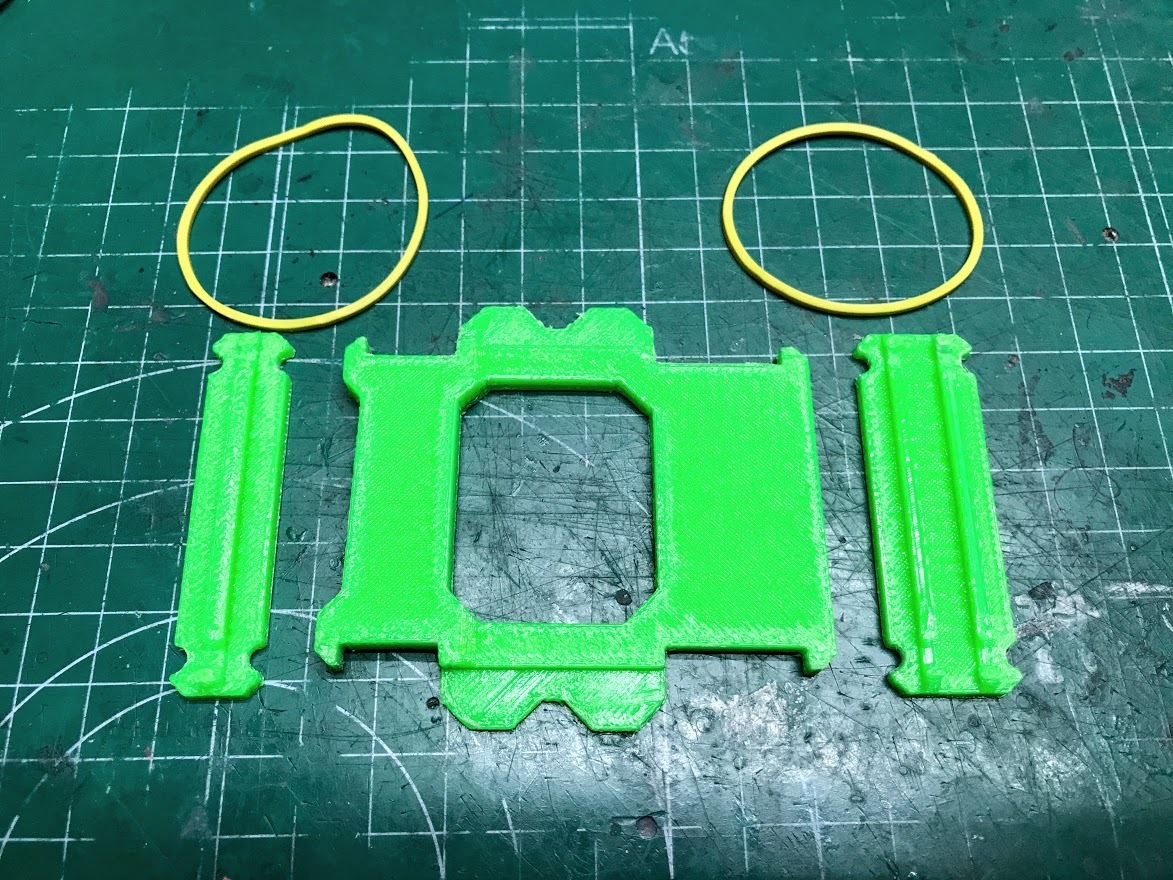

Solo tendremos que añadir un poco de espuma con doble cara para que "agarre" bien el ESC y cables y un par de bandas elásticas.

https://www.facebook.com/Pauldrones-478944299144354/

  • 3D file format: OBJ
  • Publication date: 2019/11/05 at 13:17

Tags

Creator

License

CC BY SA
