X belt tentioner for 606ZZ bearing for the Prusa i3 Hephestos

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 315 views
  • 6 downloads

3D model description

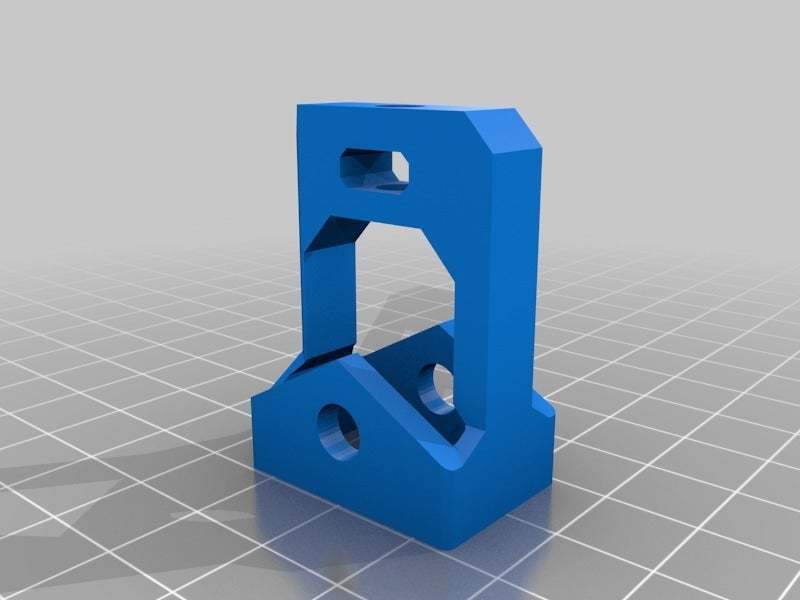

This is a modification for the X carriage belt tensioner using a 606ZZ bearing instead of the 623ZZ. The main bearing hole uses a 6mm bolt and some washers.

The tensioner has a hole to add a nut if needed.

Solidworks 2013 main file added.

3D printing settings

Print like it comes with support touching build plate.

  • 3D file format: SLDPRT and STL

Tags

Creator

Hi, my name is Alejandro, but everybody calls me Alejoo. I am a product designer currently based in Cordoba, Argentina, and I love design and all kinds of creative solutions that brings ideas into real life. In the last few years I have been enrolled in many successful projects which includes: racing equipment, promotional bottles, soda cans, a beer labeling machine, flight training devices, product brochures, user interfaces, among many others.
Currently I am in expansion, willing to improve and integrate new visions and new ways, searching for new challenges and new opportunities.

License

CC BY
